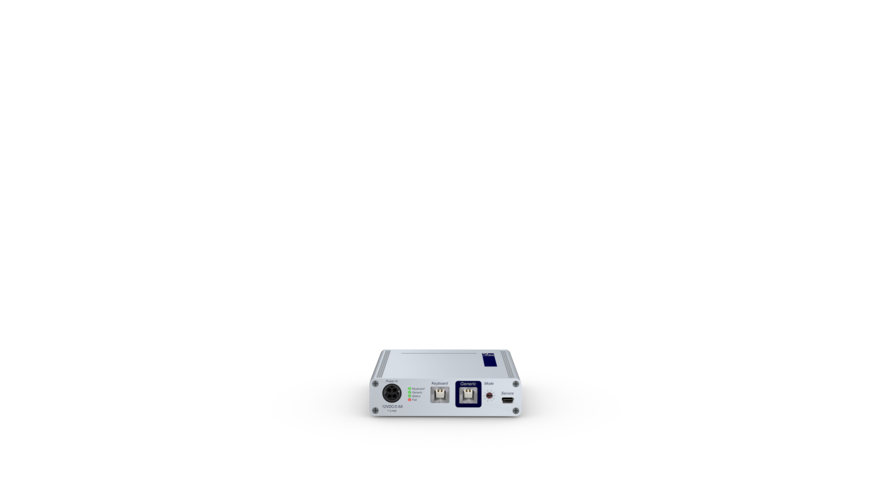

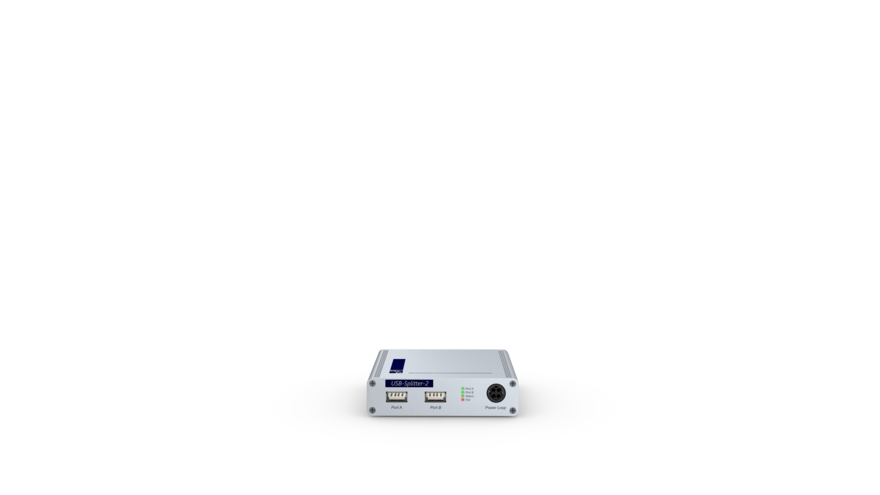

The USB-Splitter-2

is a device for splitting USB HID signals. The device can divide different data streams, which are transferred on one or two USB cables, to several USB outputs.

Signals
  • Splitting of USB HID signals
Device
  • External power supply
Warranty
  • A 3-year, free of charge product guarantee
Device
  • External power pack supplies up to three modules with power via the power loop function
Operation features
  • The following operating modes are supported:
    • Splitting of mouse and keyboard data
    • Support of keyboards with integrated chip card reader
    • Splitting and merging keyboard and mouse signals
    • Pass-through mode (test mode)
GeneralBrand G&D
Product group KVM add-ons
Product Family USB-Splitter-2
Country of origin Germany
Power Supply no redundancy
MaintenanceUpdate via Update Wizard (service interface)
Serviceport settings 115200bps (8/N/1)
HousingMaterial Anodised aluminium
Active cooling (fan) no
Width ca. 105 mm
Height ca. 26 mm
Depth ca. 124 mm
IP protection class IP20
Weight ca. 0.21 kg
Operating conditionsOperating environment temperature 5 °C to 45 °C
Operating air humidity, non-condensing 20 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,000 m
Storage environment temperature -20 °C to 55 °C
Storage air humidity, non-condensing 15 % to 80 %
MTBF 200,000 h at 25°C
Conformities CE compliant (see downloads)
UKCA compliant (see downloads)
EAC compliant (see downloads)
Power supplyQuantity 1
Type External
Input voltage 12 VDC
Current consumption 0.6 A
Power consumption max. 7.2 W
Heat output max. 2.2 W
