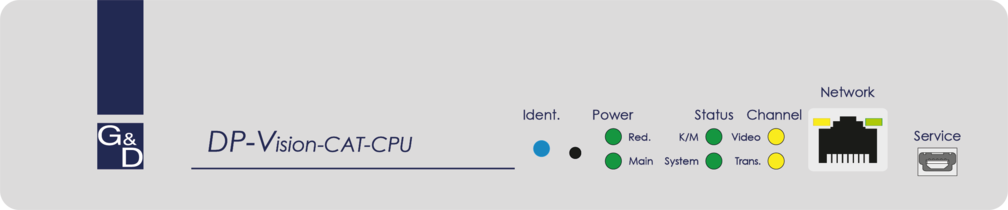

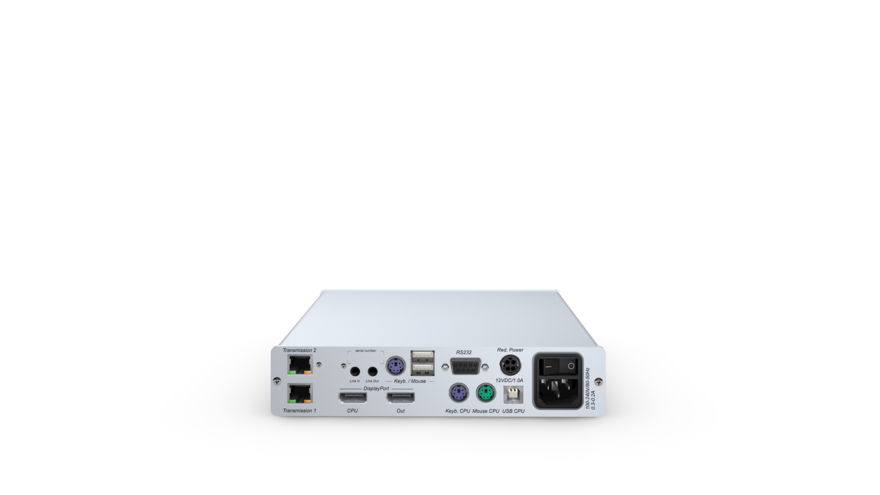

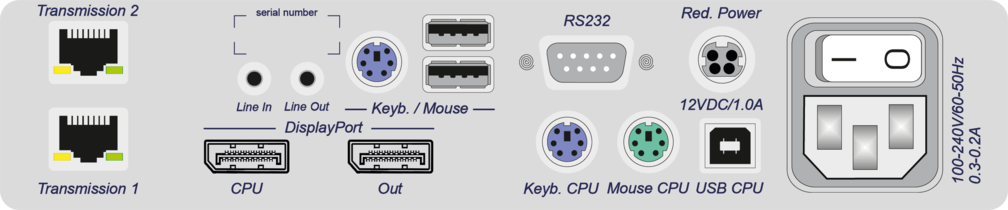

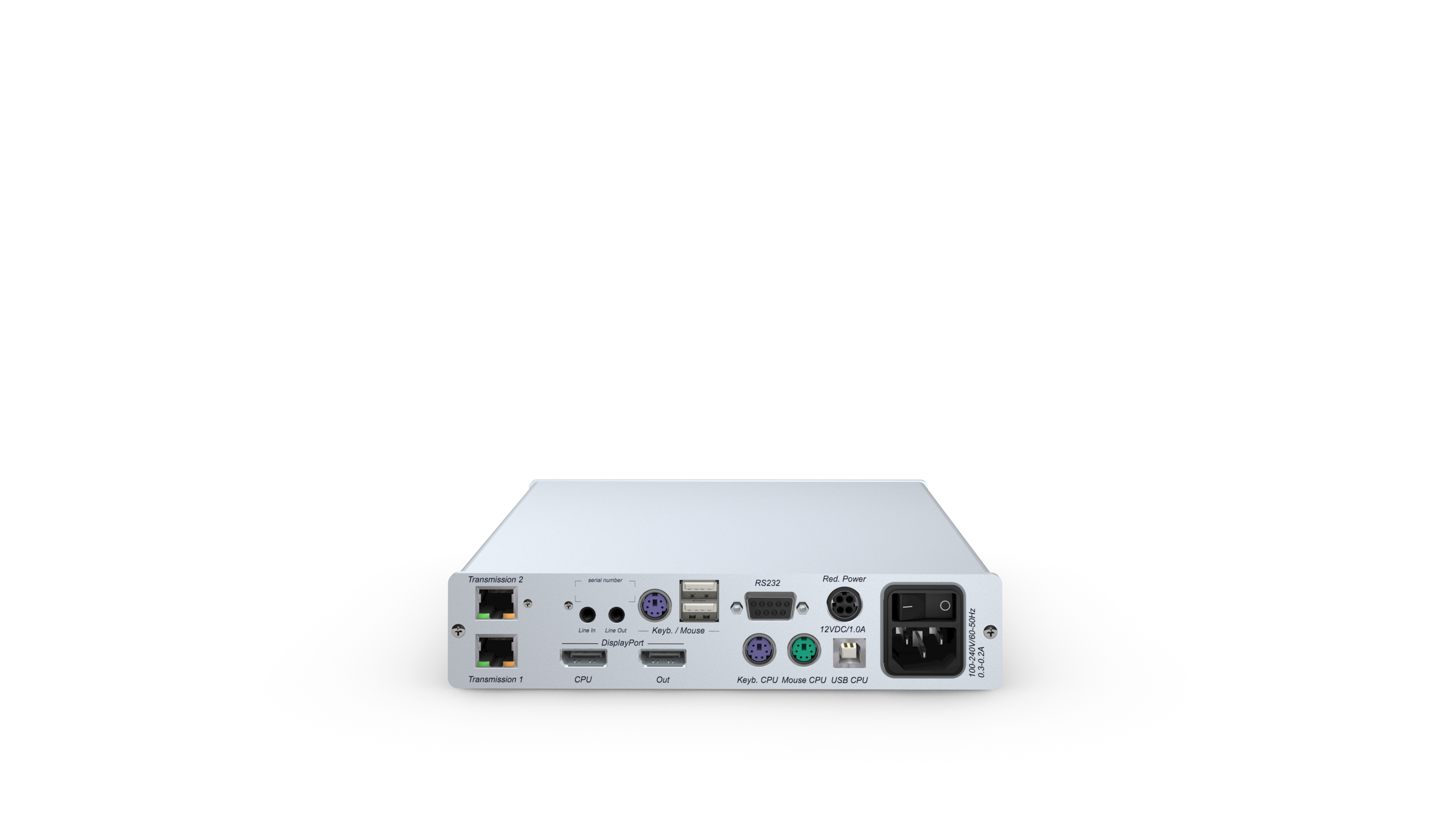

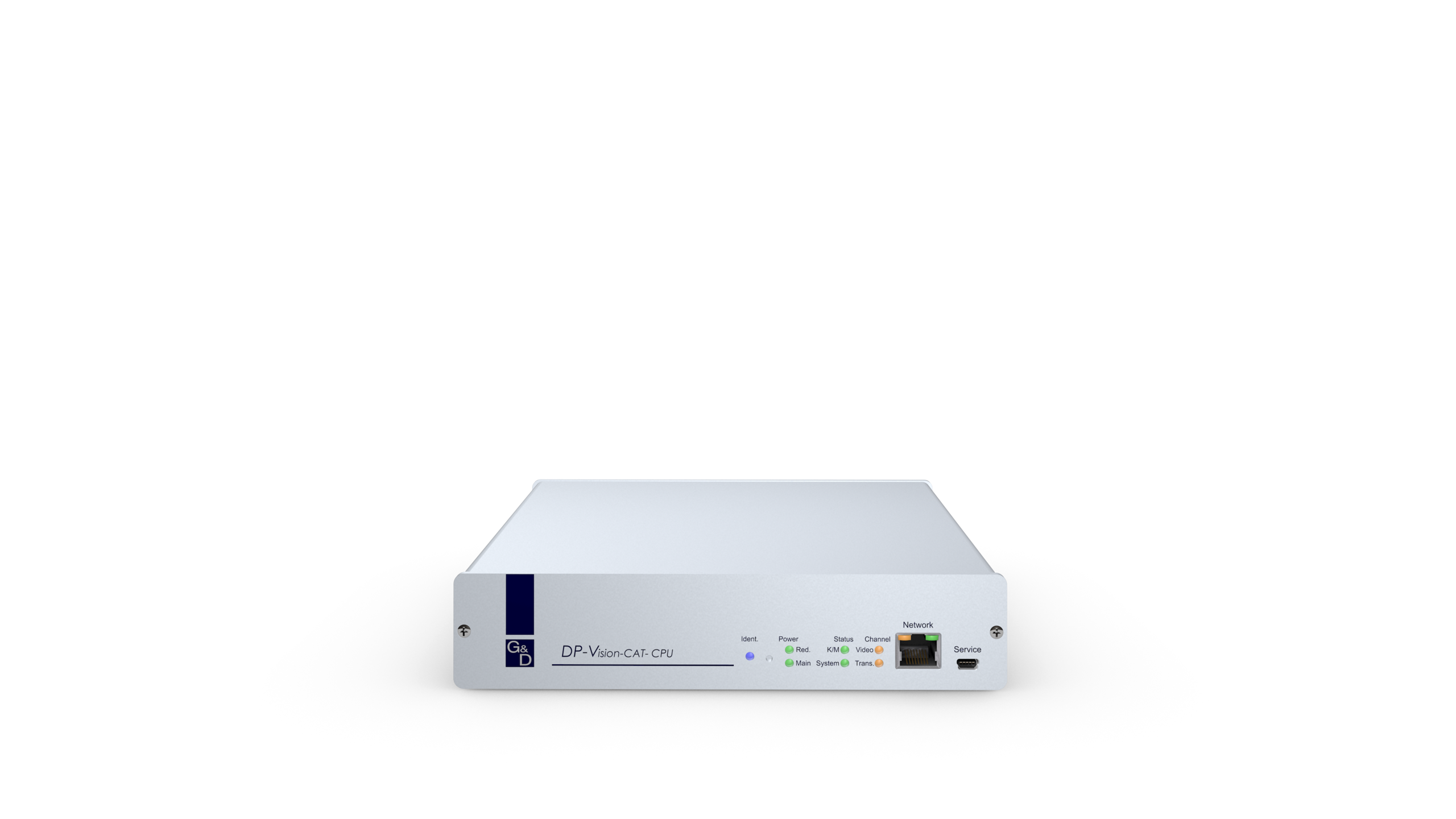

DP-Vision-CAT-ARU-CPU-UC

Item no. A1110200
Back to last view
Displayport™ 1.1DedicatedComputer module2KG&D video compressiontwisted pair cable (CAT)EmbeddedAnalogRS232USBRedundant power supplyInternal power supply Network connection (including monitoring)Local workspaceRedundant transmission
Splitter computer module for transmission of DisplayPort signals to 2 different counterpart stations (extenders or matrix switches) via CAT cable
Request product now
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

The matrix-compatible KVM extenders of the DP-Vision series

extend keyboard, video, and mouse signals, as well as other peripheral data (e.g., audio and USB), via a dedicated CAT or fiber connection (up to 10,000 m). An extender system consists of a computer module (CPU) and a compatible console module (CON). Computers can be controlled in near real-time – both in extender and matrix applications. The DP-Vision series supports DisplayPort 1.1 for high-resolution video up to 2560 × 1600 (60 Hz) or 4096 × 2160 (30 Hz). Video data is processed pixel-perfectly and offers excellent hand-eye coordination, thanks to bluedec™ – G&D's advanced, multi-stage, lossless compression technology.

Video
  • bluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.
  • The end devices can be flexibly combined with each other, even if they process different video signals (Mix & Match)
  • EDID data utilization from the workplace monitor
  • Flexible EDID profile options for optimized monitor settings
  • Resolution up to
    2560 × 1600 @ 60 Hz,
    4096 × 2160 @ 30 Hz
  • Resolution up to
    2560 × 1600 @ 60 Hz,
    4096 × 2160 @ 30 Hz
Signals
  • Embedded stereo audio (Digital, 2 channel LPCM)
  • Transparent audio signals (stereo, analog)
  • Transparent RS232 (max. 115,200 bps)
  • Embedded USB 2.0 with Full Speed, transparent, all USB classes
Transmission
  • The transmission distance is up to 140 meters over CAT
Device
  • Improved security through physical separation between workplaces and computers

  • Access to standard interfaces of the computer, with no software installation required

  • The devices are compatible with the ControlCenter-Digital and ControlCenter-Compact series (matrix operation) and other end devices for computer and workplace connections (extender operation)
  • Internal power pack for main power supply
  • CON-2 variant: console module with two transmission lines for redundancy
    • These modules can be connected to various counterparts, such as compatible computer modules or KVM matrix switches, whereby switching is carried out via pushbuttons, hotkeys or automatically, depending on the configuration
  • UC variant: computer module with two transmission lines for redundancy
    • These modules can be connected to various counterparts, such as compatible console modules or KVM matrix switches
  • MultiChannel variants (MC): Modules for multi-monitor workplaces with multi-channel video
    • MC mode uses the full bandwidth for each video channel, whereby a separate transmission line is required for each channel
Warranty
  • A 3-year, free of charge product guarantee
  • For an additional fee guarantee extensioin/guarantee renewal possible
Security features
  • Console modules do not store security-relevant information such as login credentials, which could be extracted in the event of device loss
  • Early detection of security incidents or unusual activities through continuous monitoring via Syslog, monitoring, and SNMP
  • Comprehensive rights management and user administration, allowing precise control over which user can access which resources
  • Option for activatable access protection (default operating mode in matrix systems), in which authentication is required before accessing computer sources
  • Support for external directory services (Active Directory, Radius, LDAP) to meet company security policies
  • To comply with individual password policies and improve security, password complexity can be configured system-wide
  • Configurable login options, such as displaying terms of use or setting the maximum acceptable number of failed login attempts, can enhance system security
  • Auto Backup Function: Automates backups at user-defined intervals and replaces manual intervention – ensuring reliable, timely data protection without the need for continuous monitoring
  • Freeze function: If the video signal is lost, the last displayed image is frozen and highlighted with a colored frame and timer
  • 2-Factor-Authentication (2FA) – is integrated by default in KVM extenders and enhances security by requiring a second, possession-based factor during user authentication:
    • The traditional password authentication is combined with a time-limited, single-use code (Time-Based-One-Time-Password - TOTP)
    • You can choose between using the internal authentication server provided in the device or an external directory service
    • Authenticator apps or hardware token can be used
    • This additional layer of protection prevents unauthorized access and ensures the highest level of security, particularly in sensitive IT environments
Operation features
  • Ready for operation out of the box, no additional configuration required
  • Permanent keyboard/mouse emulation ensures a stable system
  • Compatibility with special USB-HID input devices
  • Operation via multilingual on-screen display (OSD) and hotkeys
  • Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)
  • Support of DDC/CI (Display Data Channel / Command Interface) to enable centralized software-side control of monitor settings such as brightness
  • Local console at the computer module allows on-site operation, including all video channels
  • Exclusive or concurrent operation: The KVM extender allows computer control both remotely and locally. When an input is detected, the extender automatically locks the competing console. The lock is lifted after a preset timeout if no further input is detected. A key combination can activate exclusive operation, immediately disabling the competing console. Another key combination restores shared control.
Device
  • External power supply via external 12V power pack or G&D-MultiPower, providing a central and redundant power supply
  • Device mounting via RackMount sets, TableMount sets or other mounting tools
System expansion
  • You can integrate the matrix-compatible extenders into a complete installation with a ControlCenter-Compact or ControlCenter-Digital, even at a later point in time. This provides you with even greater flexibility through the possibility of distributed access – and the existing components can continue to be used.
GeneralProduct group KVM extenders
Product Family Vision
KVM matrix system component Computer module (digital)
Power Supply Redundancy without load balancing
Input optionsUSB mouse yes
USB keyboard yes
PS/2 mouse yes
PS/2 keyboard yes
TransmissionNumber of transmission channels 1
Redundant transmission channels Redundant KVM transmission available
Range 140 m (AWG22)
100 m (AWG24)
80 m (AWG26)
Medium CAT5e
CAT6
CAT7
Data rate 1 Gbit/s
Video inputQuantity 1
Format DisplayPort 1.1 (HBR)
Colour depth 24 bit
Pixel rate ca. 25 MPixel/s to 300 MPixel/s
Vertical frequency 24 Hz to 120 Hz
Horizontal frequency 25 kHz to 185 kHz
Exemplary resolutions 4096 × 2160 (30 Hz)
4096 × 2160 (25 Hz)
4096 × 2160 (24 Hz)
3840 × 2160 (30 Hz)
3840 × 2160 (25 Hz)
3840 × 2160 (24 Hz)
2560 × 1600 (60 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Supported industry standards Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Video outputQuantity 1
Format DisplayPort 1.1 (HBR)
Colour depth 24 bit
Pixel rate ca. 25 MPixel/s to 300 MPixel/s
Vertical frequency 24 Hz to 120 Hz
Horizontal frequency 25 kHz to 185 kHz
Exemplary resolutions 4096 × 2160 (30 Hz)
4096 × 2160 (25 Hz)
4096 × 2160 (24 Hz)
3840 × 2160 (30 Hz)
3840 × 2160 (25 Hz)
3840 × 2160 (24 Hz)
2560 × 1600 (60 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Supported industry standards Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Audio 1Transmission type Stereo
2-channel LPCM
Resolutions 24 bit
20 bit
16 bit
Sampling rate up to 48 kHz
Audio support Digital Embedded
Audio 2Transmission type Stereo
Transparent
Resolutions 24 bit digital
Sampling rate up to 96 kHz
Bandwidth 22 kHz
Audio support Analog
USBSpecification USB 2.0
Medium Embedded
Transmission rate max. 16 Mbit/s (app. Full Speed)
Range max. 140 m
Power (output) 500 mA (HighPower)
USB classes All
SerialStandard RS232
Transparent transmission yes
Data rate max. 115,200 bps
Signals TxD
RxD
DTR
DSR
RTS
CTS
DCD
NetworkQuantity 1
Medium CAT5
CAT6
CAT7
Data rate 10 Mbit/s
100 Mbit/s
MaintenanceUpdate via ConfigPanel (Network)
Serviceport settings 115200bps (8/N/1)
HousingMaterial anodised aluminium
Width ca. 210 mm
Height ca. 44 mm
Depth ca. 210 mm
IP protection class IP20
Weight ca. 1.37 kg
Operating conditionsOperating temperature 5 °C to 45 °C
Operating air humidity, non-condensing 20 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,048 m
Storage temperature -20 °C to 60 °C
Storage air humidity, non-condensing 15 % to 85 %
MTBF 200,000 h at 25°C
Conformities CE compliant (see downloads)
UKCA compliant (see downloads)
UL compliant (see downloads)
CB compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supply 1Quantity 1
Type Internal
Input voltage 100-240 VAC
Input frequency 60-50 Hz
Current consumption 0.3-0.2 A
Power consumption max. 13.1 W
Heat output max. 10.1 W
Power supply 2Quantity 1
Type External
Input voltage 12 VDC
Current consumption 1 A
Power consumption max. 11.4 W
Heat output max. 8.4 W
