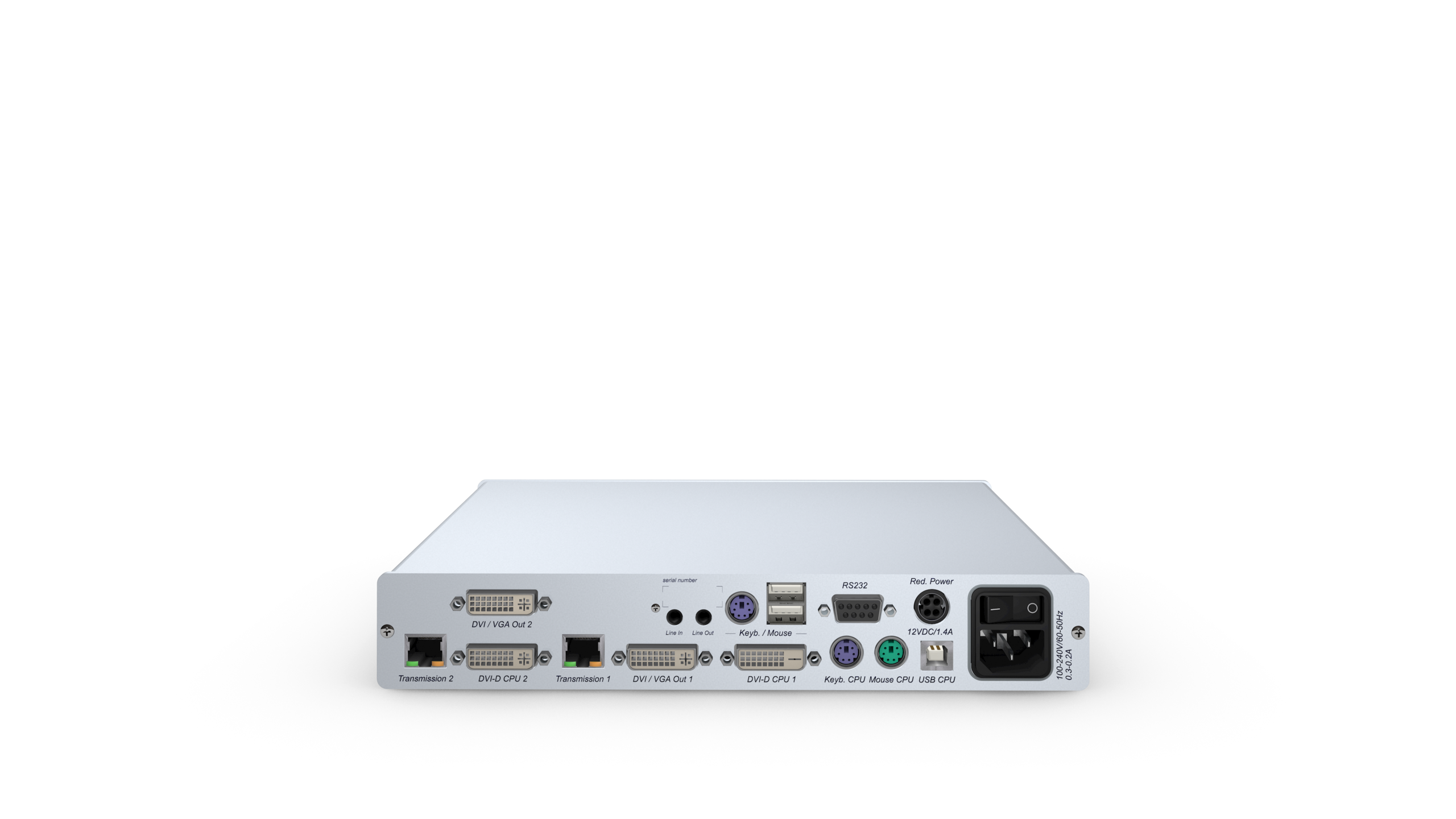

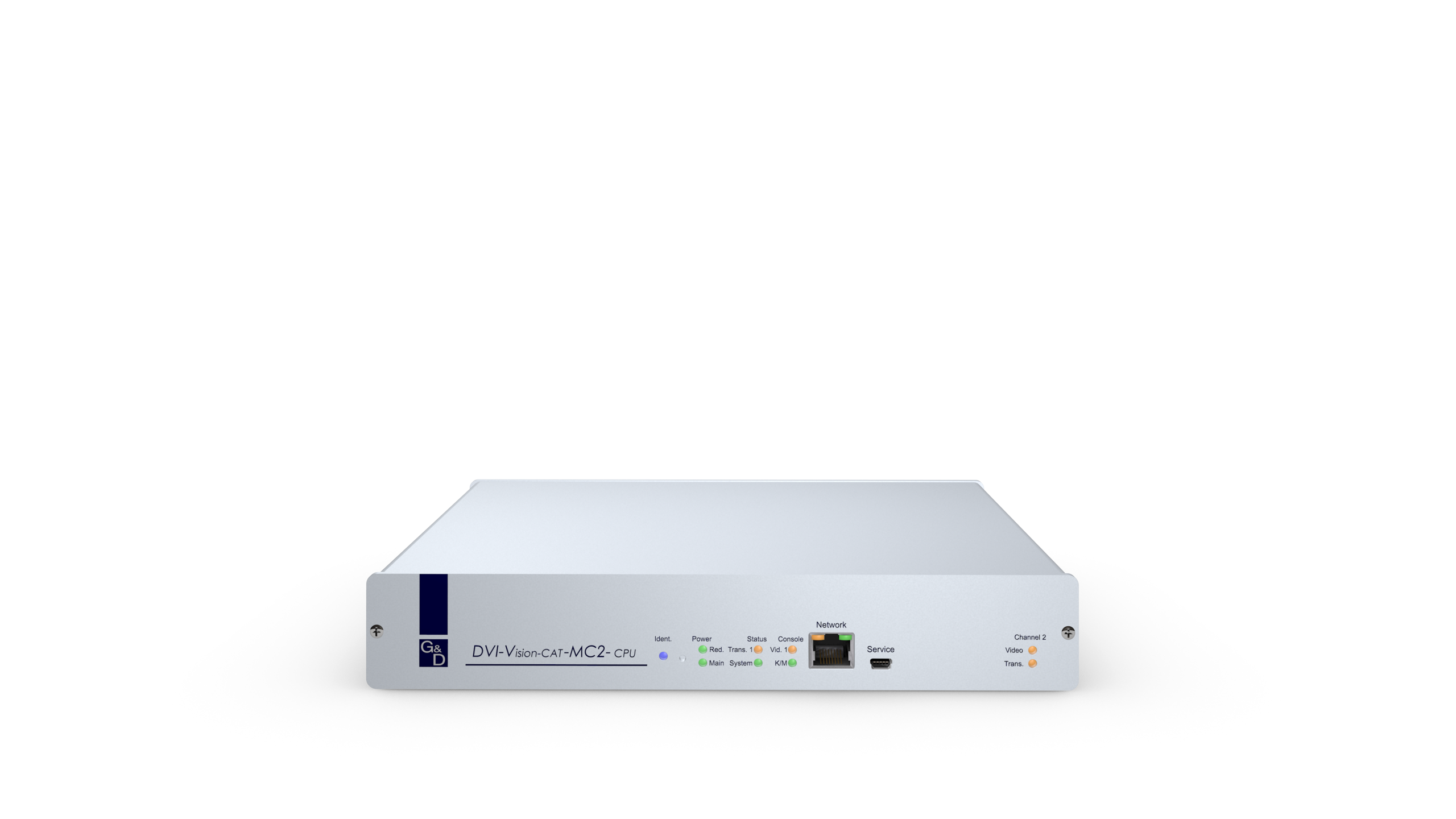

extend keyboard, video, and mouse signals, as well as other peripheral data (e.g., audio and USB), via a dedicated CAT or fiber connection (up to 10,000 m). An extender system consists of a computer module (CPU) and a compatible console module (CON). Computers can be controlled in near real-time – both in extender and matrix applications. The DVI-Vision series supports SingleLink DVI for digital video resolutions up to 1920 × 1200 (60 Hz). Video data is processed pixel-perfectly and offers excellent hand-eye coordination, thanks to bluedec™ – G&D's advanced, multi-stage, lossless compression technology.
Access to standard interfaces of the computer, with no software installation required
| General | Product group |
KVM extenders KVM matrix systems |
|---|---|---|
| Input options | USB mouse |
yes |
| USB keyboard |
yes | |
| PS/2 mouse |
yes | |
| PS/2 keyboard |
yes | |
| Transmission | Number of transmission channels |
2 |
| Redundant transmission channels |
no redundant KVM transmission | |
| Range |
140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | |
| KVM matrix system component |
Computer module | |
| Medium |
CAT5e CAT6 CAT7 | |
| Data rate |
1 Gbit/s | |
| Video input | Number of video channels |
2 |
| Format |
Singlelink DVI | |
| Colour depth |
24 bit | |
| Pixel rate |
ca. 25 MHz to ca. 165 MHz | |
| Vertical frequency |
24 Hz to 120 Hz | |
| Horizontal frequency |
25 kHz to 130 kHz | |
| Exemplary resolutions |
1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Supported interlace resolutions |
1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | |
| Video output | Number of video channels |
2 |
| Format |
Singlelink DVI | |
| Colour depth |
24 bit | |
| Pixel rate |
ca. 25 MHz to ca. 165 MHz | |
| Vertical frequency |
24 Hz to 120 Hz | |
| Horizontal frequency |
25 kHz to 130 kHz | |
| Exemplary resolutions |
1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Supported interlace resolutions |
400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | |
| Note |
Only the listed Interlace formats are supported. | |
| Audio | Transmission type |
Stereo Transparent |
| Resolutions |
24 bit digital | |
| Sampling rate |
up to 96 kHz | |
| Bandwidth |
22 kHz | |
| Audio support |
Analog | |
| USB | Specification |
USB 2.0 |
| Medium |
Embedded | |
| Transmission rate |
16 Mbit/s (app. Full Speed) | |
| Range |
max. 140 m | |
| Power (output) |
500 mA (HighPower) | |
| USB classes |
All | |
| Serial | Standard |
RS232 |
| Transparent transmission |
yes | |
| Data rate |
max. 115200 bps | |
| Signals |
TxD RxD DTR DSR RTS CTS DCD | |
| Network | Medium 1 |
CAT5 CAT6 CAT7 |
| Data rate 1 |
10 MBit/s 100 MBit/s | |
| Maintenance | Update via |
ConfigPanel (Network) |
| Serviceport settings |
115200bps (8/N/1) | |
| Housing | Material |
anodised aluminium |
| Width |
ca. 270 mm | |
| Height |
ca. 44 mm | |
| Depth |
ca. 210 mm | |
| IP protection class |
IP20 | |
| Weight |
ca. 1.61 kg | |
| Operating conditions | Operating temperature |
5 °C to 45 °C |
| Operating air humidity |
20 % to 80 %, non-condensing | |
| Area of application |
Interior | |
| Maximum operating altitude |
3048m above sea level | |
| Storage temperature |
-20 °C to 60 °C | |
| Storage air humidity |
15 % to 85 %, non-condensing | |
| MTBF |
200000 h at 25°C | |
| Conformities |
CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | |
| Power supply | Input voltage |
100-240 VAC |
| Input frequency |
60-50 Hz | |
| Current consumption |
0.3-0.2 A | |
| Power consumption max. |
17.9 W | |
| Heat output max. |
14.9 W | |
| Power supply 2 | Input voltage |
12 VDC |
| Current consumption |
1.4 A | |
| Power consumption max. |
15.4 W | |
| Heat output max. |
12.4 W |
Technical data | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| General | General | General | General | General | General | General | General | General | General | General | General | General | General | ||||
| General | Product group | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | Product group KVM extenders KVM matrix systems | ||
| Input options | Input options | Input options | Input options | Input options | Input options | Input options | Input options | Input options | Input options | Input options | Input options | Input options | Input options | ||||
| Input options | USB mouse | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | ||
| USB keyboard | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | |||
| PS/2 mouse | PS/2 mouse yes | PS/2 mouse yes | PS/2 mouse yes | PS/2 mouse yes | PS/2 mouse yes | PS/2 mouse yes | PS/2 mouse yes | PS/2 mouse yes | PS/2 mouse yes | PS/2 mouse yes | PS/2 mouse yes | PS/2 mouse yes | PS/2 mouse yes | PS/2 mouse yes | |||
| PS/2 keyboard | PS/2 keyboard yes | PS/2 keyboard yes | PS/2 keyboard yes | PS/2 keyboard yes | PS/2 keyboard yes | PS/2 keyboard yes | PS/2 keyboard yes | PS/2 keyboard yes | PS/2 keyboard yes | PS/2 keyboard yes | PS/2 keyboard yes | PS/2 keyboard yes | PS/2 keyboard yes | PS/2 keyboard yes | |||
| Transmission | Transmission | Transmission | Transmission | Transmission | Transmission | Transmission | Transmission | Transmission | Transmission | Transmission | Transmission | Transmission | Transmission | ||||
| Transmission | Number of transmission channels | Number of transmission channels 1 | Number of transmission channels 2 | Number of transmission channels 1 | Number of transmission channels 2 | Number of transmission channels 2 | Number of transmission channels 2 | Number of transmission channels 2 | Number of transmission channels 3 | Number of transmission channels 3 | Number of transmission channels 3 | Number of transmission channels 4 | Number of transmission channels 4 | Number of transmission channels 4 | Number of transmission channels 5 | ||
| Redundant transmission channels | Redundant transmission channels no redundant KVM transmission | Redundant transmission channels Redundant KVM transmission available | Redundant transmission channels no redundant KVM transmission | Redundant transmission channels Redundant KVM transmission available | Redundant transmission channels no redundant KVM transmission | Redundant transmission channels no redundant KVM transmission | Redundant transmission channels no redundant KVM transmission | Redundant transmission channels no redundant KVM transmission | Redundant transmission channels no redundant KVM transmission | Redundant transmission channels no redundant KVM transmission | Redundant transmission channels no redundant KVM transmission | Redundant transmission channels no redundant KVM transmission | Redundant transmission channels no redundant KVM transmission | Redundant transmission channels no redundant KVM transmission | |||
| Range | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26) | |||
| KVM matrix system component | KVM matrix system component Computer module | KVM matrix system component Computer module | KVM matrix system component Computer module | KVM matrix system component Computer module | KVM matrix system component Computer module | KVM matrix system component Computer module | KVM matrix system component Computer module | KVM matrix system component Computer module | KVM matrix system component Computer module | KVM matrix system component Computer module | KVM matrix system component Computer module | KVM matrix system component Computer module | KVM matrix system component Computer module | KVM matrix system component Computer module | |||
| Medium | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | Medium CAT5e CAT6 CAT7 | |||
| Data rate | Data rate 1 Gbit/s | Data rate 1 Gbit/s | Data rate 1 Gbit/s | Data rate 1 Gbit/s | Data rate 1 Gbit/s | Data rate 1 Gbit/s | Data rate 1 Gbit/s | Data rate 1 Gbit/s | Data rate 1 Gbit/s | Data rate 1 Gbit/s | Data rate 1 Gbit/s | Data rate 1 Gbit/s | Data rate 1 Gbit/s | Data rate 1 Gbit/s | |||
| Video input | Video input | Video input | Video input | Video input | Video input | Video input | Video input | Video input | Video input | Video input | Video input | Video input | Video input | ||||
| Video input | Number of video channels | Number of video channels 1 | Number of video channels 1 | Number of video channels 1 | Number of video channels 1 | Number of video channels 1 | Number of video channels 2 | Number of video channels 2 | Number of video channels 2 | Number of video channels 3 | Number of video channels 3 | Number of video channels 3 | Number of video channels 4 | Number of video channels 4 | Number of video channels 4 | ||
| Format | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | |||
| Colour depth | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | |||
| Pixel rate | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | |||
| Vertical frequency | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | |||
| Horizontal frequency | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | |||
| Exemplary resolutions | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |||
| Supported interlace resolutions | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | Supported interlace resolutions 1080i (60 Hz) 1080i (50 Hz) 576i (50 Hz) 400i (60 Hz) | |||
| Video output | Video output | Video output | Video output | Video output | Video output | Video output | Video output | Video output | Video output | Video output | Video output | Video output | Video output | ||||
| Video output | Number of video channels | Number of video channels 1 | Number of video channels 1 | Number of video channels 1 | Number of video channels 1 | Number of video channels 1 | Number of video channels 2 | Number of video channels 2 | Number of video channels 2 | Number of video channels 3 | Number of video channels 3 | Number of video channels 3 | Number of video channels 4 | Number of video channels 4 | Number of video channels 4 | ||
| Format | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | Format Singlelink DVI | |||
| Colour depth | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | |||
| Pixel rate | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | Pixel rate ca. 25 MHz to ca. 165 MHz | |||
| Vertical frequency | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | Vertical frequency 24 Hz to 120 Hz | |||
| Horizontal frequency | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | Horizontal frequency 25 kHz to 130 kHz | |||
| Exemplary resolutions | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |||
| Supported interlace resolutions | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | Supported interlace resolutions 400i (60 Hz) 576i (50 Hz) 1080i (50 Hz) 1080i (60 Hz) | |||
| Serial | Serial | Serial | Serial | Serial | Serial | Serial | Serial | Serial | Serial | Serial | Serial | Serial | Serial | ||||
| Serial | Standard | Standard RS232 | Standard RS232 | Standard RS232 | Standard RS232 | Standard RS232 | Standard RS232 | Standard RS232 | Standard RS232 | Standard RS232 | Standard RS232 | Standard RS232 | Standard RS232 | Standard RS232 | Standard RS232 | ||
| Transparent transmission | Transparent transmission yes | Transparent transmission yes | Transparent transmission yes | Transparent transmission yes | Transparent transmission yes | Transparent transmission yes | Transparent transmission yes | Transparent transmission yes | Transparent transmission yes | Transparent transmission yes | Transparent transmission yes | Transparent transmission yes | Transparent transmission yes | Transparent transmission yes | |||
| Data rate | Data rate max. 115200 bps | Data rate max. 115200 bps | Data rate max. 115200 bps | Data rate max. 115200 bps | Data rate max. 115200 bps | Data rate max. 115200 bps | Data rate max. 115200 bps | Data rate max. 115200 bps | Data rate max. 115200 bps | Data rate max. 115200 bps | Data rate max. 115200 bps | Data rate max. 115200 bps | Data rate max. 115200 bps | Data rate max. 115200 bps | |||
| Signals | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | Signals TxD RxD DTR DSR RTS CTS DCD | |||
| Network | Network | Network | Network | Network | Network | Network | Network | Network | Network | Network | Network | Network | Network | ||||
| Network | Medium 1 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | Medium 1 CAT5 CAT6 CAT7 | ||
| Data rate 1 | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | Data rate 1 10 MBit/s 100 MBit/s | |||
| Maintenance | Maintenance | Maintenance | Maintenance | Maintenance | Maintenance | Maintenance | Maintenance | Maintenance | Maintenance | Maintenance | Maintenance | Maintenance | Maintenance | ||||
| Maintenance | Update via | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | Update via ConfigPanel (Network) | ||
| Serviceport settings | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | |||
| Housing | Housing | Housing | Housing | Housing | Housing | Housing | Housing | Housing | Housing | Housing | Housing | Housing | Housing | ||||
| Housing | Material | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | ||
| Width | Width ca. 210 mm | Width ca. 210 mm | Width ca. 210 mm | Width ca. 210 mm | Width ca. 270 mm | Width ca. 270 mm | Width ca. 270 mm | Width ca. 270 mm | Width ca. 436 mm | Width ca. 436 mm | Width ca. 436 mm | Width ca. 436 mm | Width ca. 436 mm | Width ca. 436 mm | |||
| Height | Height ca. 44 mm | Height ca. 44 mm | Height ca. 44 mm | Height ca. 44 mm | Height ca. 44 mm | Height ca. 44 mm | Height ca. 44 mm | Height ca. 44 mm | Height ca. 44 mm | Height ca. 44 mm | Height ca. 44 mm | Height ca. 44 mm | Height ca. 44 mm | Height ca. 44 mm | |||
| Depth | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | |||
| IP protection class | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | |||
| Weight | Weight ca. 1.28 kg | Weight ca. 1.32 kg | Weight ca. 1.28 kg | Weight ca. 1.32 kg | Weight ca. 1.53 kg | Weight ca. 1.60 kg | Weight ca. 1.61 kg | Weight ca. 1.67 kg | Weight ca. 2.25 kg | Weight ca. 2.27 kg | Weight ca. 2.35 kg | Weight ca. 2.41 kg | Weight ca. 2.41 kg | Weight ca. 2.49 kg | |||
| Operating conditions | Operating conditions | Operating conditions | Operating conditions | Operating conditions | Operating conditions | Operating conditions | Operating conditions | Operating conditions | Operating conditions | Operating conditions | Operating conditions | Operating conditions | Operating conditions | ||||
| Operating conditions | Operating temperature | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | ||
| Operating air humidity | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | |||
| Area of application | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | |||
| Maximum operating altitude | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | |||
| Storage temperature | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | |||
| Storage air humidity | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | |||
| MTBF | MTBF 200000 h at 25°C | MTBF 200000 h at 25°C | MTBF 200000 h at 25°C | MTBF 200000 h at 25°C | MTBF 200000 h at 25°C | MTBF 200000 h at 25°C | MTBF 200000 h at 25°C | MTBF 200000 h at 25°C | MTBF 146000 h at 25°C | MTBF 146000 h at 25°C | MTBF 146000 h at 25°C | MTBF 146000 h at 25°C | MTBF 146000 h at 25°C | MTBF 146000 h at 25°C | |||
| Conformities | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | |||
| Power supply | Power supply | Power supply | Power supply | Power supply | Power supply | Power supply | Power supply | Power supply | Power supply | Power supply | Power supply | Power supply | Power supply | ||||
| Power supply | Input voltage | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | ||
| Input frequency | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | |||
| Current consumption | Current consumption 0.3-0.2 A | Current consumption 0.3-0.2 A | Current consumption 0.3-0.2 A | Current consumption 0.3-0.2 A | Current consumption 0.3-0.2 A | Current consumption 0.3-0.2 A | Current consumption 0.3-0.2 A | Current consumption 0.4-0.2 A | Current consumption 0.5-0.3 A | Current consumption 0.5-0.3 A | Current consumption 0.6-0.3 A | Current consumption 0.5-0.3 A | Current consumption 0.5-0.3 A | Current consumption 0.6-0.3 A | |||
| Power consumption max. | Power consumption max. 11.6 W | Power consumption max. 12.4 W | Power consumption max. 12.1 W | Power consumption max. 12.9 W | Power consumption max. 13.6 W | Power consumption max. 17.4 W | Power consumption max. 17.9 W | Power consumption max. 19.4 W | Power consumption max. 24 W | Power consumption max. 24.5 W | Power consumption max. 26 W | Power consumption max. 30.1 W | Power consumption max. 30.6 W | Power consumption max. 32.1 W | |||
| Heat output max. | Heat output max. 8.6 W | Heat output max. 9.4 W | Heat output max. 9.1 W | Heat output max. 9.9 W | Heat output max. 10.6 W | Heat output max. 14.4 W | Heat output max. 14.9 W | Heat output max. 16.4 W | Heat output max. 21 W | Heat output max. 21.5 W | Heat output max. 23 W | Heat output max. 27.2 W | Heat output max. 27.7 W | Heat output max. 29.2 W | |||
| Power supply 2 | Power supply 2 | Power supply 2 | Power supply 2 | Power supply 2 | Power supply 2 | Power supply 2 | Power supply 2 | Power supply 2 | Power supply 2 | Power supply 2 | Power supply 2 | Power supply 2 | Power supply 2 | ||||
| Power supply 2 | Input voltage | Input voltage 12 VDC | Input voltage 12 VDC | Input voltage 12 VDC | Input voltage 12 VDC | Input voltage 12 VDC | Input voltage 12 VDC | Input voltage 12 VDC | Input voltage 12 VDC | Input voltage 12 VDC | Input voltage 12 VDC | Input voltage 12 VDC | Input voltage 12 VDC | Input voltage 12 VDC | Input voltage 12 VDC | ||
| Current consumption | Current consumption 0.9 A | Current consumption 0.9 A | Current consumption 0.9 A | Current consumption 0.9 A | Current consumption 1.1 A | Current consumption 1.4 A | Current consumption 1.4 A | Current consumption 1.5 A | Current consumption 2.3 A | Current consumption 2.3 A | Current consumption 2.5 A | Current consumption 2.3 A | Current consumption 2.3 A | Current consumption 2.5 A | |||
| Power consumption max. | Power consumption max. 10 W | Power consumption max. 10.7 W | Power consumption max. 10.4 W | Power consumption max. 11.1 W | Power consumption max. 11.7 W | Power consumption max. 15 W | Power consumption max. 15.4 W | Power consumption max. 16.7 W | Power consumption max. 20.6 W | Power consumption max. 21 W | Power consumption max. 22.3 W | Power consumption max. 25.9 W | Power consumption max. 26.3 W | Power consumption max. 27.6 W | |||
| Heat output max. | Heat output max. 7 W | Heat output max. 7.7 W | Heat output max. 7.4 W | Heat output max. 8.1 W | Heat output max. 8.7 W | Heat output max. 12 W | Heat output max. 12.4 W | Heat output max. 13.7 W | Heat output max. 17.6 W | Heat output max. 18.1 W | Heat output max. 19.3 W | Heat output max. 22.9 W | Heat output max. 23.4 W | Heat output max. 24.7 W | |||
| Audio | Audio | Audio | Audio | Audio | Audio | Audio | Audio | Audio | Audio | Audio | Audio | Audio | Audio | ||||
| Audio | Transmission type | Transmission type Stereo Transparent | Transmission type Stereo Transparent | Transmission type Stereo Transparent | Transmission type Stereo Transparent | Transmission type Stereo Transparent | Transmission type Stereo Transparent | Transmission type Stereo Transparent | Transmission type Stereo Transparent | Transmission type Stereo Transparent | Transmission type Stereo Transparent | Transmission type Stereo Transparent | Transmission type Stereo Transparent | Transmission type Stereo Transparent | Transmission type Stereo Transparent | ||
| Resolutions | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | |||
| Sampling rate | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | |||
| Bandwidth | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | |||
| Audio support | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | |||
| USB | USB | USB | USB | USB | USB | USB | USB | USB | USB | USB | USB | USB | USB | ||||
| USB | Separate USB transmission port | Separate USB transmission port Value not available | Separate USB transmission port Value not available | Separate USB transmission port Value not available | Separate USB transmission port Value not available | Separate USB transmission port yes | Separate USB transmission port Value not available | Separate USB transmission port Value not available | Separate USB transmission port yes | Separate USB transmission port Value not available | Separate USB transmission port Value not available | Separate USB transmission port yes | Separate USB transmission port Value not available | Separate USB transmission port Value not available | Separate USB transmission port yes | ||
| Specification | Specification Value not available | Specification Value not available | Specification USB 2.0 | Specification USB 2.0 | Specification USB 2.0 | Specification Value not available | Specification USB 2.0 | Specification USB 2.0 | Specification Value not available | Specification USB 2.0 | Specification USB 2.0 | Specification Value not available | Specification USB 2.0 | Specification USB 2.0 | |||
| Medium | Medium Value not available | Medium Value not available | Medium Embedded | Medium Embedded | Medium CAT5e CAT6 CAT7 | Medium Value not available | Medium Embedded | Medium CAT5e CAT6 CAT7 | Medium Value not available | Medium Embedded | Medium CAT5e CAT6 CAT7 | Medium Value not available | Medium Embedded | Medium CAT5e CAT6 CAT7 | |||
| Transmission rate | Transmission rate Value not available | Transmission rate Value not available | Transmission rate 16 Mbit/s (app. Full Speed) | Transmission rate 16 Mbit/s (app. Full Speed) | Transmission rate 480 Mbit/s (Hi-Speed) | Transmission rate Value not available | Transmission rate 16 Mbit/s (app. Full Speed) | Transmission rate 480 Mbit/s (Hi-Speed) | Transmission rate Value not available | Transmission rate 16 Mbit/s (app. Full Speed) | Transmission rate 480 Mbit/s (Hi-Speed) | Transmission rate Value not available | Transmission rate 16 Mbit/s (app. Full Speed) | Transmission rate 480 Mbit/s (Hi-Speed) | |||
| Range | Range Value not available | Range Value not available | Range max. 140 m | Range max. 140 m | Range max. 100 m | Range Value not available | Range max. 140 m | Range max. 100 m | Range Value not available | Range max. 140 m | Range max. 100 m | Range Value not available | Range max. 140 m | Range max. 100 m | |||
| Power (output) | Power (output) Value not available | Power (output) Value not available | Power (output) 500 mA (HighPower) | Power (output) 500 mA (HighPower) | Power (output) 500 mA (HighPower) | Power (output) Value not available | Power (output) 500 mA (HighPower) | Power (output) 500 mA (HighPower) | Power (output) Value not available | Power (output) 500 mA (HighPower) | Power (output) 500 mA (HighPower) | Power (output) Value not available | Power (output) 500 mA (HighPower) | Power (output) 500 mA (HighPower) | |||
| USB classes | USB classes Value not available | USB classes Value not available | USB classes All | USB classes All | USB classes All | USB classes Value not available | USB classes All | USB classes All | USB classes Value not available | USB classes All | USB classes All | USB classes Value not available | USB classes All | USB classes All | |||
