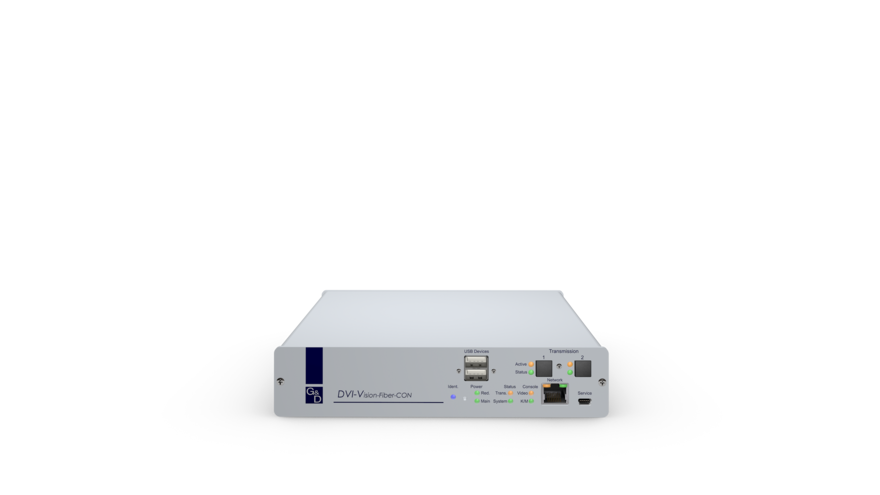

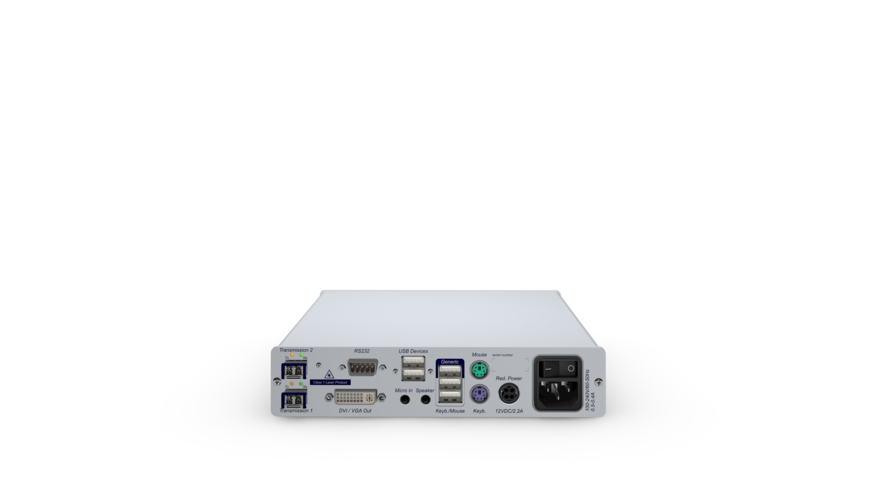

DVI-Vision-Fiber(S)-ARU-CON-2

Item no. A1120325

Back to last view Zoom

Redundant console module to receive single link DVI signals of 2 sources via fiber singlemode

Product variants

Request product now

To downloads

Add to watchlist Compare product Questions about the product?

Learn more

The form could not be loaded.

The matrix-compatible KVM extenders of the DVI-Vision series

extend keyboard, video, and mouse signals, as well as other peripheral data (e.g., audio and USB), via a dedicated CAT or fiber connection (up to 10,000 m). An extender system consists of a computer module (CPU) and a compatible console module (CON). Computers can be controlled in near real-time – both in extender and matrix applications. The DVI-Vision series supports SingleLink DVI for digital video resolutions up to 1920 × 1200 (60 Hz). Video data is processed pixel-perfectly and offers excellent hand-eye coordination, thanks to bluedec™ – G&D's advanced, multi-stage, lossless compression technology.

Video

bluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.

The end devices can be flexibly combined with each other, even if they process different video signals (Mix & Match)

EDID data utilization from the workplace monitor
Flexible EDID profile options for optimized monitor settings

Resolution up to
1920 × 1200 @ 60 Hz,
1280 × 1024 @ 85 Hz

Signals

Transparent audio signals (stereo, analog)

Transparent RS232 (max. 115,200 bps)

Embedded USB 2.0 with Full Speed, transparent, all USB classes

Transmission

The transmission distance is up to 5,000 meters over fiber singlemode optics, incl. transmission module(s)/SFP transceiver(s)

Device

Improved security through physical separation between workplaces and computers

Access to standard interfaces of the computer, with no software installation required

The devices are compatible with the ControlCenter-Digital and ControlCenter-Compact series (matrix operation) and other end devices for computer and workplace connections (extender operation)

Internal power pack for main power supply

CON-2 variant: console module with two transmission lines for redundancy
- These modules can be connected to various counterparts, such as compatible computer modules or KVM matrix switches, whereby switching is carried out via pushbuttons, hotkeys or automatically, depending on the configuration

UC variant: computer module with two transmission lines for redundancy
- These modules can be connected to various counterparts, such as compatible console modules or KVM matrix switches

MultiChannel variants (MC): Modules for multi-monitor workplaces with multi-channel video
- MC mode uses the full bandwidth for each video channel, whereby a separate transmission line is required for each channel

Warranty

A 3-year, free of charge product guarantee
For an additional fee guarantee extension possible

Security features

Console modules do not store security-relevant information such as login credentials, which could be extracted in the event of device loss

Monitoring of system states such as status, power supply, temperature and computer modules and console modules are monitored as well
Each monitoring value can be enabled individually; critical states raise an alarm, which authorized users can acknowledge to downgrade it to warning level
Syslog logging locally and to up to two servers, via TCP or UDP, with configurable port, eight severity levels per the syslog standard and ISO 8601 timestamps
Logged events include user logins, failed login attempts, changes to user rights, connections to remote targets and failed backups
SNMP agent supporting SNMPv2c and SNMPv3; for SNMPv3, authentication via SHA-1 through SHA-512, encryption with AES128, AES192 or AES256, and security levels up to authPriv
Access to the SNMP agent can be restricted to defined source IP addresses or network segments (IPv4 and IPv6)
SNMP notifications to multiple receivers, sent either as traps or as acknowledged informs, with a configurable severity threshold

Comprehensive rights management and user administration, allowing precise control over which user can access which resources
Option for activatable access protection (default operating mode in matrix systems), in which authentication is required before accessing computer sources

Support for external directory services (Active Directory, Radius, LDAP) to meet company security policies

To comply with individual password policies and improve security, password complexity can be configured system-wide

Configurable login options, such as displaying terms of use or setting the maximum acceptable number of failed login attempts, can enhance system security

Auto Backup Function: Automates backups at user-defined intervals and replaces manual intervention – ensuring reliable, timely data protection without the need for continuous monitoring

Freeze function: If the video signal is lost, the last displayed image is frozen and highlighted with a colored frame and timer

2-Factor-Authentication (2FA) – is integrated by default in KVM extenders and enhances security by requiring a second, possession-based factor during user authentication:
- The traditional password authentication is combined with a time-limited, single-use code (Time-Based-One-Time-Password - TOTP)
- You can choose between using the internal authentication server provided in the device or an external directory service
- Authenticator apps or hardware token can be used
- This additional layer of protection prevents unauthorized access and ensures the highest level of security, particularly in sensitive IT environments

Operation features

Ready for operation out of the box, no additional configuration required

Permanent keyboard/mouse emulation ensures a stable system

Compatibility with special USB-HID input devices

Operation via multilingual on-screen display (OSD) and hotkeys

Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)

Support of DDC/CI (Display Data Channel / Command Interface) to enable centralized software-side control of monitor settings such as brightness

Local console at the computer module allows on-site operation, including all video channels
Exclusive or concurrent operation: The KVM extender allows computer control both remotely and locally. When an input is detected, the extender automatically locks the competing console. The lock is lifted after a preset timeout if no further input is detected. A key combination can activate exclusive operation, immediately disabling the competing console. Another key combination restores shared control.

Device

External power supply via external 12V power pack or G&D-MultiPower, providing a central and redundant power supply

Device mounting via RackMount sets, TableMount sets or other mounting tools

System expansion

You can integrate the matrix-compatible extenders into a complete installation with a ControlCenter-Compact or ControlCenter-Digital, even at a later point in time. This provides you with even greater flexibility through the possibility of distributed access – and the existing components can continue to be used.

General	Brand	G&D
	Product group	KVM extenders
	Product Family	Vision
	Country of origin	Germany
	Number of workplaces	1
	KVM matrix system component	Console module (digital)
	Power Supply	Redundancy without load balancing
Input options	USB mouse	yes
	USB keyboard	yes
	PS/2 mouse	yes
	PS/2 keyboard	yes
Transmission	Number of transmission channels	2
	Redundant transmission channels	Redundant KVM transmission available
	Range	5,000 m (9/125µm, OS1)
	Laser class	Class 1
	Type of interface	LC-Duplex
	Wavelength	1,310 nm
	Medium	Fiber SM
	Data rate	2.5 Gbit/s
Video output	Quantity	1
	Format	Singlelink DVI
	Colour depth	24 bit
	Pixel rate ca.	25 MHz to 165 MHz
	Vertical frequency	24 Hz to 120 Hz
	Horizontal frequency	25 kHz to 130 kHz
	Exemplary resolutions	1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz)
	General Notes	Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported interlace resolutions	1440 × 480i (60 Hz) 1440 × 576i (50 Hz) 1920 × 1080i (50 Hz) 1920 × 1080i (60 Hz)
	Only the listed interlace formats are supported	yes
Audio	Transmission type	Stereo Transparent
	Resolutions	24 bit digital
	Sampling rate	up to 96 kHz
	Bandwidth	22 kHz
	Audio support	Analog
USB	Separate USB transmission port	no
	Specification	USB 2.0
	Medium	Embedded
	Transmission rate	max. 16 Mbit/s (app. Full Speed)
	Range	max. 5,000 m
	USB classes	All
Serial	Standard	RS232
	Transparent transmission	yes
	Data rate	max. 115,200 bps
	Signals	TxD RxD DTR DSR RTS CTS DCD
Network	Quantity	1
	Medium	CAT5 CAT6 CAT7
	Data rate	10 Mbit/s 100 Mbit/s
Maintenance	Update via	ConfigPanel (Network)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	Anodised aluminium
	Active cooling (fan)	no
	Width ca.	210 mm
	Height ca.	44 mm
	Depth ca.	210 mm
	IP protection class	IP20
	Weight ca.	1.38 kg
Operating conditions	Operating environment temperature	5 °C to 45 °C
	Operating air humidity, non-condensing	20 % to 80 %
	Area of application	Indoor use
	Maximum operating altitude above sea level	3,048 m
	Storage environment temperature	-20 °C to 55 °C
	Storage air humidity, non-condensing	15 % to 85 %
	MTBF	200,000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply 1	Quantity	1
	Type	Internal
	Input voltage	100-240 VAC
	Input frequency	60-50 Hz
	Current consumption	0.5-0.4 A
	Power consumption max.	27.7 W
	Heat output max.	12.1 W / 41.29 BTU/h
Power supply 2	Quantity	1
	Type	External
	Input voltage	12 VDC
	Current consumption	2.2 A
	Power consumption max.	24.1 W
	Heat output max.	8.5 W / 29.00 BTU/h

Product comparison

Mark differences Hide same values

Technical data		DVI-Vision-Fiber(S)-AR-CON Item no. A1120199	DVI-Vision-Fiber(S)-AR-CON-2 Item no. A1120324	DVI-Vision-Fiber(S)-ARU-CON Item no. A1120206	selected variant DVI-Vision-Fiber(S)-ARU-CON-2 Item no. A1120325	DVI-Vision-Fiber(S)-ARU2-CON Item no. A1120205	DVI-Vision-Fiber(S)-MC2-AR-CON Item no. A1220207	DVI-Vision-Fiber(S)-MC2-ARU-CON Item no. A1220209	DVI-Vision-Fiber(S)-MC2-ARU2-CON Item no. A1220208	DVI-Vision-Fiber(S)-MC4-AR-CON Item no. A1420208	DVI-Vision-Fiber(S)-MC4-ARU-CON Item no. A1420209	DVI-Vision-Fiber(S)-MC4-ARU2-CON Item no. A1420210

		General	General	General	General	General	General	General	General	General	General	General
General	Brand	Brand G&D	Brand G&D	Brand G&D	Brand G&D	Brand G&D	Brand G&D	Brand G&D	Brand G&D	Brand G&D	Brand G&D	Brand G&D
	Product group	Product group KVM extenders	Product group KVM extenders	Product group KVM extenders	Product group KVM extenders	Product group KVM extenders	Product group KVM extenders	Product group KVM extenders	Product group KVM extenders	Product group KVM extenders	Product group KVM extenders	Product group KVM extenders
	Product Family	Product Family Vision	Product Family Vision	Product Family Vision	Product Family Vision	Product Family Vision	Product Family Vision	Product Family Vision	Product Family Vision	Product Family Vision	Product Family Vision	Product Family Vision
	Country of origin	Country of origin Germany	Country of origin Germany	Country of origin Germany	Country of origin Germany	Country of origin Germany	Country of origin Germany	Country of origin Germany	Country of origin Germany	Country of origin Germany	Country of origin Germany	Country of origin Germany
	Number of workplaces	Number of workplaces 1	Number of workplaces 1	Number of workplaces 1	Number of workplaces 1	Number of workplaces 1	Number of workplaces 1	Number of workplaces 1	Number of workplaces 1	Number of workplaces 1	Number of workplaces 1	Number of workplaces 1
	KVM matrix system component	KVM matrix system component Console module (digital)	KVM matrix system component Console module (digital)	KVM matrix system component Console module (digital)	KVM matrix system component Console module (digital)	KVM matrix system component Console module (digital)	KVM matrix system component Console module (digital)	KVM matrix system component Console module (digital)	KVM matrix system component Console module (digital)	KVM matrix system component Console module (digital)	KVM matrix system component Console module (digital)	KVM matrix system component Console module (digital)
	Power Supply	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing

		Input options	Input options	Input options	Input options	Input options	Input options	Input options	Input options	Input options	Input options	Input options
Input options	USB mouse	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes
	USB keyboard	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes
	PS/2 mouse	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes
	PS/2 keyboard	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes

		Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission
Transmission	Number of transmission channels	Number of transmission channels 1	Number of transmission channels 2	Number of transmission channels 1	Number of transmission channels 2	Number of transmission channels 2	Number of transmission channels 2	Number of transmission channels 2	Number of transmission channels 3	Number of transmission channels 4	Number of transmission channels 4	Number of transmission channels 5
	Redundant transmission channels	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels Redundant KVM transmission available	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels Redundant KVM transmission available	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission
	Range	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)
	Laser class	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1
	Type of interface	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex
	Wavelength	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm
	Medium	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM
	Data rate	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s

		Video output	Video output	Video output	Video output	Video output	Video output	Video output	Video output	Video output	Video output	Video output
Video output	Quantity	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 2	Quantity 2	Quantity 2	Quantity 4	Quantity 4	Quantity 4
	Format	Format Singlelink DVI	Format Singlelink DVI	Format Singlelink DVI	Format Singlelink DVI	Format Singlelink DVI	Format Singlelink DVI	Format Singlelink DVI	Format Singlelink DVI	Format Singlelink DVI	Format Singlelink DVI	Format Singlelink DVI
	Colour depth	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit
	Pixel rate ca.	Pixel rate ca. 25 MHz to 165 MHz	Pixel rate ca. 25 MHz to 165 MHz	Pixel rate ca. 25 MHz to 165 MHz	Pixel rate ca. 25 MHz to 165 MHz	Pixel rate ca. 25 MHz to 165 MHz	Pixel rate ca. 25 MHz to 165 MHz	Pixel rate ca. 25 MHz to 165 MHz	Pixel rate ca. 25 MHz to 165 MHz	Pixel rate ca. 25 MHz to 165 MHz	Pixel rate ca. 25 MHz to 165 MHz	Pixel rate ca. 25 MHz to 165 MHz
	Vertical frequency	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz
	Horizontal frequency	Horizontal frequency 25 kHz to 130 kHz	Horizontal frequency 25 kHz to 130 kHz	Horizontal frequency 25 kHz to 130 kHz	Horizontal frequency 25 kHz to 130 kHz	Horizontal frequency 25 kHz to 130 kHz	Horizontal frequency 25 kHz to 130 kHz	Horizontal frequency 25 kHz to 130 kHz	Horizontal frequency 25 kHz to 130 kHz	Horizontal frequency 25 kHz to 130 kHz	Horizontal frequency 25 kHz to 130 kHz	Horizontal frequency 25 kHz to 130 kHz
	Exemplary resolutions	Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz)	Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz)	Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz)	Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz)	Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz)	Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz)	Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz)	Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz)	Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz)	Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz)	Exemplary resolutions 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1280 × 1024 (85 Hz)
	General Notes	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported interlace resolutions	Supported interlace resolutions 1440 × 480i (60 Hz) 1440 × 576i (50 Hz) 1920 × 1080i (50 Hz) 1920 × 1080i (60 Hz)	Supported interlace resolutions 1440 × 480i (60 Hz) 1440 × 576i (50 Hz) 1920 × 1080i (50 Hz) 1920 × 1080i (60 Hz)	Supported interlace resolutions 1440 × 480i (60 Hz) 1440 × 576i (50 Hz) 1920 × 1080i (50 Hz) 1920 × 1080i (60 Hz)	Supported interlace resolutions 1440 × 480i (60 Hz) 1440 × 576i (50 Hz) 1920 × 1080i (50 Hz) 1920 × 1080i (60 Hz)	Supported interlace resolutions 1440 × 480i (60 Hz) 1440 × 576i (50 Hz) 1920 × 1080i (50 Hz) 1920 × 1080i (60 Hz)	Supported interlace resolutions 1440 × 480i (60 Hz) 1440 × 576i (50 Hz) 1920 × 1080i (50 Hz) 1920 × 1080i (60 Hz)	Supported interlace resolutions 1440 × 480i (60 Hz) 1440 × 576i (50 Hz) 1920 × 1080i (50 Hz) 1920 × 1080i (60 Hz)	Supported interlace resolutions 1440 × 480i (60 Hz) 1440 × 576i (50 Hz) 1920 × 1080i (50 Hz) 1920 × 1080i (60 Hz)	Supported interlace resolutions 1440 × 480i (60 Hz) 1440 × 576i (50 Hz) 1920 × 1080i (50 Hz) 1920 × 1080i (60 Hz)	Supported interlace resolutions 1440 × 480i (60 Hz) 1440 × 576i (50 Hz) 1920 × 1080i (50 Hz) 1920 × 1080i (60 Hz)	Supported interlace resolutions 1440 × 480i (60 Hz) 1440 × 576i (50 Hz) 1920 × 1080i (50 Hz) 1920 × 1080i (60 Hz)
	Only the listed interlace formats are supported	Only the listed interlace formats are supported yes	Only the listed interlace formats are supported yes	Only the listed interlace formats are supported yes	Only the listed interlace formats are supported yes	Only the listed interlace formats are supported yes	Only the listed interlace formats are supported yes	Only the listed interlace formats are supported yes	Only the listed interlace formats are supported yes	Only the listed interlace formats are supported yes	Only the listed interlace formats are supported yes	Only the listed interlace formats are supported yes

		Audio	Audio	Audio	Audio	Audio	Audio	Audio	Audio	Audio	Audio	Audio
Audio	Transmission type	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent
	Resolutions	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital
	Sampling rate	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz
	Bandwidth	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz
	Audio support	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog

		USB	USB	USB	USB	USB	USB	USB	USB	USB	USB	USB
USB	Separate USB transmission port	Separate USB transmission port Not specified	Separate USB transmission port Not specified	Separate USB transmission port no	Separate USB transmission port no	Separate USB transmission port yes	Separate USB transmission port Not specified	Separate USB transmission port no	Separate USB transmission port yes	Separate USB transmission port Not specified	Separate USB transmission port no	Separate USB transmission port yes
	Specification	Specification Not specified	Specification Not specified	Specification USB 2.0	Specification USB 2.0	Specification USB 2.0	Specification Not specified	Specification USB 2.0	Specification USB 2.0	Specification Not specified	Specification USB 2.0	Specification USB 2.0
	Medium	Medium Not specified	Medium Not specified	Medium Embedded	Medium Embedded	Medium Fiber SM	Medium Not specified	Medium Embedded	Medium Fiber SM	Medium Not specified	Medium Embedded	Medium Fiber SM
	Transmission rate	Transmission rate Not specified	Transmission rate Not specified	Transmission rate max. 16 Mbit/s (app. Full Speed)	Transmission rate max. 16 Mbit/s (app. Full Speed)	Transmission rate max. 480 Mbit/s (Hi-Speed)	Transmission rate Not specified	Transmission rate max. 16 Mbit/s (app. Full Speed)	Transmission rate max. 480 Mbit/s (Hi-Speed)	Transmission rate Not specified	Transmission rate max. 16 Mbit/s (app. Full Speed)	Transmission rate max. 480 Mbit/s (Hi-Speed)
	Range	Range Not specified	Range Not specified	Range max. 5,000 m	Range max. 5,000 m	Range max. 5,000 m	Range Not specified	Range max. 5,000 m	Range max. 5,000 m	Range Not specified	Range max. 5,000 m	Range max. 5,000 m
	Power (output)	Power (output) Not specified	Power (output) Not specified	Power (output) Not specified	Power (output) Not specified	Power (output) 500 mA (HighPower)	Power (output) Not specified	Power (output) Not specified	Power (output) 500 mA (HighPower)	Power (output) Not specified	Power (output) Not specified	Power (output) 500 mA (HighPower)
	USB classes	USB classes Not specified	USB classes Not specified	USB classes All	USB classes All	USB classes All	USB classes Not specified	USB classes All	USB classes All	USB classes Not specified	USB classes All	USB classes All

		Serial	Serial	Serial	Serial	Serial	Serial	Serial	Serial	Serial	Serial	Serial
Serial	Standard	Standard RS232	Standard RS232	Standard RS232	Standard RS232	Standard RS232	Standard RS232	Standard RS232	Standard RS232	Standard RS232	Standard RS232	Standard RS232
	Transparent transmission	Transparent transmission yes	Transparent transmission yes	Transparent transmission yes	Transparent transmission yes	Transparent transmission yes	Transparent transmission yes	Transparent transmission yes	Transparent transmission yes	Transparent transmission yes	Transparent transmission yes	Transparent transmission yes
	Data rate	Data rate max. 115,200 bps	Data rate max. 115,200 bps	Data rate max. 115,200 bps	Data rate max. 115,200 bps	Data rate max. 115,200 bps	Data rate max. 115,200 bps	Data rate max. 115,200 bps	Data rate max. 115,200 bps	Data rate max. 115,200 bps	Data rate max. 115,200 bps	Data rate max. 115,200 bps
	Signals	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD

		Network	Network	Network	Network	Network	Network	Network	Network	Network	Network	Network
Network	Quantity	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1
	Medium	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7
	Data rate	Data rate 10 Mbit/s 100 Mbit/s	Data rate 10 Mbit/s 100 Mbit/s	Data rate 10 Mbit/s 100 Mbit/s	Data rate 10 Mbit/s 100 Mbit/s	Data rate 10 Mbit/s 100 Mbit/s	Data rate 10 Mbit/s 100 Mbit/s	Data rate 10 Mbit/s 100 Mbit/s	Data rate 10 Mbit/s 100 Mbit/s	Data rate 10 Mbit/s 100 Mbit/s	Data rate 10 Mbit/s 100 Mbit/s	Data rate 10 Mbit/s 100 Mbit/s

		Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance
Maintenance	Update via	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)
Maintenance	Serviceport settings	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)

		Housing	Housing	Housing	Housing	Housing	Housing	Housing	Housing	Housing	Housing	Housing
Housing	Material	Material Anodised aluminium	Material Anodised aluminium	Material Anodised aluminium	Material Anodised aluminium	Material Anodised aluminium	Material Anodised aluminium	Material Anodised aluminium	Material Anodised aluminium	Material Anodised aluminium	Material Anodised aluminium	Material Anodised aluminium
	Active cooling (fan)	Active cooling (fan) no	Active cooling (fan) no	Active cooling (fan) no	Active cooling (fan) no	Active cooling (fan) no	Active cooling (fan) no	Active cooling (fan) no	Active cooling (fan) no	Active cooling (fan) no	Active cooling (fan) no	Active cooling (fan) no
	Width ca.	Width ca. 210 mm	Width ca. 210 mm	Width ca. 210 mm	Width ca. 210 mm	Width ca. 210 mm	Width ca. 270 mm	Width ca. 270 mm	Width ca. 270 mm	Width ca. 436 mm	Width ca. 436 mm	Width ca. 436 mm
	Height ca.	Height ca. 44 mm	Height ca. 44 mm	Height ca. 44 mm	Height ca. 44 mm	Height ca. 44 mm	Height ca. 44 mm	Height ca. 44 mm	Height ca. 44 mm	Height ca. 44 mm	Height ca. 44 mm	Height ca. 44 mm
	Depth ca.	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm
	IP protection class	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20
	Weight ca.	Weight ca. 1.24 kg	Weight ca. 1.34 kg	Weight ca. 1.21 kg	Weight ca. 1.38 kg	Weight ca. 1.31 kg	Weight ca. 1.57 kg	Weight ca. 1.61 kg	Weight ca. 1.67 kg	Weight ca. 2.36 kg	Weight ca. 2.43 kg	Weight ca. 2.46 kg

		Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions
Operating conditions	Operating environment temperature	Operating environment temperature 5 °C to 45 °C	Operating environment temperature 5 °C to 45 °C	Operating environment temperature 5 °C to 45 °C	Operating environment temperature 5 °C to 45 °C	Operating environment temperature 5 °C to 45 °C	Operating environment temperature 5 °C to 45 °C	Operating environment temperature 5 °C to 45 °C	Operating environment temperature 5 °C to 45 °C	Operating environment temperature 5 °C to 45 °C	Operating environment temperature 5 °C to 45 °C	Operating environment temperature 5 °C to 45 °C
	Operating air humidity, non-condensing	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %
	Area of application	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use
	Maximum operating altitude above sea level	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m
	Storage environment temperature	Storage environment temperature -20 °C to 55 °C	Storage environment temperature -20 °C to 55 °C	Storage environment temperature -20 °C to 55 °C	Storage environment temperature -20 °C to 55 °C	Storage environment temperature -20 °C to 55 °C	Storage environment temperature -20 °C to 55 °C	Storage environment temperature -20 °C to 55 °C	Storage environment temperature -20 °C to 55 °C	Storage environment temperature -20 °C to 55 °C	Storage environment temperature -20 °C to 55 °C	Storage environment temperature -20 °C to 55 °C
	Storage air humidity, non-condensing	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %
	MTBF	MTBF 200,000 h at 25°C	MTBF 200,000 h at 25°C	MTBF 200,000 h at 25°C	MTBF 200,000 h at 25°C	MTBF 200,000 h at 25°C	MTBF 200,000 h at 25°C	MTBF 200,000 h at 25°C	MTBF 200,000 h at 25°C	MTBF 146,000 h at 25°C	MTBF 110,000 h at 25°C	MTBF 110,000 h at 25°C
	Conformities	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)

		Power supply 1	Power supply 1	Power supply 1	Power supply 1	Power supply 1	Power supply 1	Power supply 1	Power supply 1	Power supply 1	Power supply 1	Power supply 1
Power supply 1	Quantity	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1
	Type	Type Internal	Type Internal	Type Internal	Type Internal	Type Internal	Type Internal	Type Internal	Type Internal	Type Internal	Type Internal	Type Internal
	Input voltage	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC
	Input frequency	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz
	Current consumption	Current consumption 0.3-0.2 A	Current consumption 0.3-0.2 A	Current consumption 0.5-0.3 A	Current consumption 0.5-0.4 A	Current consumption 0.5-0.3 A	Current consumption 0.4-0.2 A	Current consumption 0.6-0.3 A	Current consumption 0.7-0.3 A	Current consumption 0.6-0.3 A	Current consumption 0.9-0.5 A	Current consumption 0.9-0.5 A
	Power consumption max.	Power consumption max. 14.3 W	Power consumption max. 15.2 W	Power consumption max. 27.1 W	Power consumption max. 27.7 W	Power consumption max. 28.6 W	Power consumption max. 20.5 W	Power consumption max. 32.4 W	Power consumption max. 34.8 W	Power consumption max. 33.7 W	Power consumption max. 46.5 W	Power consumption max. 48 W
	Heat output max.	Heat output max. 8.9 W / 30.37 BTU/h	Heat output max. 9.8 W / 33.44 BTU/h	Heat output max. 11.5 W / 39.24 BTU/h	Heat output max. 12.1 W / 41.29 BTU/h	Heat output max. 13 W / 44.36 BTU/h	Heat output max. 17.8 W / 60.74 BTU/h	Heat output max. 16.8 W / 57.32 BTU/h	Heat output max. 19.2 W / 65.51 BTU/h	Heat output max. 28.3 W / 96.56 BTU/h	Heat output max. 30.9 W / 105.44 BTU/h	Heat output max. 32.4 W / 110.55 BTU/h

		Power supply 2	Power supply 2	Power supply 2	Power supply 2	Power supply 2	Power supply 2	Power supply 2	Power supply 2	Power supply 2	Power supply 2	Power supply 2
Power supply 2	Quantity	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1	Quantity 1
	Type	Type External	Type External	Type External	Type External	Type External	Type External	Type External	Type External	Type External	Type External	Type External
	Input voltage	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC
	Current consumption	Current consumption 1.1 A	Current consumption 1.2 A	Current consumption 2.1 A	Current consumption 2.2 A	Current consumption 2.2 A	Current consumption 1.6 A	Current consumption 2.6 A	Current consumption 2.7 A	Current consumption 2.6 A	Current consumption 3.5 A	Current consumption 3.7 A
	Power consumption max.	Power consumption max. 12.4 W	Power consumption max. 13.2 W	Power consumption max. 23.6 W	Power consumption max. 24.1 W	Power consumption max. 24.9 W	Power consumption max. 15.1 W	Power consumption max. 28.2 W	Power consumption max. 30.3 W	Power consumption max. 29.3 W	Power consumption max. 40.4 W	Power consumption max. 41.7 W
	Heat output max.	Heat output max. 7.1 W / 24.23 BTU/h	Heat output max. 7.9 W / 26.96 BTU/h	Heat output max. 8 W / 27.30 BTU/h	Heat output max. 8.5 W / 29.00 BTU/h	Heat output max. 9.3 W / 31.73 BTU/h	Heat output max. 12.5 W / 42.65 BTU/h	Heat output max. 12.6 W / 42.99 BTU/h	Heat output max. 14.7 W / 50.16 BTU/h	Heat output max. 23.9 W / 81.55 BTU/h	Heat output max. 24.9 W / 84.96 BTU/h	Heat output max. 26.2 W / 89.40 BTU/h

Interfaces

Aperture designation	Design	Description
USB Devices	USB-A socket 2.0	Port for USB devices (transparent)
USB Devices	USB-A socket 2.0	Port for USB devices (transparent)
Transmission 1	Button	Button for channel switching
Transmission 2	Button	Button for channel switching
Network	RJ45 socket	Port for IP network
Service	Micro-USB socket	Port for service purposes

Aperture designation	Design	Description
Transmission 2	LC-Duplex socket	Data transmission to computer module or matrix switch (FIBER)
Transmission 1	LC-Duplex socket	Data transmission to computer module or matrix switch (FIBER)
RS232	D-Sub9 socket	Port for serial devices
DVI / VGA Out	DVI-D socket	Port for monitor
USB Devices	USB-A socket 2.0	Port for USB devices (transparent)
USB Devices	USB-A socket 2.0	Port for USB devices (transparent)
Micro In	Jack socket - 3,5 mm	Port for microphone
Speaker	Jack socket - 3,5 mm	Port for speaker/headset
Generic	USB-A socket 2.0	Port for USB devices (Generic)
Keyb./Mouse	USB-A socket 2.0	Port for keyboard and mouse
Keyb./Mouse	USB-A socket 2.0	Port for keyboard and mouse
Mouse	PS/2 socket	Port for mouse
Keyb.	PS/2 socket	Port for keyboard
Red. Power 12VDC	Mini-DIN 4 socket	Power supply DC redundant
Main Power	IEC plug 320 C14	Power supply AC

Downloads

Manuals

Declarations of Conformity

Data Sheets

Drawings

GD_DVI-Vision-Fiber-ARU-CON-2_A1120323_A1120325_A1120327.vssx

Tools & Drivers

CP210x USB to UART Bridge VCP Universal Windows Driver (Version 11.4.0)

Related Products

LED to tag the active console of a TradeSwitch configuration of a matrix

Accessory Products

60W power supply with 2m powercable

60W power supply with 2m powercable, TAA compliant

19" extension for rack mounting devices of 210 mm width within 1RU (44 mm height)

Cable to connect the power supply type Germany

Cable for system updates and configuration

G&D Contact

The best way to talk about complex topics is in person. Via chat, e-mail, phone or in a personal demo remote or on-site.

Subscribe to our newsletter

Book a demo in the ControlCenter-Xperience

AVoIP Solutions for Control Rooms

VuWall

G&D and VuWall are proud to be part of the Panoptec corporate group.

Discover VuWall's world-class video wall solutions, which work seamlessly with G&D's high-performance KVM systems to enable maximum flexibility, security, and efficiency in control rooms.

To the website

Select your language

Panoptec Europe GmbH

G&D North America Inc.

Search

Search for products, article numbers and content

Popular search queries

DVI-Vision-Fiber(S)-ARU-CON-2

The matrix-compatible KVM extenders of the DVI-Vision series

Product comparison

Interfaces

Downloads

Related Products

TS-LED-blue-R-2

TS-LED-blue-R-3

TS-LED-blue-R-5

Accessory Products

PowerPack 12 Type 2 12V/5A

PowerPack 12 Type 2 12V/5A TAA

19" RM-Set-210-1RU

PowerCable-3 Standard cable 3m

PowerCable-5 Standard cable 5m

USB-Service-2 cable 2m

G&D Contact

VuWall
