U2+R-CON incl. PowerPack

Item no. A1120352

Back to last view Zoom

User console for transparent USB2.0 transmission (high-speed) via CAT cable

Product variants

Request product now

To downloads

Add to watchlist Compare product Questions about the product?

Learn more

The form could not be loaded.

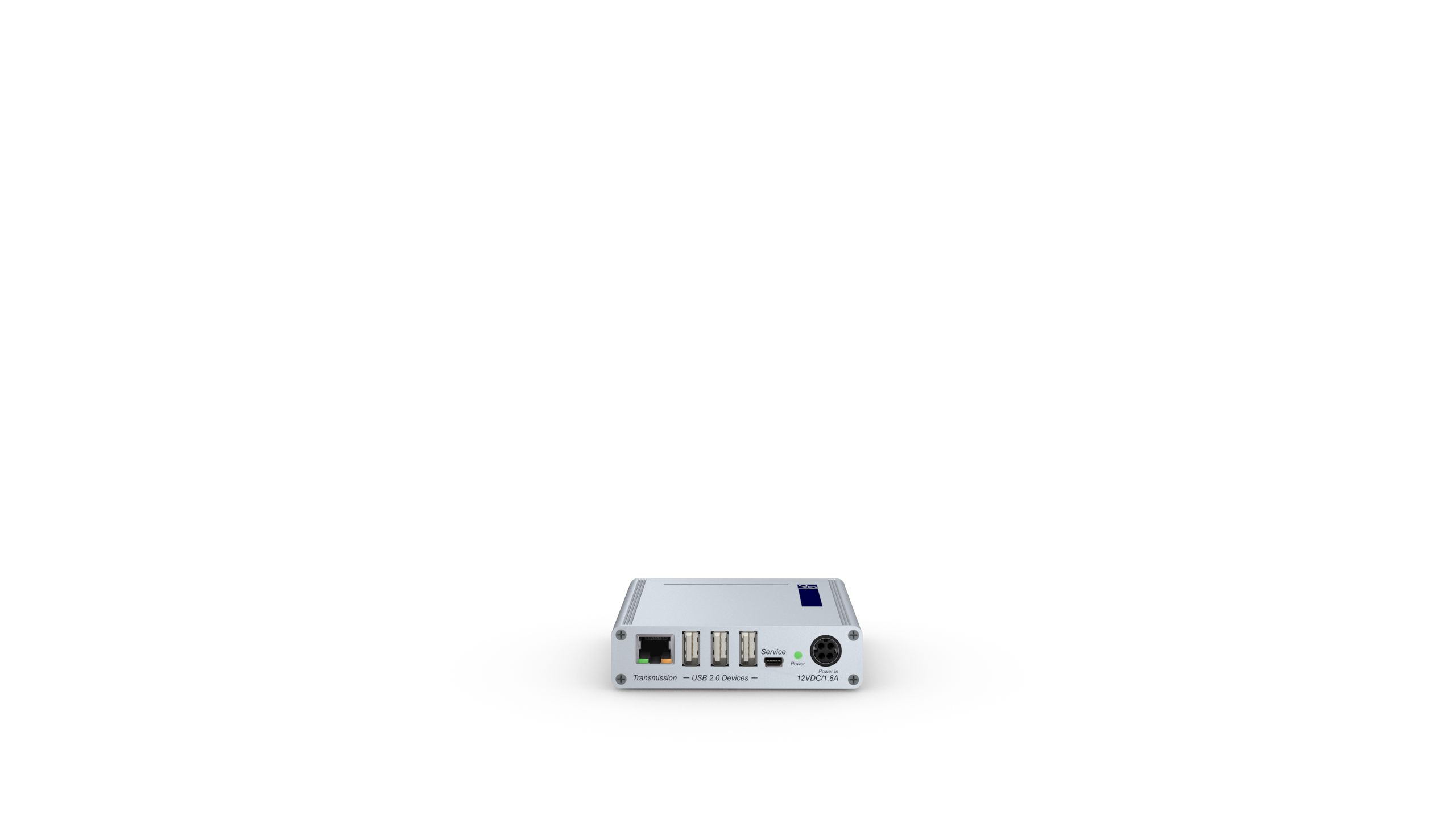

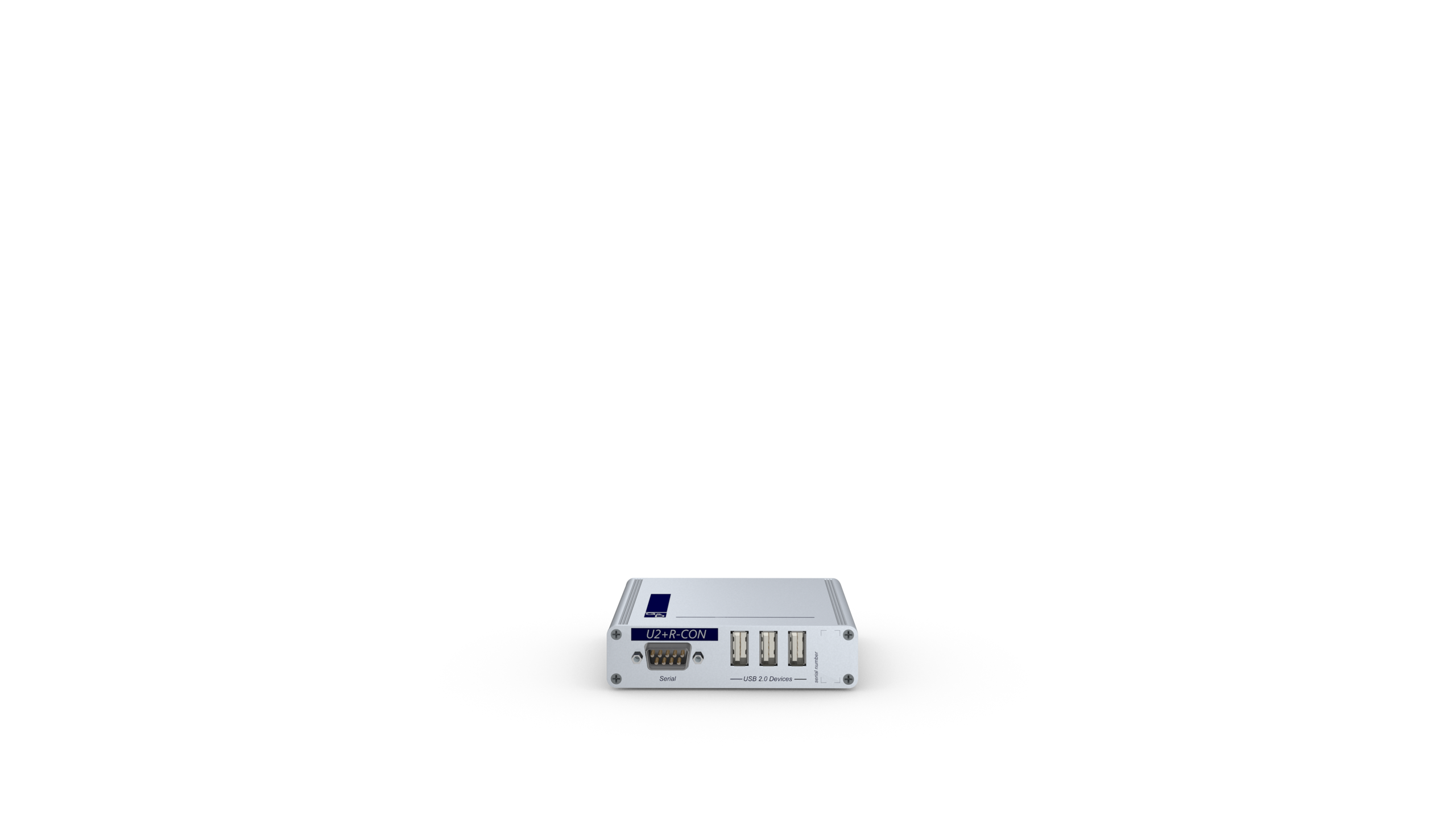

The U2+R-CON console module

transmits USB2.0 high-speed and RS232 signals from a console to a compatible computer module of the U2+R series.

Signals

Transparent RS232 (max. 115,200 bps)

Embedded USB 2.0 with Hi-Speed, transparent, all USB classes

Transmission

The transmission distance is up to 140 meters over CAT

Device

PowerPack not included in the scope of delivery for Basic variants

Warranty

A 3-year, free of charge product guarantee
For an additional fee guarantee extension possible

Signals

The serial interface can also be configured for RS422 transmission.

Device

External power supply via external 12V power pack or G&D-MultiPower, providing a central and redundant power supply

General	Brand	G&D
	Product group	KVM extenders
	Product Family	U2+R-CPU/CON
	Country of origin	Germany
	KVM matrix system component	Console module (digital)
	Power Supply	no redundancy
Transmission	Number of transmission channels	1
	Redundant transmission channels	no redundant KVM transmission
	Range	140 m (AWG22) 100 m (AWG24) 80 m (AWG26)
	Medium	CAT5e CAT6 CAT7
	Data rate	1 Gbit/s
USB	Separate USB transmission port	no
	Specification	USB 2.0
	Medium	Embedded
	Transmission rate	max. 480 Mbit/s (Hi-Speed)
	Range	max. 100 m
	USB classes	All
Serial 1	Standard	RS232
	Transparent transmission	yes
	Data rate	max. 115,200 bps
	Signals	TxD RxD DTR DSR RTS CTS DCD
Serial 2	Standard	RS422
	Transparent transmission	yes
	Data rate	max. 115,200 bps
	Signals	TxA TxB RxB RxA GND
Maintenance	Update via	Update Wizard (service interface)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	Anodised aluminium
	Active cooling (fan)	no
	Width ca.	105 mm
	Height ca.	26 mm
	Depth ca.	104 mm
	IP protection class	IP20
	Weight ca.	0.25 kg
Operating conditions	Operating environment temperature	5 °C to 45 °C
	Operating air humidity, non-condensing	20 % to 80 %
	Area of application	Indoor use
	Maximum operating altitude above sea level	3,048 m
	Storage environment temperature	-20 °C to 60 °C
	Storage air humidity, non-condensing	15 % to 80 %
	MTBF	280,000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Quantity	1
	Type	External
	Input voltage	12 VDC
	Current consumption	1.8 A
	Power consumption idle	1.21 W
	Power consumption max.	18.36 W
	Heat output idle	1.21 W / 4.13 BTU/h
	Heat output max.	3.36 W / 11.46 BTU/h

Product comparison

Mark differences Hide same values

Technical data		selected variant U2+R-CON incl. PowerPack Item no. A1120352	U2+R-Fiber(M)-CON incl. PowerPack Item no. A1120353	U2+R-Fiber(S)-CON incl. PowerPack Item no. A1120354

		General	General	General
General	Brand	Brand G&D	Brand G&D	Brand G&D
	Product group	Product group KVM extenders	Product group KVM extenders	Product group KVM extenders
	Product Family	Product Family U2+R-CPU/CON	Product Family U2+R-CPU/CON	Product Family U2+R-CPU/CON
	Country of origin	Country of origin Germany	Country of origin Germany	Country of origin Germany
	KVM matrix system component	KVM matrix system component Console module (digital)	KVM matrix system component Console module (digital)	KVM matrix system component Console module (digital)
	Power Supply	Power Supply no redundancy	Power Supply no redundancy	Power Supply no redundancy

		Transmission	Transmission	Transmission
Transmission	Number of transmission channels	Number of transmission channels 1	Number of transmission channels 1	Number of transmission channels 1
	Redundant transmission channels	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission
	Range	Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26)	Range 100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 - 4700MHz*km)	Range 5,000 m (9/125µm, OS1)
	Laser class	Laser class Not specified	Laser class Class 1	Laser class Class 1
	Type of interface	Type of interface Not specified	Type of interface LC-Duplex	Type of interface LC-Duplex
	Wavelength	Wavelength Not specified	Wavelength 850 nm	Wavelength 1,310 nm
	Medium	Medium CAT5e CAT6 CAT7	Medium Fiber MM	Medium Fiber SM
	Data rate	Data rate 1 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s

		USB	USB	USB
USB	Separate USB transmission port	Separate USB transmission port no	Separate USB transmission port no	Separate USB transmission port no
	Specification	Specification USB 2.0	Specification USB 2.0	Specification USB 2.0
	Medium	Medium Embedded	Medium Embedded	Medium Embedded
	Transmission rate	Transmission rate max. 480 Mbit/s (Hi-Speed)	Transmission rate max. 480 Mbit/s (Hi-Speed)	Transmission rate max. 480 Mbit/s (Hi-Speed)
	Range	Range max. 100 m	Range max. 400 m	Range max. 10,000 m
	USB classes	USB classes All	USB classes All	USB classes All

		Serial 1	Serial 1	Serial 1
Serial 1	Standard	Standard RS232	Standard RS232	Standard RS232
	Transparent transmission	Transparent transmission yes	Transparent transmission yes	Transparent transmission yes
	Data rate	Data rate max. 115,200 bps	Data rate max. 115,200 bps	Data rate max. 115,200 bps
	Signals	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD

		Serial 2	Serial 2	Serial 2
Serial 2	Standard	Standard RS422	Standard RS422	Standard RS422
	Transparent transmission	Transparent transmission yes	Transparent transmission yes	Transparent transmission yes
	Data rate	Data rate max. 115,200 bps	Data rate max. 115,200 bps	Data rate max. 115,200 bps
	Signals	Signals TxA TxB RxB RxA GND	Signals TxA TxB RxB RxA GND	Signals TxA TxB RxB RxA GND

		Maintenance	Maintenance	Maintenance
Maintenance	Update via	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)
Maintenance	Serviceport settings	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)

		Housing	Housing	Housing
Housing	Material	Material Anodised aluminium	Material Anodised aluminium	Material Anodised aluminium
	Active cooling (fan)	Active cooling (fan) no	Active cooling (fan) no	Active cooling (fan) no
	Width ca.	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm
	Height ca.	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm
	Depth ca.	Depth ca. 104 mm	Depth ca. 104 mm	Depth ca. 104 mm
	IP protection class	IP protection class IP20	IP protection class IP20	IP protection class IP20
	Weight ca.	Weight ca. 0.25 kg	Weight ca. 0.27 kg	Weight ca. 0.27 kg

		Operating conditions	Operating conditions	Operating conditions
Operating conditions	Operating environment temperature	Operating environment temperature 5 °C to 45 °C	Operating environment temperature 5 °C to 45 °C	Operating environment temperature 5 °C to 45 °C
	Operating air humidity, non-condensing	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %
	Area of application	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use
	Maximum operating altitude above sea level	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m
	Storage environment temperature	Storage environment temperature -20 °C to 60 °C	Storage environment temperature -20 °C to 60 °C	Storage environment temperature -20 °C to 60 °C
	Storage air humidity, non-condensing	Storage air humidity, non-condensing 15 % to 80 %	Storage air humidity, non-condensing 15 % to 80 %	Storage air humidity, non-condensing 15 % to 80 %
	MTBF	MTBF 280,000 h at 25°C	MTBF 280,000 h at 25°C	MTBF 280,000 h at 25°C
	Conformities	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)

		Power supply	Power supply	Power supply
Power supply	Quantity	Quantity 1	Quantity 1	Quantity 1
	Type	Type External	Type External	Type External
	Input voltage	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC
	Current consumption	Current consumption 1.8 A	Current consumption 1.8 A	Current consumption 1.8 A
	Power consumption idle	Power consumption idle 1.21 W	Power consumption idle 1.68 W	Power consumption idle 1.68 W
	Power consumption max.	Power consumption max. 18.36 W	Power consumption max. 18.48 W	Power consumption max. 18.48 W
	Heat output idle	Heat output idle 1.21 W / 4.13 BTU/h	Heat output idle 1.68 W / 5.73 BTU/h	Heat output idle 1.68 W / 5.73 BTU/h
	Heat output max.	Heat output max. 3.36 W / 11.46 BTU/h	Heat output max. 3.48 W / 11.87 BTU/h	Heat output max. 3.48 W / 11.87 BTU/h
