DynamicWorkplace-CON-4F(S)-ARU

Item no. A1120385

Back to last view

New

Multiviewing console module (2 RU) with 4 inputs to connect a digital matrix switch via fiber singlemode (4K@60Hz), as well as 4 video outputs (4K@60Hz)

Product variants

Request product now

Add to watchlist Compare product Questions about the product?

Learn more

The form could not be loaded.

The DynamicWorkplace-CON

is a powerful multiviewer console module with 4 or 8 KVM inputs (channels) and 4 video outputs. It is connected to a G&D matrix switch via CAT or fiber ports and enables the simultaneous display and operation of multiple sources via KVM computer modules on one or more monitors. The arrangement and size of the windows can be flexibly adjusted within the display area, enabling an efficient and ergonomic workplace design with just one mouse and keyboard. In addition, the DynamicWorkplace-CON supports the transmission of audio signals and offers a specially developed, intuitive user interface. This versatile solution can be integrated into existing digital G&D matrix systems.

Video

bluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.

The 4 video outputs of the DynamicWorkplace-CON form a contiguous display area across all monitors (4 x 4K)

No (additional) licences are required to use all video outputs.

Resolution up to
5120 × 2160 @ 50 Hz,
5120 × 1440 @ 60 Hz,
4096 × 2160 @ 60 Hz,
2560 × 1440 @ 144 Hz,
1920 × 1080 @ 240 Hz

Signals

Embedded stereo audio (Digital, 2 channel LPCM)

Transparent audio signals (stereo, analog)

Transparent RS232 (max. 115,200 bps)

Embedded USB 2.0 with Full Speed, transparent, all USB classes

GenericUSB support for USB classes HID (Human Interface Device), SmartCard and mass storage
The product allows the use of a GenericUSB device via a console module. For this, both the used console module and the used computer module must support the use of a GenericUSB device.

Transmission

The transmission distance is up to 5,000 meters over fiber singlemode optics, incl. transmission module(s)/SFP transceiver(s)

Device

Improved security through physical separation between workplaces and computers

Internal power pack for main power supply

The device can only be used in combination with a KVM matrix switch and is only compatible with models from the ControlCenter-Digital or ControlCenter-Compact series

Device

Users can switch between different sources almost in real-time, without noticing interruptions or delays

Very low noise emission

Security features

Bootloader, operating system, and firmware form a "Trusted Computing Platform" with automatic integrity checks during system startup

DynamicWorkplace-CONs do not store security-relevant information such as login credentials, which could be extracted in the event of device loss

Freeze function: If the video signal is lost, the last displayed image is frozen and highlighted with a colored frame and timer

Early detection of security incidents or unusual activities through continuous monitoring via Syslog, monitoring, and SNMP

Redundant network interface

2-Factor-Authentication (2FA) – is available via the KVM matrix system with DynamicWorkplace-CON and enhances security by requiring a second, possession-based factor during user authentication:
- The traditional password authentication is combined with a time-limited, single-use code (Time-Based-One-Time-Password - TOTP)
- You can choose between using the internal authentication server provided in the device or an external directory service
- Authenticator apps or hardware token can be used
- This additional layer of protection prevents unauthorized access and ensures the highest level of security, particularly in sensitive IT environments

Operation features

Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)

Simultaneous display of available KVM inputs (transmission channels) in up to 16 windows, with each window showing either the original channel or a mirrored view.

Intuitive operation and arrangement of windows, computer modules and presets or layouts via a window manager (graphical user interface).
The windows on the display area can be arranged either in fixed grids or freely
The windows can be scaled proportionally
The windows offer direct user interaction via their title bar
Different operating modes:
- Free mode: The windows can be moved, scaled and arranged freely - without a fixed grid, for maximum flexibility
- Swap mode: A window/source can swap places with another window/source using the mouse to quickly highlight important content without changing the layout/grid
Integration into the existing matrix remote control API for controlling the device

The image output can be rotated in 90° steps, whereby this setting can be made individually for each monitor

The exclusive signals can be received and sent flexibly between different channels at runtime. Allocation is either static, based on a window defined by the user, or automatic. In automatic mode, the signal is switched to the channel currently in the operating focus after a short delay

Device

External power supply via external 12V power pack

System expansion

Transm. Redundancy Option (comparable to UC/CON-2; in preparation): Devices are prepared for transmission redundancy without additional hardware and can be activated via software feature key.

Support for all common video signals, thanks to a wide selection of matrix-compatible KVM extenders, which can be integrated as end devices in matrix operation in a “mixed” configuration (Mix & Match). Video transmission is performed using bluedec™ – G&D’s advanced, multi-stage, lossless compression – delivering pixel-perfect, lossless video quality with near-zero latency.

General	Product group	Video Processing KVM matrix systems
	Number of workstations	1
	Number of sources	4
Input options	USB mouse	yes
Input options	USB keyboard	yes
Transmission	Number of transmission channels	4
	Redundant transmission channels	optional redundant KVM transmission
	Range	5000 m (9/125µm, OS1)
	Laser class	Class 1
	Type of interface	LC-Duplex
	Wavelength	1310 nm
	KVM matrix system component	Console module
	Medium	Fiber SM
	Data rate	2.5 Gbit/s
Video input	Format	Digitale Matrix
	Quantity	4
	Colour depth	24 bit
	Pixel encoding	RGB 4:4:4 (24 bpp / 8 bpc)
	Pixel rate	ca. 25 MPixel/s to ca. 600 MPixel/s
	Vertical frequency	24 Hz to 240 Hz
	Horizontal frequency	25 kHz to 295 kHz
	Exemplary resolutions	5120 × 2160 (50 Hz) 5120 × 1440 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Video output	Format	DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))
	Quantity	4
	Colour depth	24 bit
	Pixel encoding	RGB 4:4:4 (24 bpp / 8 bpc)
	Pixel rate	ca. 25 MPixel/s to ca. 600 MPixel/s
	Vertical frequency	24 Hz to 240 Hz
	Horizontal frequency	25 kHz to 295 kHz
	Exemplary resolutions	5120 × 2160 (50 Hz) 5120 × 1440 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Audio	Transmission type	Stereo 2-channel LPCM
	Resolutions	24 bit 20 bit 16 bit
	Sampling rate	up to 48 kHz
	Audio support	Digital Embedded
Audio 2	Transmission type	Stereo Transparent
	Resolutions	24 bit digital
	Sampling rate	up to 96 kHz
	Bandwidth	22 kHz
	Audio support	Analog
USB	Specification	USB 2.0
	Medium	Embedded
	Transmission rate	16 Mbit/s (app. Full Speed)
	Range	max. 5000 m
	USB classes	All
USB 2	Specification	USB 2.0
	GenericUSB support	1 device
	Medium	Embedded
	Transmission rate	25 Mbit/s (Full Speed)
	USB classes	Mass Storage (MSC / UMS) Human Interface Device (HID) SmartCard
Serial	Standard	RS232
	Transparent transmission	yes
	Data rate	max. 115200 bps
	Signals	TxD RxD DTR DSR RTS CTS DCD
Network	Medium 1	CAT7 CAT6 CAT5
	Data rate 1	10 MBit/s 100 MBit/s 1 GBit/s
	Medium 2	CAT5 CAT6 CAT7
	Data rate 2	10 MBit/s 100 MBit/s 1 GBit/s
Maintenance	Update via	ConfigPanel (Network)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width	ca. 436 mm
	Height	ca. 88 mm
	Depth	ca. 284 mm
	IP protection class	IP20
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity	20 % to 80 %, non-condensing
	Area of application	Interior
	Maximum operating altitude	3048m above sea level
	Storage temperature	-20 °C to 55 °C
	Storage air humidity	15 % to 80 %, non-condensing
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Input voltage	100-240 VAC
Power supply	Input frequency	60-50 Hz

Product comparison

Mark differences Hide same values

Technical data		selected variant DynamicWorkplace-CON-4F(S)-ARU Item no. A1120385	DynamicWorkplace-CON-8F(S)-ARU Item no. A1120381

		Serial	Serial
Serial	Standard	Standard RS232	Standard RS232
	Transparent transmission	Transparent transmission yes	Transparent transmission yes
	Data rate	Data rate max. 115200 bps	Data rate max. 115200 bps
	Signals	Signals TxD RxD DTR DSR RTS CTS DCD	Signals TxD RxD DTR DSR RTS CTS DCD

		Power supply	Power supply
Power supply	Input voltage	Input voltage 100-240 VAC	Input voltage 100-240 VAC
Power supply	Input frequency	Input frequency 60-50 Hz	Input frequency 60-50 Hz

		Operating conditions	Operating conditions
Operating conditions	Operating temperature	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C
	Operating air humidity	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing
	Area of application	Area of application Interior	Area of application Interior
	Maximum operating altitude	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level
	Storage temperature	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C
	Storage air humidity	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing
	Conformities	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)

		Housing	Housing
Housing	Material	Material anodised aluminium	Material anodised aluminium
	Width	Width ca. 436 mm	Width ca. 436 mm
	Height	Height ca. 88 mm	Height ca. 88 mm
	Depth	Depth ca. 284 mm	Depth ca. 284 mm
	IP protection class	IP protection class IP20	IP protection class IP20

		Maintenance	Maintenance
Maintenance	Update via	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)
Maintenance	Serviceport settings	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)

		Network	Network
Network	Medium 1	Medium 1 CAT7 CAT6 CAT5	Medium 1 CAT7 CAT6 CAT5
	Data rate 1	Data rate 1 10 MBit/s 100 MBit/s 1 GBit/s	Data rate 1 10 MBit/s 100 MBit/s 1 GBit/s
	Medium 2	Medium 2 CAT5 CAT6 CAT7	Medium 2 CAT5 CAT6 CAT7
	Data rate 2	Data rate 2 10 MBit/s 100 MBit/s 1 GBit/s	Data rate 2 10 MBit/s 100 MBit/s 1 GBit/s

		General	General
General	Product group	Product group Video Processing KVM matrix systems	Product group Video Processing KVM matrix systems
	Number of workstations	Number of workstations 1	Number of workstations 1
	Number of sources	Number of sources 4	Number of sources 8

		Video output	Video output
Video output	Format	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))
	Quantity	Quantity 4	Quantity 4
	Colour depth	Colour depth 24 bit	Colour depth 24 bit
	Pixel encoding	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
	Pixel rate	Pixel rate ca. 25 MPixel/s to ca. 600 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 600 MPixel/s
	Vertical frequency	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz
	Horizontal frequency	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz
	Exemplary resolutions	Exemplary resolutions 5120 × 2160 (50 Hz) 5120 × 1440 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 5120 × 2160 (50 Hz) 5120 × 1440 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.

		Video input	Video input
Video input	Format	Format Digitale Matrix	Format Digitale Matrix
	Quantity	Quantity 4	Quantity 8
	Colour depth	Colour depth 24 bit	Colour depth 24 bit
	Pixel encoding	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
	Pixel rate	Pixel rate ca. 25 MPixel/s to ca. 600 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 600 MPixel/s
	Vertical frequency	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz
	Horizontal frequency	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz
	Exemplary resolutions	Exemplary resolutions 5120 × 2160 (50 Hz) 5120 × 1440 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 5120 × 2160 (50 Hz) 5120 × 1440 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.

		Transmission	Transmission
Transmission	Number of transmission channels	Number of transmission channels 4	Number of transmission channels 8
	Redundant transmission channels	Redundant transmission channels optional redundant KVM transmission	Redundant transmission channels optional redundant KVM transmission
	Range	Range 5000 m (9/125µm, OS1)	Range 5000 m (9/125µm, OS1)
	Laser class	Laser class Class 1	Laser class Class 1
	Type of interface	Type of interface LC-Duplex	Type of interface LC-Duplex
	Wavelength	Wavelength 1310 nm	Wavelength 1310 nm
	KVM matrix system component	KVM matrix system component Console module	KVM matrix system component Console module
	Medium	Medium Fiber SM	Medium Fiber SM
	Data rate	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s

		Input options	Input options
Input options	USB mouse	USB mouse yes	USB mouse yes
Input options	USB keyboard	USB keyboard yes	USB keyboard yes

		Audio 2	Audio 2
Audio 2	Transmission type	Transmission type Stereo Transparent	Transmission type Stereo Transparent
	Resolutions	Resolutions 24 bit digital	Resolutions 24 bit digital
	Sampling rate	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz
	Bandwidth	Bandwidth 22 kHz	Bandwidth 22 kHz
	Audio support	Audio support Analog	Audio support Analog

		Audio	Audio
Audio	Transmission type	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM
	Resolutions	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit
	Sampling rate	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz
	Audio support	Audio support Digital Embedded	Audio support Digital Embedded

		USB 2	USB 2
USB 2	Specification	Specification USB 2.0	Specification USB 2.0
	GenericUSB support	GenericUSB support 1 device	GenericUSB support 1 device
	Medium	Medium Embedded	Medium Embedded
	Transmission rate	Transmission rate 25 Mbit/s (Full Speed)	Transmission rate 25 Mbit/s (Full Speed)
	USB classes	USB classes Mass Storage (MSC / UMS) Human Interface Device (HID) SmartCard	USB classes Mass Storage (MSC / UMS) Human Interface Device (HID) SmartCard

		USB	USB
USB	Specification	Specification USB 2.0	Specification USB 2.0
	Medium	Medium Embedded	Medium Embedded
	Transmission rate	Transmission rate 16 Mbit/s (app. Full Speed)	Transmission rate 16 Mbit/s (app. Full Speed)
	Range	Range max. 5000 m	Range max. 5000 m
	USB classes	USB classes All	USB classes All

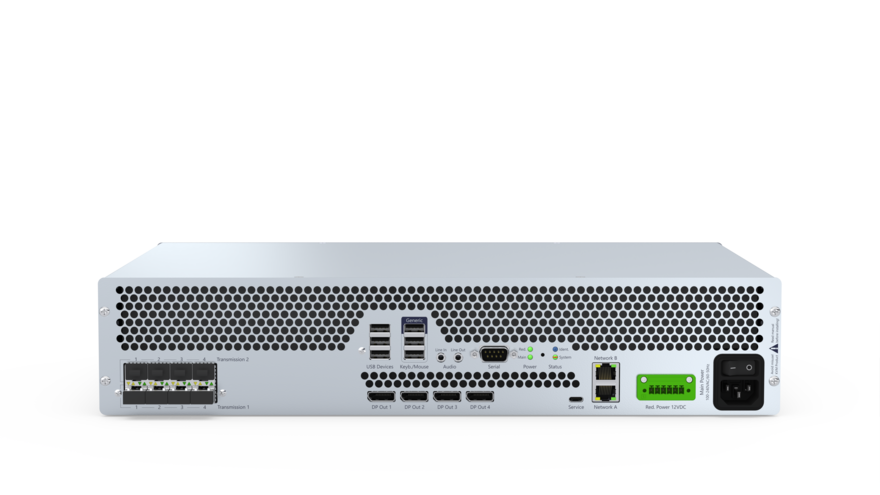

Interfaces

Aperture designation	Design	Description
No interfaces in use

Aperture designation	Design	Description
Transmission 1 - 1-4	RJ45 socket	Data transmission to matrix switch (FIBER)
Transmission 2 - 1-4	RJ45 socket	Data transmission to matrix switch redundant (FIBER)
USB Devices	USB-A socket 2.0	Port for USB devices (transparent)
Generic	USB-A socket 2.0	Port for USB devices (Generic)
Keyb./Mouse	USB-A socket 2.0	Port for keyboard and mouse
Line In	Jack socket - 3,5 mm	Port for microphone / audio source
Line Out	Jack socket - 3,5 mm	Port for speaker/headset
Serial	D-Sub9 jack	Port for serial devices
DP Out 1	DisplayPort socket	Port for monitor
DP Out 2	DisplayPort socket	Port for monitor
DP Out 3	DisplayPort socket	Port for monitor
DP Out 4	DisplayPort socket	Port for monitor
Service	USB-C socket	Port for service purposes
Network A	RJ45 socket	Port for IP network
Network B	RJ45 socket	Port for IP network
Red. Power 12VDC	Phoenix clamp Combicon	Power supply DC redundant
Main Power	IEC plug 320 C14	Power supply AC
