MultiPower-12-HP 12x 12V/1.2A or 6x12V/2.4A

Item no. A4110052

Back to last view

Highlight

Central power supply for 12 12V devices with max. 1.2A each or 6 12V devices with max. 2.4A each

Request product now

Add to watchlist Compare product Questions about the product?

Learn more

The form could not be loaded.

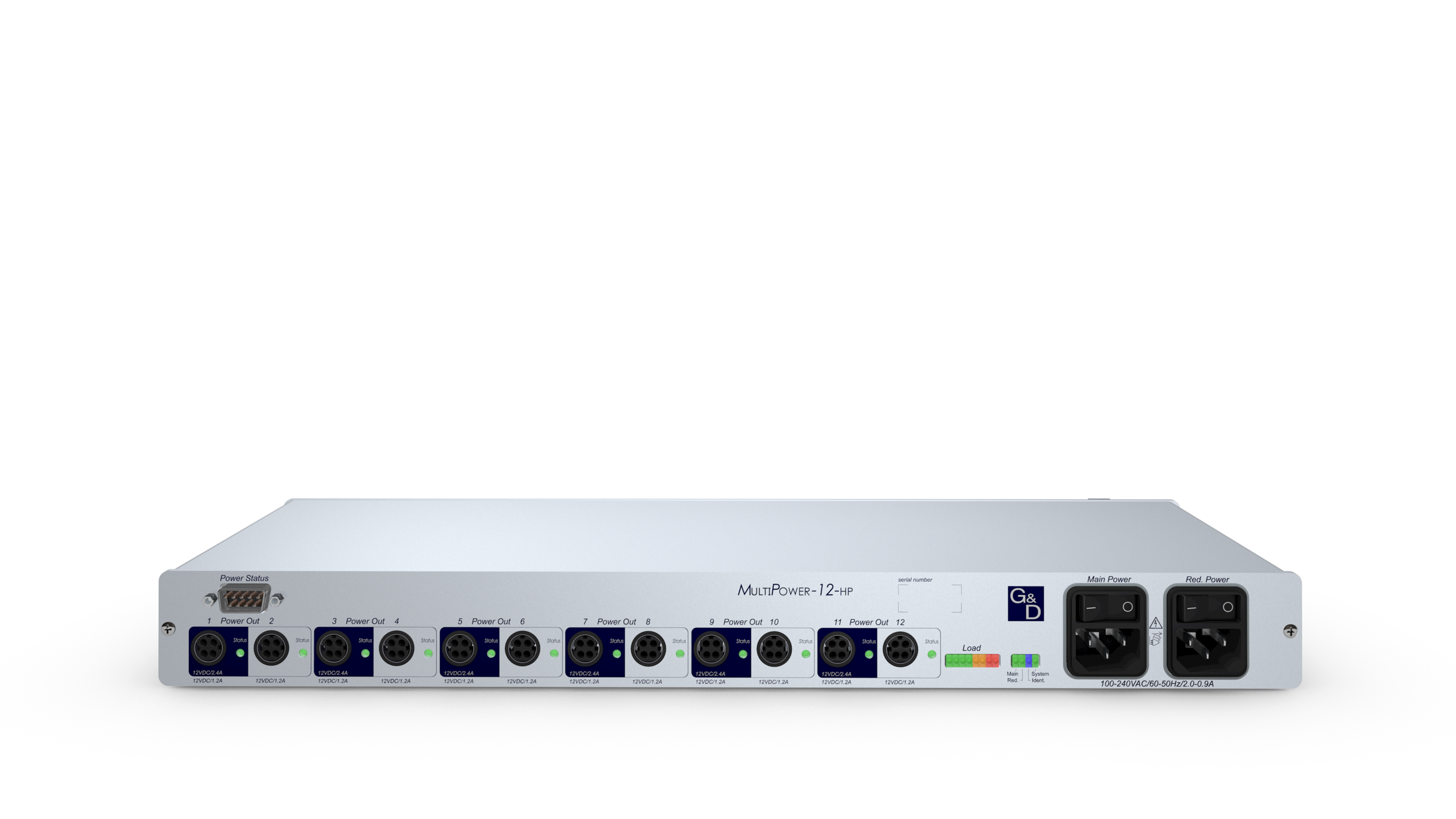

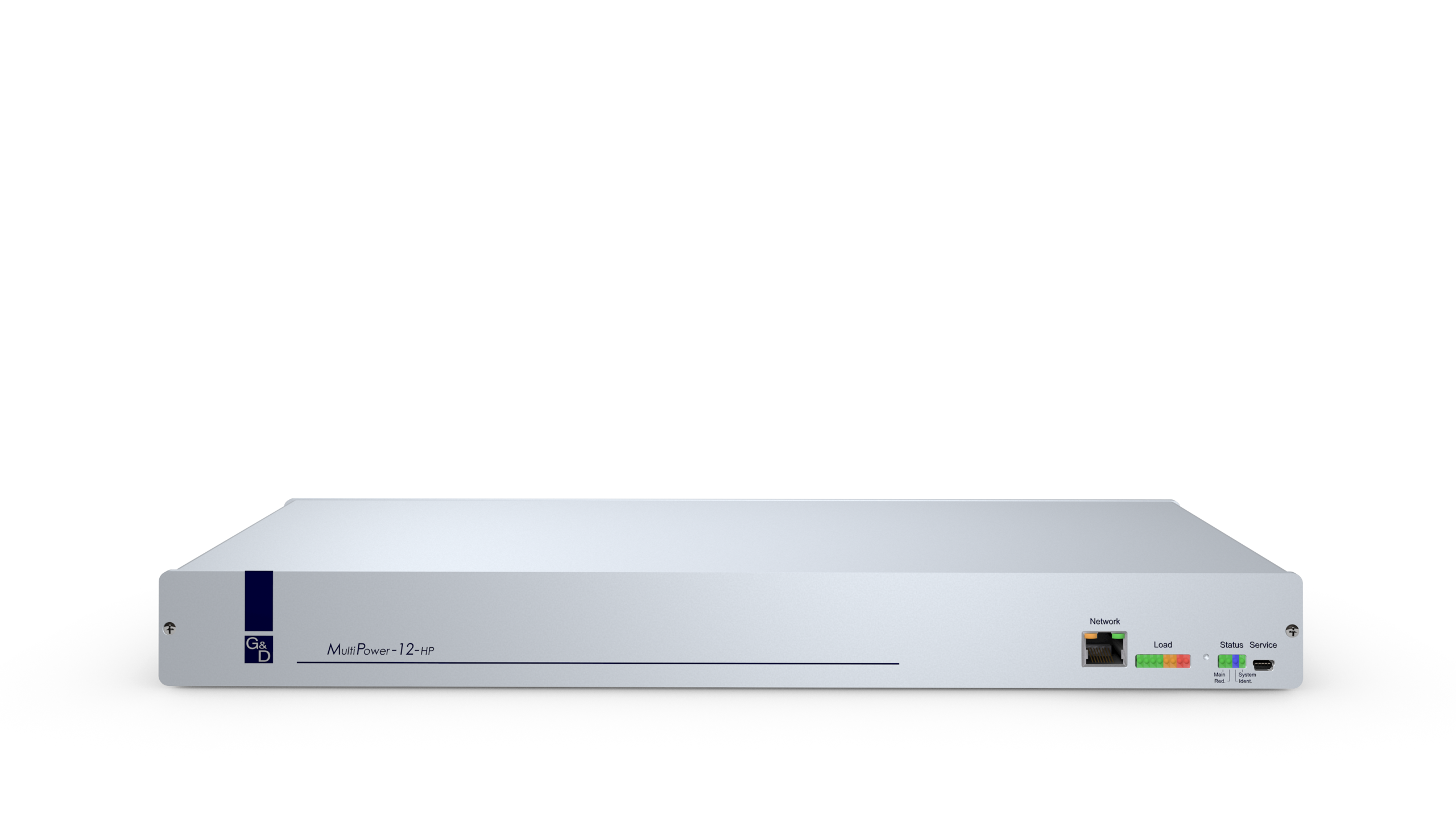

The MultiPower-12-HP

serves as the central power source of G&D devices that require an external power pack (12V). You can connect up to twelve 12V devices to the MultiPower-12-NT (12 output interfaces supply G&D devices with 12V and max. 1.2A – depends on the devices; with port configuration, you can connect up to six G&D devices with 12V and max. 2.4A (high power)). With the MultiPower-12-HP, a redundant power supply can be ensured via two internal power supply units. The web application Config Panel provides a graphical user interface to monitor the central power supply. The MultiPower-12-HP is a functional, space-saving and secure solution for applications in server rooms or computer racks.

Device

Central power supply, for example in racks
Enables external monitoring of the device status

Security features

MultiPower-12-HP, MultiPower-12 and MultiPower-6:
- redundant internal power units
24V variant:
- redundant external power supply, 3 pin Phoenix connector
  (PowerPacks not included in the scope of delivery)
MultiPower-2:
- redundant external power supply

Operation features

MultiPower-12-HP:
- Connction of up to twelve 12V devices
  (12 output interfaces supply G&D devices with 12V and max. 1,2A – depends on the devices; with port configuration, up to six G&D devices with 12V and max. 2.4A (high power) can be connected)
- Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)
MultiPower-12:
- Connection of up to twelve 12V devices
  (12 output interfaces supply G&D devices with 12V and max. 600mA – depends on the devices)
MultiPower-6:
- Conncetion of up to six 12V devices
  (6 output interfaces supply G&D devices with 12V and max. 1.2A – depends on the devices)
MultiPower-2:
- Conncetion of up to two 12V devices
  (2 output interfaces supply G&D devices with 12V and max. 1.5A – depends on the devices)

General	Product group	Accessories
Network	Medium 1	CAT5 CAT6 CAT7
Network	Data rate 1	1 GBit/s 100 MBit/s 10 MBit/s
Maintenance	Update via	ConfigPanel (Network)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width	ca. 436 mm
	Height	ca. 44 mm
	Depth	ca. 155 mm
	IP protection class	IP20
	Weight	ca. 2.08 kg
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity	20 % to 80 %, non-condensing
	Area of application	Interior
	Maximum operating altitude	3000m above sea level
	Storage temperature	-20 °C to 55 °C
	Storage air humidity	15 % to 85 %, non-condensing
	MTBF	180000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Input voltage	100-240 VAC
	Input frequency	60-50 Hz
	Current consumption	2-0.9 A
	Power consumption idle	3.4-3.1 W
	Power consumption max.	188.7-181.1 W
	Heat output idle	3 W
	Heat output max.	8.3 W
Power supply 2	Input voltage	100-240 VAC
	Input frequency	60-50 Hz
	Current consumption	2-0.9 A
	Power consumption idle	3.1-3.4 W
	Power consumption max.	181.1-188.7 W
	Heat output idle	3 W
	Heat output max.	8.3 W
