MultiPower-12-TypeC

Item no. A4110064
Back to last view
New
Similar image
Internal power supply Network connection (including monitoring)
Central power supply for up to 12 devices with USB Type-C PD interface. Max. total power 270W, max. 60W per port. Max. 22.5W per port if operating 12 identical devices.
Request product now
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

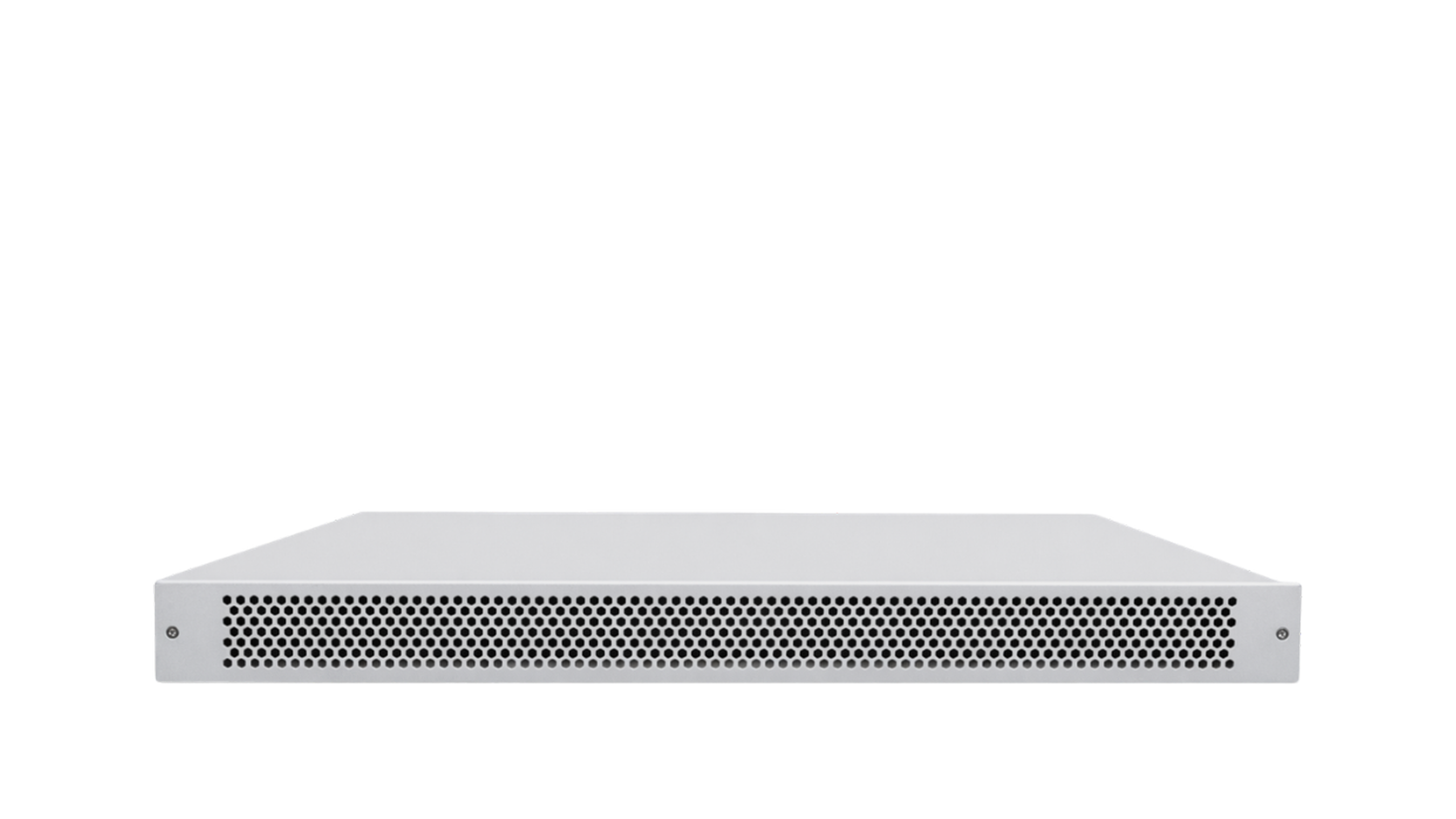

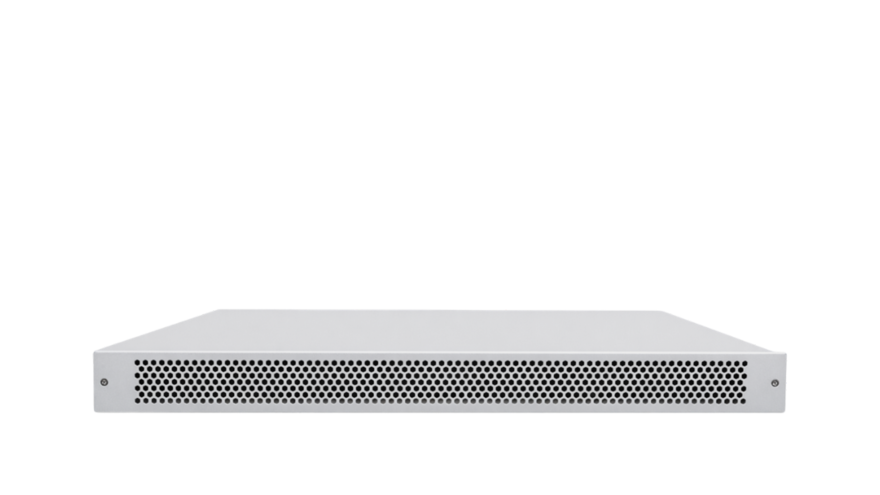

The MultiPower-12-TypeC

provides centralized power for G&D devices requiring an external USB Type-C PD (Power Delivery) power adapter. It supports up to twelve USB-C PD devices, with two internal power supplies ensuring redundancy. Featuring network-based control, monitoring, and updates, along with intelligent power management and automatic load balancing, the unit offers a secure, space-saving, and efficient solution for server rooms and rack installations.

Device
  • New enclosure design featuring an improved ventilation concept, optimized interface layout, and durable surface finishing – delivering greater reliability and long service life, even in demanding environments.
  • Up to twelve devices requiring an external power supply are powered centrally – replacing numerous individual power supplies, reducing cabling complexity, and lowering thermal load within the rack.
  • The compact 19“ 1U form factor allows seamless integration into standardized rack systems. Ideal for data centers, technical rooms, and installations with limited space. All interfaces, LEDs, and control elements are located on one side of the device – ensuring quick access and straightforward cabling.
  • Supports a wide range of USB-C devices with Power Delivery.
    The optimal voltage-current combination is automatically negotiated. The device delivers up to 270 W total output, with a maximum of 60 W per port, or up to 22.5 W when using all 12 ports – ensuring maximum flexibility and future-proof usage.
  • The central power supply unit simplifies procurement, integration, and operation through a standardized power structure. This reduces system complexity, increases operational reliability, and supports long-term scalability.
Warranty
  • A 3-year, free of charge product guarantee
  • For an additional fee guarantee extension possible
Operation features
  • The power supply unit monitors all outputs in real time, reserves capacity as needed, and activates ports only if sufficient energy is available. This enables controlled load distribution, protects against overload, and reduces manual intervention – particularly valuable for automated or hard-to-access installations.
  • In the event of a potential overload, ports with higher indices are automatically deactivated to maintain permissible power levels. This built-in safety logic reliably protects the system and connected devices during continuous operation.
  • After a reboot, all previously active port states are automatically restored – without manual intervention. Role-based access concepts ensure clear responsibilities for configuration and operation in more complex environments.
  • Each port can be individually switched and monitored via the integrated network interface – even across different locations. The web interface enables configuration, status diagnostics, and firmware updates – for minimal response times and maximum operational control.
GeneralProduct group Accessories
Product Family MultiPower
NetworkQuantity 1
Medium CAT5
CAT6
CAT7
Data rate 1 Gbit/s
100 Mbit/s
10 Mbit/s
MaintenanceUpdate via ConfigPanel (Network)
Serviceport settings 115200bps (8/N/1)
HousingMaterial Sheet steel, powder-coated
Width ca. 436 mm
Height ca. 44 mm
Depth ca. 253 mm
IP protection class IP20
Operating conditionsOperating environment temperature 5 °C to 45 °C
Operating air humidity, non-condensing 20 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,048 m
Storage environment temperature -20 °C to 60 °C
Storage air humidity, non-condensing 15 % to 85 %
Conformities RoHS compliant (see downloads)
REACH compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
WEEE (reg. no. DE30763240)
Power supplyQuantity 2
Type Internal
Input voltage 100-240 VAC
Input frequency 60-50 Hz

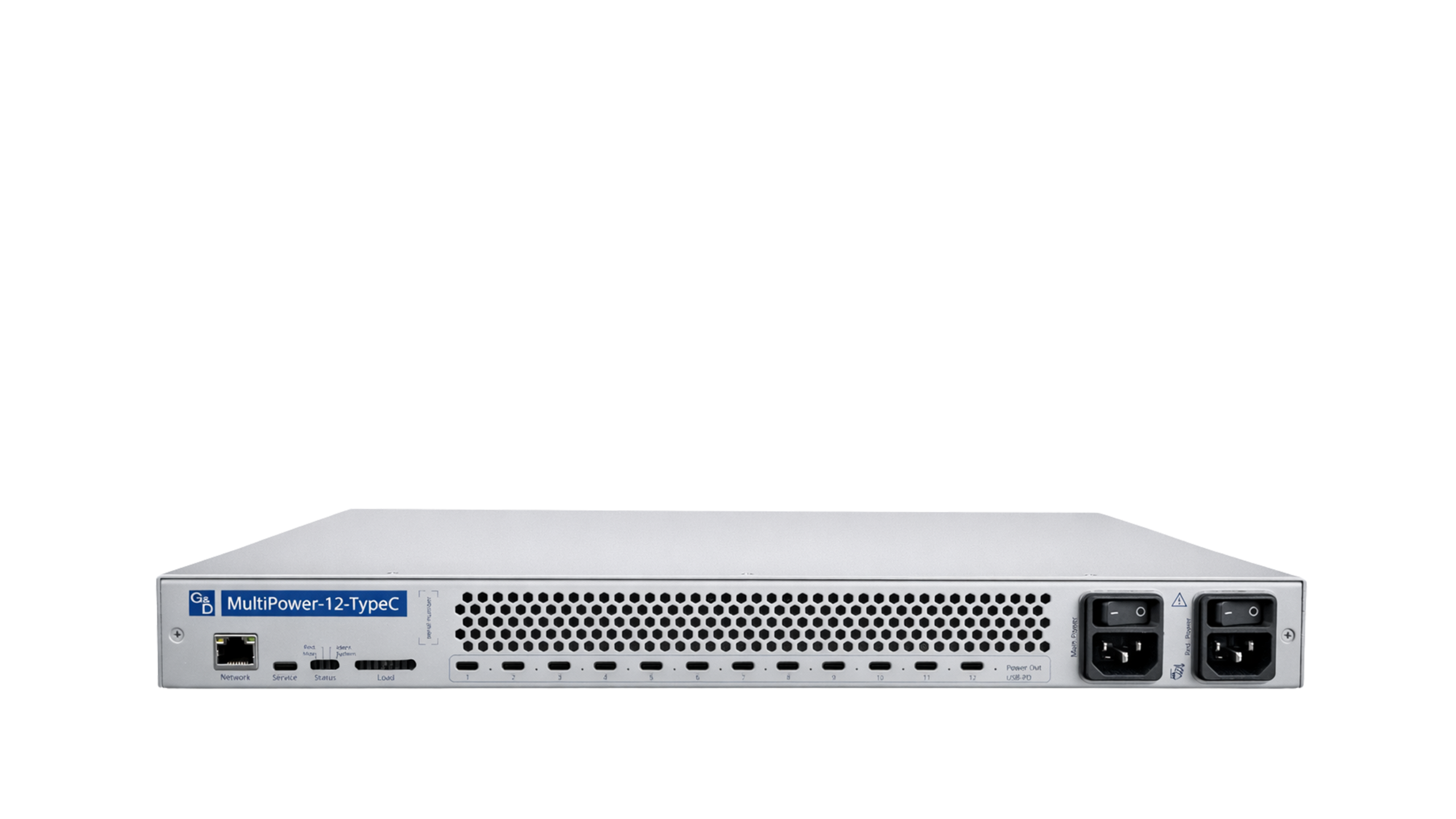

Interfaces

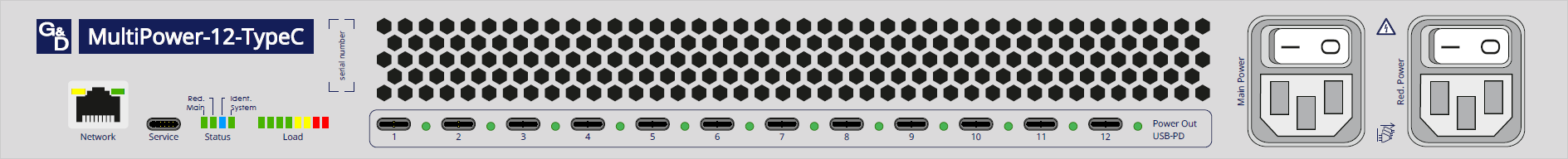

Rear product interface image MultiPower-12-TypeC
Aperture designationDesignDescription
NetworkRJ45 socketPort for IP network
ServiceUSB-C socketPort for service purposes
Power Out 1-12 USB-PDUSB-C socketConnection for powering USB-C PD devices
Red. PowerIEC plug 320 C14Power supply AC redundant
Main PowerIEC plug 320 C14Power supply AC
