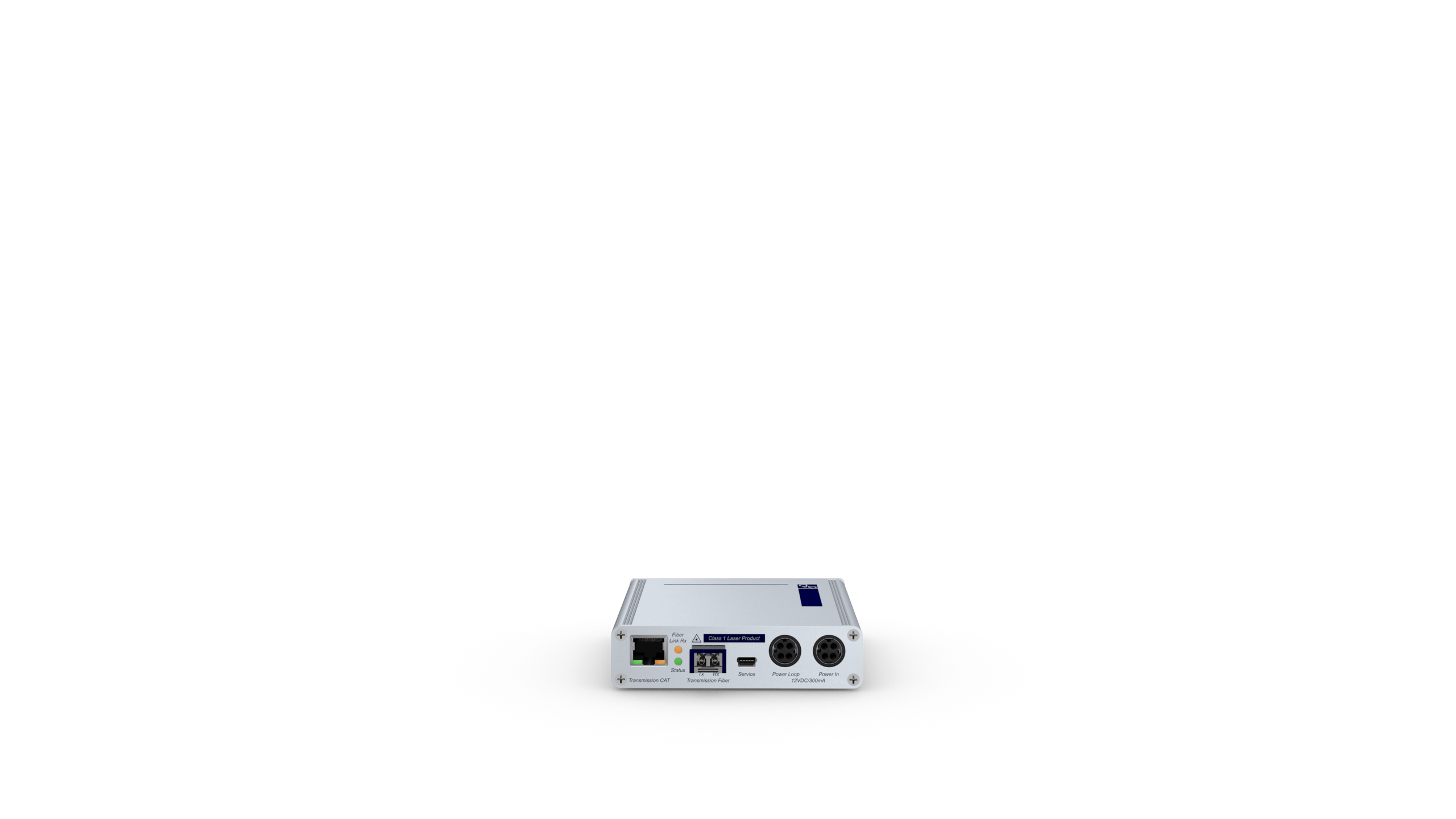

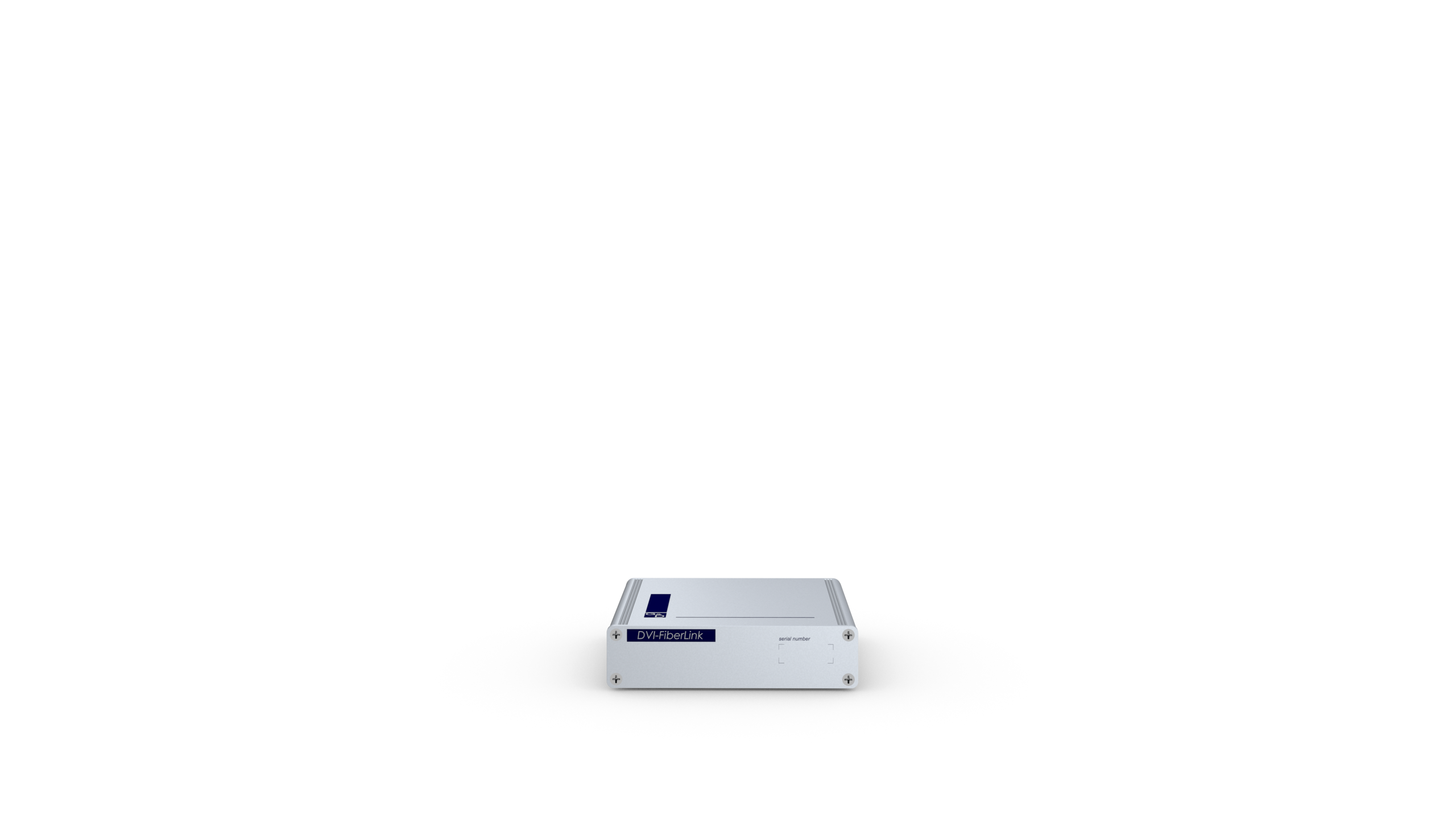

DVI-FiberLink(S) Basic

Item no. A2300080

Back to last view

Media converter CAT to Fiber 1G singlemode

Product variants

Request product now

Add to watchlist Compare product Questions about the product?

Learn more

The form could not be loaded.

The DVI-FiberLink

increases the system range within a digital matrix system. A DVI-FiberLink system consists of two identical modules (transceivers) that act as media converters between CAT and fiber in both directions.The DVI-FiberLink pair is placed at any position, on the computer or user side of the matrix switch between two system components. One access is extended per DVI-FiberLink pair.

Transmission

The transmission distance is up to 10,000 meters over fiber singlemode optics, incl. transmission module(s)/SFP transceiver(s)

Device

Active media converter from CAT to fiber

PowerPack not included in the scope of delivery

Operation

The device can be placed between the following components:
- Two digital matrix switches
- A computer module (e. g. DVI-CPU) and a digital matrix switch
- A user module (e. g. DVI-CON) and a digital matrix switch

Device

external power pack supplies up to five modules with power via the power loop function

Device

External power supply

General	Product group	KVM-Add-ons
Maintenance	Update via	Update Wizard (service interface)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width	ca. 105 mm
	Height	ca. 26 mm
	Depth	ca. 84 mm
	IP protection class	IP20
	Weight	ca. 0.22 kg
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity	20 % to 80 %, non-condensing
	Area of application	Interior
	Maximum operating altitude	3048m above sea level
	Storage temperature	-10 °C to 60 °C
	Storage air humidity	15 % to 80 %, non-condensing
	MTBF	250000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Input voltage	12 VDC
	Current consumption	0.3 A
	Power consumption idle	1.3 W
	Power consumption max.	2.4 W
	Heat output idle	1.3 W
	Heat output max.	2.4 W

Product comparison

Mark differences Hide same values

Technical data		DVI-FiberLink(M) Basic Item no. A2300079	DVI-FiberLink(M) incl. PowerPack Item no. A2300052	selected variant DVI-FiberLink(S) Basic Item no. A2300080	DVI-FiberLink(S) incl. PowerPack Item no. A2300044

		General	General	General	General
General	Product group	Product group KVM-Add-ons	Product group KVM-Add-ons	Product group KVM-Add-ons	Product group KVM-Add-ons

		Maintenance	Maintenance	Maintenance	Maintenance
Maintenance	Update via	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)
Maintenance	Serviceport settings	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)

		Housing	Housing	Housing	Housing
Housing	Material	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium
	Width	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm
	Height	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm
	Depth	Depth ca. 84 mm	Depth ca. 84 mm	Depth ca. 84 mm	Depth ca. 84 mm
	IP protection class	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20
	Weight	Weight ca. 0.22 kg	Weight ca. 0.22 kg	Weight ca. 0.22 kg	Weight ca. 0.22 kg

		Operating conditions	Operating conditions	Operating conditions	Operating conditions
Operating conditions	Operating temperature	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C
	Operating air humidity	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing
	Area of application	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior
	Maximum operating altitude	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level
	Storage temperature	Storage temperature -10 °C to 60 °C	Storage temperature -10 °C to 60 °C	Storage temperature -10 °C to 60 °C	Storage temperature -10 °C to 60 °C
	Storage air humidity	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing
	MTBF	MTBF 250000 h at 25°C	MTBF 250000 h at 25°C	MTBF 250000 h at 25°C	MTBF 250000 h at 25°C
	Conformities	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)

		Power supply	Power supply	Power supply	Power supply
Power supply	Input voltage	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC
	Current consumption	Current consumption 0.3 A	Current consumption 0.3 A	Current consumption 0.3 A	Current consumption 0.3 A
	Power consumption idle	Power consumption idle 1.3 W	Power consumption idle 1.3 W	Power consumption idle 1.3 W	Power consumption idle 1.3 W
	Power consumption max.	Power consumption max. 2.4 W	Power consumption max. 2.4 W	Power consumption max. 2.4 W	Power consumption max. 2.4 W
	Heat output idle	Heat output idle 1.3 W	Heat output idle 1.3 W	Heat output idle 1.3 W	Heat output idle 1.3 W
	Heat output max.	Heat output max. 2.4 W	Heat output max. 2.4 W	Heat output max. 2.4 W	Heat output max. 2.4 W
