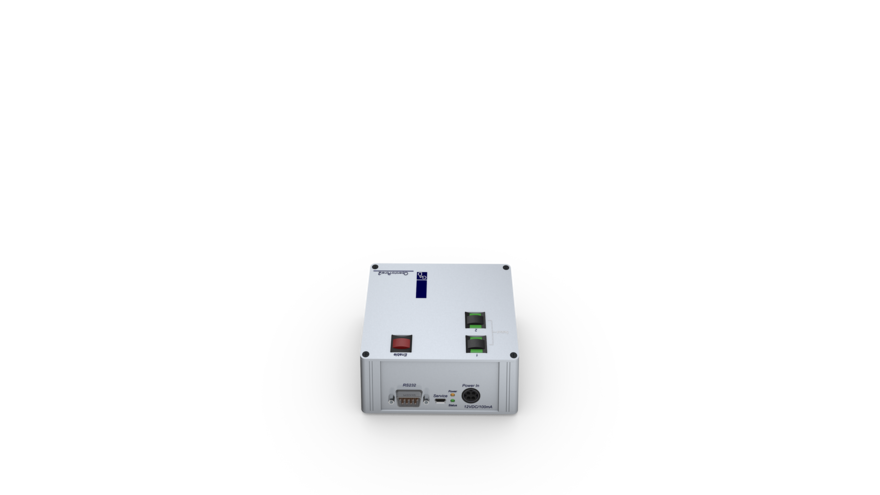

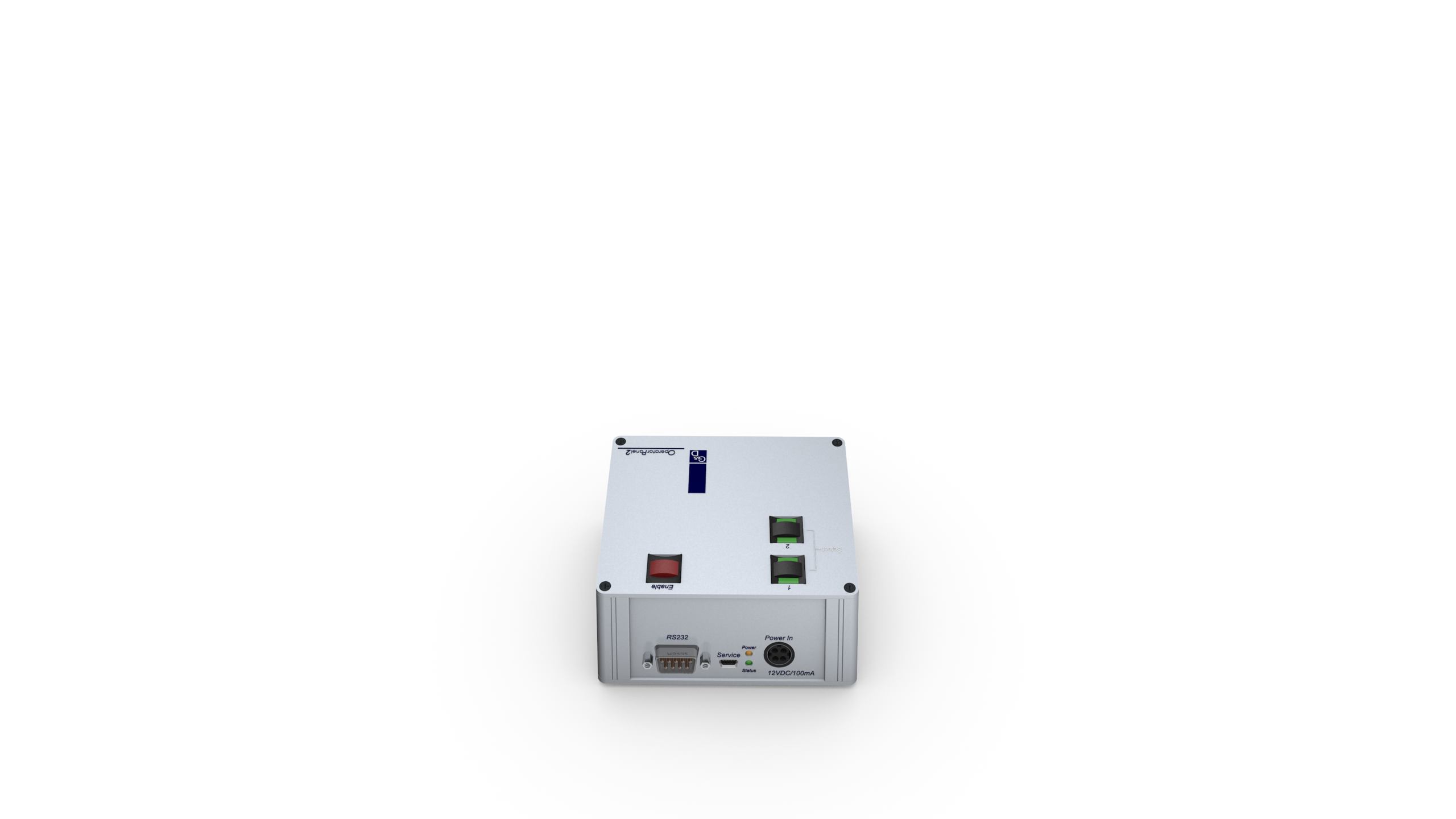

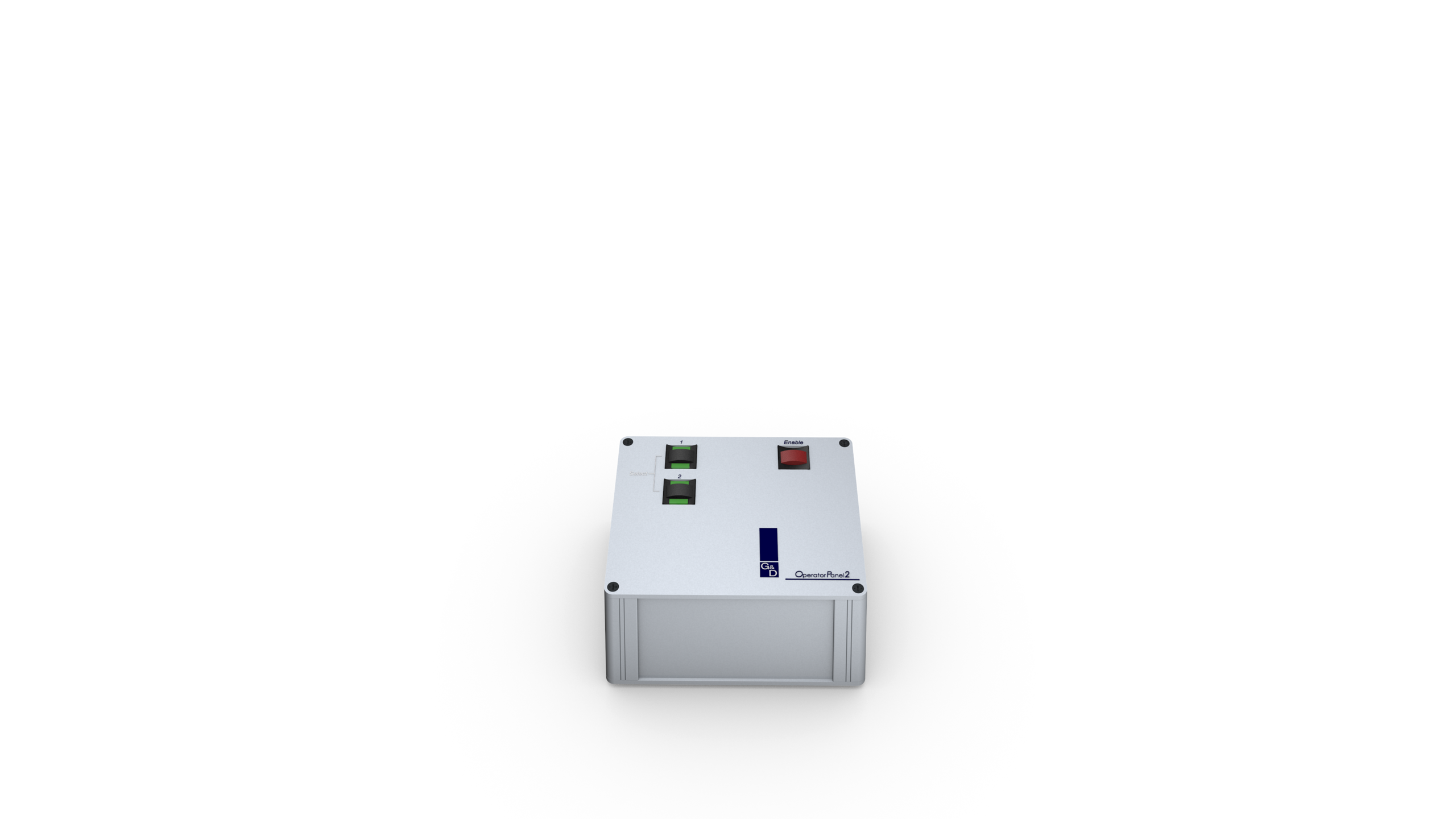

you can switch your KVM switch comfortably from your desk by pressing a button. Now you can install the switch anywhere to save space. To switch between channels, press the "Enable" button and the channel button at the same time. Pressing two buttons at the same time will prevent you from switching between channels by accident.
| General | Product group |
KVM-Add-ons |
|---|---|---|
| Maintenance | Update via |
Update Wizard (service interface) |
| Serviceport settings |
115200bps (8/N/1) | |
| Housing | Material |
anodised aluminium |
| Width |
ca. 115 mm | |
| Height |
ca. 47 mm | |
| Depth |
ca. 93 mm | |
| IP protection class |
IP20 | |
| Weight |
ca. 0.32 kg | |
| Operating conditions | Operating temperature |
5 °C to 45 °C |
| Operating air humidity |
20 % to 80 %, non-condensing | |
| Area of application |
Interior | |
| Maximum operating altitude |
3048m above sea level | |
| Storage temperature |
-20 °C to 60 °C | |
| Storage air humidity |
15 % to 85 %, non-condensing | |
| MTBF |
100000 h at 25°C | |
| Conformities |
CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | |
| Power supply | Input voltage |
12 VDC |
| Current consumption |
0.1 A | |
| Power consumption idle |
0.1 W | |
| Power consumption max. |
1.2 W | |
| Heat output idle |
0.1 W | |
| Heat output max. |
1.2 W |
Technical data | |||||
|---|---|---|---|---|---|
| General | General | ||||
| General | Product group | Product group KVM-Add-ons | Product group KVM-Add-ons | ||
| Maintenance | Maintenance | ||||
| Maintenance | Update via | Update via Update Wizard (service interface) | Update via Update Wizard (service interface) | ||
| Serviceport settings | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | |||
| Housing | Housing | ||||
| Housing | Material | Material anodised aluminium | Material anodised aluminium | ||
| Width | Width ca. 115 mm | Width ca. 143 mm | |||
| Height | Height ca. 47 mm | Height ca. 47 mm | |||
| Depth | Depth ca. 93 mm | Depth ca. 183 mm | |||
| IP protection class | IP protection class IP20 | IP protection class IP20 | |||
| Weight | Weight ca. 0.32 kg | Weight ca. 0.40 kg | |||
| Operating conditions | Operating conditions | ||||
| Operating conditions | Operating temperature | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | ||
| Operating air humidity | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | |||
| Area of application | Area of application Interior | Area of application Interior | |||
| Maximum operating altitude | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | |||
| Storage temperature | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | |||
| Storage air humidity | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | |||
| MTBF | MTBF 100000 h at 25°C | MTBF 100000 h at 25°C | |||
| Conformities | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | |||
| Power supply | Power supply | ||||
| Power supply | Input voltage | Input voltage 12 VDC | Input voltage 12 VDC | ||
| Current consumption | Current consumption 0.1 A | Current consumption 0.1 A | |||
| Power consumption idle | Power consumption idle 0.1 W | Power consumption idle 0.1 W | |||
| Power consumption max. | Power consumption max. 1.2 W | Power consumption max. 1.2 W | |||
| Heat output idle | Heat output idle 0.1 W | Heat output idle 0.1 W | |||
| Heat output max. | Heat output max. 1.2 W | Heat output max. 1.2 W | |||
