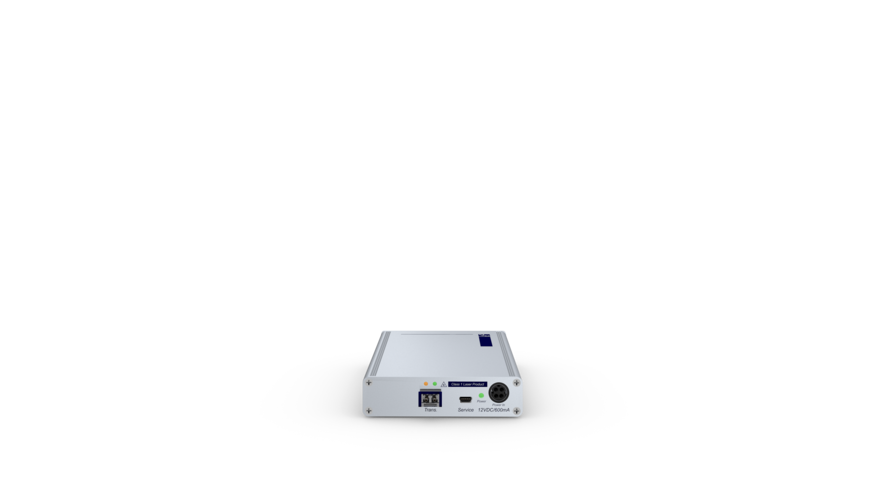

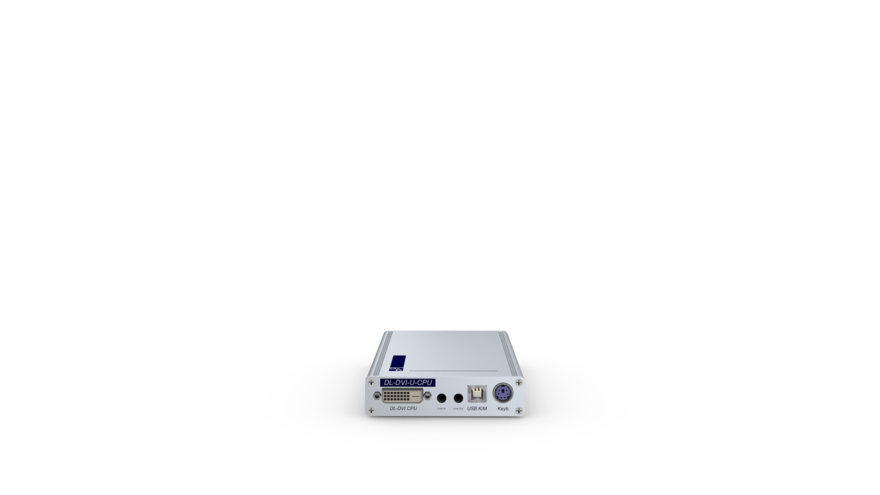

DL-DVI-U-CPU-Fiber(M) Basic

Video

bluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.

The end devices can be flexibly combined with each other, even if they process different video signals (Mix & Match)

Use of a monitor profile optimized for the computer module (EDID profile)
Flexible use of the EDID data of the workplace monitor as required

Resolution up to
2560 × 1600 @ 60 Hz,
4096 × 2160 @ 30 Hz

Signals

Bidirectional audio signals (stereo)

Embedded USB 2.0 with Full Speed, transparent, all USB classes

Transmission

The transmission distance is up to 400 meters over fiber multimode optics, incl. transmission module(s)/SFP transceiver(s)

Device

Improved security through physical separation between workplaces and computers

Access to standard interfaces of the computer, with no software installation required

The devices are compatible with the ControlCenter-Digital and ControlCenter-Compact series (matrix operation) and other end devices for computer and workplace connections (extender operation)

PowerPack not included in the scope of delivery for Basic variants

UC variant: computer module with two transmission lines for redundancy
- These modules can be connected to various counterparts, such as compatible console modules or KVM matrix switches

MultiChannel variants (MC): Modules for multi-monitor workplaces with multi-channel video
- MC mode uses the full bandwidth for each video channel, whereby a separate transmission line is required for each channel

Operation features

Ready for operation out of the box, no additional configuration required

Permanent keyboard/mouse emulation ensures a stable system

Compatibility with special USB-HID input devices

Operation via multilingual on-screen display (OSD) and hotkeys

Support of DDC/CI (Display Data Channel / Command Interface) to enable centralized software-side control of monitor settings such as brightness

Device

External power supply via external 12V power pack or G&D-MultiPower, providing a central and redundant power supply

Device mounting via RackMount sets, TableMount sets or other mounting tools

System expansion

You can integrate the matrix-compatible extenders into a complete installation with a ControlCenter-Compact or ControlCenter-Digital, even at a later point in time. This provides you with even greater flexibility through the possibility of distributed access – and the existing components can continue to be used.

General	Product group	KVM extenders KVM matrix systems
General	Number of sources	1
Input options	USB mouse	yes
	USB keyboard	yes
	PS/2 mouse	yes
	PS/2 keyboard	yes
Transmission	Number of transmission channels	1
	Redundant transmission channels	no redundant KVM transmission
	Range	100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 - 4700MHz*km)
	Laser class	Class 1
	Type of interface	LC-Duplex
	Wavelength	850 nm
	KVM matrix system component	Computer module
	Medium	Fiber MM
	Data rate	2.5 Gbit/s
Video input	Number of video channels	1
	Format	DualLink DVI
	Colour depth	24 bit
	Pixel rate	ca. 25 MPixel/s to ca. 330 MPixel/s
	Vertical frequency	24 Hz to 120 Hz
	Horizontal frequency	25 kHz to 185 kHz
	Exemplary resolutions	1280 x 1024 (85 Hz) 1920 x 1200 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 640 × 480 (60 Hz) 2048 × 2160 (60 Hz) 3840 × 2160 (30 Hz) 4096 × 2160 (30 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Display Data Channel (DDC) Display Data Channel Command Interface (DDC/CI)
Audio	Transmission type	Bidirectional Stereo
	Resolutions	24 bit digital
	Sampling rate	up to 96 kHz
	Bandwidth	22 kHz
	Audio support	Analog
USB	Specification	USB 2.0
	Medium	Embedded
	Transmission rate	16 Mbit/s (app. Full Speed)
	Range	max. 400 m
	USB classes	All
Maintenance	Update via	Update Wizard (service interface)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width	ca. 105 mm
	Height	ca. 26 mm
	Depth	ca. 164 mm
	IP protection class	IP20
	Weight	ca. 0.40 kg
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity	20 % to 80 %, non-condensing
	Area of application	Interior
	Maximum operating altitude	3048m above sea level
	Storage temperature	-20 °C to 60 °C
	Storage air humidity	15 % to 85 %, non-condensing
	MTBF	280000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Input voltage	12 VDC
	Current consumption	0.6 A
	Power consumption max.	7.2 W
	Heat output max.	6.2 W

Product comparison

Mark differences Hide same values

Technical data		DL-DVI-CPU-Fiber(M) Basic Item no. A2320318	DL-DVI-CPU-Fiber(M) incl. PowerPack Item no. A2320319	DL-DVI-CPU-Fiber(M)-UC Basic Item no. A2320320	DL-DVI-CPU-Fiber(M)-UC incl. PowerPack Item no. A2320321	selected variant DL-DVI-U-CPU-Fiber(M) Basic Item no. A2320330	DL-DVI-U-CPU-Fiber(M) incl. PowerPack Item no. A2320331	DL-DVI-U-CPU-Fiber(M)-UC Basic Item no. A2320336	DL-DVI-U-CPU-Fiber(M)-UC incl. PowerPack Item no. A2320337

		General	General	General	General	General	General	General	General
General	Product group	Product group KVM extenders KVM matrix systems	Product group KVM extenders KVM matrix systems	Product group KVM extenders KVM matrix systems	Product group KVM extenders KVM matrix systems	Product group KVM extenders KVM matrix systems	Product group KVM extenders KVM matrix systems	Product group KVM extenders KVM matrix systems	Product group KVM extenders KVM matrix systems
General	Number of sources	Number of sources 1	Number of sources 1	Number of sources 1	Number of sources 1	Number of sources 1	Number of sources 1	Number of sources 1	Number of sources 1

		Input options	Input options	Input options	Input options	Input options	Input options	Input options	Input options
Input options	USB mouse	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes
	USB keyboard	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes
	PS/2 mouse	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes
	PS/2 keyboard	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes

		Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission
Transmission	Number of transmission channels	Number of transmission channels 1	Number of transmission channels 1	Number of transmission channels 2	Number of transmission channels 2	Number of transmission channels 1	Number of transmission channels 1	Number of transmission channels 2	Number of transmission channels 2
	Redundant transmission channels	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels Redundant KVM transmission available	Redundant transmission channels Redundant KVM transmission available	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels Redundant KVM transmission available	Redundant transmission channels Redundant KVM transmission available
	Range	Range 100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 - 4700MHz*km)	Range 100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 - 4700MHz*km)	Range 100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 - 4700MHz*km)	Range 100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 - 4700MHz*km)	Range 100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 - 4700MHz*km)	Range 100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 - 4700MHz*km)	Range 100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 - 4700MHz*km)	Range 100 m (62.5/125µm) 200 m (50.0/125µm, OM2) 400 m (50.0/125µm, OM3) 70 m (62.5/125µm) 150 m (50.0/125µm) 400 m (50.0/125µm, OM4 - 4700MHz*km)
	Laser class	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1
	Type of interface	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex
	Wavelength	Wavelength 850 nm	Wavelength 850 nm	Wavelength 850 nm	Wavelength 850 nm	Wavelength 850 nm	Wavelength 850 nm	Wavelength 850 nm	Wavelength 850 nm
	KVM matrix system component	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module
	Medium	Medium Fiber MM	Medium Fiber MM	Medium Fiber MM	Medium Fiber MM	Medium Fiber MM	Medium Fiber MM	Medium Fiber MM	Medium Fiber MM
	Data rate	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s

		Video input	Video input	Video input	Video input	Video input	Video input	Video input	Video input
Video input	Number of video channels	Number of video channels 1	Number of video channels 1	Number of video channels 1	Number of video channels 1	Number of video channels 1	Number of video channels 1	Number of video channels 1	Number of video channels 1
	Format	Format DualLink DVI	Format DualLink DVI	Format DualLink DVI	Format DualLink DVI	Format DualLink DVI	Format DualLink DVI	Format DualLink DVI	Format DualLink DVI
	Colour depth	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit
	Pixel rate	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s
	Vertical frequency	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz	Vertical frequency 24 Hz to 120 Hz
	Horizontal frequency	Horizontal frequency 25 kHz to 185 kHz	Horizontal frequency 25 kHz to 185 kHz	Horizontal frequency 25 kHz to 185 kHz	Horizontal frequency 25 kHz to 185 kHz	Horizontal frequency 25 kHz to 185 kHz	Horizontal frequency 25 kHz to 185 kHz	Horizontal frequency 25 kHz to 185 kHz	Horizontal frequency 25 kHz to 185 kHz
	Exemplary resolutions	Exemplary resolutions 1280 x 1024 (85 Hz) 1920 x 1200 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 640 × 480 (60 Hz) 2048 × 2160 (60 Hz) 3840 × 2160 (30 Hz) 4096 × 2160 (30 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 1280 x 1024 (85 Hz) 1920 x 1200 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 640 × 480 (60 Hz) 2048 × 2160 (60 Hz) 3840 × 2160 (30 Hz) 4096 × 2160 (30 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 1280 x 1024 (85 Hz) 1920 x 1200 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 640 × 480 (60 Hz) 2048 × 2160 (60 Hz) 3840 × 2160 (30 Hz) 4096 × 2160 (30 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 1280 x 1024 (85 Hz) 1920 x 1200 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 640 × 480 (60 Hz) 2048 × 2160 (60 Hz) 3840 × 2160 (30 Hz) 4096 × 2160 (30 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 1280 x 1024 (85 Hz) 1920 x 1200 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 640 × 480 (60 Hz) 2048 × 2160 (60 Hz) 3840 × 2160 (30 Hz) 4096 × 2160 (30 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 1280 x 1024 (85 Hz) 1920 x 1200 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 640 × 480 (60 Hz) 2048 × 2160 (60 Hz) 3840 × 2160 (30 Hz) 4096 × 2160 (30 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 1280 x 1024 (85 Hz) 1920 x 1200 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 640 × 480 (60 Hz) 2048 × 2160 (60 Hz) 3840 × 2160 (30 Hz) 4096 × 2160 (30 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 1280 x 1024 (85 Hz) 1920 x 1200 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 640 × 480 (60 Hz) 2048 × 2160 (60 Hz) 3840 × 2160 (30 Hz) 4096 × 2160 (30 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Supported industry standards Display Data Channel (DDC) Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel (DDC) Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel (DDC) Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel (DDC) Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel (DDC) Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel (DDC) Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel (DDC) Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel (DDC) Display Data Channel Command Interface (DDC/CI)

		Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance
Maintenance	Update via	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)
Maintenance	Serviceport settings	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)

		Housing	Housing	Housing	Housing	Housing	Housing	Housing	Housing
Housing	Material	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium
	Width	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm
	Height	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm
	Depth	Depth ca. 164 mm	Depth ca. 164 mm	Depth ca. 164 mm	Depth ca. 164 mm	Depth ca. 164 mm	Depth ca. 164 mm	Depth ca. 164 mm	Depth ca. 164 mm
	IP protection class	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20
	Weight	Weight ca. 0.40 kg	Weight ca. 0.40 kg	Weight ca. 0.37 kg	Weight ca. 0.37 kg	Weight ca. 0.40 kg	Weight ca. 0.40 kg	Weight Value not available	Weight Value not available

		Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions
Operating conditions	Operating temperature	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C
	Operating air humidity	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing
	Area of application	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior
	Maximum operating altitude	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level
	Storage temperature	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C
	Storage air humidity	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing
	MTBF	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C
	Conformities	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)

		Power supply	Power supply	Power supply	Power supply	Power supply	Power supply	Power supply	Power supply
Power supply	Input voltage	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC
	Current consumption	Current consumption 0.6 A	Current consumption 0.6 A	Current consumption 0.6 A	Current consumption 0.6 A	Current consumption 0.6 A	Current consumption 0.6 A	Current consumption 0.6 A	Current consumption 0.6 A
	Power consumption max.	Power consumption max. 7.2 W	Power consumption max. 7.2 W	Power consumption max. 7.2 W	Power consumption max. 7.2 W	Power consumption max. 7.2 W	Power consumption max. 7.2 W	Power consumption max. 7.2 W	Power consumption max. 7.2 W
	Heat output max.	Heat output max. 6.2 W	Heat output max. 6.2 W	Heat output max. 6.2 W	Heat output max. 6.2 W	Heat output max. 6.2 W	Heat output max. 6.2 W	Heat output max. 6.2 W	Heat output max. 6.2 W

		Audio	Audio	Audio	Audio	Audio	Audio	Audio	Audio
Audio	Transmission type	Transmission type Bidirectional Stereo	Transmission type Bidirectional Stereo	Transmission type Bidirectional Stereo	Transmission type Bidirectional Stereo	Transmission type Bidirectional Stereo	Transmission type Bidirectional Stereo	Transmission type Bidirectional Stereo	Transmission type Bidirectional Stereo
	Resolutions	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital
	Sampling rate	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz
	Bandwidth	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz
	Audio support	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog

		USB	USB	USB	USB	USB	USB	USB	USB
USB	Specification	Specification Value not available	Specification Value not available	Specification Value not available	Specification Value not available	Specification USB 2.0	Specification USB 2.0	Specification USB 2.0	Specification USB 2.0
	Medium	Medium Value not available	Medium Value not available	Medium Value not available	Medium Value not available	Medium Embedded	Medium Embedded	Medium Embedded	Medium Embedded
	Transmission rate	Transmission rate Value not available	Transmission rate Value not available	Transmission rate Value not available	Transmission rate Value not available	Transmission rate 16 Mbit/s (app. Full Speed)	Transmission rate 16 Mbit/s (app. Full Speed)	Transmission rate 16 Mbit/s (app. Full Speed)	Transmission rate 16 Mbit/s (app. Full Speed)
	Range	Range Value not available	Range Value not available	Range Value not available	Range Value not available	Range max. 400 m	Range max. 400 m	Range max. 400 m	Range max. 400 m
	USB classes	USB classes Value not available	USB classes Value not available	USB classes Value not available	USB classes Value not available	USB classes All	USB classes All	USB classes All	USB classes All
