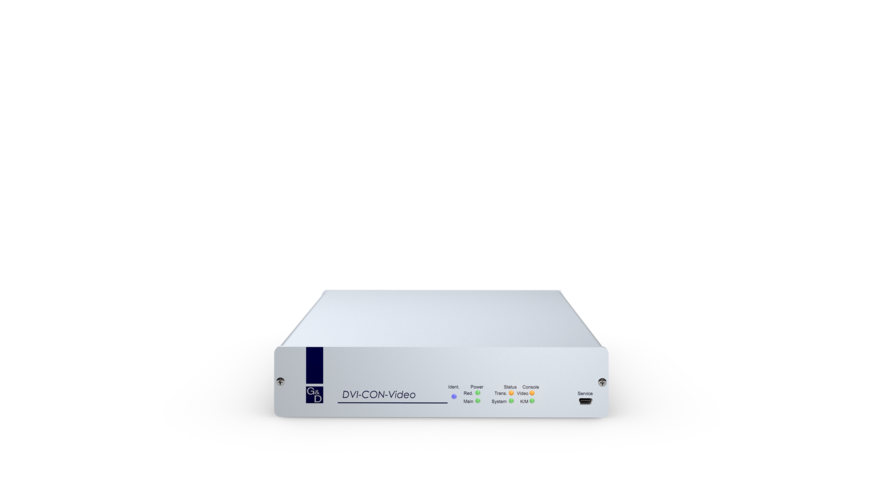

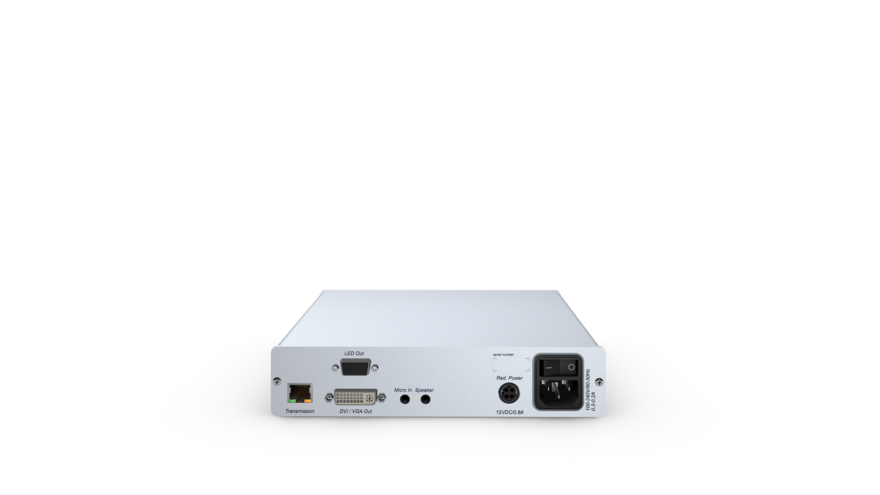

DVI-CON-Video 3.0

Item no. A1120255
Back to last viewZoom
Console moduleSingle-Link DVIFull HDG&D video compressiontwisted pair cable (CAT)AnalogRedundant power supplyInternal power supply
Console module to receive DVI signals via CAT cable and integration of an additional monitor or projector
Request product now
To downloads
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.
Close
Zoom inClose

The matrix-compatible KVM extenders of the DVI-CON series

extend keyboard, video, and mouse signals, as well as other peripheral data (e.g., audio and USB), via a dedicated CAT or fiber connection (up to 10,000 m). An extender system consists of a computer module (CPU) and a compatible console module (CON). Computers can be controlled in near real-time – both in extender and matrix applications. The DVI-CON series supports SingleLink DVI for digital video resolutions up to 1920 × 1200 (60 Hz). Video data is processed pixel-perfectly and offers excellent hand-eye coordination, thanks to bluedec™ – G&D's advanced, multi-stage, lossless compression technology.

Video
  • bluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.
  • The end devices can be flexibly combined with each other, even if they process different video signals (Mix & Match)
  • Use of a monitor profile optimized for the computer module (EDID profile)
  • Flexible use of the EDID data of the workplace monitor as required
  • Resolution up to
    1920 × 1200 @ 60 Hz,
    1280 × 1024 @ 85 Hz
Signals
  • Bidirectional audio signals (stereo)
Transmission
  • The transmission distance is up to 140 meters over CAT
Device
  • Improved security through physical separation between workplaces and computers

  • Access to standard interfaces of the computer, with no software installation required

  • The devices are compatible with the ControlCenter-Digital and ControlCenter-Compact series (matrix operation) and other end devices for computer and workplace connections (extender operation)
  • Internal power pack for main power supply
  • CON-2 variant: console module with two transmission lines for redundancy
    • These modules can be connected to various counterparts, such as compatible computer modules or KVM matrix switches, whereby switching is carried out via pushbuttons, hotkeys or automatically, depending on the configuration
  • MultiChannel variants (MC): Modules for multi-monitor workplaces with multi-channel video
    • MC mode uses the full bandwidth for each video channel, whereby a separate transmission line is required for each channel
Warranty
  • A 3-year, free of charge product guarantee
  • For an additional fee guarantee extension possible
Security features
  • Console modules do not store security-relevant information such as login credentials, which could be extracted in the event of device loss
Operation features
  • Ready for operation out of the box, no additional configuration required
  • Operation via multilingual on-screen display (OSD) and hotkeys
  • Compatibility with special USB-HID input devices
  • Support of DDC/CI (Display Data Channel / Command Interface) to enable centralized software-side control of monitor settings such as brightness
Device
  • External power supply via external 12V power pack or G&D-MultiPower, providing a central and redundant power supply
  • Device mounting via RackMount sets, TableMount sets or other mounting tools
System expansion
  • You can integrate the matrix-compatible extenders into a complete installation with a ControlCenter-Compact or ControlCenter-Digital, even at a later point in time. This provides you with even greater flexibility through the possibility of distributed access – and the existing components can continue to be used.
GeneralBrand G&D
Product group KVM extenders
Product Family MTX-CPU/CON
Country of origin Germany
Number of workplaces 1
KVM matrix system component Console module (digital)
Power Supply Redundancy without load balancing
Input optionsUSB mouse no
USB keyboard no
PS/2 mouse no
PS/2 keyboard no
TransmissionNumber of transmission channels 1
Redundant transmission channels no redundant KVM transmission
Range 140 m (AWG22)
100 m (AWG24)
80 m (AWG26)
Medium CAT5e
CAT6
CAT7
Data rate 1 Gbit/s
Video outputQuantity 1
Format Singlelink DVI
Colour depth 24 bit
Pixel rate ca. 25 MHz to 165 MHz
Vertical frequency 50 Hz to 180 Hz
Horizontal frequency 30 kHz to 130 kHz
Exemplary resolutions 1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
1600 × 1200 (60 Hz)
1280 × 1024 (85 Hz)
1280 × 1024 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Supported industry standards Display Data Channel Command Interface (DDC/CI)
Display Data Channel (DDC)
AudioTransmission type Bidirectional
Stereo
Resolutions 24 bit digital
Sampling rate up to 96 kHz
Bandwidth 22 kHz
Audio support Analog
MaintenanceUpdate via Update Wizard (service interface)
Serviceport settings 115200bps (8/N/1)
HousingMaterial Anodised aluminium
Active cooling (fan) no
Width ca. 210 mm
Height ca. 44 mm
Depth ca. 210 mm
IP protection class IP20
Weight ca. 1.21 kg
Operating conditionsOperating environment temperature 5 °C to 45 °C
Operating air humidity, non-condensing 20 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,000 m
Storage environment temperature -20 °C to 60 °C
Storage air humidity, non-condensing 15 % to 85 %
MTBF 200,000 h at 25°C
Conformities UKCA compliant (see downloads)
TAA compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
CE compliant (see downloads)
FCC compliant (see manual)
EAC compliant (see downloads)
IEC/EN 60945 - Maritime (EMC & Environmental)
Power supply 1Quantity 1
Type Internal
Input voltage 100-240 VAC
Input frequency 60-50 Hz
Current consumption 0.3-0.2 A
Power supply 2Quantity 1
Type External
Input voltage 12 VDC
Current consumption 0.8 A
