VisionVS-Fiber(S)

Item no. A1110805
Back to last view
New
Displayport™ 1.1HDMI 1.4DedicatedComputer module2KG&D video compressionCompressedfiber opticEmbeddedRedundant power supplyInternal power supply Network connection (including monitoring)Local workspace
Hybrid computer module to extend DisplayPort signals with G&D KVM matrix (fiber) and simultaneous streaming (CAT)
Request product now
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

The VisionVS is a hybrid computer module featuring a dual encoder

that transmits KVM signals with virtually zero latency and lossless quality via a dedicated G&D KVM matrix to the workplace. At the same time, it enables remote access to the computer via web interface or low-latency streaming to VuWall PAK devices for flexible video wall management.

Video
  • bluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.
  • The end devices can be flexibly combined with each other, even if they process different video signals (Mix & Match)
  • Resolution up to
    2560 × 1600 @ 60 Hz,
    4096 × 2160 @ 30 Hz
  • Resolution up to
    2560 × 1600 @ 60 Hz,
    4096 × 2160 @ 30 Hz
Signals
  • Embedded stereo audio (2 channel LPCM)
Transmission
  • The transmission distance is up to 5,000 meters over fiber singlemode optics, incl. transmission module(s)/SFP transceiver(s)
Device
  • Improved security through physical separation between workplaces and computers

  • Access to standard interfaces of the computer, with no software installation required

  • The devices are compatible with the ControlCenter-Digital and ControlCenter-Compact series (matrix operation) and other end devices for computer and workplace connections (extender operation)
  • Internal power pack for main power supply
Operation features
  • Video wall processing and KVM combined in one appliance
    The combination of powerful image processing and KVM functionality reduces the number of required devices.
  • Direct streaming to G&D KVM matrix systems and VuWall PAK nodes
    Flexible use in hybrid environments with both centralized and decentralized access to computing resources.
  • Reduced system complexity, lower cabling effort, and minimal rack space requirements
    A more efficient infrastructure with fewer hardware components saves costs, conserves space, and simplifies installation.
Transmission
  • A VuWall TRx appliance with version 3.11 or higher is required for the VuWall streaming application.
Device
  • External power supply via external 12V power pack or G&D-MultiPower, providing a central and redundant power supply
System expansion
  • You can integrate the matrix-compatible extenders into a complete installation with a ControlCenter-Compact or ControlCenter-Digital, even at a later point in time. This provides you with even greater flexibility through the possibility of distributed access – and the existing components can continue to be used.
GeneralProduct group KVM extenders
Product Family VisionVS
KVM matrix system component Computer module (digital)
Power Supply Redundancy without load balancing
Input optionsUSB mouse yes
USB keyboard yes
TransmissionNumber of transmission channels 1
Redundant transmission channels no redundant KVM transmission
Range 5,000 m (9/125µm, OS1)
Laser class Class 1
Type of interface LC-Duplex
Wavelength 1,310 nm
Medium Fiber SM
Data rate 2.5 Gbit/s
Video inputQuantity 1
Format DisplayPort 1.1 (HBR)
Colour depth 24 bit
Pixel rate ca. 25 MPixel/s to 300 MPixel/s
Vertical frequency 24 Hz to 120 Hz
Horizontal frequency 25 kHz to 185 kHz
Exemplary resolutions 4096 × 2160 (30 Hz)
4096 × 2160 (25 Hz)
4096 × 2160 (24 Hz)
3840 × 2160 (30 Hz)
3840 × 2160 (25 Hz)
3840 × 2160 (24 Hz)
2560 × 1600 (60 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Supported industry standards Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Video outputQuantity 1
Format HDMI 1.4
Colour depth 24 bit
Pixel rate ca. 25 MPixel/s to 297 MPixel/s
Exemplary resolutions 4096 × 2160 (24 Hz)
4096 × 2160 (25 Hz)
4096 × 2160 (30 Hz)
3840 × 2160 (24 Hz)
3840 × 2160 (25 Hz)
3840 × 2160 (30 Hz)
2048 × 2160 (60 Hz)
2048 × 2048 (60 Hz)
2560 × 1600 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
AudioTransmission type Stereo
2-channel LPCM
Resolutions 16 bit
Sampling rate up to 48 kHz
Audio support Digital Embedded
Network 1Quantity 1
Medium CAT5
CAT6
CAT7
Data rate 10 Mbit/s
100 Mbit/s
Network 2Quantity 1
Medium CAT5
CAT6
CAT7
Data rate 1 Gbit/s
100 Mbit/s
10 Mbit/s
MaintenanceUpdate via WebIF (Network)
HousingMaterial anodised aluminium
Width ca. 436 mm
Height ca. 44 mm
Depth ca. 284 mm
IP protection class IP20
Operating conditionsOperating temperature 5 °C to 45 °C
Operating air humidity, non-condensing 20 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,048 m
Storage temperature -20 °C to 60 °C
Storage air humidity, non-condensing 15 % to 85 %
Power supply 1Quantity 1
Type Internal
Input voltage 100-240 VAC
Input frequency 60-50 Hz
Power supply 2Quantity 1
Type External
Input voltage 12 VDC

Product comparison

Technical data
VisionVS-CAT
Item no. A1110803
VisionVS-Fiber(M)
Item no. A1110804
selected variant
VisionVS-Fiber(S)
Item no. A1110805
VisionVS-Fiber(S+)
Item no. A1110806
GeneralGeneralGeneralGeneral
General Product group
Product group
KVM extenders
Product group
KVM extenders
Product group
KVM extenders
Product group
KVM extenders
Product Family
Product Family
VisionVS
Product Family
VisionVS
Product Family
VisionVS
Product Family
VisionVS
KVM matrix system component
KVM matrix system component
Computer module (digital)
KVM matrix system component
Computer module (digital)
KVM matrix system component
Computer module (digital)
KVM matrix system component
Computer module (digital)
Power Supply
Power Supply
Redundancy without load balancing
Power Supply
Redundancy without load balancing
Power Supply
Redundancy without load balancing
Power Supply
Redundancy without load balancing
Input optionsInput optionsInput optionsInput options
Input options USB mouse
USB mouse
yes
USB mouse
yes
USB mouse
yes
USB mouse
yes
USB keyboard
USB keyboard
yes
USB keyboard
yes
USB keyboard
yes
USB keyboard
yes
TransmissionTransmissionTransmissionTransmission
Transmission Number of transmission channels
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Redundant transmission channels
Redundant transmission channels
no redundant KVM transmission
Redundant transmission channels
no redundant KVM transmission
Redundant transmission channels
no redundant KVM transmission
Redundant transmission channels
no redundant KVM transmission
Range
Range
140 m (AWG22)
100 m (AWG24)
80 m (AWG26)
Range
100 m (62.5/125µm)
200 m (50.0/125µm, OM2)
400 m (50.0/125µm, OM3)
70 m (62.5/125µm)
150 m (50.0/125µm)
400 m (50.0/125µm, OM4 - 4700MHz*km)
Range
5,000 m (9/125µm, OS1)
Range
10,000 m (9/125µm, OS1)
Laser class
Laser class
Not specified
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Type of interface
Type of interface
Not specified
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Wavelength
Wavelength
Not specified
Wavelength
850 nm
Wavelength
1,310 nm
Wavelength
1,310 nm
Medium
Medium
CAT5e
CAT6
CAT7
Medium
Fiber MM
Medium
Fiber SM
Medium
Fiber SM+
Data rate
Data rate
1 Gbit/s
Data rate
2.5 Gbit/s
Data rate
2.5 Gbit/s
Data rate
2.5 Gbit/s
Video inputVideo inputVideo inputVideo input
Video input Quantity
Quantity
1
Quantity
1
Quantity
1
Quantity
1
Format
Format
DisplayPort 1.1 (HBR)
Format
DisplayPort 1.1 (HBR)
Format
DisplayPort 1.1 (HBR)
Format
DisplayPort 1.1 (HBR)
Colour depth
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Pixel rate ca.
Pixel rate ca.
25 MPixel/s to 300 MPixel/s
Pixel rate ca.
25 MPixel/s to 300 MPixel/s
Pixel rate ca.
25 MPixel/s to 300 MPixel/s
Pixel rate ca.
25 MPixel/s to 300 MPixel/s
Vertical frequency
Vertical frequency
24 Hz to 120 Hz
Vertical frequency
24 Hz to 120 Hz
Vertical frequency
24 Hz to 120 Hz
Vertical frequency
24 Hz to 120 Hz
Horizontal frequency
Horizontal frequency
25 kHz to 185 kHz
Horizontal frequency
25 kHz to 185 kHz
Horizontal frequency
25 kHz to 185 kHz
Horizontal frequency
25 kHz to 185 kHz
Exemplary resolutions
Exemplary resolutions
4096 × 2160 (30 Hz)
4096 × 2160 (25 Hz)
4096 × 2160 (24 Hz)
3840 × 2160 (30 Hz)
3840 × 2160 (25 Hz)
3840 × 2160 (24 Hz)
2560 × 1600 (60 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
Exemplary resolutions
4096 × 2160 (30 Hz)
4096 × 2160 (25 Hz)
4096 × 2160 (24 Hz)
3840 × 2160 (30 Hz)
3840 × 2160 (25 Hz)
3840 × 2160 (24 Hz)
2560 × 1600 (60 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
Exemplary resolutions
4096 × 2160 (30 Hz)
4096 × 2160 (25 Hz)
4096 × 2160 (24 Hz)
3840 × 2160 (30 Hz)
3840 × 2160 (25 Hz)
3840 × 2160 (24 Hz)
2560 × 1600 (60 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
Exemplary resolutions
4096 × 2160 (30 Hz)
4096 × 2160 (25 Hz)
4096 × 2160 (24 Hz)
3840 × 2160 (30 Hz)
3840 × 2160 (25 Hz)
3840 × 2160 (24 Hz)
2560 × 1600 (60 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes
General Notes
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
General Notes
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
General Notes
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
General Notes
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Supported industry standards
Supported industry standards
Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Supported industry standards
Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Supported industry standards
Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Supported industry standards
Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Video outputVideo outputVideo outputVideo output
Video output Quantity
Quantity
1
Quantity
1
Quantity
1
Quantity
1
Format
Format
HDMI 1.4
Format
HDMI 1.4
Format
HDMI 1.4
Format
HDMI 1.4
Colour depth
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Pixel rate ca.
Pixel rate ca.
25 MPixel/s to 297 MPixel/s
Pixel rate ca.
25 MPixel/s to 297 MPixel/s
Pixel rate ca.
25 MPixel/s to 297 MPixel/s
Pixel rate ca.
25 MPixel/s to 297 MPixel/s
Exemplary resolutions
Exemplary resolutions
4096 × 2160 (24 Hz)
4096 × 2160 (25 Hz)
4096 × 2160 (30 Hz)
3840 × 2160 (24 Hz)
3840 × 2160 (25 Hz)
3840 × 2160 (30 Hz)
2048 × 2160 (60 Hz)
2048 × 2048 (60 Hz)
2560 × 1600 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
Exemplary resolutions
4096 × 2160 (24 Hz)
4096 × 2160 (25 Hz)
4096 × 2160 (30 Hz)
3840 × 2160 (24 Hz)
3840 × 2160 (25 Hz)
3840 × 2160 (30 Hz)
2048 × 2160 (60 Hz)
2048 × 2048 (60 Hz)
2560 × 1600 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
Exemplary resolutions
4096 × 2160 (24 Hz)
4096 × 2160 (25 Hz)
4096 × 2160 (30 Hz)
3840 × 2160 (24 Hz)
3840 × 2160 (25 Hz)
3840 × 2160 (30 Hz)
2048 × 2160 (60 Hz)
2048 × 2048 (60 Hz)
2560 × 1600 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
Exemplary resolutions
4096 × 2160 (24 Hz)
4096 × 2160 (25 Hz)
4096 × 2160 (30 Hz)
3840 × 2160 (24 Hz)
3840 × 2160 (25 Hz)
3840 × 2160 (30 Hz)
2048 × 2160 (60 Hz)
2048 × 2048 (60 Hz)
2560 × 1600 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes
General Notes
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
General Notes
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
General Notes
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
General Notes
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
AudioAudioAudioAudio
Audio Transmission type
Transmission type
Stereo
2-channel LPCM
Transmission type
Stereo
2-channel LPCM
Transmission type
Stereo
2-channel LPCM
Transmission type
Stereo
2-channel LPCM
Resolutions
Resolutions
16 bit
Resolutions
16 bit
Resolutions
16 bit
Resolutions
16 bit
Sampling rate
Sampling rate
up to 48 kHz
Sampling rate
up to 48 kHz
Sampling rate
up to 48 kHz
Sampling rate
up to 48 kHz
Audio support
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Network 1Network 1Network 1Network 1
Network 1 Quantity
Quantity
1
Quantity
1
Quantity
1
Quantity
1
Medium
Medium
CAT5
CAT6
CAT7
Medium
CAT5
CAT6
CAT7
Medium
CAT5
CAT6
CAT7
Medium
CAT5
CAT6
CAT7
Data rate
Data rate
10 Mbit/s
100 Mbit/s
Data rate
10 Mbit/s
100 Mbit/s
Data rate
10 Mbit/s
100 Mbit/s
Data rate
10 Mbit/s
100 Mbit/s
Network 2Network 2Network 2Network 2
Network 2 Quantity
Quantity
1
Quantity
1
Quantity
1
Quantity
1
Medium
Medium
CAT5
CAT6
CAT7
Medium
CAT5
CAT6
CAT7
Medium
CAT5
CAT6
CAT7
Medium
CAT5
CAT6
CAT7
Data rate
Data rate
1 Gbit/s
100 Mbit/s
10 Mbit/s
Data rate
1 Gbit/s
100 Mbit/s
10 Mbit/s
Data rate
1 Gbit/s
100 Mbit/s
10 Mbit/s
Data rate
1 Gbit/s
100 Mbit/s
10 Mbit/s
MaintenanceMaintenanceMaintenanceMaintenance
Maintenance Update via
Update via
WebIF (Network)
Update via
WebIF (Network)
Update via
WebIF (Network)
Update via
WebIF (Network)
HousingHousingHousingHousing
Housing Material
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Width ca.
Width ca.
436 mm
Width ca.
436 mm
Width ca.
436 mm
Width ca.
436 mm
Height ca.
Height ca.
44 mm
Height ca.
44 mm
Height ca.
44 mm
Height ca.
44 mm
Depth ca.
Depth ca.
284 mm
Depth ca.
284 mm
Depth ca.
284 mm
Depth ca.
284 mm
IP protection class
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
Operating conditionsOperating conditionsOperating conditionsOperating conditions
Operating conditions Operating temperature
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating air humidity, non-condensing
Operating air humidity, non-condensing
20 % to 80 %
Operating air humidity, non-condensing
20 % to 80 %
Operating air humidity, non-condensing
20 % to 80 %
Operating air humidity, non-condensing
20 % to 80 %
Area of application
Area of application
Indoor use
Area of application
Indoor use
Area of application
Indoor use
Area of application
Indoor use
Maximum operating altitude above sea level
Maximum operating altitude above sea level
3,048 m
Maximum operating altitude above sea level
3,048 m
Maximum operating altitude above sea level
3,048 m
Maximum operating altitude above sea level
3,048 m
Storage temperature
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage air humidity, non-condensing
Storage air humidity, non-condensing
15 % to 85 %
Storage air humidity, non-condensing
15 % to 85 %
Storage air humidity, non-condensing
15 % to 85 %
Storage air humidity, non-condensing
15 % to 85 %
Power supply 1Power supply 1Power supply 1Power supply 1
Power supply 1 Quantity
Quantity
1
Quantity
1
Quantity
1
Quantity
1
Type
Type
Internal
Type
Internal
Type
Internal
Type
Internal
Input voltage
Input voltage
100-240 VAC
Input voltage
100-240 VAC
Input voltage
100-240 VAC
Input voltage
100-240 VAC
Input frequency
Input frequency
60-50 Hz
Input frequency
60-50 Hz
Input frequency
60-50 Hz
Input frequency
60-50 Hz
Power supply 2Power supply 2Power supply 2Power supply 2
Power supply 2 Quantity
Quantity
1
Quantity
1
Quantity
1
Quantity
1
Type
Type
External
Type
External
Type
External
Type
External
Input voltage
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC

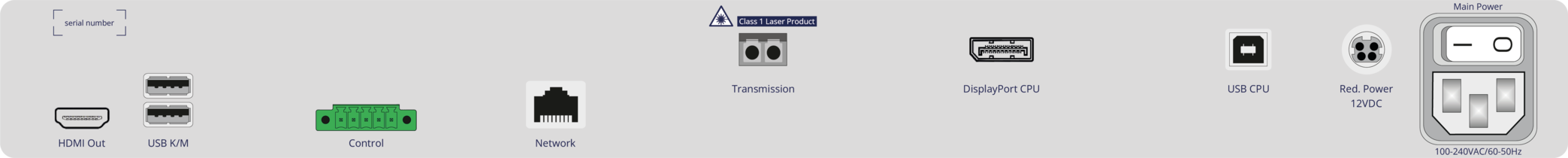

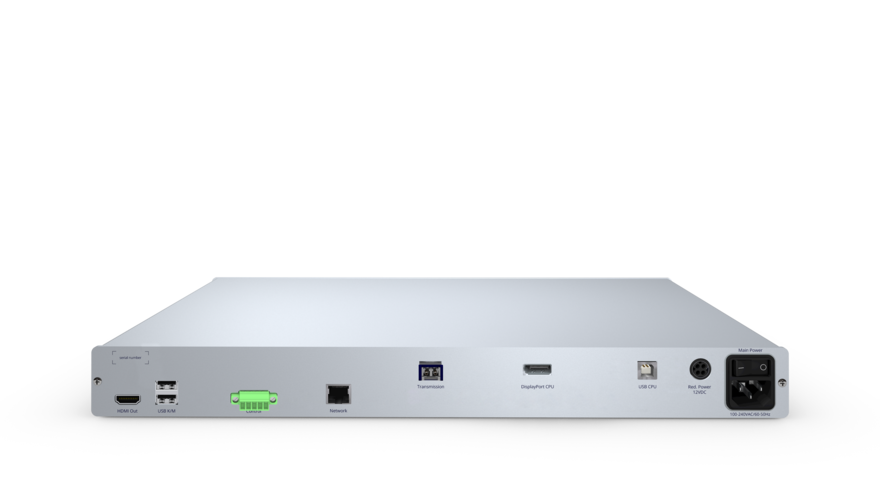

Interfaces

Aperture designationDesignDescription

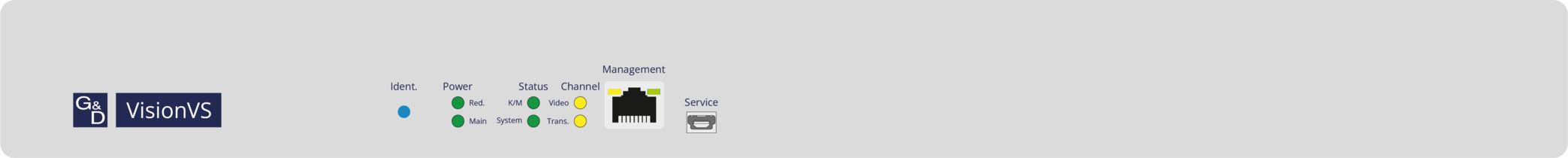

Network ManagementRJ45 socketPort for IP network
ServiceMini-USB socketPort for service purposes
Aperture designationDesignDescription
HDMI OutHDMI socketPort for monitor
USB K/MUSB-A socket 2.0Port for keyboard and mouse
ControlClamp block - 5 pinsPort for external remote control
NetworkRJ45 socketPort for IP network
TransmissionSC-Duplex socketData transmission to console module or matrix switch (FIBER)
DisplayPort CPUDisplayPort socketConnection to computer - Video
USB CPUUSB-B socket 2.0Connection to computer - USB
Red. Power 12VDCMini-DIN 4 socketPower supply DC redundant
Main PowerIEC plug 320 C14Power supply AC

Downloads

Data Sheets
Tools & Drivers

G&D Contact

The best way to talk about complex topics is in person. Via chat, e-mail, phone or in a personal demo remote or on-site.

Subscribe to our newsletter
Subscribe to our newsletter
Book a demo in the ControlCenter-Xperience
Book a demo in the ControlCenter-Xperience
Contact us for your individual request
Contact us for your individual request
AVoIP Solutions for Control Rooms
VuWall Technology Inc.

VuWall Technology Inc.

G&D and VuWall are proud to be part of the same corporate group.

Discover VuWall's world-class video wall solutions, which work seamlessly with G&D's high-performance KVM systems to enable maximum flexibility, security, and efficiency in control rooms.
To the website
Cancel Compare now
Contact Support
top
