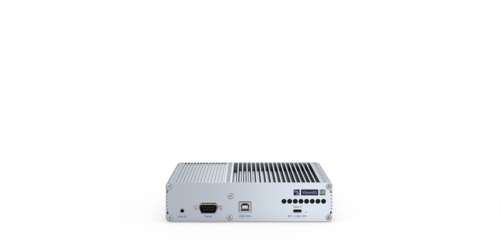

VisionXS-IP-CPU-F(S)-TypeC-UHR-UG-DT

Item no. A1110511
Back to last view
USB Type-C4K / UHDKVM-over-IP™Compressed1 VideochannelEmbeddedUSBRedundant power supplyInternal power supply Network connection (including monitoring)Computer module
KVM-over-IP computer module to extend DisplayPort1.2 signals through TypeC, transmission via fiber singlemode and over IP-based networks
Request product now
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

The matrix-compatible KVM-over-IP extenders of the VisionXS-IP-TypeC-UHR series

extend keyboard, video, and mouse signals, as well as other peripheral data (e.g., audio and USB), via a standardized IP network infrastructure with CAT or fiber connection (up to 10,000 m). An extender system consists of a computer module (CPU) and a compatible console module (CON). Computers can be controlled in near real-time – both in extender and matrix applications. The VisionXS-IP-TypeC-UHR series supports USB Type-C for ultra-high-resolution DisplayPort 1.2 video with up to 4096 × 2160 (60 Hz) or 5120 × 2160 (50 Hz). Video data is processed pixel-perfectly and offers excellent hand-eye coordination, thanks to bluedec™ – G&D's advanced, multi-stage, lossless compression technology.

Video
  • bluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.
  • The KVM-over-IP end devices can be flexibly combined with each other, even if they process different video signals (Mix & Match)
  • EDID data utilization from the workplace monitor
  • Flexible EDID profile options for optimized monitor settings
  • The Type-C port offers DisplayPort1.2 via an alternative mode (alt mode)
  • Resolution up to
    5120 × 2160 @ 50 Hz,
    5120 × 1440 @ 60 Hz,
    4096 × 2160 @ 60 Hz,
    2560 × 1440 @ 144 Hz,
    1920 × 1080 @ 240 Hz
  • Alternative power supply via the Type-C port by USB fast charging standard Power Delivery (PD) possible. The product can only be used as a power receiver (sink)
Signals
  • The Type-C DP/USB CPU interface is primarily used to feed in video data. However, it also processes USB data. Thus, no separate USB connection has to be plugged in. If a separate USB connection is plugged in via the USB CPU interface, this is used with priority.
  • Embedded stereo audio (DisplayPort Digital, 2 channel LPCM, AC3, DTS,
    sampling rate up to 192 kHz)
  • GenericUSB support for USB classes HID (Human Interface Device), SmartCard and mass storage
  • The product allows the simultaneous use of up to five GenericUSB devices via a console module. For this, both the used console module and the used computer module must support the use of up to five GenericUSB devices.
Transmission
  • At least one Layer-2-managed switch with Gigabit Ethernet is required, offering features such as QoS and VLAN. Additionally, adequate performance (forwarding bandwidth, switching bandwidth, forwarding performance, and uplinks) must be ensured, especially when using multiple network switches
  • KVM-over-IP™ over IP-based networks (layer 3)
  • The transmission distance between two active network components is up to 10,000 meters over fiber singlemode optics, incl. transmission module(s)/SFP transceiver(s)
Device
  • Improved security through physical separation between workplaces and computers

  • Access to standard interfaces of the computer, with no software installation required

  • Compact design for space-saving installation within a VisionXS DeviceCarrier (1 or 3 RU)
  • PowerPack not included in the scope of delivery
  • DT variant: Optional redundant power supply via an internal power unit for high reliability
  • Fanless variant: fanless model
  • The devices are compatible with the ControlCenter-IP and ControlCenter-IP-XS series (matrix operation) and other KVM-over-IP end devices for computer and workplace connections (extender operation)
Warranty
  • A 3-year, free of charge product guarantee
  • For an additional fee guarantee extensioin/guarantee renewal possible
Security features
  • Permanent encryption of all communication and data transmissions, as well as sensitive information such as login credentials and passwords, guarantees a high level of security in critical environments
    • AES256-GCM for keyboard/mouse and control data
    • AES128-CTR for video, audio, GenericUSB and RS232
  • Bootloader, operating system, and firmware form a "Trusted Computing Platform" with automatic integrity checks during system startup
  • Integrated Trusted Platform Module (TPM) protects all access and configuration data from being spied on or tampered with by third parties
  • Console modules do not store security-relevant information such as login credentials, which could be extracted in the event of device loss
  • Early detection of security incidents or unusual activities through continuous monitoring via Syslog, monitoring, and SNMP
  • Comprehensive rights management and user administration, allowing precise control over which user can access which resources
  • Option for activatable access protection (default operating mode in matrix systems), in which authentication is required before accessing computer sources
  • Support for external directory services (Active Directory, Radius, LDAP) to meet company security policies
  • To comply with individual password policies and improve security, password complexity can be configured system-wide
  • Configurable login options, such as displaying terms of use or setting the maximum acceptable number of failed login attempts, can enhance system security
  • The optional UID-Locking restricts the usable end devices, ensuring that no additional devices can be added or replaced after activation
  • Auto Backup Function: Automates backups at user-defined intervals and replaces manual intervention – ensuring reliable, timely data protection without the need for continuous monitoring
  • Freeze function: If the video signal is lost, the last displayed image is frozen and highlighted with a colored frame and timer
  • 2-Factor-Authentication (2FA) – is integrated by default in KVM extenders and enhances security by requiring a second, possession-based factor during user authentication:
    • The traditional password authentication is combined with a time-limited, single-use code (Time-Based-One-Time-Password - TOTP)
    • You can choose between using the internal authentication server provided in the device or an external directory service
    • Authenticator apps or hardware token can be used
    • This additional layer of protection prevents unauthorized access and ensures the highest level of security, particularly in sensitive IT environments
Operation features
  • Ready for operation out of the box, no additional configuration required in direct connection. IP address configuration and pairing are required when using multiple modules in a network setup
  • Permanent keyboard/mouse emulation ensures a stable system
  • Compatibility with special USB-HID input devices
  • Operation via multilingual on-screen display (OSD) and hotkeys
  • Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)
  • Support of DDC/CI (Display Data Channel / Command Interface) to enable centralized software-side control of monitor settings such as brightness
  • additional, independent management network interface for configuration
  • manual bandwidth management to adjust the required bandwidth
  • With the integrated IP-MUX functionality the console modules offer the possibility to access different computer modules (one after the other). To use this function, you can connect a maximum of 20 computers to separate computer modules. The computer modules are configurated as targets in the console module and can be connected via the local on-screen display.
Device
  • External power supply via external 12V power pack or G&D-MultiPower, providing a central and redundant power supply
  • Device mounting via G&D 19” DeviceCarrier for VisionXS (1 or 3 RU)
Security features
  • SecureCert feature – premium software feature that ensures compliance with the strict security standards FIPS 140-3, DoDIN APL, and CC EAL2+
    • Federal Information Processing Standard (FIPS) 140-3 is a U.S. government standard designed to protect sensitive and valuable data in IT systems. It defines security requirements for cryptographic modules and provides a secure framework for cryptographic operations in IT infrastructures
    • The Department of Defense Information Network Approved Products List (DoDIN APL) is a consolidated list of products approved for use in the technology infrastructure of U.S. government agencies. To be listed, products must meet specific requirements within defined categories, including technical, functional, and security-related criteria
    • Common Criteria (CC) is an internationally recognized standard for evaluating and certifying the security of IT products. It ensures that products meet defined security requirements and are protected against identified threats. Certification is granted at Evaluation Assurance Level (EAL) 2+, an internationally acknowledged level that guarantees a fundamental and reliable security assessment
System expansion
  • Transm. Redundancy Option (Link-Aggregation): The devices are prepared for transmission redundancy without additional hardware and can be activated via a software feature key.
    • Two network interfaces can be linked via link aggregation, ensuring seamless failover and stable communication in case of a failure
  • You can integrate the matrix-compatible KVM-over-IP extenders into a complete installation with a ControlCenter-IP or ControlCenter-IP-XS, even at a later point in time. This provides you with even greater flexibility through the possibility of distributed access – and the existing components can continue to be used.
GeneralProduct group KVM extenders
KVM matrix systems
TransmissionKVM-over-IP™ Transmission yes
Number of transmission channels 1
Redundant transmission channels optional redundant KVM transmission
Range 10000 m (9/125µm, OS1)
Laser class Class 1
Type of interface LC-Duplex
Wavelength 1310 nm
KVM matrix system component Computer module
Medium Fiber SM
Data rate 10 Gbit/s
Video inputNumber of video channels 1
Format USB Type-C (DP1.2 Alt-Mode)
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Colour depth 24 bit
Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate ca. 25 MPixel/s to ca. 600 MPixel/s
Vertical frequency 24 Hz to 240 Hz
Horizontal frequency 25 kHz to 295 kHz
Exemplary resolutions 4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
1920 × 1080 (240 Hz)
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
USB Power Delivery 12V/1.5A - 2.5A
15V/1A - 2A
20V/0.75A - 1.5A
AudioTransmission type 2-channel LPCM
Stereo
DTS
AC3
Resolutions 24 bit
20 bit
16 bit
Sampling rate up to 192 kHz
Audio support Digital Embedded
USBSpecification USB 2.0
GenericUSB support up to 5 devices
Medium Embedded
Transmission rate 25 Mbit/s (Full Speed)
USB classes Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
NetworkMedium 1 CAT5
CAT6
CAT7
Data rate 1 10 MBit/s
100 MBit/s
MaintenanceUpdate via ConfigPanel (Network)
Serviceport settings 115200bps (8/N/1)
HousingMaterial anodised aluminium
Width ca. 170 mm
Height ca. 40 mm
Depth ca. 184 mm
IP protection class IP20
Operating conditionsOperating temperature 5 °C to 45 °C
Operating air humidity 20 % to 80 %, non-condensing
Area of application Interior
Maximum operating altitude 3048m above sea level
Storage temperature -20 °C to 60 °C
Storage air humidity 15 % to 85 %, non-condensing
MTBF 200000 h at 25°C
Conformities CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supplyInput voltage 12 VDC
Current consumption 1.8 A
Power consumption idle 14.1 W
Power consumption max. 19.8 W
Heat output idle 14.1 W
Heat output max. 19.8 W
Power supply 2Input voltage 100-240 VAC
Input frequency 60-50 Hz
Current consumption 0.5-0.3 A
Power consumption idle 15.82-15.31 W
Power consumption max. 22.04-21.55 W
Heat output idle 15.82-15.31 W
Heat output max. 22.04-21.55 W

Product comparison

Technical data
VisionXS-IP-CPU-F(S)-TypeC-UHR
Item no. A1110504
VisionXS-IP-CPU-F(S)-TypeC-UHR-A
Item no. A1110505
VisionXS-IP-CPU-F(S)-TypeC-UHR-A-UG
Item no. A1110506
VisionXS-IP-CPU-F(S)-TypeC-UHR-AR-DT
Item no. A1110508
VisionXS-IP-CPU-F(S)-TypeC-UHR-AR-UG-DT
Item no. A1110509
VisionXS-IP-CPU-F(S)-TypeC-UHR-DT
Item no. A1110510
VisionXS-IP-CPU-F(S)-TypeC-UHR-UG
Item no. A1110507
selected variant
VisionXS-IP-CPU-F(S)-TypeC-UHR-UG-DT
Item no. A1110511
GeneralGeneralGeneralGeneralGeneralGeneralGeneralGeneral
General Product group
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
KVM matrix systems
TransmissionTransmissionTransmissionTransmissionTransmissionTransmissionTransmissionTransmission
Transmission KVM-over-IP™ Transmission
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
Number of transmission channels
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Redundant transmission channels
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Range
Range
10000 m (9/125µm, OS1)
Range
10000 m (9/125µm, OS1)
Range
10000 m (9/125µm, OS1)
Range
10000 m (9/125µm, OS1)
Range
10000 m (9/125µm, OS1)
Range
10000 m (9/125µm, OS1)
Range
10000 m (9/125µm, OS1)
Range
10000 m (9/125µm, OS1)
Laser class
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Type of interface
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Wavelength
Wavelength
1310 nm
Wavelength
1310 nm
Wavelength
1310 nm
Wavelength
1310 nm
Wavelength
1310 nm
Wavelength
1310 nm
Wavelength
1310 nm
Wavelength
1310 nm
KVM matrix system component
KVM matrix system component
Computer module
KVM matrix system component
Computer module
KVM matrix system component
Computer module
KVM matrix system component
Computer module
KVM matrix system component
Computer module
KVM matrix system component
Computer module
KVM matrix system component
Computer module
KVM matrix system component
Computer module
Medium
Medium
Fiber SM
Medium
Fiber SM
Medium
Fiber SM
Medium
Fiber SM
Medium
Fiber SM
Medium
Fiber SM
Medium
Fiber SM
Medium
Fiber SM
Data rate
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Video inputVideo inputVideo inputVideo inputVideo inputVideo inputVideo inputVideo input
Video input Number of video channels
Number of video channels
1
Number of video channels
1
Number of video channels
1
Number of video channels
1
Number of video channels
1
Number of video channels
1
Number of video channels
1
Number of video channels
1
Format
Format
USB Type-C (DP1.2 Alt-Mode)
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
USB Type-C (DP1.2 Alt-Mode)
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
USB Type-C (DP1.2 Alt-Mode)
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
USB Type-C (DP1.2 Alt-Mode)
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
USB Type-C (DP1.2 Alt-Mode)
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
USB Type-C (DP1.2 Alt-Mode)
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
USB Type-C (DP1.2 Alt-Mode)
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
USB Type-C (DP1.2 Alt-Mode)
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Colour depth
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Pixel encoding
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Vertical frequency
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Horizontal frequency
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Exemplary resolutions
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
1920 × 1080 (240 Hz)
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
1920 × 1080 (240 Hz)
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
1920 × 1080 (240 Hz)
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
1920 × 1080 (240 Hz)
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
1920 × 1080 (240 Hz)
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
1920 × 1080 (240 Hz)
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
1920 × 1080 (240 Hz)
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
1920 × 1080 (240 Hz)
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
USB Power Delivery
USB Power Delivery
12V/1.5A - 2.5A
15V/1A - 2A
20V/0.75A - 1.5A
USB Power Delivery
12V/1.5A - 2.5A
15V/1A - 2A
20V/0.75A - 1.5A
USB Power Delivery
12V/1.5A - 2.5A
15V/1A - 2A
20V/0.75A - 1.5A
USB Power Delivery
12V/1.5A - 2.5A
15V/1A - 2A
20V/0.75A - 1.5A
USB Power Delivery
12V/1.5A - 2.5A
15V/1A - 2A
20V/0.75A - 1.5A
USB Power Delivery
12V/1.5A - 2.5A
15V/1A - 2A
20V/0.75A - 1.5A
USB Power Delivery
12V/1.5A - 2.5A
15V/1A - 2A
20V/0.75A - 1.5A
USB Power Delivery
12V/1.5A - 2.5A
15V/1A - 2A
20V/0.75A - 1.5A
SerialSerialSerialSerialSerialSerialSerialSerial
Serial Standard
Standard
Not specified
Standard
Not specified
Standard
Not specified
Standard
RS232
Standard
RS232
Standard
Not specified
Standard
Not specified
Standard
Not specified
Transparent transmission
Transparent transmission
Not specified
Transparent transmission
Not specified
Transparent transmission
Not specified
Transparent transmission
yes
Transparent transmission
yes
Transparent transmission
Not specified
Transparent transmission
Not specified
Transparent transmission
Not specified
Data rate
Data rate
Not specified
Data rate
Not specified
Data rate
Not specified
Data rate
115200 bps
Data rate
115200 bps
Data rate
Not specified
Data rate
Not specified
Data rate
Not specified
Signals
Signals
Not specified
Signals
Not specified
Signals
Not specified
Signals
TxD
RxD
RTS
CTS
GND
5V
Signals
TxD
RxD
RTS
CTS
GND
5V
Signals
Not specified
Signals
Not specified
Signals
Not specified
NetworkNetworkNetworkNetworkNetworkNetworkNetworkNetwork
Network Medium 1
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Data rate 1
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
MaintenanceMaintenanceMaintenanceMaintenanceMaintenanceMaintenanceMaintenanceMaintenance
Maintenance Update via
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Serviceport settings
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
HousingHousingHousingHousingHousingHousingHousingHousing
Housing Material
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Width
Width
ca. 109 mm
Width
ca. 109 mm
Width
ca. 109 mm
Width
ca. 170 mm
Width
ca. 170 mm
Width
ca. 170 mm
Width
ca. 109 mm
Width
ca. 170 mm
Height
Height
ca. 40 mm
Height
ca. 40 mm
Height
ca. 40 mm
Height
ca. 40 mm
Height
ca. 40 mm
Height
ca. 40 mm
Height
ca. 40 mm
Height
ca. 40 mm
Depth
Depth
ca. 184 mm
Depth
ca. 184 mm
Depth
ca. 184 mm
Depth
ca. 184 mm
Depth
ca. 184 mm
Depth
ca. 184 mm
Depth
ca. 184 mm
Depth
ca. 184 mm
IP protection class
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
Operating conditionsOperating conditionsOperating conditionsOperating conditionsOperating conditionsOperating conditionsOperating conditionsOperating conditions
Operating conditions Operating temperature
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating air humidity
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Area of application
Area of application
Interior
Area of application
Interior
Area of application
Interior
Area of application
Interior
Area of application
Interior
Area of application
Interior
Area of application
Interior
Area of application
Interior
Maximum operating altitude
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Storage temperature
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage air humidity
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
MTBF
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
Conformities
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supplyPower supplyPower supplyPower supplyPower supplyPower supplyPower supplyPower supply
Power supply Input voltage
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Current consumption
Current consumption
1.8 A
Current consumption
1.8 A
Current consumption
1.8 A
Current consumption
1.8 A
Current consumption
1.8 A
Current consumption
1.8 A
Current consumption
1.8 A
Current consumption
1.8 A
Power consumption idle
Power consumption idle
14.1 W
Power consumption idle
14.1 W
Power consumption idle
14.1 W
Power consumption idle
14.1 W
Power consumption idle
14.1 W
Power consumption idle
14.1 W
Power consumption idle
14.1 W
Power consumption idle
14.1 W
Power consumption max.
Power consumption max.
18.5 W
Power consumption max.
18.5 W
Power consumption max.
18.5 W
Power consumption max.
19.8 W
Power consumption max.
19.8 W
Power consumption max.
19.8 W
Power consumption max.
18.5 W
Power consumption max.
19.8 W
Heat output idle
Heat output idle
14.1 W
Heat output idle
14.1 W
Heat output idle
14.1 W
Heat output idle
14.1 W
Heat output idle
14.1 W
Heat output idle
14.1 W
Heat output idle
14.1 W
Heat output idle
14.1 W
Heat output max.
Heat output max.
18.5 W
Heat output max.
18.5 W
Heat output max.
18.5 W
Heat output max.
19.8 W
Heat output max.
19.8 W
Heat output max.
19.8 W
Heat output max.
18.5 W
Heat output max.
19.8 W
Power supply 2Power supply 2Power supply 2Power supply 2Power supply 2Power supply 2Power supply 2Power supply 2
Power supply 2 Input voltage
Input voltage
Not specified
Input voltage
Not specified
Input voltage
Not specified
Input voltage
100-240 VAC
Input voltage
100-240 VAC
Input voltage
100-240 VAC
Input voltage
Not specified
Input voltage
100-240 VAC
Input frequency
Input frequency
Not specified
Input frequency
Not specified
Input frequency
Not specified
Input frequency
60-50 Hz
Input frequency
60-50 Hz
Input frequency
60-50 Hz
Input frequency
Not specified
Input frequency
60-50 Hz
Current consumption
Current consumption
Not specified
Current consumption
Not specified
Current consumption
Not specified
Current consumption
0.5-0.3 A
Current consumption
0.5-0.3 A
Current consumption
0.5-0.3 A
Current consumption
Not specified
Current consumption
0.5-0.3 A
Power consumption idle
Power consumption idle
Not specified
Power consumption idle
Not specified
Power consumption idle
Not specified
Power consumption idle
15.82-15.31 W
Power consumption idle
15.82-15.31 W
Power consumption idle
15.82-15.31 W
Power consumption idle
Not specified
Power consumption idle
15.82-15.31 W
Power consumption max.
Power consumption max.
Not specified
Power consumption max.
Not specified
Power consumption max.
Not specified
Power consumption max.
22.04-21.55 W
Power consumption max.
22.04-21.55 W
Power consumption max.
22.04-21.55 W
Power consumption max.
Not specified
Power consumption max.
22.04-21.55 W
Heat output idle
Heat output idle
Not specified
Heat output idle
Not specified
Heat output idle
Not specified
Heat output idle
15.82-15.31 W
Heat output idle
15.82-15.31 W
Heat output idle
15.82-15.31 W
Heat output idle
Not specified
Heat output idle
15.82-15.31 W
Heat output max.
Heat output max.
Not specified
Heat output max.
Not specified
Heat output max.
Not specified
Heat output max.
22.04-21.55 W
Heat output max.
22.04-21.55 W
Heat output max.
22.04-21.55 W
Heat output max.
Not specified
Heat output max.
22.04-21.55 W
AudioAudioAudioAudioAudioAudioAudioAudio
Audio Transmission type
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Resolutions
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Sampling rate
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Audio support
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio 2Audio 2Audio 2Audio 2Audio 2Audio 2Audio 2Audio 2
Audio 2 Transmission type
Transmission type
Not specified
Transmission type
Stereo
Transparent
Transmission type
Stereo
Transparent
Transmission type
Stereo
Transparent
Transmission type
Stereo
Transparent
Transmission type
Not specified
Transmission type
Not specified
Transmission type
Not specified
Resolutions
Resolutions
Not specified
Resolutions
24 bit digital
Resolutions
24 bit digital
Resolutions
24 bit digital
Resolutions
24 bit digital
Resolutions
Not specified
Resolutions
Not specified
Resolutions
Not specified
Sampling rate
Sampling rate
Not specified
Sampling rate
up to 96 kHz
Sampling rate
up to 96 kHz
Sampling rate
up to 96 kHz
Sampling rate
up to 96 kHz
Sampling rate
Not specified
Sampling rate
Not specified
Sampling rate
Not specified
Bandwidth
Bandwidth
Not specified
Bandwidth
22 kHz
Bandwidth
22 kHz
Bandwidth
22 kHz
Bandwidth
22 kHz
Bandwidth
Not specified
Bandwidth
Not specified
Bandwidth
Not specified
Audio support
Audio support
Not specified
Audio support
Analog
Audio support
Analog
Audio support
Analog
Audio support
Analog
Audio support
Not specified
Audio support
Not specified
Audio support
Not specified
USBUSBUSBUSBUSBUSBUSBUSB
USB Specification
Specification
USB 2.0
Specification
USB 2.0
Specification
USB 2.0
Specification
USB 2.0
Specification
USB 2.0
Specification
USB 2.0
Specification
USB 2.0
Specification
USB 2.0
GenericUSB support
GenericUSB support
1 device
GenericUSB support
1 device
GenericUSB support
up to 5 devices
GenericUSB support
1 device
GenericUSB support
up to 5 devices
GenericUSB support
1 device
GenericUSB support
up to 5 devices
GenericUSB support
up to 5 devices
Medium
Medium
Embedded
Medium
Embedded
Medium
Embedded
Medium
Embedded
Medium
Embedded
Medium
Embedded
Medium
Embedded
Medium
Embedded
Transmission rate
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
USB classes
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard

Interfaces

Aperture designationDesignDescription

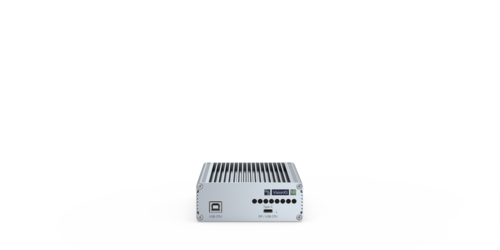

USB CPUUSB-B socket 2.0Connection to computer - USB

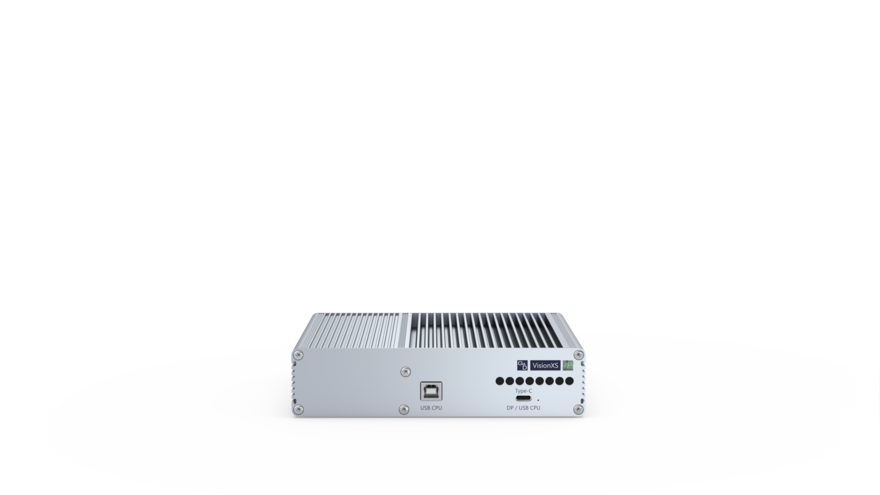

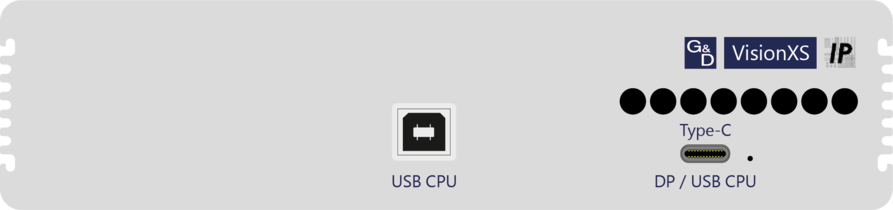

Type-C DP / USB CPUUSB-C socketConnection to computer - combined video and USB interface
Aperture designationDesignDescription

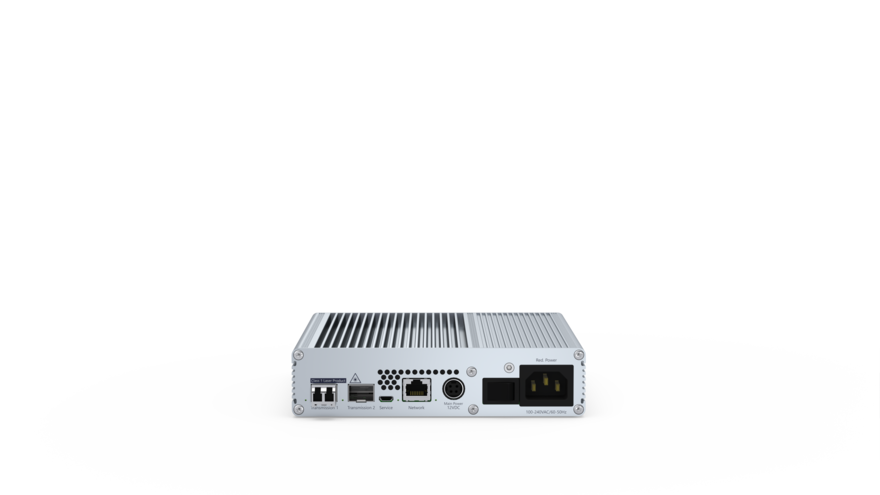

Transmission 1LC-Duplex socketData transmission to console module or matrix switch over IP network (FIBER)
Transmission 2LC-Duplex socketData transmission to console module or matrix switch over IP network redundant (FIBER)
ServiceMicro-USB socketPort for service purposes
NetworkRJ45 socketPort for IP network
Main PowerMini-DIN 4 socketPower supply DC
Red. PowerIEC plug 320 C14Power supply AC redundant

Downloads

Manuals
Declarations of Conformity
Data Sheets

G&D Contact

The best way to talk about complex topics is in person. Via chat, e-mail, phone or in a personal demo remote or on-site.

Subscribe to our newsletter
Subscribe to our newsletter
Book a demo in the ControlCenter-Xperience
Book a demo in the ControlCenter-Xperience
Contact us for your individual request
Contact us for your individual request
Cancel Compare now
Contact Support
top
