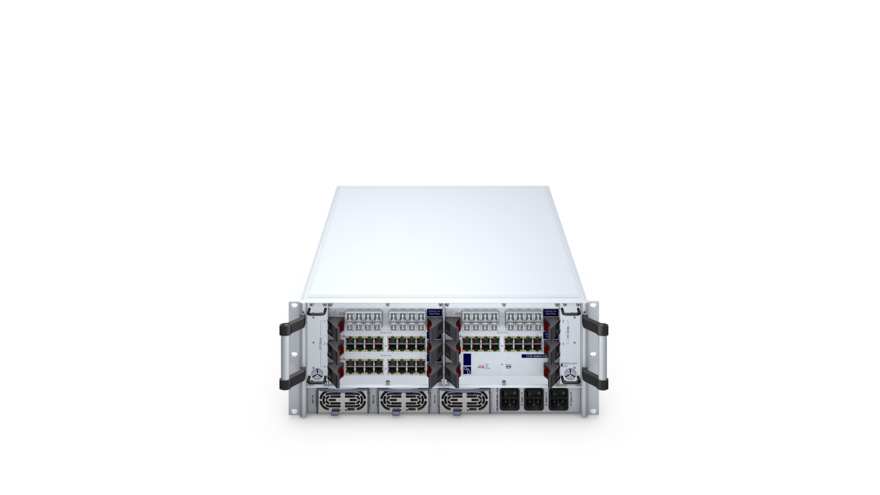

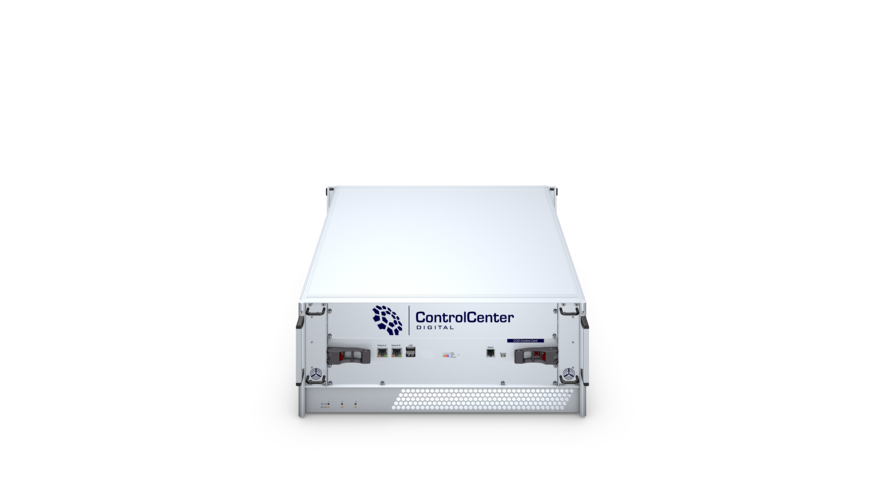

ControlCenter-Digital-80 exclusive I/O-cards

Item no. A2300056

Back to last view

Similar image

Modular KVM Matrixswitch (4 RU) with 80 dynamic ports - optionally for CAT cable, fiber or mixed operation

Product variants

Request product now

Add to watchlist Compare product Questions about the product?

Learn more

The form could not be loaded.

With the central module ControlCenter-Digital,

you can operate a larger number of computers from a greater number of workplaces. KVM matrix systems assist you in managing complex IT infrastructures in a simple and intuitive way. Especially in mission-critical environments such as control rooms, military command centers, data centers, or facilities for managing critical infrastructures, users benefit from the secure, reliable, and flexible solution for decentralized operation and administration. The ControlCenter-Digital is available in three size variants with 80, 160, or 288 ports. Due to its fully modular design, input/output cards with the required transmission media (CAT and/or fiber ports) can be used. Thanks to Dynamic Port Technology, the ports can be flexibly used as input or output for connecting computer modules, RemoteAccess-CPUs, console modules, or DynamicWorkplace-CONs.

Transmission

The transmission distance between the central module and the end devices depends on the selected input/output card (I/O card) and reaches up to 140 meters over CAT or up to 10,000 meters over fiber optic (Fiber)

Device

Improved security through physical separation between workplaces and computers

Access to standard interfaces of the computer, with no software installation required

Users can switch between different sources almost in real-time, without noticing interruptions or delays

Fully modular design for flexible adaptation and expansion options
The device always includes the chassis, which contains:
- Backplane, where the individual components are mounted in card form
- Controller card, which manages, controls, and monitors all functions
- Switch card, which contains the central switching logic
- Power supply modules
- Fan cards

Input/output cards are not included in the scope of delivery and must be ordered separately and feature 16 Dynamic Ports, which are available in variants with CAT, fiber optic, or mixed options

Dynamic ports are flexible and automatically detect whether a computer module, RemoteAccess-CPU, console module, or DynamicWorkplace-CON is connected

System components can be connected, removed, or replaced during operation (hot-plug/hot-swap capable).

The ControlCenter-Digital series is compatible with the ControlCenter-Compact series and the end devices for computer and workplace connections

Security features

Bootloader, operating system, and firmware form a "Trusted Computing Platform" with automatic integrity checks during system startup

Integrated Trusted Platform Module (TPM) protects all access and configuration data from being spied on or tampered with by third parties

Comprehensive rights management and user administration, allowing precise control over which user can access which resources
Option for disablable access protection (OpenAccess mode), in which all connected workstation modules can access all released computer sources immediately and without prior authentication

Support for external directory services (Active Directory, Radius, LDAP) to meet company security policies

To comply with individual password policies and improve security, password complexity can be configured system-wide

Configurable login options, such as displaying terms of use or setting the maximum acceptable number of failed login attempts, can enhance system security

Emergency direct connection (extender mode) between console and computer module ensures continuous operation even during unexpected events at the central module

redundant internal power supply modules

Redundant network interface

Early detection of security incidents or unusual activities through continuous monitoring via Syslog, monitoring, and SNMP

Auto Backup Function: Automates backups at user-defined intervals and replaces manual intervention – ensuring reliable, timely data protection without the need for continuous monitoring

Configurable exclusive access control for USB, audio, and RS232 ensures that access is granted only to console modules, DynamicWorkplace-CONs, and authorized users

End devices (computer modules, RemoteAccess-CPUs, console modules, and DynamicWorkplace-CONs) do not store security-relevant information such as login credentials, which could be extracted in the event of device loss

Freeze function: If the video signal is lost, the last displayed image is frozen and highlighted with a colored frame and timer

Operation features

Operation via multilingual on-screen display (OSD) or a graphical interface and hotkeys

auto-recognition and display of the system structure

Configuration and central update of all components via the multilingual HTML5 web interface “Config Panel 21” (Java-free)

Support for Wake-on-LAN Function: A standardized method for powering on a shut-down or sleeping computer via a network command, provided the target system supports this functionality

With configurable select keys, computers can be made available to each user individually via quick access

Configurable view filters enable efficient sorting of large lists of computer modules

The configurable multi-user access allows multiple users to access a real or virtual computer simultaneously

With channel grouping, multiple computer modules or multiple console modules can be grouped together into a channel group

USB pinning: In grouped channels, transparent USB transmission remains linked to the currently connected computer – even when switching to another system – and continues seamlessly until the transfer is complete

Device

Select the input/output cards (I/O cards) according to your requirements. The cards operate independently of one another, allowing mixed operation.
- I/O-Card-CAT provides 16 CAT-based dynamic ports
- I/O-Card-Fiber provides 16 fiber-optic-based dynamic ports
- I/O-Card-Trunk4 aggregates 4 out of 16 dynamic ports into a 10G link
- I/O-Card-Multi enables the integration and switching of 16 standalone devices within the matrix system

Thanks to the modularity, you can use additional modular system components for replacement or exchange:
- Controller cards
- Switch cards (hardware 1.0)
- Fan cards (hardware 1.0)
- Power supply modules

Security features

MatrixGuard Function – premium software feature for ensuring continuous operation against unforeseen disruptions.
- requires the premium software feature Matrix-Grid Function
- Redundancy concept with failover functionality: In the event of unforeseen disruptions, console modules and computer modules within the Matrix-Grid network automatically connect to an alternative matrix switch - except for endpoint devices connected to the unavailable matrix switch
- restoration of switching states enables rapid resumption of operations

2-Factor-Authentication (2FA) – premium software feature to enhance security by using a second possession-based factor during user authentication:
- The traditional password authentication is combined with a time-limited, single-use code (Time-Based-One-Time-Password - TOTP)
- You can choose between using the internal authentication server provided in the device or an external directory service
- Authenticator apps or hardware token can be used
- This additional layer of protection prevents unauthorized access and ensures the highest level of security, particularly in sensitive IT environments

Operation features

TradeSwitch Function (TS Function) – premium software feature providing convenient operation and seamless restoration of individual working environments at consoles with multiple console modules, including the most recently connected sources:
- optimizes usability for consoles tasked with simultaneous monitoring or control of multiple computers via several console modules
- provides a central keyboard and mouse for operating the entire workplace
- both input devices can switch to any console module using a hotkey
- CrossDisplay switching additionally offers an especially user-friendly switching method: simply moving the mouse pointer from one monitor to another automatically transfers keyboard and mouse focus to another module and thus another computer
- The FreeSeating function automatically restores a user's personalized working environment, including previously used sources, at any workplace within the group. A single login is sufficient to register all console modules and activate the respective sources, while a single logout will log out the entire group

Push-Get Function – premium software feature for moving/retrieving connections from own or other devices:
- optimizes collaboration within control rooms by improving team communication, flexibility, and responsiveness
- allows users to "push" the connection status of their console module to another console module or "get" it from there

Control options

IP-Control-API – premium software feature enabling remote control, scenario switching, and retrieval of switching states via an API interface:
- allows text-based XML control of a KVM matrix system over the network
- optional encryption of communication
- provides the capability to create custom control applications, send switching commands, and retrieve selective information on switching states as well as computer statuses
- flexible and scalable solution for seamless integration into IT infrastructures from various vendors
- Includes a scripting function for creating, managing, and executing scripts, automating scenarios such as changing the switching state of individual consoles, multiple consoles, or the entire system
- Enables control of external devices via HTTP requests

System expansion

Support for all common video signals, thanks to a wide selection of matrix-compatible KVM extenders, which can be integrated as end devices in matrix operation in a “mixed” configuration (Mix & Match). Video transmission is performed using bluedec™ – G&D’s advanced, multi-stage, lossless compression – delivering pixel-perfect, lossless video quality with near-zero latency.

The RemoteAccess-CPU lets you seamlessly integrate virtual machines into your matrix installation. This way, hybrid systems with real and virtual computer infrastructure can be optimally implemented.

Matrix-Grid Function – premium software feature for expanding the matrix system or increasing the number of ports by adding additional central modules:
- multiple digital matrix switches from the ControlCenter-Compact and ControlCenter-Digital series can be combined into a large matrix network
- enables bidirectional communication between console and computer modules connected to different matrix switches
- can be combined with the MatrixGuard Function

Increase the system's range up to 10,000 m by using CAT variants/connections by integrating an optical fibres line (DVI-FiberLink)
Increase the system's range up to 140 m by using CAT variants/connections by integrating a CAT line (CAT-Repeater)

Increase the system's range by integrating the ethernet-capable I/O-Card-Trunk

General	Product group	KVM matrix systems
Transmission	KVM matrix system component	Central unit
Network	Medium 1	CAT7 CAT6 CAT5
	Data rate 1	10 MBit/s 100 MBit/s 1 GBit/s
	Medium 2	CAT5 CAT6 CAT7
	Data rate 2	10 MBit/s 100 MBit/s 1 GBit/s
Maintenance	Update via	ConfigPanel (Network)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width	ca. 448 mm
	Height	ca. 176 mm
	Depth	ca. 500 mm
	IP protection class	IP20
	Weight	ca. 14.03 kg
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity	20 % to 80 %, non-condensing
	Area of application	Interior
	Maximum operating altitude	3048m above sea level
	Storage temperature	-20 °C to 55 °C
	Storage air humidity	15 % to 85 %, non-condensing
	MTBF	70000 h at 25°C
	Note	Power supplies 110.000h, fan modules 70.000h, Remaining unit > 100.000h
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Input voltage	100-240 VAC
	Input frequency	60-50 Hz
	Current consumption	3-2 A
	Power consumption idle	55 W
	Heat output idle	55 W
Power supply 2	Input voltage	100-240 VAC
	Input frequency	60-50 Hz
	Current consumption	3-2 A
	Power consumption idle	55 W
	Heat output idle	55 W
