RemoteAccess-GATE

Item no. A3300008

Back to last view

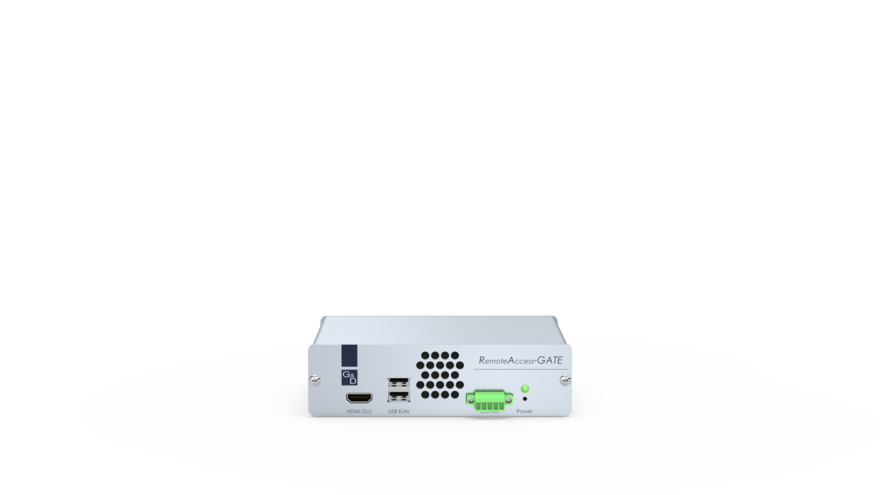

Stand-alone device serving as a link between a G&D KVM system and the network world

Request product now

Add to watchlist Compare product Questions about the product?

Learn more

The form could not be loaded.

Thanks to the RemoteAccess-GATE,

you have worldwide access to your KVM systems. In the fast-moving digital world, the ability to link company sites around the world and access computer systems at different locations from anywhere is becoming more important than ever. As a stand-alone device, the RemoteAccess-GATE connects the two worlds of KVM and network. In this context, "GATE" stand for "Global Access to Enterprise" and therefore for worldwide access to your KVM systems. The RemoteAccess-GATE opens up completely new ways of remote operation from remote locations, and also improves the ways of providing IT support and collaboration between employees.

Video

Supports multi-head/multi channel: multi-head video signals can be shown on the remote side and can be operated seamlessly with a single set of keyboard and mouse (with a separate RemoteAccess-GATE for each video signal)

Resolution up to
2560 × 1600 @ 60 Hz,
4096 × 2160 @ 30 Hz

Resolution up to
2560 × 1600 @ 60 Hz,
4096 × 2160 @ 30 Hz

Signals

Embedded stereo audio (2 channel LPCM)

Device

Stand-alone device

External power supply

Security features

AES encryption
LDAP, Active Directory and RADIUS directory server integration
User/group privileges
IP access controls
Login limitations
KVM session encryption
SSL Certificates
Configurable security banner
Audit log
SNMP/Syslog event logging and notifications
Strong passwords

Operation features

RemoteAccess-GATE provides configurable bandwidths to work over the Internet, LAN or WAN and to enable remote IT support at any time. You can use the device to connect to a single remote computer or to the entire KVM system.
In addition, up to eight users can access it simultaneously.
Being a flexible IP solution, you can use RemoteAccess-GATE via G&D console modules, laptop or PC.
Configuration is possible via HTML browser or via the serial service interface.
Software/web clients on PCs (CON functionality) connect to the RemoteAccess-GATE via the Internet, WAN or LAN. This enables secure remote access to computer signals and G&D console modules.
For best possible results, the following three web clients are available:
- HKC (HTML KVM Client) – Operating system independent, without Java; standard client
- AKC (Active KVM Client) – Windows without Java; can only be used with Internet Explorer or Edge Legacy Browser (click-once application)
- VKC (Virtual KVM Client) – Windows, Linux or Mac OS with Java 1.8 (no openJDK)

Signals

Adapters available for VGA, DVI, Mini DisplayPort and USB-C.

USB data: With the use of additional hardware, USB data can be transferred from the remote workplace via the RemoteAccess-GATE and the KVM installation to the local computer.

General	Product group	RemoteAccess KVM matrix systems
General	Number of workstations	1
Input options	USB mouse	yes
Input options	USB keyboard	yes
Video input	Number of video channels	1
	Format	HDMI 1.4
	Colour depth	24 bit
	Pixel rate	ca. 25 MPixel/s to ca. 297 MPixel/s
	Exemplary resolutions	4096 × 2160 (24 Hz) 4096 × 2160 (25 Hz) 4096 × 2160 (30 Hz) 3840 × 2160 (24 Hz) 3840 × 2160 (25 Hz) 3840 × 2160 (30 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Video output	Number of video channels	1
	Format	HDMI 1.4
	Colour depth	24 bit
	Pixel rate	ca. 25 MPixel/s to ca. 297 MPixel/s
	Exemplary resolutions	4096 × 2160 (24 Hz) 4096 × 2160 (25 Hz) 4096 × 2160 (30 Hz) 3840 × 2160 (24 Hz) 3840 × 2160 (25 Hz) 3840 × 2160 (30 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz) 2560 × 1600 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Audio	Transmission type	Stereo 2-channel LPCM
	Resolutions	16 bit
	Sampling rate	32 kHz 44,1 kHz 48 kHz
	Audio support	Digital Embedded
Network	Medium 1	CAT5 CAT6 CAT7
Network	Data rate 1	1 GBit/s 100 MBit/s 10 MBit/s
Maintenance	Update via	WebIF (Network)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width	ca. 160 mm
	Height	ca. 44 mm
	Depth	ca. 144 mm
	IP protection class	IP20
	Weight	ca. 0.71 kg
Operating conditions	Operating temperature	0 °C to 40 °C
	Operating air humidity	20 % to 80 %, non-condensing
	Area of application	Interior
	Maximum operating altitude	3048m above sea level
	Storage temperature	-20 °C to 60 °C
	Storage air humidity	15 % to 80 %, non-condensing
	MTBF	350000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Input voltage	5 VDC
	Current consumption	4 A
	Power consumption idle	4.13 W
	Power consumption max.	7.5 W
	Heat output idle	4.13 W
	Heat output max.	6.5 W
