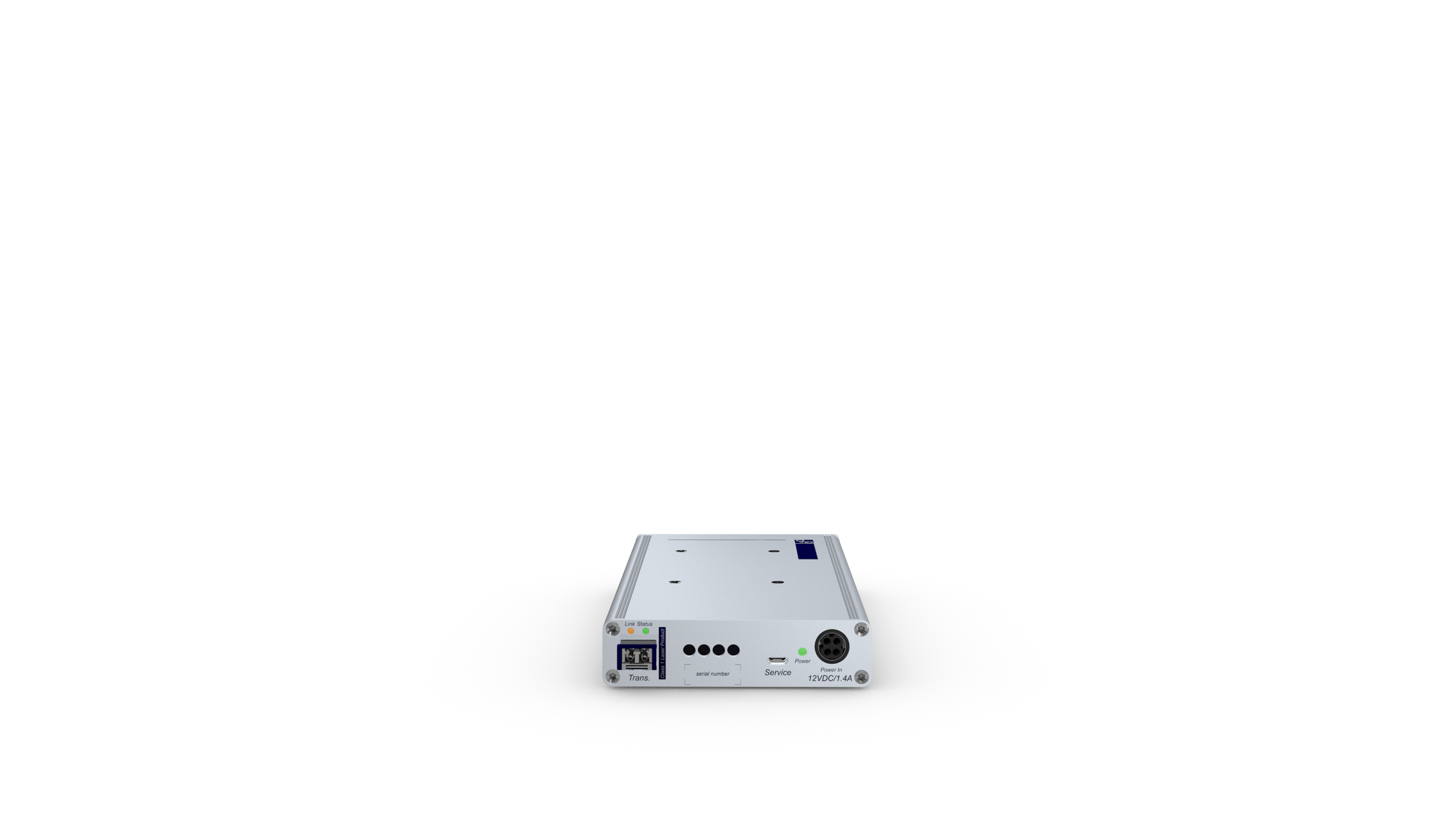

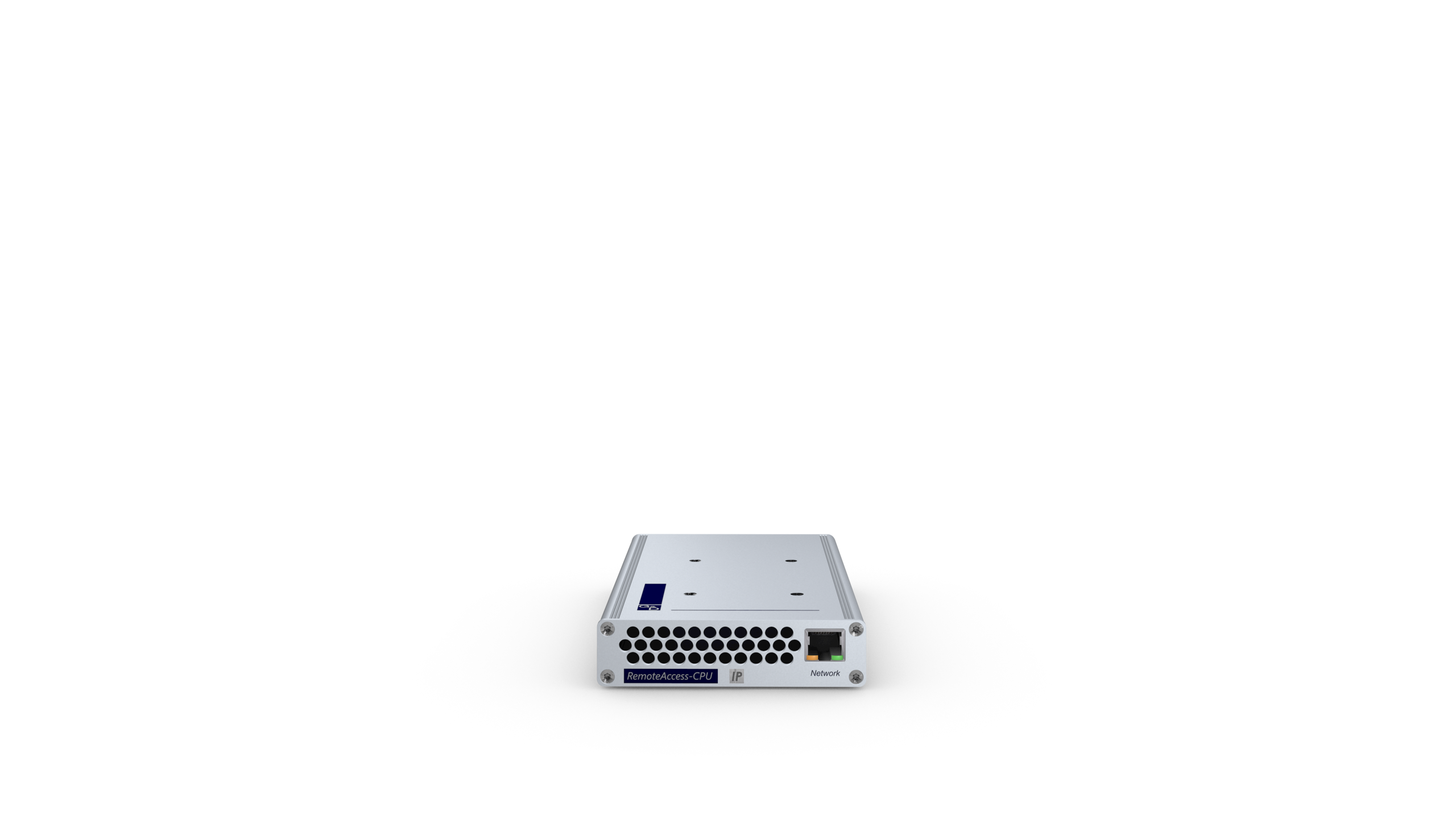

RemoteAccess-IP-CPU-Fiber(S)-UG incl. PowerPack

Video

Compressed, pixel perfect, ideal hand-eye coordination

Resolution up to
2560 × 1600 @ 60 Hz

Signals

Encrypted video, keyboard, mouse and control data

Embedded stereo audio (DisplayPort Digital, 2 channel LPCM)

GenericUSB support for USB class HID (Human Interface Device).
The product allows the simultaneous use of up to four GenericUSB devices via a console module. For this, both the used console module and the used computer module must support the use of up to four GenericUSB devices.

Transmission

Supported network protocols:
- RDP
- VNC
- SSH
- (support for other protocols will follow soon)

KVM-over-IP™ over IP-based networks (layer 3)
The transmission distance between two active network components is up to 10,000 meters over fiber singlemode optics, incl. transmission module(s)/SFP transceiver(s)

Device

Gigabit ethernet network interface
Service interface (mini USB)
Ident LED to quickly find devices in complex installations
Well-proven monitoring technology for monitoring various device parameters

External power supply

Operation

Integration of any number of virtual sources into the KVM matrix including automatised logins (single sign on via matrix OSD)
Operation (switching between channels, push-get, etc.) via on-screen display
Selection of virtual and physical sources within the matrix environment via on-screen display's select menu (target list)

Multilingual web application Config Panel 21 for configuration, monitoring and updates (HTML5, Java-free)

Device

Thin client functionality exactly tailored to a G&D matrix:
The device is equipped with a powerful, reliable industrial board and offers a platform with integrated thin client functionality. Therefore, you don't need a separate thin client.

Multi user access: Via G&D's KVM system, multiple operators can use the same RemoteAccess-IP-CPU to simultaneously connect and operate the same virtual machine.

Transmission

The streaming feature allows you to access various streaming sources. The following sources can be streamed: H.264 video streams, VP8 and VP9 video streams, MPGA audio streams, MP3 audio streams and AC3 audio streams.

Operation features

TS function – software feature expansion for multi-monitor consoles:
As a part of the expansion module "TS function", CrossDisplay-Switching enables users to switch between channels simply by moving the mouse. The mouse acts as if on a “virtual desktop” and can be moved seamlessly across the connected displays. Moving the cursor from the active to another display, the keyboard-mouse focus automatically switches to the connected computer. This feature lets you create multi-monitor workplaces, where users do not have to deal with the actual infrastructure. Thus, they are able to perform their tasks while operating the system intuitively. The mouse becomes the ultimate intuitive switching tool.

Push-Get-Function - A software feature for moving/getting own or external screen contents: Push-Get-Function optimizes collaboration in the control room and allows the user to push the image on his monitor to the display of another workstation or a large-screen projection or to get it from there. This solution also improves the communication, flexibility and productivity within the team, since employees can now perform tasks together.

General	Product group	RemoteAccess KVM matrix systems
Transmission	KVM-over-IP™ Transmission	yes
	Range	10000 m (9/125µm, OS1)
	Laser class	Class 1
	Type of interface	LC-Duplex
	Wavelength	1310 nm
	KVM matrix system component	Computer module
	Medium	Fiber SM
	Data rate	1 Gbit/s
Video output	Colour depth	24 bit
	Pixel rate	ca. 25 MPixel/s to ca. 330 MPixel/s
	Exemplary resolutions	2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.
Audio	Transmission type	Stereo 2-channel LPCM
	Resolutions	24 bit 20 bit 16 bit
	Sampling rate	up to 48 kHz
	Audio support	Digital Embedded
USB	Specification	USB 2.0
	GenericUSB support	up to 4 devices
	Medium	Embedded
	Transmission rate	8.5 Mbit/s (Full Speed)
	USB classes	Human Interface Device (HID)
Network	Medium 1	CAT5 CAT6 CAT7
Network	Data rate 1	1 GBit/s 100 MBit/s 10 MBit/s
Maintenance	Update via	ConfigPanel (Network)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width	ca. 105 mm
	Height	ca. 26 mm
	Depth	ca. 184 mm
	IP protection class	IP20
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity	20 % to 80 %, non-condensing
	Area of application	Interior
	Maximum operating altitude	3048m above sea level
	Storage temperature	-20 °C to 55 °C
	Storage air humidity	15 % to 80 %, non-condensing
	MTBF	280000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Input voltage	12 VDC
	Current consumption	1.2 A
	Power consumption max.	9.96 W
	Heat output max.	9.96 W

Product comparison

Mark differences Hide same values

Technical data		RemoteAccess-IP-CPU Basic Item no. A2320375	RemoteAccess-IP-CPU incl. PowerPack Item no. A2320376	RemoteAccess-IP-CPU-Fiber(M) Basic Item no. A2320379	RemoteAccess-IP-CPU-Fiber(M) incl. PowerPack Item no. A2320380	RemoteAccess-IP-CPU-Fiber(M)-UG Basic Item no. A2320383	RemoteAccess-IP-CPU-Fiber(M)-UG incl. PowerPack Item no. A2320384	RemoteAccess-IP-CPU-Fiber(S) Basic Item no. A2320381	RemoteAccess-IP-CPU-Fiber(S) incl. PowerPack Item no. A2320382	RemoteAccess-IP-CPU-Fiber(S)-UG Basic Item no. A2320385	selected variant RemoteAccess-IP-CPU-Fiber(S)-UG incl. PowerPack Item no. A2320386	RemoteAccess-IP-CPU-UG Basic Item no. A2320377	RemoteAccess-IP-CPU-UG incl. PowerPack Item no. A2320378

		General	General	General	General	General	General	General	General	General	General	General	General
General	Product group	Product group RemoteAccess KVM matrix systems	Product group RemoteAccess KVM matrix systems	Product group RemoteAccess KVM matrix systems	Product group RemoteAccess KVM matrix systems	Product group RemoteAccess KVM matrix systems	Product group RemoteAccess KVM matrix systems	Product group RemoteAccess KVM matrix systems	Product group RemoteAccess KVM matrix systems	Product group RemoteAccess KVM matrix systems	Product group RemoteAccess KVM matrix systems	Product group RemoteAccess KVM matrix systems	Product group RemoteAccess KVM matrix systems

		Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission	Transmission
Transmission	KVM-over-IP™ Transmission	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes
	Range	Range 100 m	Range 100 m	Range 550 m (50.0/125µm, OM2 - 500MHzkm) 500 m (50.0/125µm, OM2 - 400MHzkm) 220 m (62.5/125µm, OM1 - 160MHzkm) 275 m (62.5/125µm, OM1 - 200MHzkm)	Range 550 m (50.0/125µm, OM2 - 500MHzkm) 500 m (50.0/125µm, OM2 - 400MHzkm) 220 m (62.5/125µm, OM1 - 160MHzkm) 275 m (62.5/125µm, OM1 - 200MHzkm)	Range 550 m (50.0/125µm, OM2 - 500MHzkm) 500 m (50.0/125µm, OM2 - 400MHzkm) 220 m (62.5/125µm, OM1 - 160MHzkm) 275 m (62.5/125µm, OM1 - 200MHzkm)	Range 550 m (50.0/125µm, OM2 - 500MHzkm) 500 m (50.0/125µm, OM2 - 400MHzkm) 220 m (62.5/125µm, OM1 - 160MHzkm) 275 m (62.5/125µm, OM1 - 200MHzkm)	Range 10000 m (9/125µm, OS1)	Range 10000 m (9/125µm, OS1)	Range 10000 m (9/125µm, OS1)	Range 10000 m (9/125µm, OS1)	Range 100 m	Range 100 m
	Laser class	Laser class Value not available	Laser class Value not available	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Value not available	Laser class Value not available
	Type of interface	Type of interface Value not available	Type of interface Value not available	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface Value not available	Type of interface Value not available
	Wavelength	Wavelength Value not available	Wavelength Value not available	Wavelength 850 nm	Wavelength 850 nm	Wavelength 850 nm	Wavelength 850 nm	Wavelength 1310 nm	Wavelength 1310 nm	Wavelength 1310 nm	Wavelength 1310 nm	Wavelength Value not available	Wavelength Value not available
	KVM matrix system component	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module	KVM matrix system component Computer module
	Medium	Medium CAT7 CAT6 CAT5e	Medium CAT7 CAT6 CAT5e	Medium Fiber MM	Medium Fiber MM	Medium Fiber MM	Medium Fiber MM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium CAT7 CAT6 CAT5e	Medium CAT7 CAT6 CAT5e
	Data rate	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s

		Video output	Video output	Video output	Video output	Video output	Video output	Video output	Video output	Video output	Video output	Video output	Video output
Video output	Colour depth	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit
	Pixel rate	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 330 MPixel/s
	Exemplary resolutions	Exemplary resolutions 2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.	Exemplary resolutions 2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.	Exemplary resolutions 2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.	Exemplary resolutions 2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.	Exemplary resolutions 2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.	Exemplary resolutions 2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.	Exemplary resolutions 2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.	Exemplary resolutions 2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.	Exemplary resolutions 2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.	Exemplary resolutions 2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.	Exemplary resolutions 2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.	Exemplary resolutions 2560 × 1600 (60 Hz) 2560 × 1440 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 1600 × 1200 (60 Hz) 1680 × 1050 (60 Hz) 1280 × 1024 (60 Hz) 1024 × 768 (60 Hz) Only the listed resolutions are supported.

		Network	Network	Network	Network	Network	Network	Network	Network	Network	Network	Network	Network
Network	Medium 1	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7
Network	Data rate 1	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s	Data rate 1 1 GBit/s 100 MBit/s 10 MBit/s

		Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance
Maintenance	Update via	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)
Maintenance	Serviceport settings	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)

		Housing	Housing	Housing	Housing	Housing	Housing	Housing	Housing	Housing	Housing	Housing	Housing
Housing	Material	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium
	Width	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm	Width ca. 105 mm
	Height	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm	Height ca. 26 mm
	Depth	Depth ca. 184 mm	Depth ca. 184 mm	Depth ca. 184 mm	Depth ca. 184 mm	Depth ca. 184 mm	Depth ca. 184 mm	Depth ca. 184 mm	Depth ca. 184 mm	Depth ca. 184 mm	Depth ca. 184 mm	Depth ca. 184 mm	Depth ca. 184 mm
	IP protection class	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20
	Weight	Weight ca. 0.59 kg	Weight ca. 0.59 kg	Weight ca. 0.62 kg	Weight ca. 0.62 kg	Weight Value not available	Weight Value not available	Weight ca. 0.62 kg	Weight ca. 0.62 kg	Weight Value not available	Weight Value not available	Weight ca. 0.60 kg	Weight ca. 0.60 kg

		Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions
Operating conditions	Operating temperature	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C
	Operating air humidity	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing
	Area of application	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior	Area of application Interior
	Maximum operating altitude	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level
	Storage temperature	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C
	Storage air humidity	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing	Storage air humidity 15 % to 80 %, non-condensing
	MTBF	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C	MTBF 280000 h at 25°C
	Conformities	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)

		Power supply	Power supply	Power supply	Power supply	Power supply	Power supply	Power supply	Power supply	Power supply	Power supply	Power supply	Power supply
Power supply	Input voltage	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC
	Current consumption	Current consumption 1.2 A	Current consumption 1.2 A	Current consumption 1.2 A	Current consumption 1.2 A	Current consumption 1.2 A	Current consumption 1.2 A	Current consumption 1.2 A	Current consumption 1.2 A	Current consumption 1.2 A	Current consumption 1.2 A	Current consumption 1.2 A	Current consumption 1.2 A
	Power consumption max.	Power consumption max. 9.48 W	Power consumption max. 9.48 W	Power consumption max. 9.96 W	Power consumption max. 9.96 W	Power consumption max. 9.96 W	Power consumption max. 9.96 W	Power consumption max. 9.96 W	Power consumption max. 9.96 W	Power consumption max. 9.96 W	Power consumption max. 9.96 W	Power consumption max. 9.48 W	Power consumption max. 9.48 W
	Heat output max.	Heat output max. 9.48 W	Heat output max. 9.48 W	Heat output max. 9.96 W	Heat output max. 9.96 W	Heat output max. 9.96 W	Heat output max. 9.96 W	Heat output max. 9.96 W	Heat output max. 9.96 W	Heat output max. 9.96 W	Heat output max. 9.96 W	Heat output max. 9.48 W	Heat output max. 9.48 W

		Audio	Audio	Audio	Audio	Audio	Audio	Audio	Audio	Audio	Audio	Audio	Audio
Audio	Transmission type	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM	Transmission type Stereo 2-channel LPCM
	Resolutions	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit
	Sampling rate	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz
	Audio support	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded

		USB	USB	USB	USB	USB	USB	USB	USB	USB	USB	USB	USB
USB	Specification	Specification Value not available	Specification Value not available	Specification Value not available	Specification Value not available	Specification USB 2.0	Specification USB 2.0	Specification Value not available	Specification Value not available	Specification USB 2.0	Specification USB 2.0	Specification USB 2.0	Specification USB 2.0
	GenericUSB support	GenericUSB support Value not available	GenericUSB support Value not available	GenericUSB support Value not available	GenericUSB support Value not available	GenericUSB support up to 4 devices	GenericUSB support up to 4 devices	GenericUSB support Value not available	GenericUSB support Value not available	GenericUSB support up to 4 devices	GenericUSB support up to 4 devices	GenericUSB support up to 4 devices	GenericUSB support up to 4 devices
	Medium	Medium Value not available	Medium Value not available	Medium Value not available	Medium Value not available	Medium Embedded	Medium Embedded	Medium Value not available	Medium Value not available	Medium Embedded	Medium Embedded	Medium Embedded	Medium Embedded
	Transmission rate	Transmission rate Value not available	Transmission rate Value not available	Transmission rate Value not available	Transmission rate Value not available	Transmission rate 8.5 Mbit/s (Full Speed)	Transmission rate 8.5 Mbit/s (Full Speed)	Transmission rate Value not available	Transmission rate Value not available	Transmission rate 8.5 Mbit/s (Full Speed)	Transmission rate 8.5 Mbit/s (Full Speed)	Transmission rate 8.5 Mbit/s (Full Speed)	Transmission rate 8.5 Mbit/s (Full Speed)
	USB classes	USB classes Value not available	USB classes Value not available	USB classes Value not available	USB classes Value not available	USB classes Human Interface Device (HID)	USB classes Human Interface Device (HID)	USB classes Value not available	USB classes Value not available	USB classes Human Interface Device (HID)	USB classes Human Interface Device (HID)	USB classes Human Interface Device (HID)	USB classes Human Interface Device (HID)
