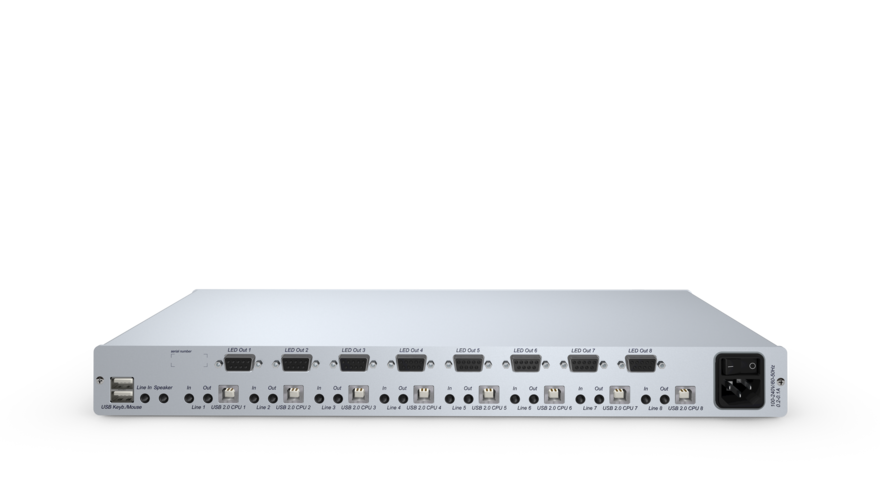

TradeSwitch8-USB

Item no. A2100118

Back to last view

Keyboard/mouse switch to operate up to 8 computers over one set of keyboard and mouse

Request product now

Add to watchlist Compare product Questions about the product?

Learn more

The form could not be loaded.

With the KM switch TradeSwitch8,

you can operate up to eight computers over only one set of keyboard/mouse. The switch does not process video signals. Each console monitor is directly connected to the computer and permanently displays its image.

Video

The TradeSwitch does not process video signals. Each monitor of the user console is directly connected to the computer and permanently displays its image.

Signals

Full keyboard/mouse emulation

Stereo audio signals

USB 2.0 with hi-speed, all USB classes

Device

Accesses as hardware switch only the standard interfaces keyboard, mouse and audio

Access to standard interfaces of the computer, with no software installation required

Internal power pack for main power supply

Operation

With the TradeSwitch, you can operate several computers over only one set of keyboard/mouse.

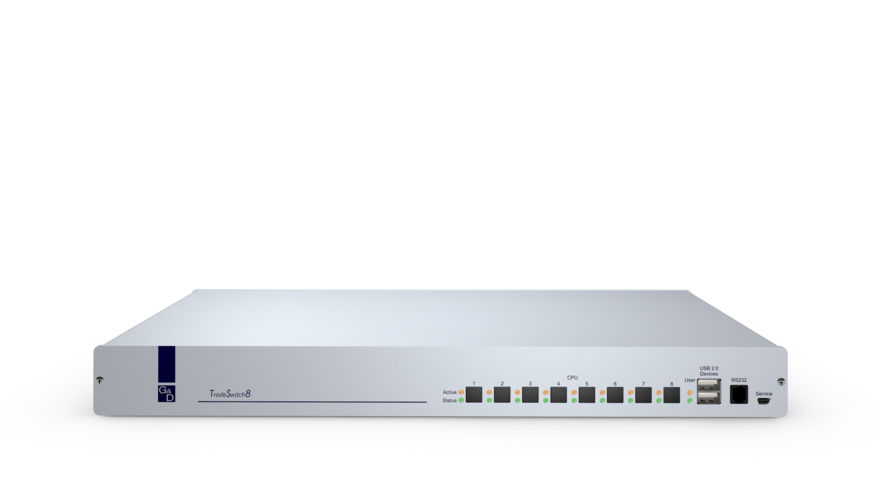

Switching between computers is done either via the buttons on the front of the TradeSwitch, via configurable key combinations on the keyboard or via a serial device.

System update

Flash upgrade via the device

Control options

CrossDisplay-Switching: The mouse acts as if on a “virtual desktop” and can be moved seamlessly across the connected displays. Moving the cursor from the active to another display, the keyboard-mouse focus automatically switches to the connected computer. This feature lets you create multi-monitor workplaces, where users do not have to deal with the actual infrastructure. Thus, they are able to perform their tasks while operating the system intuitively. The mouse becomes the ultimate intuitive switching tool.

Device

Attach the optional LED sets to the monitors. This facilitates locating the monitor (computer) to which the keyboard/mouse focus is switched to.

General	Product group	KVM switches
	Number of workstations	1
	Number of sources	8
Input options	USB mouse	yes
Input options	USB keyboard	yes
Audio	Transmission type	Stereo
	Bandwidth	22 kHz
	Audio support	Analog
USB	Specification	USB 2.0
	Transmission rate	480 Mbit/s (Hi-Speed)
	Range	max. 5 m
	Power (output)	500 mA (HighPower)
	USB classes	All
Maintenance	Update via	Update Wizard (service interface)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width	ca. 436 mm
	Height	ca. 44 mm
	Depth	ca. 210 mm
	IP protection class	IP20
	Weight	ca. 2.10 kg
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity	20 % to 80 %, non-condensing
	Area of application	Interior
	Maximum operating altitude	3048m above sea level
	Storage temperature	-10 °C to 55 °C
	Storage air humidity	15 % to 85 %, non-condensing
	MTBF	185000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Input voltage	100-240 VAC
	Input frequency	60-50 Hz
	Current consumption	0.2-0.1 A
	Power consumption idle	2.9-3.7 W
	Power consumption max.	11.2-11.6 W
	Heat output idle	2.9-3.7 W
	Heat output max.	5.2-5.6 W
