PersonalWorkplace-Controller Professional Max F(M) VO4

Item no. A4000036
Back to last view
New
Front view of the PersonalWorkplace-Controller

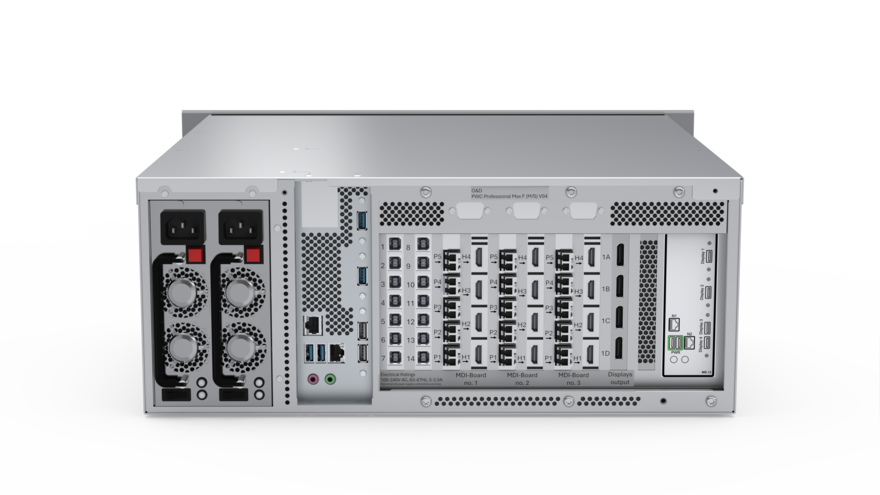

Rear view of the PersonalWorkplace-Controller Professional Max
Displayport™ 1.3PWC4K / UHDUncompressedfiber opticRedundant power supplyInternal power supply Network connection (including monitoring)Local workspace
Multiviewing tool (4 RU) with 27 video inputs (incl. 15 x remote UHD@60Hz), and 4 video outputs (5K@60Hz). 2 output licenses included, additional optional licenses at extra charge!
Request product now
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

The PersonalWorkplace-Controller

enables you to simultaneously display and operate several computer signals, virtual sources or KVM console modules on one or several monitors. The arrangement of the input signals can be flexibly adapted by the user at any time. This enables the individual design of efficient and ergonomic workplaces with only one mouse and one keyboard.

Video
  • Video inputs per variant
    • Standard and Advanced: 9 (1x UHD/60, 3x UHD/30, 5x FHD/60)
    • Advanced Max: 9 (5x UHD/60 4:2:2, 4x FHD/60)
    • Professional: 18 (2x UHD/60, 6x UHD/30, 10x FHD/60)
    • Professional Max: 27 (15x UHD/60 4:2:2, 12x FHD/60)
    • Video: 27 (3x UHD/60, 9x UHD/30, 15x FHD/60)
  • Video outputs per variant
    • Standard VO1: 1 (UHD/60)
    • Advanced VO4, Professional VO4 and Video VO4: 4 (5K/60)
    • Professional VO6 and Video VO6: 6 (5K/60)
  • Display licenses are required for video output (both physical and streaming); the number of included licenses varies depending on the variant:
    • Standard and Advanced: 1
    • Professional and Video: 2
  • Can be expanded with additional display licenses
  • Two different operating modes:
    • Dynamic mode (standard): Use of the native resolution of the connected monitor to be able to display modern resolutions (e.g. 5120 × 2880 at 60 Hz)
    • Legacy mode: Mode with predefined resolutions and aspect ratios (max. 3840 × 2160 @ 60 Hz)
  • 5 streaming inputs. Supported protocols:
    • RTSP (H.264)
    • RTSP HEVC (H.265)
    • NDI
  • Up to 2 streaming outputs (Standard variant: 1). Display licenses required.
    Supported protocols:
    • RTSP (H.264)
    • RTSP HEVC (H.265)
    • WebRTC
Transmission
  • The transmission distance is up to 400 meters over fiber multimode optics, incl. transmission module(s)/SFP transceiver(s)
Device
  • Due to the high data rates of the video signals, bandwidth restrictions must be taken into account when planning and operating the device - our specialists will be happy to help you with this

  • Access to standard interfaces of the computer, with no software installation required

Operation
  • Operable computers per variant:
    • Video: 0
    • Standard and Advanced: 7
    • Advanced Max: 12
    • Professional: 14
    • Professional Max: 29
Warranty
  • A 2-year, free of charge product guarantee
Video
  • Display area of max. 16384 pixels horizontally and max. 16384 pixels vertically
    • Enables 4x 4K horizontal or 4x 5K vertical or in 2x2 layout
      (4x 5K horizontal not possible, as >16384 pixels)
  • Supports mirroring for monitor or stream projections (display license required)
Device
  • Users can switch between different sources almost in real-time, without noticing interruptions or delays
  • Internal power supply unit for power delivery
  • Professional and Video variants with redundant internal power supply modules
  • Low noise emission
Security features
  • With the Monitoring function, you can monitor the device via the web interface.
  • Redundant network interface
Operation features
  • Different operating modes:
    • Free mode: The windows can be moved, scaled and arranged freely - without a fixed grid, for maximum flexibility
    • Swap mode: A window/source can swap places with another window/source using the mouse to quickly highlight important content without changing the layout/grid
  • The image output can be rotated individually for each monitor, with the exception of the Standard variant
  • Up to 4 users who can also operate independent applications/workplaces
  • KVM functionality (keyboard, video, mouse) is available in all variants, except for the Video variant
  • The windows on the display area can be arranged either in fixed grids or freely
  • Operation of the graphical user interface and configuration via primary and secondary mouse buttons (context menu) as well as hotkeys
  • Configuration, updates, and control (Touch UI) via the web interface
  • REST API for remote control and status queries
  • The data masking function allows you to make selected areas invisible
System expansion
  • Each additional display license allows you to connect one more output monitor or use an additional virtual output
    • Limitation of the Standard variant: Additional license can be used for only one mirror
  • Exclusive to Max variants: PersonalWorkplace-CPU-Fiber(M/S) – a lossless 10G computer module with local console and integrated signal conversion for DP 1.2, HDMI 2.0, or SDI up to UHD/60; only one input can be used at a time
GeneralProduct group Video processing
Product Family PersonalWorkplace-Controller
Number of sources 27
Power Supply Redundancy with load balancing
Input optionsUSB mouse yes
USB keyboard yes
TransmissionNumber of transmission channels 15
Redundant transmission channels no redundant KVM transmission
Range 400 m (50.0/125µm, OM4 - 4700MHz*km)
300 m (50.0/125µm, OM3 - 2000MHz*km)
Laser class Class 1
Type of interface LC-Duplex
Wavelength 850 nm
Medium Fiber MM
Data rate 10 Gbit/s
Video input 1Quantity 15
Format PersonalWorkplace-CPU-Fiber
Pixel rate ca. 16 MPixel/s to 594 MPixel/s
Exemplary resolutions 3840 × 2160 (60 Hz)
3840 × 2160 (30 Hz)
2560 × 1600 (60 Hz)
2048 × 2160 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Related to Inputs 1
2
3
4
5
10
11
12
13
14
19
20
21
22
23
Video input 2Quantity 12
Format HDMI 2.0 (DVI)
Pixel rate ca. 16 MPixel/s to 165 MPixel/s
Exemplary resolutions 1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Related to Inputs 6
7
8
9
15
16
17
18
24
25
26
27
Video outputQuantity 4
Format DisplayPort 1.3
Exemplary resolutions 5120 × 2880 (60 Hz)
4096 × 2160 (60 Hz)
4096 × 2160 (30 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
NetworkQuantity 1
Medium CAT5
CAT6
CAT7
Data rate 1 Gbit/s
100 Mbit/s
10 Mbit/s
MaintenanceUpdate via WebIF (Network)
HousingMaterial Steel sheet
Width ca. 483 mm
Height ca. 177 mm
Depth ca. 450 mm
IP protection class IP20
Operating conditionsOperating temperature 5 °C to 40 °C
Operating air humidity, non-condensing 10 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,000 m
Storage temperature -20 °C to 70 °C
Storage air humidity, non-condensing 10 % to 95 %
MTBF 61,988 h at 25°C
Conformities CE compliant (see downloads)
UKCA compliant (see downloads)
UL compliant (see downloads)
CB compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supplyQuantity 2
Type Internal
Input voltage 90-264 VAC
Input frequency 47-63 Hz
Current consumption 5-2.5 A
