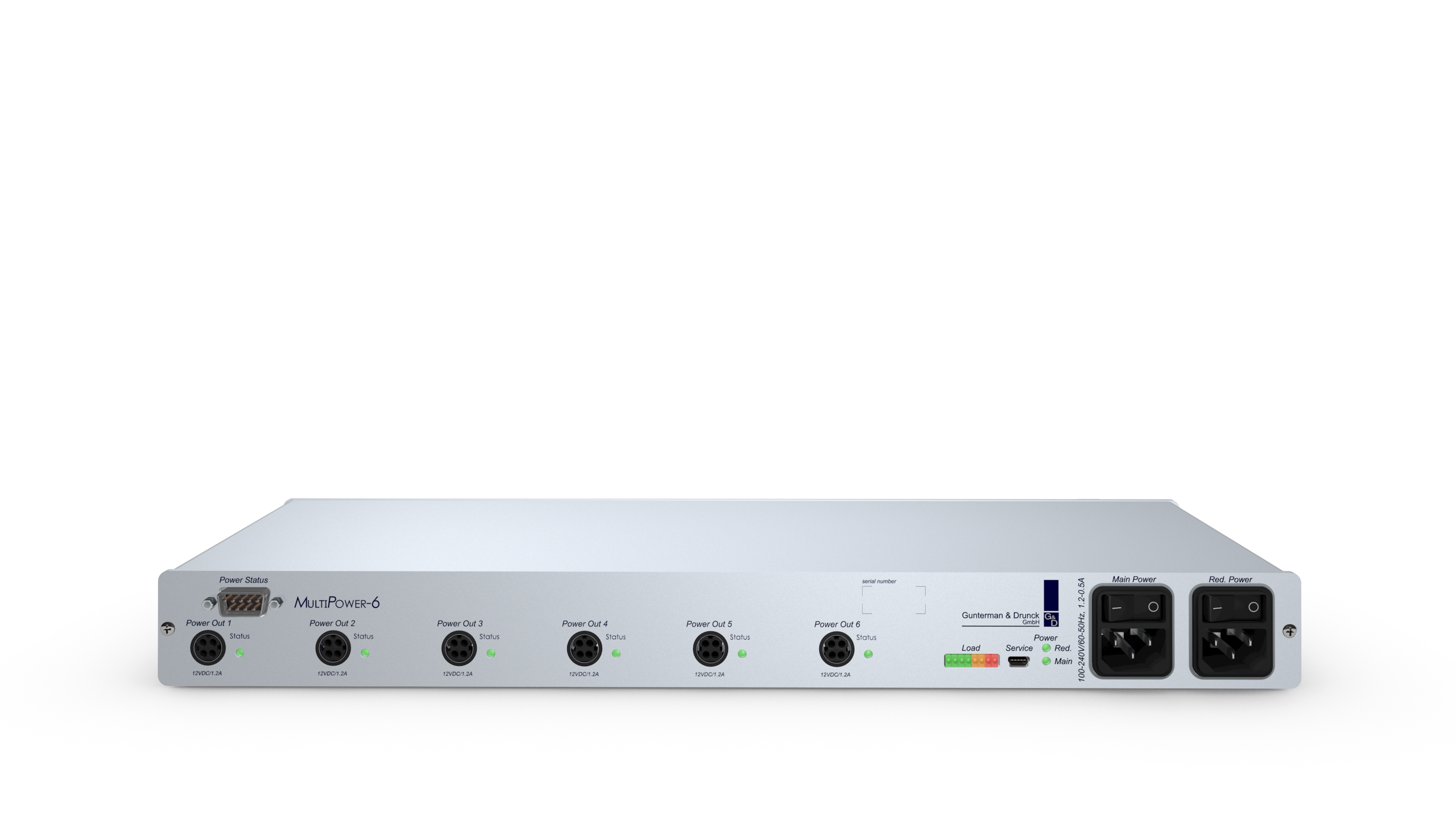

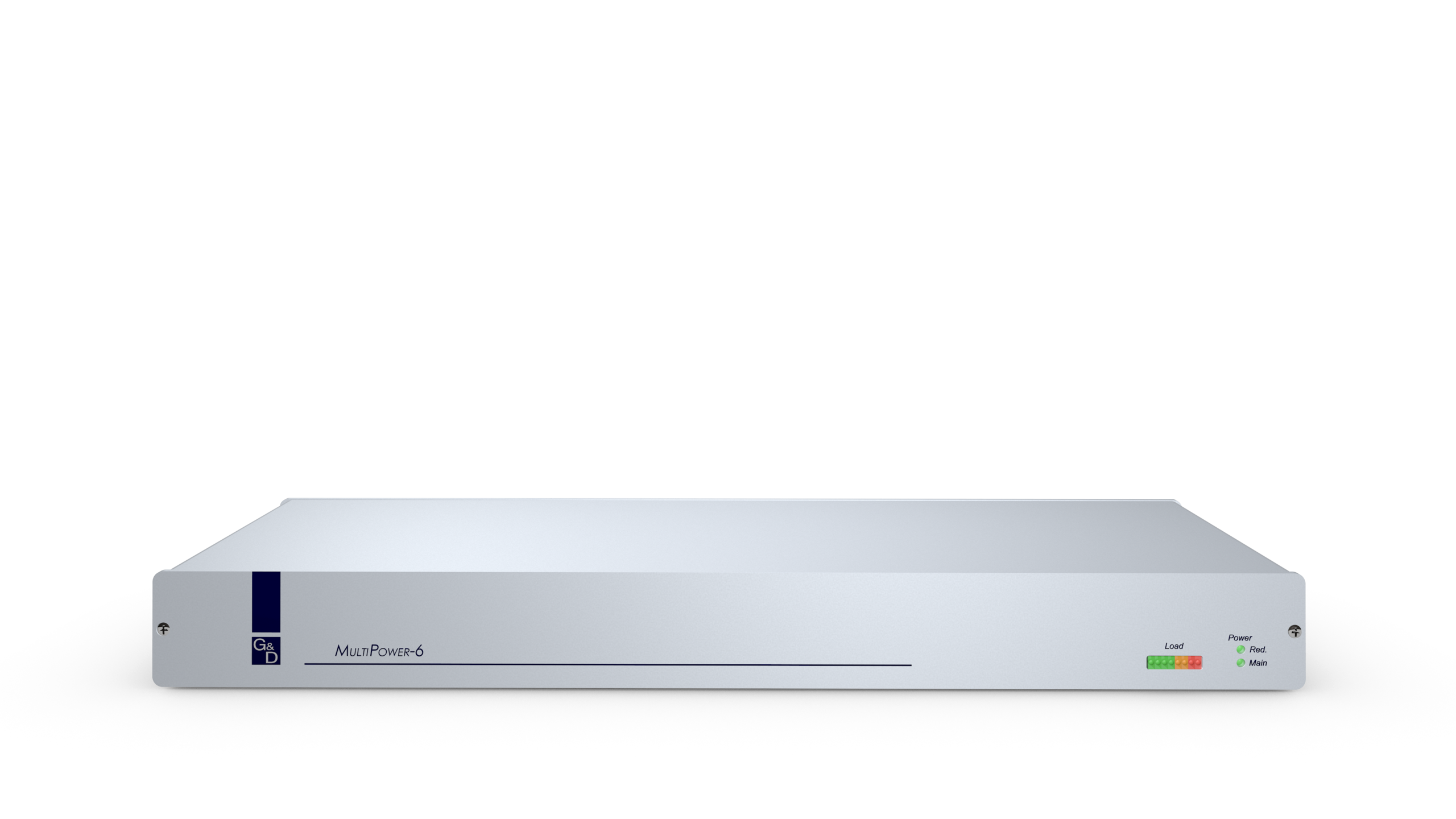

MultiPower-6 6x 12V/1.2A

Item no. A4110032
Back to last view
Redundant power supplyInternal power supply
Central power supply for 6 12V devices with max. 1.2A each
Request product now
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

This MultiPower

serves as the central power source of G&D devices that require an external power pack (12V). With the MultiPower, a redundant power supply can be ensured via two power supply units. The MultiPower is a functional, space-saving and secure solution for applications in server rooms or computer racks.

Device
  • Central power supply, for example in racks
  • Enables external monitoring of the device status
Warranty
  • A 3-year, free of charge product guarantee
  • For an additional fee guarantee extension possible
Security features
  • MultiPower-12-HP, MultiPower-12 and MultiPower-6:
    • redundant internal power units
  • 24V variant:
    • redundant external power supply, 3 pin Phoenix connector
      (PowerPacks not included in the scope of delivery)
  • MultiPower-2:
    • redundant external power supply
Operation features
  • MultiPower-12-HP:
    • Connction of up to twelve 12V devices
      (12 output interfaces supply G&D devices with 12V and max. 1,2A – depends on the devices; with port configuration, up to six G&D devices with 12V and max. 2.4A (high power) can be connected)
    • Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)
  • MultiPower-12:
    • Connection of up to twelve 12V devices
      (12 output interfaces supply G&D devices with 12V and max. 600mA – depends on the devices)
  • MultiPower-6:
    • Conncetion of up to six 12V devices
      (6 output interfaces supply G&D devices with 12V and max. 1.2A – depends on the devices)
  • MultiPower-2:
    • Conncetion of up to two 12V devices
      (2 output interfaces supply G&D devices with 12V and max. 1.5A – depends on the devices)
GeneralProduct group Accessories
Product Family MultiPower
Power Supply Redundancy without load balancing
MaintenanceUpdate via Update Wizard (service interface)
Serviceport settings 115200bps (8/N/1)
HousingMaterial anodised aluminium
Width ca. 436 mm
Height ca. 44 mm
Depth ca. 155 mm
IP protection class IP20
Weight ca. 1.91 kg
Operating conditionsOperating temperature 5 °C to 45 °C
Operating air humidity, non-condensing 20 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,000 m
Storage temperature -20 °C to 60 °C
Storage air humidity, non-condensing 15 % to 85 %
MTBF 120,000 h at 25°C
Conformities UKCA compliant (see downloads)
TAA compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
CE compliant (see downloads)
FCC compliant (see manual)
EAC compliant (see downloads)
IEC/EN 60945 - Maritime (EMC & Environmental)
Power supplyQuantity 2
Type Internal
Input voltage 100-240 VAC
Input frequency 60-50 Hz
Current consumption 1.2-0.5 A
Power consumption max. 96 W
Heat output max. 8.6 W

Downloads

Manuals
Documents
Declarations of Conformity
Data Sheets
Tools & Drivers

Accessory Products

USB-Service-2 cable 2m

Cable for system updates and configuration
To product
Add to watchlistCompare productQuestions about the product?

PowerCable-3 Standard cable 3m

Cable to connect the power supply type Germany
To product
Add to watchlistCompare productQuestions about the product?

PowerCable-5 Standard cable 5m

Cable to connect the power supply type Germany
To product
Add to watchlistCompare productQuestions about the product?

PowerCord-MD4P-2 cable 2m

12V power cable to use with a central power supply (MultiPower)
To product
Add to watchlistCompare productQuestions about the product?

PowerCord-MD4P-3 cable 3m

12V power cable to use with a central power supply (MultiPower)
To product
Add to watchlistCompare productQuestions about the product?

PowerCord-MD4P-4 cable 4m

12V power cable to use with a central power supply (MultiPower, not suitable for MultiPower-12-HP)
To product
Add to watchlistCompare productQuestions about the product?

PowerCord-MD4P-5 cable 5m

12V power cable to use with a central power supply (MultiPower, not suitable for MultiPower-12-HP)
To product
Add to watchlistCompare productQuestions about the product?

PowerLoop-MD4P-04

12V power cable to loop through devices connected to a central power supply (MultiPower)
To product
Add to watchlistCompare productQuestions about the product?
