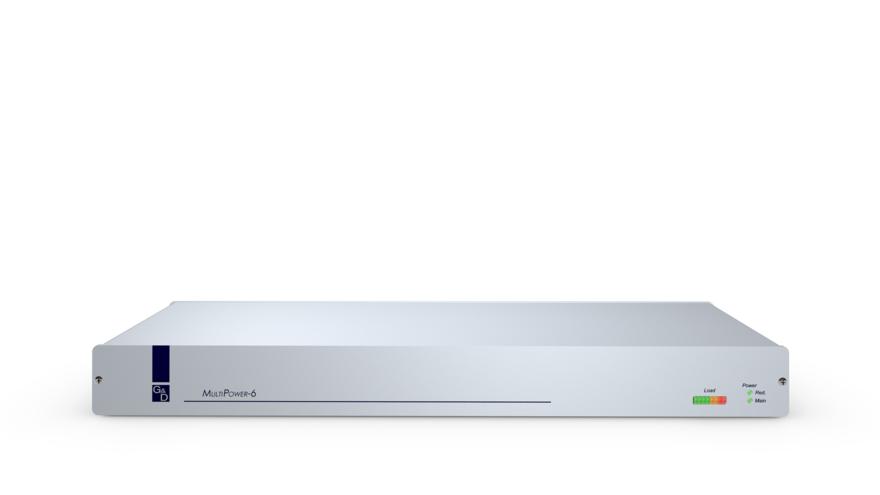

MultiPower-6 6x 12V/1.2A

Item no. A4110032

Back to last view

Central power supply for 6 12V devices with max. 1.2A each

Product variants

Request product now

Add to watchlist Compare product Questions about the product?

Learn more

The form could not be loaded.

This MultiPower

serves as the central power source of G&D devices that require an external power pack (12V). With the MultiPower, a redundant power supply can be ensured via two power supply units. The MultiPower is a functional, space-saving and secure solution for applications in server rooms or computer racks.

Device

Central power supply, for example in racks
Enables external monitoring of the device status

Security features

MultiPower-12-HP, MultiPower-12 and MultiPower-6:
- redundant internal power units
24V variant:
- redundant external power supply, 3 pin Phoenix connector
  (PowerPacks not included in the scope of delivery)
MultiPower-2:
- redundant external power supply

Operation features

MultiPower-12-HP:
- Connction of up to twelve 12V devices
  (12 output interfaces supply G&D devices with 12V and max. 1,2A – depends on the devices; with port configuration, up to six G&D devices with 12V and max. 2.4A (high power) can be connected)
- Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)
MultiPower-12:
- Connection of up to twelve 12V devices
  (12 output interfaces supply G&D devices with 12V and max. 600mA – depends on the devices)

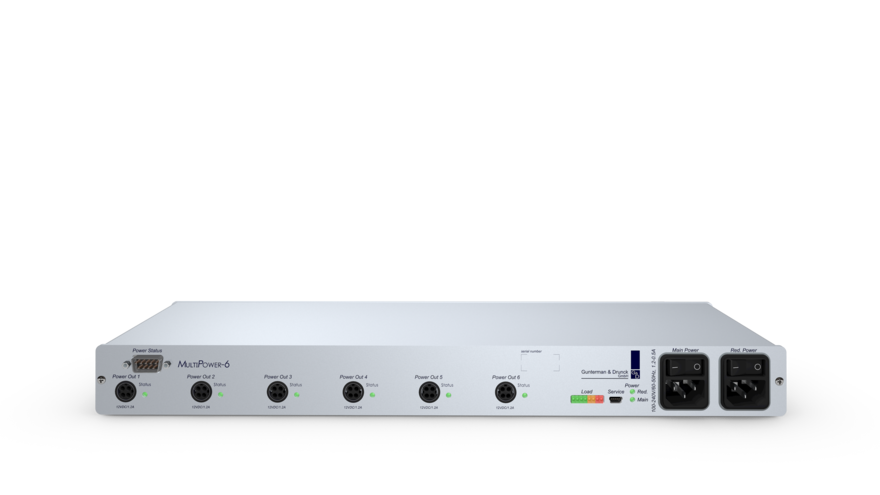

MultiPower-6:
- Conncetion of up to six 12V devices
  (6 output interfaces supply G&D devices with 12V and max. 1.2A – depends on the devices)
MultiPower-2:
- Conncetion of up to two 12V devices
  (2 output interfaces supply G&D devices with 12V and max. 1.5A – depends on the devices)

General	Product group	Accessories
Maintenance	Update via	Update Wizard (service interface)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width	ca. 436 mm
	Height	ca. 44 mm
	Depth	ca. 155 mm
	IP protection class	IP20
	Weight	ca. 1.91 kg
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity	20 % to 80 %, non-condensing
	Area of application	Interior
	Maximum operating altitude	3000m above sea level
	Storage temperature	-20 °C to 60 °C
	Storage air humidity	15 % to 85 %, non-condensing
	MTBF	120000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Input voltage	100-240 VAC
	Input frequency	60-50 Hz
	Current consumption	1.2-0.5 A
	Power consumption max.	96 W
	Heat output max.	8.6 W
Power supply 2	Input voltage	100-240 VAC
	Input frequency	60-50 Hz
	Current consumption	1.2-0.5 A
	Power consumption max.	96 W
	Heat output max.	8.6 W

Product comparison

Mark differences Hide same values

Technical data		selected variant MultiPower-6 6x 12V/1.2A Item no. A4110032	MultiPower-6-24V 6x 12V/1.2A Item no. A4110045

		General	General
General	Product group	Product group Accessories	Product group Accessories

		Maintenance	Maintenance
Maintenance	Update via	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)
Maintenance	Serviceport settings	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)

		Housing	Housing
Housing	Material	Material anodised aluminium	Material anodised aluminium
	Width	Width ca. 436 mm	Width ca. 436 mm
	Height	Height ca. 44 mm	Height ca. 44 mm
	Depth	Depth ca. 155 mm	Depth ca. 155 mm
	IP protection class	IP protection class IP20	IP protection class IP20
	Weight	Weight ca. 1.91 kg	Weight ca. 1.57 kg

		Operating conditions	Operating conditions
Operating conditions	Operating temperature	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C
	Operating air humidity	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing
	Area of application	Area of application Interior	Area of application Interior
	Maximum operating altitude	Maximum operating altitude 3000m above sea level	Maximum operating altitude 3000m above sea level
	Storage temperature	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C
	Storage air humidity	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing
	MTBF	MTBF 120000 h at 25°C	MTBF 120000 h at 25°C
	Conformities	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)

		Power supply	Power supply
Power supply	Input voltage	Input voltage 100-240 VAC	Input voltage 24 VDC
	Input frequency	Input frequency 60-50 Hz	Input frequency Value not available
	Current consumption	Current consumption 1.2-0.5 A	Current consumption 4 A
	Power consumption max.	Power consumption max. 96 W	Power consumption max. 96 W
	Heat output max.	Heat output max. 8.6 W	Heat output max. 8.6 W

		Power supply 2	Power supply 2
Power supply 2	Input voltage	Input voltage 100-240 VAC	Input voltage 24 VDC
	Input frequency	Input frequency 60-50 Hz	Input frequency Value not available
	Current consumption	Current consumption 1.2-0.5 A	Current consumption 4 A
	Power consumption max.	Power consumption max. 96 W	Power consumption max. 96 W
	Heat output max.	Heat output max. 8.6 W	Heat output max. 8.6 W
