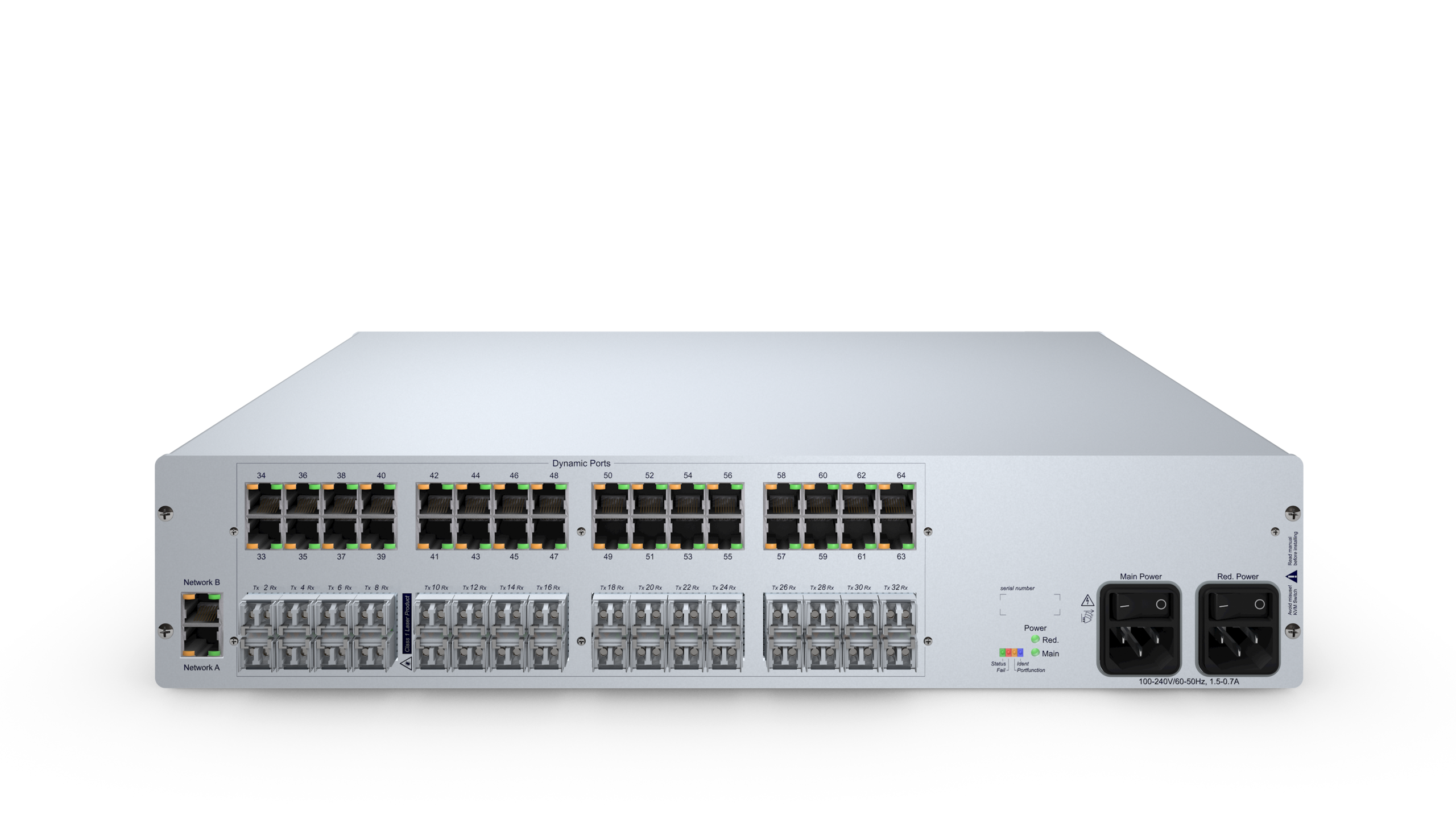

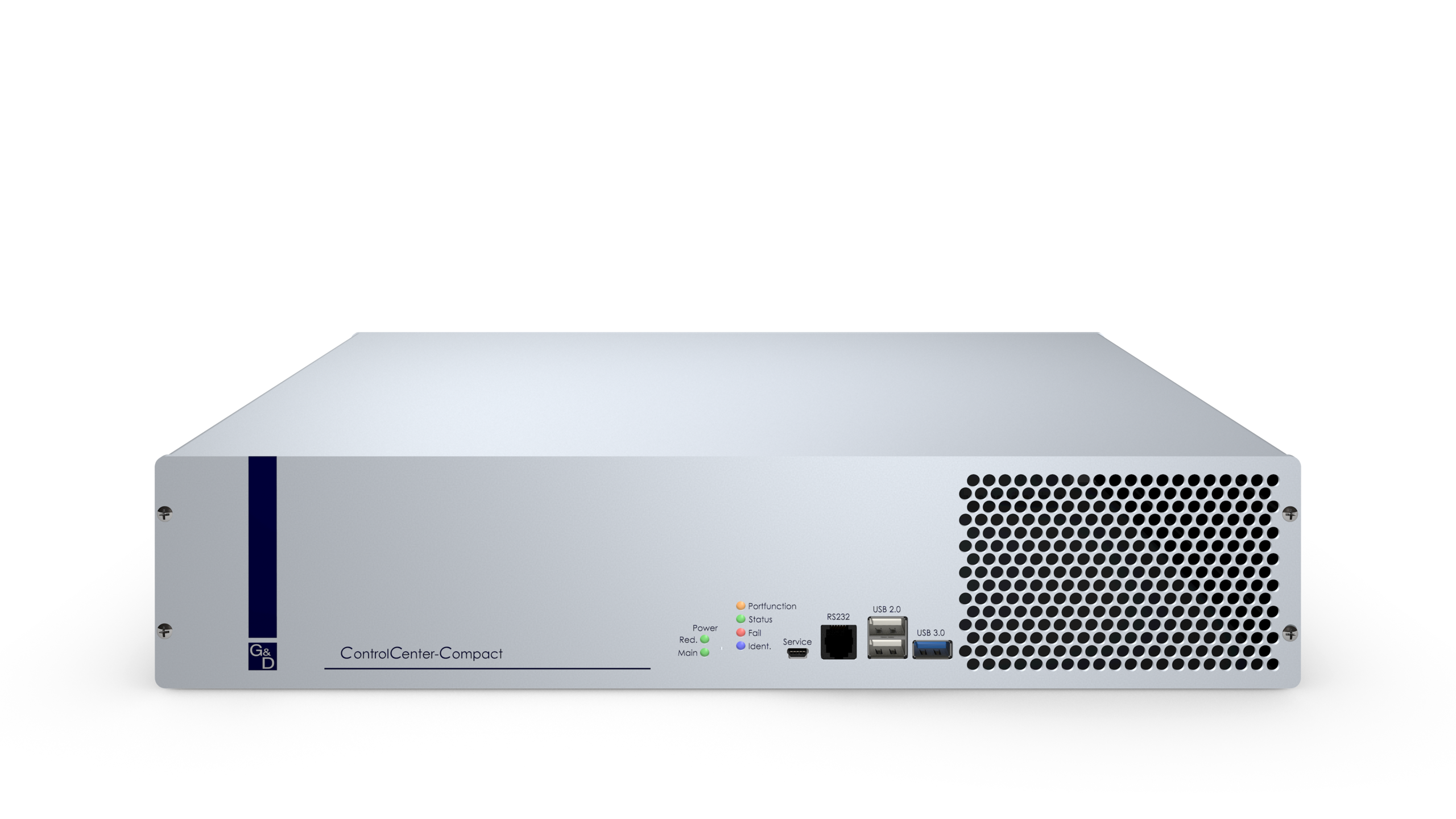

ControlCenter-Compact-32F(S)-32C

Transmission

The transmission distance is up to 5,000 meters over fiber singlemode optics, incl. transmission module(s)/SFP transceiver(s)

The transmission distance is up to 140 meters over CAT

Device

Improved security through physical separation between workplaces and computers

Access to standard interfaces of the computer, with no software installation required

Users can switch between different sources almost in real-time, without noticing interruptions or delays

Dynamic ports are flexible and automatically detect whether a computer module, RemoteAccess-CPU, console module, or DynamicWorkplace-CON is connected

System components can be connected or removed during operation (hot-plug capable)

The ControlCenter-Compact series is compatible with the ControlCenter-Digital series and the end devices for computer and workplace connections

Warranty

A 3-year, free of charge product guarantee
For an additional fee guarantee extension possible

Security features

Bootloader, operating system, and firmware form a "Trusted Computing Platform" with automatic integrity checks during system startup

Integrated Trusted Platform Module (TPM) protects all access and configuration data from being spied on or tampered with by third parties

Emergency direct connection (extender mode) between console and computer module ensures continuous operation even during unexpected events at the central module

Redundant internal power packs

Redundant network interface

Early detection of security incidents or unusual activities through continuous monitoring via Syslog, monitoring, and SNMP

Support for external directory services (Active Directory, Radius, LDAP) to meet company security policies

To comply with individual password policies and improve security, password complexity can be configured system-wide

Configurable login options, such as displaying terms of use or setting the maximum acceptable number of failed login attempts, can enhance system security

Comprehensive rights management and user administration, allowing precise control over which user can access which resources
Option for disablable access protection (OpenAccess mode), in which all connected workstation modules can access all released computer sources immediately and without prior authentication

Auto Backup Function: Automates backups at user-defined intervals and replaces manual intervention – ensuring reliable, timely data protection without the need for continuous monitoring

Configurable exclusive access control for USB, audio, and RS232 ensures that access is granted only to console modules, DynamicWorkplace-CONs, and authorized users

End devices (computer modules, RemoteAccess-CPUs, console modules, and DynamicWorkplace-CONs) do not store security-relevant information such as login credentials, which could be extracted in the event of device loss

Freeze function: If the video signal is lost, the last displayed image is frozen and highlighted with a colored frame and timer

Operation features

Operation via multilingual on-screen display (OSD) or a graphical interface and hotkeys

auto-recognition and display of the system structure

Configuration and central update of all components via the multilingual HTML5 web interface “Config Panel 21” (Java-free)

Support for Wake-on-LAN Function: A standardized method for powering on a shut-down or sleeping computer via a network command, provided the target system supports this functionality

With configurable select keys, computers can be made available to each user individually via quick access

Configurable view filters enable efficient sorting of large lists of computer modules

The configurable multi-user access allows multiple users to access a real or virtual computer simultaneously

With channel grouping, multiple computer modules or multiple console modules can be grouped together into a channel group

USB pinning: In grouped channels, transparent USB transmission remains linked to the currently connected computer – even when switching to another system – and continues seamlessly until the transfer is complete

Security features

MatrixGuard Function – premium software feature for ensuring continuous operation against unforeseen disruptions.
- requires the premium software feature Matrix-Grid Function
- Redundancy concept with failover functionality: In the event of unforeseen disruptions, console modules and computer modules within the Matrix-Grid network automatically connect to an alternative matrix switch - except for endpoint devices connected to the unavailable matrix switch
- restoration of switching states enables rapid resumption of operations

2-Factor-Authentication (2FA) – premium software feature to enhance security by using a second possession-based factor during user authentication:
- The traditional password authentication is combined with a time-limited, single-use code (Time-Based-One-Time-Password - TOTP)
- You can choose between using the internal authentication server provided in the device or an external directory service
- Authenticator apps or hardware token can be used
- This additional layer of protection prevents unauthorized access and ensures the highest level of security, particularly in sensitive IT environments

Operation features

TradeSwitch Function (TS Function) – premium software feature providing convenient operation and seamless restoration of individual working environments at consoles with multiple console modules, including the most recently connected sources:
- optimizes usability for consoles tasked with simultaneous monitoring or control of multiple computers via several console modules
- provides a central keyboard and mouse for operating the entire workplace
- both input devices can switch to any console module using a hotkey
- CrossDisplay switching additionally offers an especially user-friendly switching method: simply moving the mouse pointer from one monitor to another automatically transfers keyboard and mouse focus to another module and thus another computer
- The FreeSeating function automatically restores a user's personalized working environment, including previously used sources, at any workplace within the group. A single login is sufficient to register all console modules and activate the respective sources, while a single logout will log out the entire group

Push-Get Function – premium software feature for moving/retrieving connections from own or other devices:
- optimizes collaboration within control rooms by improving team communication, flexibility, and responsiveness
- allows users to "push" the connection status of their console module to another console module or "get" it from there

Control options

IP-Control-API – premium software feature enabling remote control, scenario switching, and retrieval of switching states via an API interface:
- allows text-based XML control of a KVM matrix system over the network
- optional encryption of communication
- provides the capability to create custom control applications, send switching commands, and retrieve selective information on switching states as well as computer statuses
- flexible and scalable solution for seamless integration into IT infrastructures from various vendors
- Includes a scripting function for creating, managing, and executing scripts, automating scenarios such as changing the switching state of individual consoles, multiple consoles, or the entire system
- Enables control of external devices via HTTP requests

System expansion

Support for all common video signals, thanks to a wide selection of matrix-compatible KVM extenders, which can be integrated as end devices in matrix operation in a “mixed” configuration (Mix & Match). Video transmission is performed using bluedec™ – G&D’s advanced, multi-stage, lossless compression – delivering pixel-perfect, lossless video quality with near-zero latency.

The RemoteAccess-CPU lets you seamlessly integrate virtual machines into your matrix installation. This way, hybrid systems with real and virtual computer infrastructure can be optimally implemented.

Matrix-Grid Function – premium software feature for expanding the matrix system or increasing the number of ports by adding additional central modules:
- multiple digital matrix switches from the ControlCenter-Compact and ControlCenter-Digital series can be combined into a large matrix network
- enables bidirectional communication between console and computer modules connected to different matrix switches
- can be combined with the MatrixGuard Function

Increase the system's range up to 10,000 m by using CAT variants/connections by integrating an optical fibres line (DVI-FiberLink)
Increase the system's range up to 140 m by using CAT variants/connections by integrating a CAT line (CAT-Repeater)

General	Product group	KVM matrix switches
	Product Family	ControlCenter-Compact
	KVM matrix system component	Central module (digital)
	Power Supply	Redundancy without load balancing
Transmission 1	Number of transmission channels	32
	Redundant transmission channels	no redundant KVM transmission
	Range	5,000 m (9/125µm, OS1)
	Laser class	Class 1
	Type of interface	LC-Duplex
	Wavelength	1,310 nm
	Medium	Fiber SM
	Data rate	2.5 Gbit/s
Transmission 2	Number of transmission channels	32
	Redundant transmission channels	no redundant KVM transmission
	Range	140 m (AWG22) 100 m (AWG24) 80 m (AWG26)
	Medium	CAT5e CAT6 CAT7
	Data rate	1 Gbit/s
Network	Quantity	2
	Medium	CAT5 CAT6 CAT7
	Data rate	10 Mbit/s 100 Mbit/s 1 Gbit/s
Maintenance	Update via	ConfigPanel (Network)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width ca.	436 mm
	Height ca.	88 mm
	Depth ca.	284 mm
	IP protection class	IP20
	Weight ca.	5.64 kg
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity, non-condensing	20 % to 80 %
	Area of application	Indoor use
	Maximum operating altitude above sea level	3,048 m
	Storage temperature	-20 °C to 55 °C
	Storage air humidity, non-condensing	15 % to 85 %
	MTBF	96,000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Quantity	2
	Type	Internal
	Input voltage	100-240 VAC
	Input frequency	60-50 Hz
	Current consumption	1.5-0.7 A
	Power consumption max.	85.7 W
	Heat output max.	76.2 W

Product comparison

Mark differences Hide same values

Technical data		ControlCenter-Compact-16F(S)-16C Item no. A2300099	ControlCenter-Compact-32F(S)-16C Item no. A2300111	selected variant ControlCenter-Compact-32F(S)-32C Item no. A2300114	ControlCenter-Compact-32F(S)-48C Item no. A2300101	ControlCenter-Compact-32F(S)-80C Item no. A2300117	ControlCenter-Compact-48F(S)-16C Item no. A2300127

		General	General	General	General	General	General
General	Product group	Product group KVM matrix switches	Product group KVM matrix switches	Product group KVM matrix switches	Product group KVM matrix switches	Product group KVM matrix switches	Product group KVM matrix switches
	Product Family	Product Family ControlCenter-Compact	Product Family ControlCenter-Compact	Product Family ControlCenter-Compact	Product Family ControlCenter-Compact	Product Family ControlCenter-Compact	Product Family ControlCenter-Compact
	KVM matrix system component	KVM matrix system component Central module (digital)	KVM matrix system component Central module (digital)	KVM matrix system component Central module (digital)	KVM matrix system component Central module (digital)	KVM matrix system component Central module (digital)	KVM matrix system component Central module (digital)
	Power Supply	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing

		Transmission 1	Transmission 1	Transmission 1	Transmission 1	Transmission 1	Transmission 1
Transmission 1	Number of transmission channels	Number of transmission channels 16	Number of transmission channels 32	Number of transmission channels 32	Number of transmission channels 32	Number of transmission channels 32	Number of transmission channels 48
	Redundant transmission channels	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission
	Range	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)	Range 5,000 m (9/125µm, OS1)
	Laser class	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1	Laser class Class 1
	Type of interface	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex
	Wavelength	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm	Wavelength 1,310 nm
	Medium	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM
	Data rate	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s	Data rate 2.5 Gbit/s

		Transmission 2	Transmission 2	Transmission 2	Transmission 2	Transmission 2	Transmission 2
Transmission 2	Number of transmission channels	Number of transmission channels 16	Number of transmission channels 16	Number of transmission channels 32	Number of transmission channels 48	Number of transmission channels 80	Number of transmission channels 16
	Redundant transmission channels	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission	Redundant transmission channels no redundant KVM transmission
	Range	Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26)	Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26)	Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26)	Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26)	Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26)	Range 140 m (AWG22) 100 m (AWG24) 80 m (AWG26)
	Medium	Medium CAT5e CAT6 CAT7	Medium CAT5e CAT6 CAT7	Medium CAT5e CAT6 CAT7	Medium CAT5e CAT6 CAT7	Medium CAT5e CAT6 CAT7	Medium CAT5e CAT6 CAT7
	Data rate	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s	Data rate 1 Gbit/s

		Network	Network	Network	Network	Network	Network
Network	Quantity	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2
	Medium	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7
	Data rate	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s

		Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance
Maintenance	Update via	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)
Maintenance	Serviceport settings	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)

		Housing	Housing	Housing	Housing	Housing	Housing
Housing	Material	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium
	Width ca.	Width ca. 436 mm	Width ca. 436 mm	Width ca. 436 mm	Width ca. 436 mm	Width ca. 436 mm	Width ca. 436 mm
	Height ca.	Height ca. 44 mm	Height ca. 88 mm	Height ca. 88 mm	Height ca. 88 mm	Height ca. 132 mm	Height ca. 88 mm
	Depth ca.	Depth ca. 284 mm	Depth ca. 284 mm	Depth ca. 284 mm	Depth ca. 284 mm	Depth ca. 284 mm	Depth ca. 284 mm
	IP protection class	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20
	Weight ca.	Weight ca. 3.56 kg	Weight ca. 5.55 kg	Weight ca. 5.64 kg	Weight ca. 5.73 kg	Weight ca. 6.49 kg	Weight ca. 5.95 kg

		Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions
Operating conditions	Operating temperature	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C
	Operating air humidity, non-condensing	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %
	Area of application	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use
	Maximum operating altitude above sea level	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m
	Storage temperature	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C
	Storage air humidity, non-condensing	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %
	MTBF	MTBF 80,000 h at 25°C	MTBF 96,000 h at 25°C	MTBF 96,000 h at 25°C	MTBF 96,000 h at 25°C	MTBF 99,000 h at 25°C	MTBF 96,000 h at 25°C
	Conformities	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)

		Power supply	Power supply	Power supply	Power supply	Power supply	Power supply
Power supply	Quantity	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2
	Type	Type Internal	Type Internal	Type Internal	Type Internal	Type Internal	Type Internal
	Input voltage	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC
	Input frequency	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz
	Current consumption	Current consumption 0.9-0.5 A	Current consumption 1.4-0.7 A	Current consumption 1.5-0.7 A	Current consumption 1.5-0.7 A	Current consumption 1.6-0.8 A	Current consumption 1.6-0.8 A
	Power consumption max.	Power consumption max. 61.4 W	Power consumption max. 78.2 W	Power consumption max. 85.7 W	Power consumption max. 93.7 W	Power consumption max. 108.7 W	Power consumption max. 106.5 W
	Heat output max.	Heat output max. 51.9 W	Heat output max. 68.7 W	Heat output max. 76.2 W	Heat output max. 84.2 W	Heat output max. 99.2 W	Heat output max. 97 W
