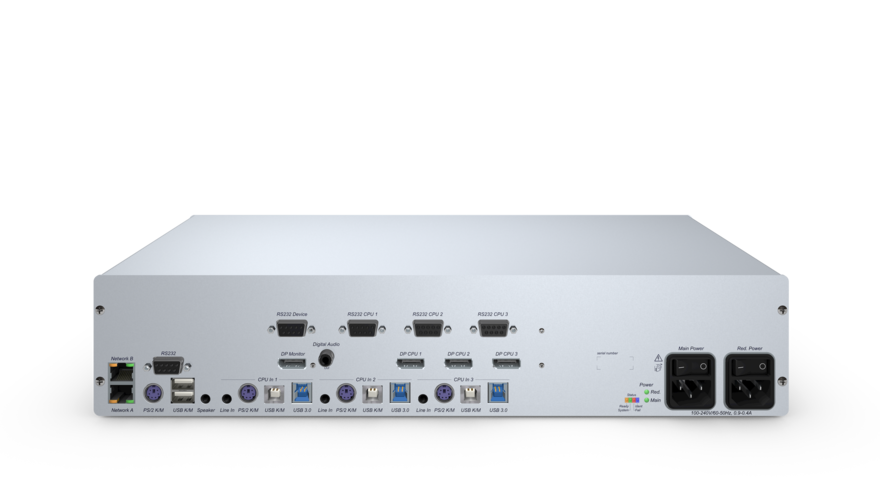

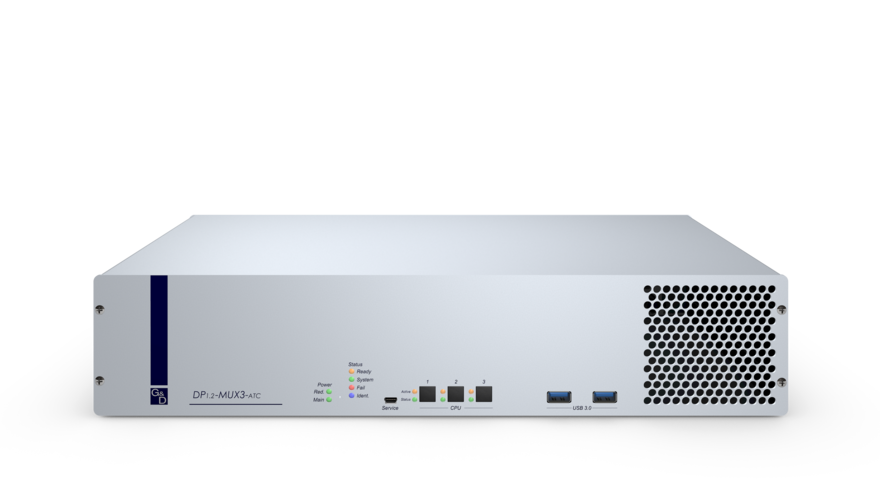

DP1.2-MUX3-ATC-R

Video

EDID data utilization from the workplace monitor

Native 4K resolution at 60 Hz
Uncompressed, lossless transmission in 1:1 performance, pixel perfect, latency free (zero delay) transmission, no frame drops, no tearing with a perfect hand eye coordination

Signals

Embedded audio (DisplayPort Digital, unidirectional)

Transparent audio signals (stereo, analog)

Transparent RS232 (max. 115,200 bps)

USB 3.1 gen1 with SuperSpeed, all USB classes

Device

Access to standard interfaces of the computer, with no software installation required

MultiChannel variants (MC): Modules for multi-monitor workplaces with multi-channel video

Warranty

A 3-year, free of charge product guarantee
For an additional fee guarantee extension possible

Security features

Early detection of security incidents or unusual activities through continuous monitoring via Syslog, monitoring, and SNMP

Redundant network interface

Redundant internal power packs

optional automatic channel switching in case of signal failure

Freeze function: If the video signal is lost, the last displayed image is frozen and highlighted with a colored frame and timer

Operation features

Ready for operation out of the box, no additional configuration required

Permanent keyboard/mouse emulation ensures a stable system

Operation via multilingual on-screen display (OSD) and hotkeys

Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)

Support of DDC/CI (Display Data Channel / Command Interface) to enable centralized software-side control of monitor settings such as brightness

Instant Switching technology for seamless switching of DisplayPort 1.2 video signals

Security features

2-Factor-Authentication (2FA) – premium software feature to enhance security by using a second possession-based factor during user authentication:
- The traditional password authentication is combined with a time-limited, single-use code (Time-Based-One-Time-Password - TOTP)
- You can choose between using the internal authentication server provided in the device or an external directory service
- Authenticator apps or hardware token can be used
- This additional layer of protection prevents unauthorized access and ensures the highest level of security, particularly in sensitive IT environments

Control options

With the OperatorPanel, you can switch your KVM switch comfortably from your desk by pressing a button. Now you can install the switch anywhere to save space.

General	Product group	KVM switches
	Product Family	DP1.2-MUX3-ATC
	Number of workstations	1
	Number of sources	3
	Power Supply	Redundancy without load balancing
Input options	USB mouse	yes
	USB keyboard	yes
	PS/2 mouse	yes
	PS/2 keyboard	yes
Video input	Quantity	2
	Format	DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))
	Colour depth	24 bit
	Pixel encoding	RGB 4:4:4 (24 bpp / 8 bpc)
	Pixel rate ca.	0 MPixel/s to 600 MPixel/s
	Vertical frequency	24 Hz to 240 Hz
	Horizontal frequency	25 kHz to 295 kHz
	Exemplary resolutions	4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)
	General Notes	Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Display Data Channel Command Interface (DDC/CI)
Video output	Quantity	2
	Format	DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))
	Colour depth	24 bit
	Pixel encoding	RGB 4:4:4 (24 bpp / 8 bpc)
	Pixel rate ca.	0 MPixel/s to 600 MPixel/s
	Vertical frequency	24 Hz to 240 Hz
	Horizontal frequency	25 kHz to 295 kHz
	Exemplary resolutions	4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)
	General Notes	Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)
Audio 1	Transmission type	Unidirectional
	Resolutions	24 bit 20 bit 16 bit
	Sampling rate	up to 48 kHz
	Audio support	Digital Embedded
Audio 2	Transmission type	Stereo Transparent
	Resolutions	24 bit digital
	Sampling rate	up to 96 kHz
	Bandwidth	22 kHz
	Audio support	Analog
USB	Separate USB transmission port	no
	Specification	USB 3.1 Gen 1
	Transmission rate	max. 5,000 Mbit/s (SuperSpeed)
	Power (output)	900 mA (HighPower)
	USB classes	All
Serial	Standard	RS232
	Transparent transmission	yes
	Data rate	max. 115,200 bps
	Signals	TxD RxD DTR DSR RTS CTS
Network	Quantity	2
	Medium	CAT5 CAT6 CAT7
	Data rate	10 Mbit/s 100 Mbit/s 1 Gbit/s
Maintenance	Update via	ConfigPanel (Network)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width ca.	436 mm
	Height ca.	88 mm
	Depth ca.	210 mm
	IP protection class	IP20
	Weight ca.	3.15 kg
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity, non-condensing	20 % to 80 %
	Storage temperature	-20 °C to 55 °C
	Storage air humidity, non-condensing	15 % to 85 %
	MTBF	110,000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Quantity	2
	Type	Internal
	Input voltage	100-240 VAC
	Input frequency	60-50 Hz
	Current consumption	0.9-0.4 A
	Power consumption idle	23.4-23 W
	Power consumption max.	46.6-45.9 W
	Heat output idle	22.4-22 W
	Heat output max.	29.15-28.55 W

Product comparison

Mark differences Hide same values

Technical data		DP1.2-MUX3-ATC Item no. A2100189	DP1.2-MUX3-ATC-MC2 Item no. A2100190	DP1.2-MUX3-ATC-MC2-R Item no. A2100211	DP1.2-MUX3-ATC-MC3 Item no. A2100220	DP1.2-MUX3-ATC-MC3-R Item no. A2100219	DP1.2-MUX3-ATC-MC4 Item no. A2100221	selected variant DP1.2-MUX3-ATC-R Item no. A2100210

		General	General	General	General	General	General	General
General	Product group	Product group KVM switches	Product group KVM switches	Product group KVM switches	Product group KVM switches	Product group KVM switches	Product group KVM switches	Product group KVM switches
	Product Family	Product Family DP1.2-MUX3-ATC	Product Family DP1.2-MUX3-ATC	Product Family DP1.2-MUX3-ATC	Product Family DP1.2-MUX3-ATC	Product Family DP1.2-MUX3-ATC	Product Family DP1.2-MUX3-ATC	Product Family DP1.2-MUX3-ATC
	Number of workstations	Number of workstations 1	Number of workstations 1	Number of workstations 1	Number of workstations 1	Number of workstations 1	Number of workstations 1	Number of workstations 1
	Number of sources	Number of sources 3	Number of sources 3	Number of sources 3	Number of sources 3	Number of sources 3	Number of sources 3	Number of sources 3
	KVM matrix system component	KVM matrix system component Not specified	KVM matrix system component Not specified	KVM matrix system component Not specified	KVM matrix system component Not specified	KVM matrix system component Not specified	KVM matrix system component Not specified	KVM matrix system component Not specified
	Power Supply	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing	Power Supply Redundancy without load balancing

		Input options	Input options	Input options	Input options	Input options	Input options	Input options
Input options	USB mouse	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes
	USB keyboard	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes
	PS/2 mouse	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes	PS/2 mouse yes
	PS/2 keyboard	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes	PS/2 keyboard yes

		Video input	Video input	Video input	Video input	Video input	Video input	Video input
Video input	Quantity	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2
	Format	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))
	Colour depth	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit
	Pixel encoding	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
	Pixel rate ca.	Pixel rate ca. 0 MPixel/s to 600 MPixel/s	Pixel rate ca. 0 MPixel/s to 600 MPixel/s	Pixel rate ca. 0 MPixel/s to 600 MPixel/s	Pixel rate ca. 0 MPixel/s to 600 MPixel/s	Pixel rate ca. 0 MPixel/s to 600 MPixel/s	Pixel rate ca. 0 MPixel/s to 600 MPixel/s	Pixel rate ca. 0 MPixel/s to 600 MPixel/s
	Vertical frequency	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz
	Horizontal frequency	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz
	Exemplary resolutions	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)
	General Notes	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Supported industry standards Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel Command Interface (DDC/CI)	Supported industry standards Display Data Channel Command Interface (DDC/CI)

		Video output	Video output	Video output	Video output	Video output	Video output	Video output
Video output	Quantity	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2
	Format	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))
	Colour depth	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit
	Pixel encoding	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
	Pixel rate ca.	Pixel rate ca. 0 MPixel/s to 600 MPixel/s	Pixel rate ca. 0 MPixel/s to 600 MPixel/s	Pixel rate ca. 0 MPixel/s to 600 MPixel/s	Pixel rate ca. 0 MPixel/s to 600 MPixel/s	Pixel rate ca. 0 MPixel/s to 600 MPixel/s	Pixel rate ca. 0 MPixel/s to 600 MPixel/s	Pixel rate ca. 0 MPixel/s to 600 MPixel/s
	Vertical frequency	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz
	Horizontal frequency	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz
	Exemplary resolutions	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz)
	General Notes	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)

		Audio 1	Audio 1	Audio 1	Audio 1	Audio 1	Audio 1	Audio 1
Audio 1	Transmission type	Transmission type Unidirectional	Transmission type Unidirectional	Transmission type Unidirectional	Transmission type Unidirectional	Transmission type Unidirectional	Transmission type Unidirectional	Transmission type Unidirectional
	Resolutions	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit
	Sampling rate	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz
	Audio support	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded

		Audio 2	Audio 2	Audio 2	Audio 2	Audio 2	Audio 2	Audio 2
Audio 2	Transmission type	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent	Transmission type Stereo Transparent
	Resolutions	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital	Resolutions 24 bit digital
	Sampling rate	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz	Sampling rate up to 96 kHz
	Bandwidth	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz
	Audio support	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog

		USB	USB	USB	USB	USB	USB	USB
USB	Separate USB transmission port	Separate USB transmission port no	Separate USB transmission port no	Separate USB transmission port no	Separate USB transmission port no	Separate USB transmission port no	Separate USB transmission port no	Separate USB transmission port no
	Specification	Specification USB 3.1 Gen 1	Specification USB 3.1 Gen 1	Specification USB 3.1 Gen 1	Specification USB 3.1 Gen 1	Specification USB 3.1 Gen 1	Specification USB 3.1 Gen 1	Specification USB 3.1 Gen 1
	Transmission rate	Transmission rate max. 5,000 Mbit/s (SuperSpeed)	Transmission rate max. 5,000 Mbit/s (SuperSpeed)	Transmission rate max. 5,000 Mbit/s (SuperSpeed)	Transmission rate max. 5,000 Mbit/s (SuperSpeed)	Transmission rate max. 5,000 Mbit/s (SuperSpeed)	Transmission rate max. 5,000 Mbit/s (SuperSpeed)	Transmission rate max. 5,000 Mbit/s (SuperSpeed)
	Power (output)	Power (output) 900 mA (HighPower)	Power (output) 900 mA (HighPower)	Power (output) 900 mA (HighPower)	Power (output) 900 mA (HighPower)	Power (output) 900 mA (HighPower)	Power (output) 900 mA (HighPower)	Power (output) 900 mA (HighPower)
	USB classes	USB classes All	USB classes All	USB classes All	USB classes All	USB classes All	USB classes All	USB classes All

		Serial	Serial	Serial	Serial	Serial	Serial	Serial
Serial	Standard	Standard Not specified	Standard Not specified	Standard RS232	Standard Not specified	Standard Not specified	Standard Not specified	Standard RS232
	Transparent transmission	Transparent transmission Not specified	Transparent transmission Not specified	Transparent transmission yes	Transparent transmission Not specified	Transparent transmission Not specified	Transparent transmission Not specified	Transparent transmission yes
	Data rate	Data rate Not specified	Data rate Not specified	Data rate max. 115,200 bps	Data rate Not specified	Data rate Not specified	Data rate Not specified	Data rate max. 115,200 bps
	Signals	Signals Not specified	Signals Not specified	Signals TxD RxD DTR DSR RTS CTS	Signals Not specified	Signals Not specified	Signals Not specified	Signals TxD RxD DTR DSR RTS CTS

		Network	Network	Network	Network	Network	Network	Network
Network	Quantity	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 2
	Medium	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7	Medium CAT5 CAT6 CAT7
	Data rate	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s	Data rate 10 Mbit/s 100 Mbit/s 1 Gbit/s

		Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance	Maintenance
Maintenance	Update via	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)
Maintenance	Serviceport settings	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)

		Housing	Housing	Housing	Housing	Housing	Housing	Housing
Housing	Material	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium
	Width ca.	Width ca. 436 mm	Width ca. 436 mm	Width ca. 436 mm	Width ca. 436 mm	Width ca. 436 mm	Width ca. 436 mm	Width ca. 436 mm
	Height ca.	Height ca. 44 mm	Height ca. 88 mm	Height ca. 88 mm	Height ca. 132 mm	Height ca. 132 mm	Height ca. 132 mm	Height ca. 88 mm
	Depth ca.	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm
	IP protection class	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20
	Weight ca.	Weight ca. 2.63 kg	Weight ca. 3.47 kg	Weight ca. 3.52 kg	Weight ca. Not specified	Weight ca. Not specified	Weight ca. 4.7 kg	Weight ca. 3.15 kg

		Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions	Operating conditions
Operating conditions	Operating temperature	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C
	Operating air humidity, non-condensing	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %
	Area of application	Area of application Not specified	Area of application Not specified	Area of application Not specified	Area of application Not specified	Area of application Not specified	Area of application Not specified	Area of application Not specified
	Storage temperature	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C
	Storage air humidity, non-condensing	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %
	MTBF	MTBF 110,000 h at 25°C	MTBF 90,000 h at 25°C	MTBF 90,000 h at 25°C	MTBF Not specified	MTBF Not specified	MTBF Not specified	MTBF 110,000 h at 25°C
	Conformities	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)

		Power supply 1	Power supply 1	Power supply 1	Power supply 1	Power supply 1	Power supply 1	Power supply 1
Power supply 1	Quantity	Quantity 2	Quantity 2	Quantity 2	Quantity 2	Quantity 1	Quantity 1	Quantity 2
	Type	Type Internal	Type Internal	Type Internal	Type Internal	Type Internal	Type Internal	Type Internal
	Input voltage	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC
	Input frequency	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz
	Current consumption	Current consumption 0.9-0.4 A	Current consumption 1.2-0.5 A	Current consumption 1.2-0.5 A	Current consumption 1.2-0.6 A	Current consumption 1.2-0.6 A	Current consumption 1.4-0.6 A	Current consumption 0.9-0.4 A
	Power consumption idle	Power consumption idle 23.4-23 W	Power consumption idle 47.2-46.4 W	Power consumption idle 47.2-46.6 W	Power consumption idle Not specified	Power consumption idle Not specified	Power consumption idle Not specified	Power consumption idle 23.4-23 W
	Power consumption max.	Power consumption max. 43.9-44 W	Power consumption max. 62.3-60.8 W	Power consumption max. 62.3-60.8 W	Power consumption max. Not specified	Power consumption max. Not specified	Power consumption max. Not specified	Power consumption max. 46.6-45.9 W
	Heat output idle	Heat output idle 23.4-23 W	Heat output idle 47.2-46.6 W	Heat output idle 47.2-46.6 W	Heat output idle Not specified	Heat output idle Not specified	Heat output idle Not specified	Heat output idle 22.4-22 W
	Heat output max.	Heat output max. 31.25-31.35 W	Heat output max. 48-46.5 W	Heat output max. 48-46.5 W	Heat output max. Not specified	Heat output max. Not specified	Heat output max. Not specified	Heat output max. 29.15-28.55 W

		Power supply 2	Power supply 2	Power supply 2	Power supply 2	Power supply 2	Power supply 2	Power supply 2
Power supply 2	Quantity	Quantity Not specified	Quantity Not specified	Quantity Not specified	Quantity Not specified	Quantity 1	Quantity 1	Quantity Not specified
	Type	Type Not specified	Type Not specified	Type Not specified	Type Not specified	Type Internal	Type Internal	Type Not specified
	Input voltage	Input voltage Not specified	Input voltage Not specified	Input voltage Not specified	Input voltage Not specified	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage Not specified
	Input frequency	Input frequency Not specified	Input frequency Not specified	Input frequency Not specified	Input frequency Not specified	Input frequency 60-50	Input frequency 60-50	Input frequency Not specified
	Current consumption	Current consumption Not specified	Current consumption Not specified	Current consumption Not specified	Current consumption Not specified	Current consumption 1.2-0.6 A	Current consumption 1.4-0.6 A	Current consumption Not specified
