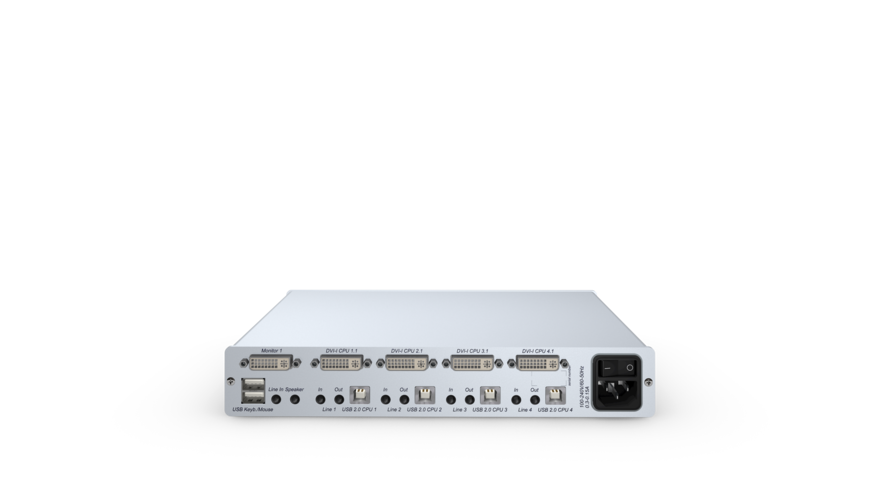

DVIMUX4-DL-USB

Video

EDID data utilization from the workplace monitor

Resolution (input and output side) up to
2560 × 1600 @ 60 Hz,
1920 × 1440 @ 75 Hz

Resolution (input and output side) up to
2560 × 1600 @ 60 Hz,
1920 × 1440 @ 75 Hz

Signals

Stereo audio signals

USB 2.0 with full speed, all USB classes

Device

Access to standard interfaces of the computer, with no software installation required

Internal power pack for main power supply

MultiChannel variants (MC): Modules for multi-monitor workplaces with multi-channel video

System update

Flash upgrade via the device

Warranty

A 3-year, free of charge product guarantee
For an additional fee guarantee extension possible

Operation features

Ready for operation out of the box, no additional configuration required

Permanent keyboard/mouse emulation ensures a stable system

Control options

With the OperatorPanel, you can switch your KVM switch comfortably from your desk by pressing a button. Now you can install the switch anywhere to save space.

General	Product group	KVM switches
	Product Family	DVIMUX-DL
	Number of workstations	1
	Number of sources	4
	Power Supply	no redundancy
Input options	USB mouse	yes
	USB keyboard	yes
	PS/2 mouse	no
	PS/2 keyboard	no
Video input 1	Quantity	1
	Format	VGA
	Colour depth	24 bit
	Exemplary resolutions	1920 × 1440 (75 Hz)
	General Notes	Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Enhanced Display Data Channel (E-DDC)
Video input 2	Quantity	2
	Format	DualLink DVI
	Colour depth	24 bit
	Pixel encoding	RGB 4:4:4 (24 bpp / 8 bpc)
	Pixel rate ca.	25 MPixel/s to 330 MPixel/s
	Vertical frequency	20 Hz to 120 Hz
	Horizontal frequency	25 kHz to 135 kHz
	Exemplary resolutions	3840 × 2160 (30 Hz) 2560 × 1600 (60 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz)
	General Notes	Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Enhanced Display Data Channel (E-DDC)
Video output 1	Quantity	1
	Format	VGA
	Colour depth	24 bit
	Exemplary resolutions	1920 × 1440 (75 Hz)
	General Notes	Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Enhanced Display Data Channel (E-DDC)
Video output 2	Quantity	2
	Format	DualLink DVI
	Colour depth	24 bit
	Pixel rate ca.	25 MPixel/s to 330 MPixel/s
	Vertical frequency	20 Hz to 120 Hz
	Horizontal frequency	25 kHz to 135 kHz
	Exemplary resolutions	3840 × 2160 (30 Hz) 2560 × 1600 (60 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz)
	General Notes	Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Enhanced Display Data Channel (E-DDC)
Audio	Transmission type	Stereo
	Bandwidth	22 kHz
	Audio support	Analog
USB	Separate USB transmission port	no
	Specification	USB 2.0
	Transmission rate	max. 16 Mbit/s (Full Speed)
	USB classes	All
Maintenance	Update via	Update Wizard (service interface)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width ca.	270 mm
	Height ca.	44 mm
	Depth ca.	210 mm
	IP protection class	IP20
	Weight ca.	1.51 kg
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity, non-condensing	20 % to 80 %
	Area of application	Indoor use
	Maximum operating altitude above sea level	3,048 m
	Storage temperature	-20 °C to 55 °C
	Storage air humidity, non-condensing	15 % to 85 %
	MTBF	200,000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Quantity	1
	Type	Internal
	Input voltage	100-240 VAC
	Input frequency	60-50 Hz
	Current consumption	0.3-0.2 A

Product comparison

Mark differences Hide same values

Technical data		DVIMUX4-DL-MC2-USB Item no. A2100104	DVIMUX4-DL-MC3-USB Item no. A2100108	DVIMUX4-DL-MC4-USB Item no. A2100112	selected variant DVIMUX4-DL-USB Item no. A2100099

		General	General	General	General
General	Product group	Product group KVM switches	Product group KVM switches	Product group KVM switches	Product group KVM switches
	Product Family	Product Family DVIMUX-DL	Product Family DVIMUX-DL	Product Family DVIMUX-DL	Product Family DVIMUX-DL
	Number of workstations	Number of workstations 1	Number of workstations 1	Number of workstations 1	Number of workstations 1
	Number of sources	Number of sources 4	Number of sources 4	Number of sources 4	Number of sources 4
	KVM matrix system component	KVM matrix system component Not specified	KVM matrix system component Not specified	KVM matrix system component Not specified	KVM matrix system component Not specified
	Power Supply	Power Supply no redundancy	Power Supply no redundancy	Power Supply no redundancy	Power Supply no redundancy

		Input options	Input options	Input options	Input options
Input options	USB mouse	USB mouse yes	USB mouse yes	USB mouse yes	USB mouse yes
	USB keyboard	USB keyboard yes	USB keyboard yes	USB keyboard yes	USB keyboard yes
	PS/2 mouse	PS/2 mouse no	PS/2 mouse no	PS/2 mouse no	PS/2 mouse no
	PS/2 keyboard	PS/2 keyboard no	PS/2 keyboard no	PS/2 keyboard no	PS/2 keyboard no

		Video input 1	Video input 1	Video input 1	Video input 1
Video input 1	Quantity	Quantity 1	Quantity 1	Quantity 1	Quantity 1
	Format	Format VGA	Format VGA	Format VGA	Format VGA
	Colour depth	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit
	Exemplary resolutions	Exemplary resolutions 1920 × 1440 (75 Hz)	Exemplary resolutions 1920 × 1440 (75 Hz)	Exemplary resolutions 1920 × 1440 (75 Hz)	Exemplary resolutions 1920 × 1440 (75 Hz)
	General Notes	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Supported industry standards Enhanced Display Data Channel (E-DDC)	Supported industry standards Enhanced Display Data Channel (E-DDC)	Supported industry standards Enhanced Display Data Channel (E-DDC)	Supported industry standards Enhanced Display Data Channel (E-DDC)

		Video input 2	Video input 2	Video input 2	Video input 2
Video input 2	Quantity	Quantity 2	Quantity 2	Quantity 2	Quantity 2
	Format	Format DualLink DVI	Format DualLink DVI	Format DualLink DVI	Format DualLink DVI
	Colour depth	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit
	Pixel encoding	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
	Pixel rate ca.	Pixel rate ca. 25 MPixel/s to 330 MPixel/s	Pixel rate ca. 25 MPixel/s to 330 MPixel/s	Pixel rate ca. 25 MPixel/s to 330 MPixel/s	Pixel rate ca. 25 MPixel/s to 330 MPixel/s
	Vertical frequency	Vertical frequency 20 Hz to 120 Hz	Vertical frequency 20 Hz to 120 Hz	Vertical frequency 20 Hz to 120 Hz	Vertical frequency 20 Hz to 120 Hz
	Horizontal frequency	Horizontal frequency 25 kHz to 135 kHz	Horizontal frequency 25 kHz to 135 kHz	Horizontal frequency 25 kHz to 135 kHz	Horizontal frequency 25 kHz to 135 kHz
	Exemplary resolutions	Exemplary resolutions 3840 × 2160 (30 Hz) 2560 × 1600 (60 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz)	Exemplary resolutions 3840 × 2160 (30 Hz) 2560 × 1600 (60 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz)	Exemplary resolutions 3840 × 2160 (30 Hz) 2560 × 1600 (60 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz)	Exemplary resolutions 3840 × 2160 (30 Hz) 2560 × 1600 (60 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz)
	General Notes	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Supported industry standards Enhanced Display Data Channel (E-DDC)	Supported industry standards Enhanced Display Data Channel (E-DDC)	Supported industry standards Enhanced Display Data Channel (E-DDC)	Supported industry standards Enhanced Display Data Channel (E-DDC)

		Video output 1	Video output 1	Video output 1	Video output 1
Video output 1	Quantity	Quantity 1	Quantity 1	Quantity 1	Quantity 1
	Format	Format VGA	Format VGA	Format VGA	Format VGA
	Colour depth	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit
	Exemplary resolutions	Exemplary resolutions 1920 × 1440 (75 Hz)	Exemplary resolutions 1920 × 1440 (75 Hz)	Exemplary resolutions 1920 × 1440 (75 Hz)	Exemplary resolutions 1920 × 1440 (75 Hz)
	General Notes	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Supported industry standards Enhanced Display Data Channel (E-DDC)	Supported industry standards Enhanced Display Data Channel (E-DDC)	Supported industry standards Enhanced Display Data Channel (E-DDC)	Supported industry standards Enhanced Display Data Channel (E-DDC)

		Video output 2	Video output 2	Video output 2	Video output 2
Video output 2	Quantity	Quantity 2	Quantity 2	Quantity 2	Quantity 2
	Format	Format DualLink DVI	Format DualLink DVI	Format DualLink DVI	Format DualLink DVI
	Colour depth	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit
	Pixel rate ca.	Pixel rate ca. 25 MPixel/s to 330 MPixel/s	Pixel rate ca. 25 MPixel/s to 330 MPixel/s	Pixel rate ca. 25 MPixel/s to 330 MPixel/s	Pixel rate ca. 25 MPixel/s to 330 MPixel/s
	Vertical frequency	Vertical frequency 20 Hz to 120 Hz	Vertical frequency 20 Hz to 120 Hz	Vertical frequency 20 Hz to 120 Hz	Vertical frequency 20 Hz to 120 Hz
	Horizontal frequency	Horizontal frequency 25 kHz to 135 kHz	Horizontal frequency 25 kHz to 135 kHz	Horizontal frequency 25 kHz to 135 kHz	Horizontal frequency 25 kHz to 135 kHz
	Exemplary resolutions	Exemplary resolutions 3840 × 2160 (30 Hz) 2560 × 1600 (60 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz)	Exemplary resolutions 3840 × 2160 (30 Hz) 2560 × 1600 (60 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz)	Exemplary resolutions 3840 × 2160 (30 Hz) 2560 × 1600 (60 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz)	Exemplary resolutions 3840 × 2160 (30 Hz) 2560 × 1600 (60 Hz) 2048 × 2160 (60 Hz) 2048 × 2048 (60 Hz)
	General Notes	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Supported industry standards Enhanced Display Data Channel (E-DDC)	Supported industry standards Enhanced Display Data Channel (E-DDC)	Supported industry standards Enhanced Display Data Channel (E-DDC)	Supported industry standards Enhanced Display Data Channel (E-DDC)

		Audio	Audio	Audio	Audio
Audio	Transmission type	Transmission type Stereo	Transmission type Stereo	Transmission type Stereo	Transmission type Stereo
	Bandwidth	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz	Bandwidth 22 kHz
	Audio support	Audio support Analog	Audio support Analog	Audio support Analog	Audio support Analog

		USB	USB	USB	USB
USB	Separate USB transmission port	Separate USB transmission port no	Separate USB transmission port no	Separate USB transmission port no	Separate USB transmission port no
	Specification	Specification USB 2.0	Specification USB 2.0	Specification USB 2.0	Specification USB 2.0
	Transmission rate	Transmission rate max. 16 Mbit/s (Full Speed)	Transmission rate max. 16 Mbit/s (Full Speed)	Transmission rate max. 16 Mbit/s (Full Speed)	Transmission rate max. 16 Mbit/s (Full Speed)
	USB classes	USB classes All	USB classes All	USB classes All	USB classes All

		Maintenance	Maintenance	Maintenance	Maintenance
Maintenance	Update via	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)	Update via Update Wizard (service interface)
Maintenance	Serviceport settings	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)

		Housing	Housing	Housing	Housing
Housing	Material	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium
	Width ca.	Width ca. 270 mm	Width ca. 270 mm	Width ca. 270 mm	Width ca. 270 mm
	Height ca.	Height ca. 66 mm	Height ca. 88 mm	Height ca. 132 mm	Height ca. 44 mm
	Depth ca.	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm	Depth ca. 210 mm
	IP protection class	IP protection class IP20	IP protection class IP20	IP protection class IP20	IP protection class IP20
	Weight ca.	Weight ca. 1.8 kg	Weight ca. 2.2 kg	Weight ca. 2.52 kg	Weight ca. 1.51 kg

		Operating conditions	Operating conditions	Operating conditions	Operating conditions
Operating conditions	Operating temperature	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 45 °C
	Operating air humidity, non-condensing	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %	Operating air humidity, non-condensing 20 % to 80 %
	Area of application	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use	Area of application Indoor use
	Maximum operating altitude above sea level	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m	Maximum operating altitude above sea level 3,048 m
	Storage temperature	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C	Storage temperature -20 °C to 55 °C
	Storage air humidity, non-condensing	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %	Storage air humidity, non-condensing 15 % to 85 %
	MTBF	MTBF 200,000 h at 25°C	MTBF 200,000 h at 25°C	MTBF 200,000 h at 25°C	MTBF 200,000 h at 25°C
	Conformities	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)

		Power supply	Power supply	Power supply	Power supply
Power supply	Quantity	Quantity 1	Quantity 1	Quantity 1	Quantity 1
	Type	Type Internal	Type Internal	Type Internal	Type Internal
	Input voltage	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC	Input voltage 100-240 VAC
	Input frequency	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz	Input frequency 60-50 Hz
	Current consumption	Current consumption 0.4-0.2 A	Current consumption 0.5-0.2 A	Current consumption 0.6-0.3 A	Current consumption 0.3-0.2 A
