DynamicWorkplace-CON-4C-ARU

Item no. A1120383
Back to last view
New
Displayport™ 1.2Console module4K / UHDG&D video compressiontwisted pair cable (CAT)4 computersEmbeddedAnalogRS232USBRedundant power supplyInternal power supply Network connection (including monitoring)Local workspaceRedundant transmission
Multiviewing console module (2 RU) with 4 inputs to connect a digital matrix switch via CAT cable (4K@60Hz), as well as 4 video outputs (4K@60Hz)
Request product now
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

The DynamicWorkplace-CON

is a powerful multiviewer console module with 4 or 8 KVM inputs (channels) and 4 video outputs. It is connected to a G&D matrix switch via CAT or fiber ports and enables the simultaneous display and operation of multiple sources via KVM computer modules on one or more monitors. The arrangement and size of the windows can be flexibly adjusted within the display area, enabling an efficient and ergonomic workplace design with just one mouse and keyboard. In addition, the DynamicWorkplace-CON supports the transmission of audio signals and offers a specially developed, intuitive user interface. This versatile solution can be integrated into existing digital G&D matrix systems.

Video
  • bluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.
  • The 4 video outputs of the DynamicWorkplace-CON form a contiguous display area across all monitors (4 x 4K)
  • No (additional) licences are required to use all video outputs.
  • Resolution up to
    5120 × 2160 @ 50 Hz,
    5120 × 1440 @ 60 Hz,
    4096 × 2160 @ 60 Hz,
    2560 × 1440 @ 144 Hz,
    1920 × 1080 @ 240 Hz
Signals
  • Embedded stereo audio (Digital, 2 channel LPCM)
  • Transparent audio signals (stereo, analog)
  • Transparent RS232 (max. 115,200 bps)
  • Embedded USB 2.0 with Full Speed, transparent, all USB classes
  • GenericUSB support for USB classes HID (Human Interface Device), SmartCard and mass storage
  • The product allows the use of a GenericUSB device via a console module. For this, both the used console module and the used computer module must support the use of a GenericUSB device.
Transmission
  • The transmission distance is up to 140 meters over CAT
Device
  • Improved security through physical separation between workplaces and computers
  • Internal power pack for main power supply
  • The device can only be used in combination with a KVM matrix switch and is only compatible with models from the ControlCenter-Digital or ControlCenter-Compact series
Warranty
  • A 3-year, free of charge product guarantee
  • For an additional fee guarantee extension possible
Device
  • Users can switch between different sources almost in real-time, without noticing interruptions or delays
  • Very low noise emission
Security features
  • Bootloader, operating system, and firmware form a "Trusted Computing Platform" with automatic integrity checks during system startup
  • DynamicWorkplace-CONs do not store security-relevant information such as login credentials, which could be extracted in the event of device loss
  • Freeze function: If the video signal is lost, the last displayed image is frozen and highlighted with a colored frame and timer
  • Early detection of security incidents or unusual activities through continuous monitoring via Syslog, monitoring, and SNMP
  • Redundant network interface
  • 2-Factor-Authentication (2FA) – is available via the KVM matrix system with DynamicWorkplace-CON and enhances security by requiring a second, possession-based factor during user authentication:
    • The traditional password authentication is combined with a time-limited, single-use code (Time-Based-One-Time-Password - TOTP)
    • You can choose between using the internal authentication server provided in the device or an external directory service
    • Authenticator apps or hardware token can be used
    • This additional layer of protection prevents unauthorized access and ensures the highest level of security, particularly in sensitive IT environments
Operation features
  • Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)
  • Simultaneous display of available KVM inputs (transmission channels) in up to 16 windows, with each window showing either the original channel or a mirrored view.
  • Intuitive operation and arrangement of windows, computer modules and presets or layouts via a window manager (graphical user interface).
  • The windows on the display area can be arranged either in fixed grids or freely
  • The windows can be scaled proportionally
  • The windows offer direct user interaction via their title bar
  • Different operating modes:
    • Free mode: The windows can be moved, scaled and arranged freely - without a fixed grid, for maximum flexibility
    • Swap mode: A window/source can swap places with another window/source using the mouse to quickly highlight important content without changing the layout/grid
  • Integration into the existing matrix remote control API for controlling the device
  • The image output can be rotated in 90° steps, whereby this setting can be made individually for each monitor
  • The exclusive signals can be received and sent flexibly between different channels at runtime. Allocation is either static, based on a window defined by the user, or automatic. In automatic mode, the signal is switched to the channel currently in the operating focus after a short delay
Device
  • External power supply via external 12V power pack
System expansion
  • Transm. Redundancy Option (comparable to UC/CON-2; in preparation): Devices are prepared for transmission redundancy without additional hardware and can be activated via software feature key.
  • Support for all common video signals, thanks to a wide selection of matrix-compatible KVM extenders, which can be integrated as end devices in matrix operation in a “mixed” configuration (Mix & Match). Video transmission is performed using bluedec™ – G&D’s advanced, multi-stage, lossless compression – delivering pixel-perfect, lossless video quality with near-zero latency.
GeneralProduct group Video processing
Product Family DynamicWorkplace-CON
Number of workstations 1
Number of sources 4
KVM matrix system component Console module (digital)
Power Supply Redundancy without load balancing
Input optionsUSB mouse yes
USB keyboard yes
TransmissionNumber of transmission channels 4
Redundant transmission channels optional redundant KVM transmission
Range 140 m (AWG22)
100 m (AWG24)
80 m (AWG26)
Medium CAT5e
CAT6
CAT7
Data rate 1 Gbit/s
Video inputQuantity 4
Format Digitale Matrix
Colour depth 24 bit
Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate ca. 25 MPixel/s to 600 MPixel/s
Vertical frequency 24 Hz to 240 Hz
Horizontal frequency 25 kHz to 295 kHz
Exemplary resolutions 5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Video outputQuantity 4
Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))
Colour depth 24 bit
Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate ca. 25 MPixel/s to 600 MPixel/s
Vertical frequency 24 Hz to 240 Hz
Horizontal frequency 25 kHz to 295 kHz
Exemplary resolutions 5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Audio 1Transmission type Stereo
2-channel LPCM
Resolutions 24 bit
20 bit
16 bit
Sampling rate up to 48 kHz
Audio support Digital Embedded
Audio 2Transmission type Stereo
Transparent
Resolutions 24 bit digital
Sampling rate up to 96 kHz
Bandwidth 22 kHz
Audio support Analog
USB 1Specification USB 2.0
Medium Embedded
Transmission rate max. 16 Mbit/s (app. Full Speed)
Range max. 140 m
Power (output) 500 mA (HighPower)
USB classes All
USB 2Separate USB transmission port no
Specification USB 2.0
GenericUSB support 1 device
Medium Embedded
Transmission rate max. 25 Mbit/s (Full Speed)
USB classes Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
SerialStandard RS232
Transparent transmission yes
Data rate max. 115,200 bps
Signals TxD
RxD
DTR
DSR
RTS
CTS
DCD
NetworkQuantity 2
Medium CAT5
CAT6
CAT7
Data rate 10 Mbit/s
100 Mbit/s
1 Gbit/s
MaintenanceUpdate via ConfigPanel (Network)
Serviceport settings 115200bps (8/N/1)
HousingMaterial anodised aluminium
Width ca. 436 mm
Height ca. 88 mm
Depth ca. 284 mm
IP protection class IP20
Operating conditionsOperating temperature 5 °C to 45 °C
Operating air humidity, non-condensing 20 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,048 m
Storage temperature -20 °C to 55 °C
Storage air humidity, non-condensing 15 % to 80 %
Conformities CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supply 1Quantity 1
Type Internal
Input voltage 100-240 VAC
Input frequency 60-50 Hz
Current consumption 1.1-0.52 A
Power supply 2Quantity 1
Type External
Input voltage 12 VDC
Current consumption 8.5 A

Product comparison

Technical data
selected variant
DynamicWorkplace-CON-4C-ARU
Item no. A1120383
DynamicWorkplace-CON-8C-ARU
Item no. A1120379
GeneralGeneral
General Product group
Product group
Video processing
Product group
Video processing
Product Family
Product Family
DynamicWorkplace-CON
Product Family
DynamicWorkplace-CON
Number of workstations
Number of workstations
1
Number of workstations
1
Number of sources
Number of sources
4
Number of sources
8
KVM matrix system component
KVM matrix system component
Console module (digital)
KVM matrix system component
Console module (digital)
Power Supply
Power Supply
Redundancy without load balancing
Power Supply
Redundancy without load balancing
Input optionsInput options
Input options USB mouse
USB mouse
yes
USB mouse
yes
USB keyboard
USB keyboard
yes
USB keyboard
yes
TransmissionTransmission
Transmission Number of transmission channels
Number of transmission channels
4
Number of transmission channels
8
Redundant transmission channels
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Range
Range
140 m (AWG22)
100 m (AWG24)
80 m (AWG26)
Range
140 m (AWG22)
100 m (AWG24)
80 m (AWG26)
Medium
Medium
CAT5e
CAT6
CAT7
Medium
CAT5e
CAT6
CAT7
Data rate
Data rate
1 Gbit/s
Data rate
1 Gbit/s
Video inputVideo input
Video input Quantity
Quantity
4
Quantity
8
Format
Format
Digitale Matrix
Format
Digitale Matrix
Colour depth
Colour depth
24 bit
Colour depth
24 bit
Pixel encoding
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate ca.
Pixel rate ca.
25 MPixel/s to 600 MPixel/s
Pixel rate ca.
25 MPixel/s to 600 MPixel/s
Vertical frequency
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Horizontal frequency
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Exemplary resolutions
Exemplary resolutions
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
Exemplary resolutions
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
General Notes
General Notes
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
General Notes
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Video outputVideo output
Video output Quantity
Quantity
4
Quantity
4
Format
Format
DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))
Colour depth
Colour depth
24 bit
Colour depth
24 bit
Pixel encoding
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate ca.
Pixel rate ca.
25 MPixel/s to 600 MPixel/s
Pixel rate ca.
25 MPixel/s to 600 MPixel/s
Vertical frequency
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Horizontal frequency
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Exemplary resolutions
Exemplary resolutions
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
Exemplary resolutions
5120 × 2160 (50 Hz)
5120 × 1440 (60 Hz)
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
General Notes
General Notes
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
General Notes
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Audio 1Audio 1
Audio 1 Transmission type
Transmission type
Stereo
2-channel LPCM
Transmission type
Stereo
2-channel LPCM
Resolutions
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Sampling rate
Sampling rate
up to 48 kHz
Sampling rate
up to 48 kHz
Audio support
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio 2Audio 2
Audio 2 Transmission type
Transmission type
Stereo
Transparent
Transmission type
Stereo
Transparent
Resolutions
Resolutions
24 bit digital
Resolutions
24 bit digital
Sampling rate
Sampling rate
up to 96 kHz
Sampling rate
up to 96 kHz
Bandwidth
Bandwidth
22 kHz
Bandwidth
22 kHz
Audio support
Audio support
Analog
Audio support
Analog
USB 1USB 1
USB 1 Specification
Specification
USB 2.0
Specification
USB 2.0
Medium
Medium
Embedded
Medium
Embedded
Transmission rate
Transmission rate
max. 16 Mbit/s (app. Full Speed)
Transmission rate
max. 16 Mbit/s (app. Full Speed)
Range
Range
max. 140 m
Range
max. 140 m
Power (output)
Power (output)
500 mA (HighPower)
Power (output)
500 mA (HighPower)
USB classes
USB classes
All
USB classes
All
USB 2USB 2
USB 2 Separate USB transmission port
Separate USB transmission port
no
Separate USB transmission port
no
Specification
Specification
USB 2.0
Specification
USB 2.0
GenericUSB support
GenericUSB support
1 device
GenericUSB support
1 device
Medium
Medium
Embedded
Medium
Embedded
Transmission rate
Transmission rate
max. 25 Mbit/s (Full Speed)
Transmission rate
max. 25 Mbit/s (Full Speed)
USB classes
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
SerialSerial
Serial Standard
Standard
RS232
Standard
RS232
Transparent transmission
Transparent transmission
yes
Transparent transmission
yes
Data rate
Data rate
max. 115,200 bps
Data rate
max. 115,200 bps
Signals
Signals
TxD
RxD
DTR
DSR
RTS
CTS
DCD
Signals
TxD
RxD
DTR
DSR
RTS
CTS
DCD
NetworkNetwork
Network Quantity
Quantity
2
Quantity
2
Medium
Medium
CAT5
CAT6
CAT7
Medium
CAT5
CAT6
CAT7
Data rate
Data rate
10 Mbit/s
100 Mbit/s
1 Gbit/s
Data rate
10 Mbit/s
100 Mbit/s
1 Gbit/s
MaintenanceMaintenance
Maintenance Update via
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Serviceport settings
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
HousingHousing
Housing Material
Material
anodised aluminium
Material
anodised aluminium
Width ca.
Width ca.
436 mm
Width ca.
436 mm
Height ca.
Height ca.
88 mm
Height ca.
88 mm
Depth ca.
Depth ca.
284 mm
Depth ca.
284 mm
IP protection class
IP protection class
IP20
IP protection class
IP20
Weight ca.
Weight ca.
Not specified
Weight ca.
4.92 kg
Operating conditionsOperating conditions
Operating conditions Operating temperature
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating air humidity, non-condensing
Operating air humidity, non-condensing
20 % to 80 %
Operating air humidity, non-condensing
20 % to 80 %
Area of application
Area of application
Indoor use
Area of application
Indoor use
Maximum operating altitude above sea level
Maximum operating altitude above sea level
3,048 m
Maximum operating altitude above sea level
3,048 m
Storage temperature
Storage temperature
-20 °C to 55 °C
Storage temperature
-20 °C to 55 °C
Storage air humidity, non-condensing
Storage air humidity, non-condensing
15 % to 80 %
Storage air humidity, non-condensing
15 % to 80 %
Conformities
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supply 1Power supply 1
Power supply 1 Quantity
Quantity
1
Quantity
1
Type
Type
Internal
Type
Internal
Input voltage
Input voltage
100-240 VAC
Input voltage
100-240 VAC
Input frequency
Input frequency
60-50 Hz
Input frequency
60-50 Hz
Current consumption
Current consumption
1.1-0.52 A
Current consumption
1.45-0.65 A
Power supply 2Power supply 2
Power supply 2 Quantity
Quantity
1
Quantity
1
Type
Type
External
Type
External
Input voltage
Input voltage
12 VDC
Input voltage
12 VDC
Current consumption
Current consumption
8.5 A
Current consumption
11 A

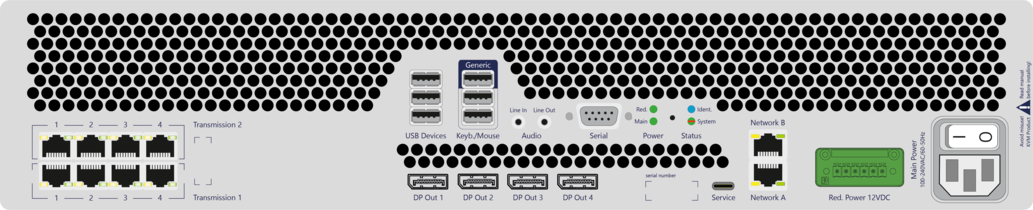

Interfaces

Aperture designationDesignDescription
No interfaces in use
Aperture designationDesignDescription
Transmission 1 - 1-4RJ45 socketData transmission to matrix switch (CAT)
Transmission 2 - 1-4RJ45 socketData transmission to matrix switch redundant (CAT)
USB DevicesUSB-A socket 2.0Port for USB devices (transparent)
GenericUSB-A socket 2.0Port for USB devices (Generic)
Keyb./MouseUSB-A socket 2.0Port for keyboard and mouse
Line InJack socket - 3,5 mmPort for microphone / audio source
Line OutJack socket - 3,5 mmPort for speaker/headset
SerialD-Sub9 jackPort for serial devices
DP Out 1DisplayPort socketPort for monitor
DP Out 2DisplayPort socketPort for monitor
DP Out 3DisplayPort socketPort for monitor
DP Out 4DisplayPort socketPort for monitor
ServiceUSB-C socketPort for service purposes
Network ARJ45 socketPort for IP network
Network BRJ45 socketPort for IP network
Red. Power 12VDCPhoenix clamp CombiconPower supply DC redundant
Main PowerIEC plug 320 C14Power supply AC

Downloads

Manuals
Data Sheets
Tools & Drivers

Accessory Products

PowerPack 12 for DWC 12V, Phoenix 1827745

Redundant Power Supply for DynamicWorkplace-CON Series
To product
Add to watchlistCompare productQuestions about the product?

TypeC-Service-Cable-M/M-2, 2m, USB Type-A / Type-C

Cable for system updates and configuration
To product
Add to watchlistCompare productQuestions about the product?

PowerCable-3 Standard cable 3m

Cable to connect the power supply type Germany
To product
Add to watchlistCompare productQuestions about the product?

PowerCable-5 Standard cable 5m

Cable to connect the power supply type Germany
To product
Add to watchlistCompare productQuestions about the product?

G&D Contact

The best way to talk about complex topics is in person. Via chat, e-mail, phone or in a personal demo remote or on-site.

Subscribe to our newsletter
Subscribe to our newsletter
Book a demo in the ControlCenter-Xperience
Book a demo in the ControlCenter-Xperience
Contact us for your individual request
Contact us for your individual request
AVoIP Solutions for Control Rooms
VuWall Technology Inc.

VuWall Technology Inc.

G&D and VuWall are proud to be part of the same corporate group.

Discover VuWall's world-class video wall solutions, which work seamlessly with G&D's high-performance KVM systems to enable maximum flexibility, security, and efficiency in control rooms.
To the website
Cancel Compare now
Contact Support
top
