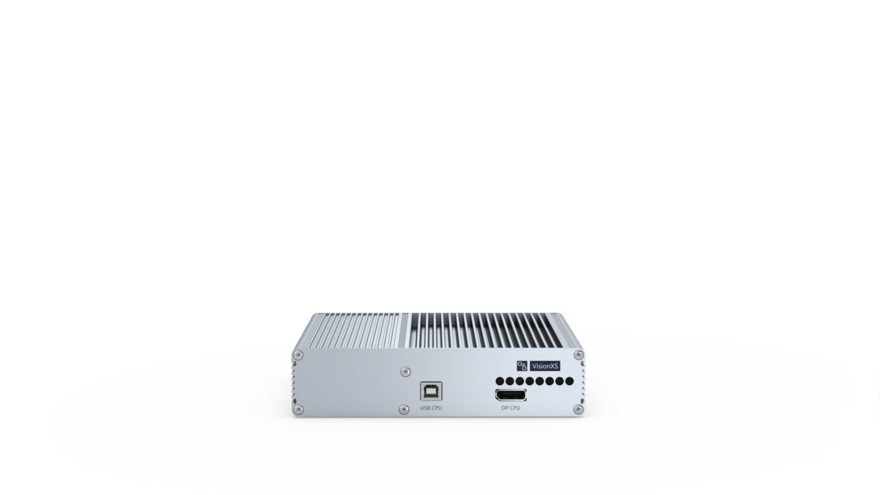

VisionXS-CPU-C-DP-UHR-DT

Item no. A1110310
Back to last view
Displayport™ 1.2Computer module4K / UHDG&D video compressiontwisted pair cable (CAT)EmbeddedUSBRedundant power supplyInternal power supply Network connection (including monitoring)Redundant transmission
Computer module to extend DisplayPort1.2 signals via CAT cable
Request product now
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

The matrix-compatible KVM extenders of the VisionXS-DP-UHR series

extend keyboard, video, and mouse signals, as well as other peripheral data (e.g., audio and USB), via a dedicated CAT or fiber connection (up to 10,000 m). An extender system consists of a computer module (CPU) and a compatible console module (CON). Computers can be controlled in near real-time – both in extender and matrix applications. The VisionXS-DP-UHR series supports DisplayPort1.2 for ultra-high-resolution video up to 4096 × 2160 (60 Hz) or 5120 × 2160 (50 Hz). Video data is processed pixel-perfectly and offers excellent hand-eye coordination, thanks to bluedec™ – G&D's advanced, multi-stage, lossless compression technology.

Video
  • bluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.
  • The end devices can be flexibly combined with each other, even if they process different video signals (Mix & Match)
  • EDID data utilization from the workplace monitor
  • Flexible EDID profile options for optimized monitor settings
  • Resolution up to
    5120 × 2160 @ 50 Hz,
    5120 × 1440 @ 60 Hz,
    4096 × 2160 @ 60 Hz,
    2560 × 1440 @ 144 Hz,
    1920 × 1080 @ 240 Hz
Signals
  • Embedded stereo audio (DisplayPort Digital, 2 channel LPCM, AC3, DTS,
    sampling rate up to 192 kHz)
  • GenericUSB support for USB classes HID (Human Interface Device), SmartCard and mass storage
  • The product allows the use of a GenericUSB device via a console module. For this, both the used console module and the used computer module must support the use of a GenericUSB device.
Transmission
  • The transmission distance is up to 140 meters over CAT
Device
  • Improved security through physical separation between workplaces and computers

  • Access to standard interfaces of the computer, with no software installation required

  • Compact design for space-saving installation within a VisionXS DeviceCarrier (1 or 3 RU)
  • The devices are compatible with the ControlCenter-Digital and ControlCenter-Compact series (matrix operation) and other end devices for computer and workplace connections (extender operation)
  • PowerPack not included in the scope of delivery
  • DT variant: Optional redundant power supply via an internal power unit for high reliability
  • Fanless variant: fanless model
Warranty
  • A 3-year, free of charge product guarantee
  • For an additional fee guarantee extension possible
Security features
  • Bootloader, operating system, and firmware form a "Trusted Computing Platform" with automatic integrity checks during system startup
  • Integrated Trusted Platform Module (TPM) protects all access and configuration data from being spied on or tampered with by third parties
  • Console modules do not store security-relevant information such as login credentials, which could be extracted in the event of device loss
  • Early detection of security incidents or unusual activities through continuous monitoring via Syslog, monitoring, and SNMP
  • Comprehensive rights management and user administration, allowing precise control over which user can access which resources
  • Option for activatable access protection (default operating mode in matrix systems), in which authentication is required before accessing computer sources
  • Support for external directory services (Active Directory, Radius, LDAP) to meet company security policies
  • To comply with individual password policies and improve security, password complexity can be configured system-wide
  • Configurable login options, such as displaying terms of use or setting the maximum acceptable number of failed login attempts, can enhance system security
  • Auto Backup Function: Automates backups at user-defined intervals and replaces manual intervention – ensuring reliable, timely data protection without the need for continuous monitoring
  • Freeze function: If the video signal is lost, the last displayed image is frozen and highlighted with a colored frame and timer
  • 2-Factor-Authentication (2FA) – is integrated by default in KVM extenders and enhances security by requiring a second, possession-based factor during user authentication:
    • The traditional password authentication is combined with a time-limited, single-use code (Time-Based-One-Time-Password - TOTP)
    • You can choose between using the internal authentication server provided in the device or an external directory service
    • Authenticator apps or hardware token can be used
    • This additional layer of protection prevents unauthorized access and ensures the highest level of security, particularly in sensitive IT environments
Operation features
  • Ready for operation out of the box, no additional configuration required
  • Permanent keyboard/mouse emulation ensures a stable system
  • Compatibility with special USB-HID input devices
  • Operation via multilingual on-screen display (OSD) and hotkeys
  • Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)
  • Support of DDC/CI (Display Data Channel / Command Interface) to enable centralized software-side control of monitor settings such as brightness
Device
  • External power supply via external 12V power pack or G&D-MultiPower, providing a central and redundant power supply
  • Device mounting via G&D 19” DeviceCarrier for VisionXS (1 or 3 RU)
System expansion
  • Transm. Redundancy Option (comparable to UC/CON-2): Devices are prepared for transmission redundancy without additional hardware and can be activated via software feature key.
    • Computer modules can connect to various counterparts, such as compatible console modules or KVM matrix switches
    • Console modules can connect to different counterparts, such as compatible computer modules or KVM matrix switches, with switching controlled via hotkey or automatically depending on configuration
    • U2 variants do not support the Transm. Redundancy Option as the 2nd transmission interface is used for the transmission of USB 2.0 data
  • You can integrate the matrix-compatible extenders into a complete installation with a ControlCenter-Compact or ControlCenter-Digital, even at a later point in time. This provides you with even greater flexibility through the possibility of distributed access – and the existing components can continue to be used.
GeneralProduct group KVM extenders
Product Family VisionXS
KVM matrix system component Computer module (digital)
Power Supply Redundancy without load balancing
TransmissionNumber of transmission channels 1
Redundant transmission channels optional redundant KVM transmission
Range 140 m (AWG22)
100 m (AWG24)
80 m (AWG26)
Medium CAT5e
CAT6
CAT7
Data rate 1 Gbit/s
Video inputQuantity 1
Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))
Colour depth 24 bit
Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate ca. 25 MPixel/s to 600 MPixel/s
Vertical frequency 24 Hz to 240 Hz
Horizontal frequency 25 kHz to 295 kHz
Exemplary resolutions 4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
5120 × 1440 (60 Hz)
5120 × 2160 (50 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Supported industry standards Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
AudioTransmission type 2-channel LPCM
Stereo
DTS
AC3
Resolutions 24 bit
20 bit
16 bit
Sampling rate up to 192 kHz
Audio support Digital Embedded
USBSeparate USB transmission port no
Specification USB 2.0
GenericUSB support 1 device
Medium Embedded
Transmission rate max. 25 Mbit/s (Full Speed)
USB classes Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
NetworkQuantity 1
Medium CAT5
CAT6
CAT7
Data rate 10 Mbit/s
100 Mbit/s
MaintenanceUpdate via ConfigPanel (Network)
Serviceport settings 115200bps (8/N/1)
HousingMaterial anodised aluminium
Width ca. 170 mm
Height ca. 40 mm
Depth ca. 184 mm
IP protection class IP20
Weight ca. 1.25 kg
Operating conditionsOperating temperature 5 °C to 45 °C
Operating air humidity, non-condensing 20 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,048 m
Storage temperature -20 °C to 60 °C
Storage air humidity, non-condensing 15 % to 85 %
MTBF 200,000 h at 25°C
Conformities FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
CE compliant (see downloads)
UKCA compliant (see downloads)
Power supply 1Quantity 1
Type External
Input voltage 12 VDC
Current consumption 1.4 A
Power consumption idle 11.84 W
Power consumption max. 15.2 W
Heat output idle 11.84 W
Heat output max. 15.2 W
Power supply 2Quantity 1
Type Internal
Input voltage 100-240 VAC
Input frequency 60-50 Hz
Current consumption 0.36-0.21 A
Power consumption idle 13.6-13.2 W
Power consumption max. 17.3-16.9 W
Heat output idle 13.6-13.2 W
Heat output max. 17.3-16.9 W
