VisionXS-IP-CON-F(S)-DP-UHR

Item no. A1120397

Back to last view

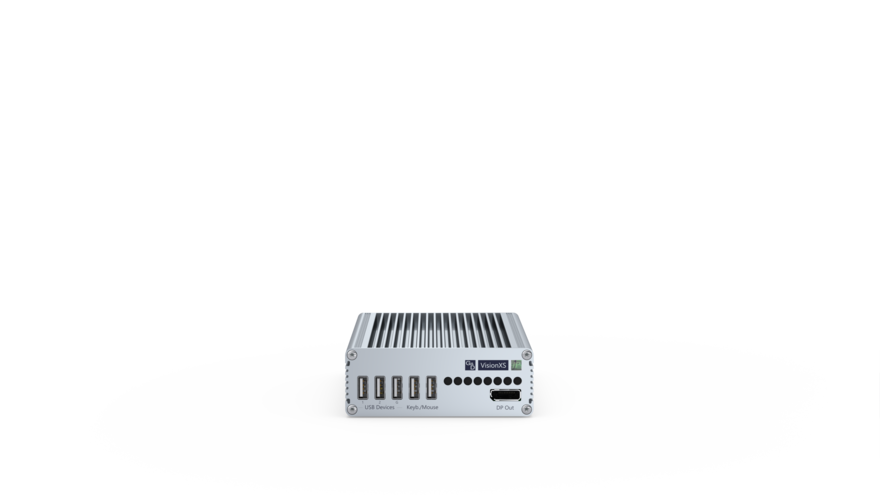

KVM-over-IP console module to receive DisplayPort1.2 signals, transmission via fiber singlemode and over IP-based networks

Product variants

Request product now

Add to watchlist Compare product Questions about the product?

Learn more

The form could not be loaded.

The matrix-compatible KVM-over-IP extenders of the VisionXS-IP-DP-UHR series

extend keyboard, video, and mouse signals, as well as other peripheral data (e.g., audio and USB), via a standardized IP network infrastructure with CAT or fiber connection (up to 10,000 m). An extender system consists of a computer module (CPU) and a compatible console module (CON). Computers can be controlled in near real-time – both in extender and matrix applications. The VisionXS-IP-DP-UHR series supports DisplayPort1.2 for ultra-high-resolution video up to 4096 × 2160 (60 Hz) or 5120 × 2160 (50 Hz). Video data is processed pixel-perfectly and offers excellent hand-eye coordination, thanks to bluedec™ – G&D's advanced, multi-stage, lossless compression technology.

Video

bluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.

The KVM-over-IP end devices can be flexibly combined with each other, even if they process different video signals (Mix & Match)

EDID data utilization from the workplace monitor
Flexible EDID profile options for optimized monitor settings

Resolution up to
5120 × 2160 @ 50 Hz,
5120 × 1440 @ 60 Hz,
4096 × 2160 @ 60 Hz,
2560 × 1440 @ 144 Hz,
1920 × 1080 @ 240 Hz

Signals

Embedded stereo audio (DisplayPort Digital, 2 channel LPCM, AC3, DTS)

GenericUSB support for USB classes HID (Human Interface Device), SmartCard and mass storage
The product allows the simultaneous use of up to five GenericUSB devices via a console module. For this, both the used console module and the used computer module must support the use of up to five GenericUSB devices.

Transmission

At least one Layer-2-managed switch with Gigabit Ethernet is required, offering features such as QoS and VLAN. Additionally, adequate performance (forwarding bandwidth, switching bandwidth, forwarding performance, and uplinks) must be ensured, especially when using multiple network switches

KVM-over-IP™ over IP-based networks (layer 3)
The transmission distance between two active network components is up to 10,000 meters over fiber singlemode optics, incl. transmission module(s)/SFP transceiver(s)

Device

Improved security through physical separation between workplaces and computers

Access to standard interfaces of the computer, with no software installation required

Compact design for space-saving installation within a VisionXS DeviceCarrier (1 or 3 RU)

PowerPack not included in the scope of delivery

DT variant: Optional redundant power supply via an internal power unit for high reliability

Fanless variant: fanless model

The devices are compatible with the ControlCenter-IP and ControlCenter-IP-XS series (matrix operation) and other KVM-over-IP end devices for computer and workplace connections (extender operation)

Security features

Permanent encryption of all communication and data transmissions, as well as sensitive information such as login credentials and passwords, guarantees a high level of security in critical environments
- AES256-GCM for keyboard/mouse and control data
- AES128-CTR for video, audio, GenericUSB and RS232

Bootloader, operating system, and firmware form a "Trusted Computing Platform" with automatic integrity checks during system startup

Integrated Trusted Platform Module (TPM) protects all access and configuration data from being spied on or tampered with by third parties

Console modules do not store security-relevant information such as login credentials, which could be extracted in the event of device loss

Early detection of security incidents or unusual activities through continuous monitoring via Syslog, monitoring, and SNMP

Comprehensive rights management and user administration, allowing precise control over which user can access which resources
Option for activatable access protection (default operating mode in matrix systems), in which authentication is required before accessing computer sources

Support for external directory services (Active Directory, Radius, LDAP) to meet company security policies

To comply with individual password policies and improve security, password complexity can be configured system-wide

Configurable login options, such as displaying terms of use or setting the maximum acceptable number of failed login attempts, can enhance system security

The optional UID-Locking restricts the usable end devices, ensuring that no additional devices can be added or replaced after activation

Auto Backup Function: Automates backups at user-defined intervals and replaces manual intervention – ensuring reliable, timely data protection without the need for continuous monitoring

Freeze function: If the video signal is lost, the last displayed image is frozen and highlighted with a colored frame and timer

2-Factor-Authentication (2FA) – is integrated by default in KVM extenders and enhances security by requiring a second, possession-based factor during user authentication:
- The traditional password authentication is combined with a time-limited, single-use code (Time-Based-One-Time-Password - TOTP)
- You can choose between using the internal authentication server provided in the device or an external directory service
- Authenticator apps or hardware token can be used
- This additional layer of protection prevents unauthorized access and ensures the highest level of security, particularly in sensitive IT environments

Operation features

Ready for operation out of the box, no additional configuration required in direct connection. IP address configuration and pairing are required when using multiple modules in a network setup

Permanent keyboard/mouse emulation ensures a stable system

Compatibility with special USB-HID input devices

Operation via multilingual on-screen display (OSD) and hotkeys

Configuration and update via the multilingual HTML5 web interface “Config Panel 21” (Java-free)

Support of DDC/CI (Display Data Channel / Command Interface) to enable centralized software-side control of monitor settings such as brightness

additional, independent management network interface for configuration

manual bandwidth management to adjust the required bandwidth

With the integrated IP-MUX functionality the console modules offer the possibility to access different computer modules (one after the other). To use this function, you can connect a maximum of 20 computers to separate computer modules. The computer modules are configurated as targets in the console module and can be connected via the local on-screen display.

Device

External power supply via external 12V power pack or G&D-MultiPower, providing a central and redundant power supply

Device mounting via G&D 19” DeviceCarrier for VisionXS (1 or 3 RU)

Security features

SecureCert feature – premium software feature that ensures compliance with the strict security standards FIPS 140-3, DoDIN APL, and CC EAL2+
- Federal Information Processing Standard (FIPS) 140-3 is a U.S. government standard designed to protect sensitive and valuable data in IT systems. It defines security requirements for cryptographic modules and provides a secure framework for cryptographic operations in IT infrastructures
- The Department of Defense Information Network Approved Products List (DoDIN APL) is a consolidated list of products approved for use in the technology infrastructure of U.S. government agencies. To be listed, products must meet specific requirements within defined categories, including technical, functional, and security-related criteria
- Common Criteria (CC) is an internationally recognized standard for evaluating and certifying the security of IT products. It ensures that products meet defined security requirements and are protected against identified threats. Certification is granted at Evaluation Assurance Level (EAL) 2+, an internationally acknowledged level that guarantees a fundamental and reliable security assessment

System expansion

Transm. Redundancy Option (Link-Aggregation): The devices are prepared for transmission redundancy without additional hardware and can be activated via a software feature key.
- Two network interfaces can be linked via link aggregation, ensuring seamless failover and stable communication in case of a failure

You can integrate the matrix-compatible KVM-over-IP extenders into a complete installation with a ControlCenter-IP or ControlCenter-IP-XS, even at a later point in time. This provides you with even greater flexibility through the possibility of distributed access – and the existing components can continue to be used.

General	Product group	KVM extenders KVM matrix systems
General	Number of workstations	1
Input options	USB mouse	yes
Input options	USB keyboard	yes
Transmission	KVM-over-IP™ Transmission	yes
	Number of transmission channels	1
	Redundant transmission channels	optional redundant KVM transmission
	Range	10000 m (9/125µm, OS1)
	Laser class	Class 1
	Type of interface	LC-Duplex
	Wavelength	1310 nm
	KVM matrix system component	Console module
	Medium	Fiber SM
	Data rate	10 Gbit/s
Video output	Number of video channels	1
	Format	DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))
	Colour depth	24 bit
	Pixel encoding	RGB 4:4:4 (24 bpp / 8 bpc)
	Pixel rate	ca. 25 MPixel/s to ca. 600 MPixel/s
	Vertical frequency	24 Hz to 240 Hz
	Horizontal frequency	25 kHz to 295 kHz
	Exemplary resolutions	4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)
Audio	Transmission type	2-channel LPCM Stereo DTS AC3
	Resolutions	24 bit 20 bit 16 bit
	Sampling rate	up to 48 kHz
	Audio support	Digital Embedded
USB	Specification	USB 2.0
	GenericUSB support	up to 5 devices
	Medium	Embedded
	Transmission rate	25 Mbit/s (Full Speed)
	USB classes	Mass Storage (MSC / UMS) Human Interface Device (HID) SmartCard
Network	Medium 1	CAT5 CAT6 CAT7
Network	Data rate 1	10 MBit/s 100 MBit/s
Maintenance	Update via	ConfigPanel (Network)
Maintenance	Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
	Width	ca. 109 mm
	Height	ca. 40 mm
	Depth	ca. 184 mm
	IP protection class	IP20
	Weight	ca. 0.92 kg
Operating conditions	Operating temperature	5 °C to 45 °C
	Operating air humidity	20 % to 80 %, non-condensing
	Area of application	Interior
	Maximum operating altitude	3048m above sea level
	Storage temperature	-20 °C to 60 °C
	Storage air humidity	15 % to 85 %, non-condensing
	MTBF	200000 h at 25°C
	Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Input voltage	12 VDC
	Current consumption	2.5 A
	Power consumption idle	15.6 W
	Power consumption max.	28.5 W
	Heat output idle	15.6 W
	Heat output max.	18.35 W

Product comparison

Mark differences Hide same values

Technical data		selected variant VisionXS-IP-CON-F(S)-DP-UHR Item no. A1120397	VisionXS-IP-CON-F(S)-DP-UHR-AR-DT Item no. A1120398	VisionXS-IP-CON-F(S)-DP-UHR-DT Item no. A1120399

		General	General	General
General	Product group	Product group KVM extenders KVM matrix systems	Product group KVM extenders KVM matrix systems	Product group KVM extenders KVM matrix systems
General	Number of workstations	Number of workstations 1	Number of workstations 1	Number of workstations 1

		Input options	Input options	Input options
Input options	USB mouse	USB mouse yes	USB mouse yes	USB mouse yes
Input options	USB keyboard	USB keyboard yes	USB keyboard yes	USB keyboard yes

		Transmission	Transmission	Transmission
Transmission	KVM-over-IP™ Transmission	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes	KVM-over-IP™ Transmission yes
	Number of transmission channels	Number of transmission channels 1	Number of transmission channels 1	Number of transmission channels 1
	Redundant transmission channels	Redundant transmission channels optional redundant KVM transmission	Redundant transmission channels optional redundant KVM transmission	Redundant transmission channels optional redundant KVM transmission
	Range	Range 10000 m (9/125µm, OS1)	Range 10000 m (9/125µm, OS1)	Range 10000 m (9/125µm, OS1)
	Laser class	Laser class Class 1	Laser class Class 1	Laser class Class 1
	Type of interface	Type of interface LC-Duplex	Type of interface LC-Duplex	Type of interface LC-Duplex
	Wavelength	Wavelength 1310 nm	Wavelength 1310 nm	Wavelength 1310 nm
	KVM matrix system component	KVM matrix system component Console module	KVM matrix system component Console module	KVM matrix system component Console module
	Medium	Medium Fiber SM	Medium Fiber SM	Medium Fiber SM
	Data rate	Data rate 10 Gbit/s	Data rate 10 Gbit/s	Data rate 10 Gbit/s

		Video output	Video output	Video output
Video output	Number of video channels	Number of video channels 1	Number of video channels 1	Number of video channels 1
	Format	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))	Format DisplayPort 1.2 (LBR, HBR, HBR2, SingleStream-Transport (SST))
	Colour depth	Colour depth 24 bit	Colour depth 24 bit	Colour depth 24 bit
	Pixel encoding	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)	Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
	Pixel rate	Pixel rate ca. 25 MPixel/s to ca. 600 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 600 MPixel/s	Pixel rate ca. 25 MPixel/s to ca. 600 MPixel/s
	Vertical frequency	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz	Vertical frequency 24 Hz to 240 Hz
	Horizontal frequency	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz	Horizontal frequency 25 kHz to 295 kHz
	Exemplary resolutions	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.	Exemplary resolutions 4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
	Supported industry standards	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)	Supported industry standards Display Data Channel Command Interface (DDC/CI) Extended Display Identification Data (EDID)

		Serial	Serial	Serial
Serial	Standard	Standard Value not available	Standard RS232	Standard Value not available
	Transparent transmission	Transparent transmission Value not available	Transparent transmission yes	Transparent transmission Value not available
	Data rate	Data rate Value not available	Data rate 115200 bps	Data rate Value not available
	Signals	Signals Value not available	Signals TxD RxD RTS CTS GND 5V	Signals Value not available

		Network	Network	Network
Network	Medium 1	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7	Medium 1 CAT5 CAT6 CAT7
Network	Data rate 1	Data rate 1 10 MBit/s 100 MBit/s	Data rate 1 10 MBit/s 100 MBit/s	Data rate 1 10 MBit/s 100 MBit/s

		Maintenance	Maintenance	Maintenance
Maintenance	Update via	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)	Update via ConfigPanel (Network)
Maintenance	Serviceport settings	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)	Serviceport settings 115200bps (8/N/1)

		Housing	Housing	Housing
Housing	Material	Material anodised aluminium	Material anodised aluminium	Material anodised aluminium
	Width	Width ca. 109 mm	Width ca. 170 mm	Width ca. 170 mm
	Height	Height ca. 40 mm	Height ca. 40 mm	Height ca. 40 mm
	Depth	Depth ca. 184 mm	Depth ca. 184 mm	Depth ca. 184 mm
	IP protection class	IP protection class IP20	IP protection class IP20	IP protection class IP20
	Weight	Weight ca. 0.92 kg	Weight ca. 1.31 kg	Weight ca. 1.31 kg

		Operating conditions	Operating conditions	Operating conditions
Operating conditions	Operating temperature	Operating temperature 5 °C to 45 °C	Operating temperature 5 °C to 35 °C	Operating temperature 5 °C to 35 °C
	Operating air humidity	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing	Operating air humidity 20 % to 80 %, non-condensing
	Area of application	Area of application Interior	Area of application Interior	Area of application Interior
	Maximum operating altitude	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level	Maximum operating altitude 3048m above sea level
	Storage temperature	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C	Storage temperature -20 °C to 60 °C
	Storage air humidity	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing	Storage air humidity 15 % to 85 %, non-condensing
	MTBF	MTBF 200000 h at 25°C	MTBF 200000 h at 25°C	MTBF 200000 h at 25°C
	Conformities	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)	Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)

		Power supply	Power supply	Power supply
Power supply	Input voltage	Input voltage 12 VDC	Input voltage 12 VDC	Input voltage 12 VDC
	Current consumption	Current consumption 2.5 A	Current consumption 2.5 A	Current consumption 2.5 A
	Power consumption idle	Power consumption idle 15.6 W	Power consumption idle 15.6 W	Power consumption idle 15.6 W
	Power consumption max.	Power consumption max. 28.5 W	Power consumption max. 28.5 W	Power consumption max. 28.5 W
	Heat output idle	Heat output idle 15.6 W	Heat output idle 15.6 W	Heat output idle 15.6 W
	Heat output max.	Heat output max. 18.35 W	Heat output max. 18.35 W	Heat output max. 18.35 W

		Power supply 2	Power supply 2	Power supply 2
Power supply 2	Input voltage	Input voltage Value not available	Input voltage 100-240 VAC	Input voltage 100-240 VAC
	Input frequency	Input frequency Value not available	Input frequency 60-50 Hz	Input frequency 60-50 Hz
	Current consumption	Current consumption Value not available	Current consumption 0.6-0.4 A	Current consumption 0.6-0.4 A
	Power consumption idle	Power consumption idle Value not available	Power consumption idle 17.8-17.2 W	Power consumption idle 17.8-17.2 W
	Power consumption max.	Power consumption max. Value not available	Power consumption max. 31.9-31.1 W	Power consumption max. 31.9-31.1 W
	Heat output idle	Heat output idle Value not available	Heat output idle 17.8-17.2 W	Heat output idle 17.8-17.2 W
	Heat output max.	Heat output max. Value not available	Heat output max. 21.75-20.95 W	Heat output max. 21.75-20.95 W

		Audio	Audio	Audio
Audio	Transmission type	Transmission type 2-channel LPCM Stereo DTS AC3	Transmission type 2-channel LPCM Stereo DTS AC3	Transmission type 2-channel LPCM Stereo DTS AC3
	Resolutions	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit	Resolutions 24 bit 20 bit 16 bit
	Sampling rate	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz	Sampling rate up to 48 kHz
	Audio support	Audio support Digital Embedded	Audio support Digital Embedded	Audio support Digital Embedded

		Audio 2	Audio 2	Audio 2
Audio 2	Transmission type	Transmission type Value not available	Transmission type Stereo Transparent	Transmission type Value not available
	Resolutions	Resolutions Value not available	Resolutions 24 bit digital	Resolutions Value not available
	Sampling rate	Sampling rate Value not available	Sampling rate up to 96 kHz	Sampling rate Value not available
	Bandwidth	Bandwidth Value not available	Bandwidth 22 kHz	Bandwidth Value not available
	Audio support	Audio support Value not available	Audio support Analog	Audio support Value not available

		USB	USB	USB
USB	Specification	Specification USB 2.0	Specification USB 2.0	Specification USB 2.0
	GenericUSB support	GenericUSB support up to 5 devices	GenericUSB support up to 5 devices	GenericUSB support up to 5 devices
	Medium	Medium Embedded	Medium Embedded	Medium Embedded
	Transmission rate	Transmission rate 25 Mbit/s (Full Speed)	Transmission rate 25 Mbit/s (Full Speed)	Transmission rate 25 Mbit/s (Full Speed)
	USB classes	USB classes Mass Storage (MSC / UMS) Human Interface Device (HID) SmartCard	USB classes Mass Storage (MSC / UMS) Human Interface Device (HID) SmartCard	USB classes Mass Storage (MSC / UMS) Human Interface Device (HID) SmartCard

Interfaces

Aperture designation	Design	Description
USB Devices - 1	USB-A socket 2.0	Port for USB devices (Generic)
USB Devices - 2	USB-A socket 2.0	Port for USB devices (Generic)
USB Devices - G	USB-A socket 2.0	Port for USB devices (Generic)
Keyb./Mouse	USB-A socket 2.0	Port for keyboard and mouse
DP Out	DisplayPort socket	Port for monitor

Aperture designation	Design	Description
Transmission 1	LC-Duplex socket	Data transmission to computer module or matrix switch over IP network (FIBER)
Transmission 2	LC-Duplex socket	Data transmission to computer module or matrix switch over IP network redundant (FIBER)
Service	Micro-USB socket	Port for service purposes
Network	RJ45 socket	Port for IP network
Power	Mini-DIN 4 socket	Power supply DC
