VisionXS-IP-CPU-F(M)-DP-UHR-UG-DT

Item no. A1110483
Back to last view
Displayport™ 1.24K / UHDKVM-over-IP™Compressed1 VideochannelEmbeddedUSBRedundant power supplyInternal power supply Network connection (including monitoring)Computer module
KVM-over-IP computer module to extend DisplayPort1.2 signals, transmission via fiber multimode and over IP-based networks
Request product now
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

The matrix-compatible KVM-over-IP extenders of the VisionXS-IP-DP-UHR series

extend keyboard, video, and mouse signals, as well as other peripheral data (e.g., audio and USB), via a standardized IP network infrastructure with CAT or fiber connection (up to 10,000 m). An extender system consists of a computer module (CPU) and a compatible console module (CON). Computers can be controlled in near real-time – both in extender and matrix applications. The VisionXS-IP-DP-UHR series supports DisplayPort1.2 for ultra-high-resolution video up to 4096 × 2160 (60 Hz) or 5120 × 2160 (50 Hz). Video data is processed pixel-perfectly and offers excellent hand-eye coordination, thanks to bluedec™ – G&D's advanced, multi-stage, lossless compression technology.

Video
  • bluedec™ – advanced developed multi-stage compression for best video quality and practically latency-free transmission. This method enables pixel-perfect video transmission with efficient bandwidth use.
  • Resolution up to
    5120 × 2160 @ 50 Hz,
    5120 × 1440 @ 60 Hz,
    4096 × 2160 @ 60 Hz,
    2560 × 1440 @ 144 Hz,
    1920 × 1080 @ 240 Hz
Signals
  • Encrypted keyboard and mouse data (AES-256), encrypted video and control data (AES-128)
  • Embedded stereo audio (DisplayPort Digital, 2 channel LPCM, AC3, DTS,
    sampling rate up to 192 kHz)
  • GenericUSB support for USB classes HID (Human Interface Device), SmartCard and mass storage
  • The product allows the simultaneous use of up to five GenericUSB devices via a console module. For this, both the used console module and the used computer module must support the use of up to five GenericUSB devices.
Transmission
  • KVM-over-IP™ over IP-based networks (layer 3)
  • The transmission distance between two active network components is up to 400 meters over fiber multimode optics, incl. transmission module(s)/SFP transceiver(s)
Device
  • Efficient mounting solutions that require less screws save space, time and costs
  • Particularly small design
  • Internal power pack for main power supply
Operation
  • Multilingual web application Config Panel 21 for configuration, monitoring and updates (HTML5, Java-free)
  • Multilingual on-screen display for configuration and operation
Security features
  • secure and trouble-free operation through pairing and encryption with AES-256 or AES-128 (cannot be manipulated)
  • With the Monitoring function, you can auto-output device status messages to Syslog servers or SNMP. The web interface lets you monitor the device manually.
  • additional, independent management interface
  • galvanic isolation of transmitter and receiver, less sensitive to interference radiation
  • The 2-factor authentication (2FA) is included as standard with KVM extenders and provides a higher level of security by ensuring that only authorized users have access to the system.This involves the use of a Time-Based-One-Time-Password (TOTP) which is a password valid for a limited time and can be applied only once. Authenticator apps or hardware tokens can be used. Likewise, you can freely select whether you want to employ the internal authentication server provided in the device or an external directory service.
Operation features
  • Due to predefined IP addresses, plug & play is supported for the modules. Therefore it couldn’t be easier to use existing network infrastructures to put the modules into operation in a 1:1 connection.
  • Quality of Service support with user configuration option
  • users can configure network ports of the respective communication channels
  • manual bandwidth management to adjust the required bandwidth
Device
  • redundant, external power supply
System expansion
  • integrated matrix support for use in combination with a ControlCenter-IP or ControlCenter-IP-XS
  • No additional hardware is required to use transmission redundancy. Instead, the devices (console and computer modules) are already prepared for this. The function can be activated, even later, via a software feature key. Additional redundancy modules (SFP transceiver fiber) are available for the fiber variants.
  • Mix & match in the KVM-over-IP product family:
    Select the appropriate KVM-over-IP extender system from our product portfolio. The modules of this product family are compatible with each other thus providing you with virtually limitless technical possibilities.
  • However, data transmission with KVM-over-IP technology is not compatible with classic KVM extenders from G&D.
GeneralProduct group KVM extenders
KVM matrix systems
TransmissionKVM-over-IP™ Transmission yes
Number of transmission channels 1
Redundant transmission channels optional redundant KVM transmission
Range 26 m (62.5/125µm)
33 m (62.5/125µm, OM1 - 200MHz*km)
66 m (50.0/125µm)
82 m (50.0/125µm, OM3 - 2000MHz*km)
300 m (50.0/125µm, OM3 - 2000MHz*km)
400 m (50.0/125µm, OM4 - 4700MHz*km)
Laser class Class 1
Type of interface LC-Duplex
Wavelength 850 nm
KVM matrix system component Computer module
Medium Fiber MM
Data rate 10 Gbit/s
Video inputNumber of video channels 1
Format DisplayPort 1.2
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Colour depth 24 bit
Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate ca. 25 MPixel/s to ca. 600 MPixel/s
Vertical frequency 24 Hz to 240 Hz
Horizontal frequency 25 kHz to 295 kHz
Exemplary resolutions 4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
5120 × 1440 (60 Hz)
5120 × 2160 (50 Hz)
Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Supported industry standards Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
AudioTransmission type 2-channel LPCM
Stereo
DTS
AC3
Resolutions 24 bit
20 bit
16 bit
Sampling rate up to 192 kHz
Audio support Digital Embedded
USBSpecification USB 2.0
GenericUSB support up to 5 devices
Medium Embedded
Transmission rate 25 Mbit/s (Full Speed)
USB classes Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
NetworkMedium 1 CAT5
CAT6
CAT7
Data rate 1 10 MBit/s
100 MBit/s
MaintenanceUpdate via ConfigPanel (Network)
Serviceport settings 115200bps (8/N/1)
HousingMaterial anodised aluminium
Width ca. 170 mm
Height ca. 40 mm
Depth ca. 184 mm
IP protection class IP20
Operating conditionsOperating temperature 5 °C to 45 °C
Operating air humidity 20 % to 80 %, non-condensing
Area of application Interior
Maximum operating altitude 3048m above sea level
Storage temperature -20 °C to 60 °C
Storage air humidity 15 % to 85 %, non-condensing
MTBF 200000 h at 25°C
Conformities CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supplyInput voltage 12 VDC
Current consumption 1.5 A
Power consumption idle 14.3 W
Power consumption max. 16.7 W
Heat output idle 14.3 W
Heat output max. 16.7 W
Power supply 2Input voltage 100-240 VAC
Input frequency 60-50 Hz
Current consumption 0.4-0.3 A
Power consumption idle 16.2-15.7 W
Power consumption max. 18.9-18.4 W
Heat output idle 18.9-18.4 W
Heat output max. 18.9-18.4 W

Product comparison

Technical data
VisionXS-IP-CPU-F(M)-DP-UHR
Item no. A1110264
VisionXS-IP-CPU-F(M)-DP-UHR-A
Item no. A1110265
VisionXS-IP-CPU-F(M)-DP-UHR-A-UG
Item no. A1110480
VisionXS-IP-CPU-F(M)-DP-UHR-AR-DT
Item no. A1110266
VisionXS-IP-CPU-F(M)-DP-UHR-AR-UG-DT
Item no. A1110482
VisionXS-IP-CPU-F(M)-DP-UHR-DT
Item no. A1110267
VisionXS-IP-CPU-F(M)-DP-UHR-UG
Item no. A1110481
selected variant
VisionXS-IP-CPU-F(M)-DP-UHR-UG-DT
Item no. A1110483
GeneralGeneralGeneralGeneralGeneralGeneralGeneralGeneral
General Product group
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
KVM matrix systems
Product group
KVM extenders
KVM matrix systems
TransmissionTransmissionTransmissionTransmissionTransmissionTransmissionTransmissionTransmission
Transmission KVM-over-IP™ Transmission
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
KVM-over-IP™ Transmission
yes
Number of transmission channels
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Number of transmission channels
1
Redundant transmission channels
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Redundant transmission channels
optional redundant KVM transmission
Range
Range
26 m (62.5/125µm)
33 m (62.5/125µm, OM1 - 200MHz*km)
66 m (50.0/125µm)
82 m (50.0/125µm, OM3 - 2000MHz*km)
300 m (50.0/125µm, OM3 - 2000MHz*km)
400 m (50.0/125µm, OM4 - 4700MHz*km)
Range
26 m (62.5/125µm)
33 m (62.5/125µm, OM1 - 200MHz*km)
66 m (50.0/125µm)
82 m (50.0/125µm, OM3 - 2000MHz*km)
300 m (50.0/125µm, OM3 - 2000MHz*km)
400 m (50.0/125µm, OM4 - 4700MHz*km)
Range
26 m (62.5/125µm)
33 m (62.5/125µm, OM1 - 200MHz*km)
66 m (50.0/125µm)
82 m (50.0/125µm, OM3 - 2000MHz*km)
300 m (50.0/125µm, OM3 - 2000MHz*km)
400 m (50.0/125µm, OM4 - 4700MHz*km)
Range
26 m (62.5/125µm)
33 m (62.5/125µm, OM1 - 200MHz*km)
66 m (50.0/125µm)
82 m (50.0/125µm, OM3 - 2000MHz*km)
300 m (50.0/125µm, OM3 - 2000MHz*km)
400 m (50.0/125µm, OM4 - 4700MHz*km)
Range
26 m (62.5/125µm)
33 m (62.5/125µm, OM1 - 200MHz*km)
66 m (50.0/125µm)
82 m (50.0/125µm, OM3 - 2000MHz*km)
300 m (50.0/125µm, OM3 - 2000MHz*km)
400 m (50.0/125µm, OM4 - 4700MHz*km)
Range
26 m (62.5/125µm)
33 m (62.5/125µm, OM1 - 200MHz*km)
66 m (50.0/125µm)
82 m (50.0/125µm, OM3 - 2000MHz*km)
300 m (50.0/125µm, OM3 - 2000MHz*km)
400 m (50.0/125µm, OM4 - 4700MHz*km)
Range
26 m (62.5/125µm)
33 m (62.5/125µm, OM1 - 200MHz*km)
66 m (50.0/125µm)
82 m (50.0/125µm, OM3 - 2000MHz*km)
300 m (50.0/125µm, OM3 - 2000MHz*km)
400 m (50.0/125µm, OM4 - 4700MHz*km)
Range
26 m (62.5/125µm)
33 m (62.5/125µm, OM1 - 200MHz*km)
66 m (50.0/125µm)
82 m (50.0/125µm, OM3 - 2000MHz*km)
300 m (50.0/125µm, OM3 - 2000MHz*km)
400 m (50.0/125µm, OM4 - 4700MHz*km)
Laser class
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Laser class
Class 1
Type of interface
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Type of interface
LC-Duplex
Wavelength
Wavelength
850 nm
Wavelength
850 nm
Wavelength
850 nm
Wavelength
850 nm
Wavelength
850 nm
Wavelength
850 nm
Wavelength
850 nm
Wavelength
850 nm
KVM matrix system component
KVM matrix system component
Computer module
KVM matrix system component
Computer module
KVM matrix system component
Computer module
KVM matrix system component
Computer module
KVM matrix system component
Computer module
KVM matrix system component
Computer module
KVM matrix system component
Computer module
KVM matrix system component
Computer module
Medium
Medium
Fiber MM
Medium
Fiber MM
Medium
Fiber MM
Medium
Fiber MM
Medium
Fiber MM
Medium
Fiber MM
Medium
Fiber MM
Medium
Fiber MM
Data rate
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Data rate
10 Gbit/s
Video inputVideo inputVideo inputVideo inputVideo inputVideo inputVideo inputVideo input
Video input Number of video channels
Number of video channels
1
Number of video channels
1
Number of video channels
1
Number of video channels
1
Number of video channels
1
Number of video channels
1
Number of video channels
1
Number of video channels
1
Format
Format
DisplayPort 1.2
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
DisplayPort 1.2
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
DisplayPort 1.2
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
DisplayPort 1.2
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
DisplayPort 1.2
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
DisplayPort 1.2
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
DisplayPort 1.2
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Format
DisplayPort 1.2
(LBR, HBR, HBR2, SingleStream-Transport (SST))
Colour depth
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Colour depth
24 bit
Pixel encoding
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel encoding
RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Pixel rate
ca. 25 MPixel/s to ca. 600 MPixel/s
Vertical frequency
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Vertical frequency
24 Hz to 240 Hz
Horizontal frequency
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Horizontal frequency
25 kHz to 295 kHz
Exemplary resolutions
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
5120 × 1440 (60 Hz)
5120 × 2160 (50 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
5120 × 1440 (60 Hz)
5120 × 2160 (50 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
5120 × 1440 (60 Hz)
5120 × 2160 (50 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
5120 × 1440 (60 Hz)
5120 × 2160 (50 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
5120 × 1440 (60 Hz)
5120 × 2160 (50 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
5120 × 1440 (60 Hz)
5120 × 2160 (50 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
5120 × 1440 (60 Hz)
5120 × 2160 (50 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Exemplary resolutions
4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2560 × 1440 (144 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (240 Hz)
1920 × 1080 (60 Hz)
5120 × 1440 (60 Hz)
5120 × 2160 (50 Hz)
Further VESA and CTA standardised
resolutions possible within pixel rate and horizontal/vertical frequency.
Supported industry standards
Supported industry standards
Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Supported industry standards
Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Supported industry standards
Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Supported industry standards
Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Supported industry standards
Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Supported industry standards
Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Supported industry standards
Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
Supported industry standards
Display Data Channel Command Interface (DDC/CI)
Extended Display Identification Data (EDID)
SerialSerialSerialSerialSerialSerialSerialSerial
Serial Standard
Standard
Value not available
Standard
Value not available
Standard
Value not available
Standard
RS232
Standard
RS232
Standard
Value not available
Standard
Value not available
Standard
Value not available
Transparent transmission
Transparent transmission
Value not available
Transparent transmission
Value not available
Transparent transmission
Value not available
Transparent transmission
yes
Transparent transmission
yes
Transparent transmission
Value not available
Transparent transmission
Value not available
Transparent transmission
Value not available
Data rate
Data rate
Value not available
Data rate
Value not available
Data rate
Value not available
Data rate
115200 bps
Data rate
115200 bps
Data rate
Value not available
Data rate
Value not available
Data rate
Value not available
Signals
Signals
Value not available
Signals
Value not available
Signals
Value not available
Signals
TxD
RxD
RTS
CTS
GND
5V
Signals
TxD
RxD
RTS
CTS
GND
5V
Signals
Value not available
Signals
Value not available
Signals
Value not available
NetworkNetworkNetworkNetworkNetworkNetworkNetworkNetwork
Network Medium 1
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Medium 1
CAT5
CAT6
CAT7
Data rate 1
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
Data rate 1
10 MBit/s
100 MBit/s
MaintenanceMaintenanceMaintenanceMaintenanceMaintenanceMaintenanceMaintenanceMaintenance
Maintenance Update via
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Update via
ConfigPanel (Network)
Serviceport settings
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
Serviceport settings
115200bps (8/N/1)
HousingHousingHousingHousingHousingHousingHousingHousing
Housing Material
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Material
anodised aluminium
Width
Width
ca. 109 mm
Width
ca. 109 mm
Width
ca. 109 mm
Width
ca. 170 mm
Width
ca. 170 mm
Width
ca. 170 mm
Width
ca. 109 mm
Width
ca. 170 mm
Height
Height
ca. 40 mm
Height
ca. 40 mm
Height
ca. 40 mm
Height
ca. 40 mm
Height
ca. 40 mm
Height
ca. 40 mm
Height
ca. 40 mm
Height
ca. 40 mm
Depth
Depth
ca. 184 mm
Depth
ca. 184 mm
Depth
ca. 184 mm
Depth
ca. 184 mm
Depth
ca. 184 mm
Depth
ca. 184 mm
Depth
ca. 184 mm
Depth
ca. 184 mm
IP protection class
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
IP protection class
IP20
Weight
Weight
ca. 0.92 kg
Weight
ca. 0.93 kg
Weight
Value not available
Weight
ca. 1.31 kg
Weight
ca. 1.31 kg
Weight
ca. 1.31 kg
Weight
ca. 0.92 kg
Weight
Value not available
Operating conditionsOperating conditionsOperating conditionsOperating conditionsOperating conditionsOperating conditionsOperating conditionsOperating conditions
Operating conditions Operating temperature
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 35 °C
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 35 °C
Operating temperature
5 °C to 45 °C
Operating temperature
5 °C to 45 °C
Operating air humidity
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Operating air humidity
20 % to 80 %, non-condensing
Area of application
Area of application
Interior
Area of application
Interior
Area of application
Interior
Area of application
Interior
Area of application
Interior
Area of application
Interior
Area of application
Interior
Area of application
Interior
Maximum operating altitude
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Maximum operating altitude
3048m above sea level
Storage temperature
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage temperature
-20 °C to 60 °C
Storage air humidity
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
Storage air humidity
15 % to 85 %, non-condensing
MTBF
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
MTBF
200000 h at 25°C
Conformities
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Conformities
CE compliant (see downloads)
UKCA compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supplyPower supplyPower supplyPower supplyPower supplyPower supplyPower supplyPower supply
Power supply Input voltage
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Input voltage
12 VDC
Current consumption
Current consumption
1.5 A
Current consumption
1.5 A
Current consumption
1.5 A
Current consumption
1.5 A
Current consumption
1.5 A
Current consumption
1.5 A
Current consumption
1.5 A
Current consumption
1.5 A
Power consumption idle
Power consumption idle
14.3 W
Power consumption idle
14.3 W
Power consumption idle
14.3 W
Power consumption idle
14.3 W
Power consumption idle
14.3 W
Power consumption idle
14.3 W
Power consumption idle
14.3 W
Power consumption idle
14.3 W
Power consumption max.
Power consumption max.
16.7 W
Power consumption max.
16.7 W
Power consumption max.
16.7 W
Power consumption max.
16.7 W
Power consumption max.
16.7 W
Power consumption max.
16.7 W
Power consumption max.
16.7 W
Power consumption max.
16.7 W
Heat output idle
Heat output idle
14.3 W
Heat output idle
14.3 W
Heat output idle
14.3 W
Heat output idle
14.3 W
Heat output idle
14.3 W
Heat output idle
14.3 W
Heat output idle
14.3 W
Heat output idle
14.3 W
Heat output max.
Heat output max.
16.7 W
Heat output max.
16.7 W
Heat output max.
16.7 W
Heat output max.
16.7 W
Heat output max.
16.7 W
Heat output max.
16.7 W
Heat output max.
16.7 W
Heat output max.
16.7 W
Power supply 2Power supply 2Power supply 2Power supply 2Power supply 2Power supply 2Power supply 2Power supply 2
Power supply 2 Input voltage
Input voltage
Value not available
Input voltage
Value not available
Input voltage
Value not available
Input voltage
100-240 VAC
Input voltage
100-240 VAC
Input voltage
100-240 VAC
Input voltage
Value not available
Input voltage
100-240 VAC
Input frequency
Input frequency
Value not available
Input frequency
Value not available
Input frequency
Value not available
Input frequency
60-50 Hz
Input frequency
60-50 Hz
Input frequency
60-50 Hz
Input frequency
Value not available
Input frequency
60-50 Hz
Current consumption
Current consumption
Value not available
Current consumption
Value not available
Current consumption
Value not available
Current consumption
0.4-0.3 A
Current consumption
0.4-0.3 A
Current consumption
0.4-0.3 A
Current consumption
Value not available
Current consumption
0.4-0.3 A
Power consumption idle
Power consumption idle
Value not available
Power consumption idle
Value not available
Power consumption idle
Value not available
Power consumption idle
16.2-15.7 W
Power consumption idle
16.2-15.7 W
Power consumption idle
16.2-15.7 W
Power consumption idle
Value not available
Power consumption idle
16.2-15.7 W
Power consumption max.
Power consumption max.
Value not available
Power consumption max.
Value not available
Power consumption max.
Value not available
Power consumption max.
18.9-18.4 W
Power consumption max.
18.9-18.4 W
Power consumption max.
18.9-18.4 W
Power consumption max.
Value not available
Power consumption max.
18.9-18.4 W
Heat output idle
Heat output idle
Value not available
Heat output idle
Value not available
Heat output idle
Value not available
Heat output idle
18.9-18.4 W
Heat output idle
18.9-18.4 W
Heat output idle
18.9-18.4 W
Heat output idle
Value not available
Heat output idle
18.9-18.4 W
Heat output max.
Heat output max.
Value not available
Heat output max.
Value not available
Heat output max.
Value not available
Heat output max.
18.9-18.4 W
Heat output max.
18.9-18.4 W
Heat output max.
18.9-18.4 W
Heat output max.
Value not available
Heat output max.
18.9-18.4 W
AudioAudioAudioAudioAudioAudioAudioAudio
Audio Transmission type
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Transmission type
2-channel LPCM
Stereo
DTS
AC3
Resolutions
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Resolutions
24 bit
20 bit
16 bit
Sampling rate
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Sampling rate
up to 192 kHz
Audio support
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio support
Digital Embedded
Audio 2Audio 2Audio 2Audio 2Audio 2Audio 2Audio 2Audio 2
Audio 2 Transmission type
Transmission type
Value not available
Transmission type
Stereo
Transparent
Transmission type
Stereo
Transparent
Transmission type
Stereo
Transparent
Transmission type
Stereo
Transparent
Transmission type
Value not available
Transmission type
Value not available
Transmission type
Value not available
Resolutions
Resolutions
Value not available
Resolutions
24 bit digital
Resolutions
24 bit digital
Resolutions
24 bit digital
Resolutions
24 bit digital
Resolutions
Value not available
Resolutions
Value not available
Resolutions
Value not available
Sampling rate
Sampling rate
Value not available
Sampling rate
up to 96 kHz
Sampling rate
up to 96 kHz
Sampling rate
up to 96 kHz
Sampling rate
up to 96 kHz
Sampling rate
Value not available
Sampling rate
Value not available
Sampling rate
Value not available
Bandwidth
Bandwidth
Value not available
Bandwidth
22 kHz
Bandwidth
22 kHz
Bandwidth
22 kHz
Bandwidth
22 kHz
Bandwidth
Value not available
Bandwidth
Value not available
Bandwidth
Value not available
Audio support
Audio support
Value not available
Audio support
Analog
Audio support
Analog
Audio support
Analog
Audio support
Analog
Audio support
Value not available
Audio support
Value not available
Audio support
Value not available
USBUSBUSBUSBUSBUSBUSBUSB
USB Specification
Specification
USB 2.0
Specification
USB 2.0
Specification
USB 2.0
Specification
USB 2.0
Specification
USB 2.0
Specification
USB 2.0
Specification
USB 2.0
Specification
USB 2.0
GenericUSB support
GenericUSB support
1 device
GenericUSB support
1 device
GenericUSB support
up to 5 devices
GenericUSB support
1 device
GenericUSB support
up to 5 devices
GenericUSB support
1 device
GenericUSB support
up to 5 devices
GenericUSB support
up to 5 devices
Medium
Medium
Embedded
Medium
Embedded
Medium
Embedded
Medium
Embedded
Medium
Embedded
Medium
Embedded
Medium
Embedded
Medium
Embedded
Transmission rate
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
Transmission rate
25 Mbit/s (Full Speed)
USB classes
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard
USB classes
Mass Storage (MSC / UMS)
Human Interface Device (HID)
SmartCard

Interfaces

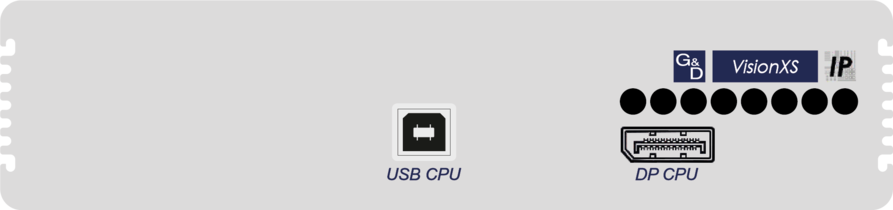

Aperture designationDesignDescription
USB CPUUSB-B socket 2.0Connection to computer - USB
DP CPUDisplayPort socketConnection to computer - Video
Aperture designationDesignDescription
Transmission 1LC-Duplex socketData transmission to console module or matrix switch over IP network (FIBER)
Transmission 2LC-Duplex socketData transmission to console module or matrix switch over IP network redundant (FIBER)
ServiceMicro-USB socketPort for service purposes
NetworkRJ45 socketPort for IP network
Main PowerMini-DIN 4 socketPower supply DC
Red. PowerIEC plug 320 C14Power supply AC redundant

Downloads

Manuals
Declarations of Conformity
Date Sheets

G&D Contact

The best way to talk about complex topics is in person. Via chat, e-mail, phone or in a personal demo remote or on-site.

Subscribe to our newsletter
Subscribe to our newsletter
Book a demo in the ControlCenter-Xperience
Book a demo in the ControlCenter-Xperience
Contact us for your individual request
Contact us for your individual request
Cancel Compare now
Contact Support
top
