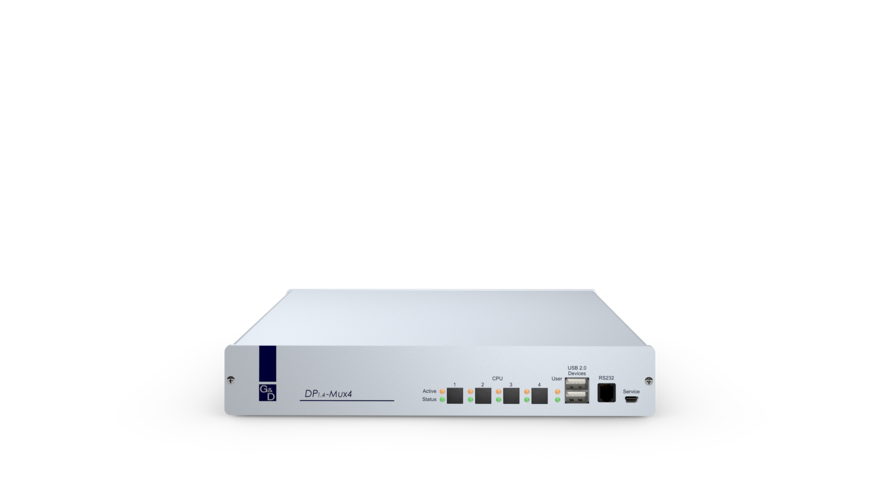

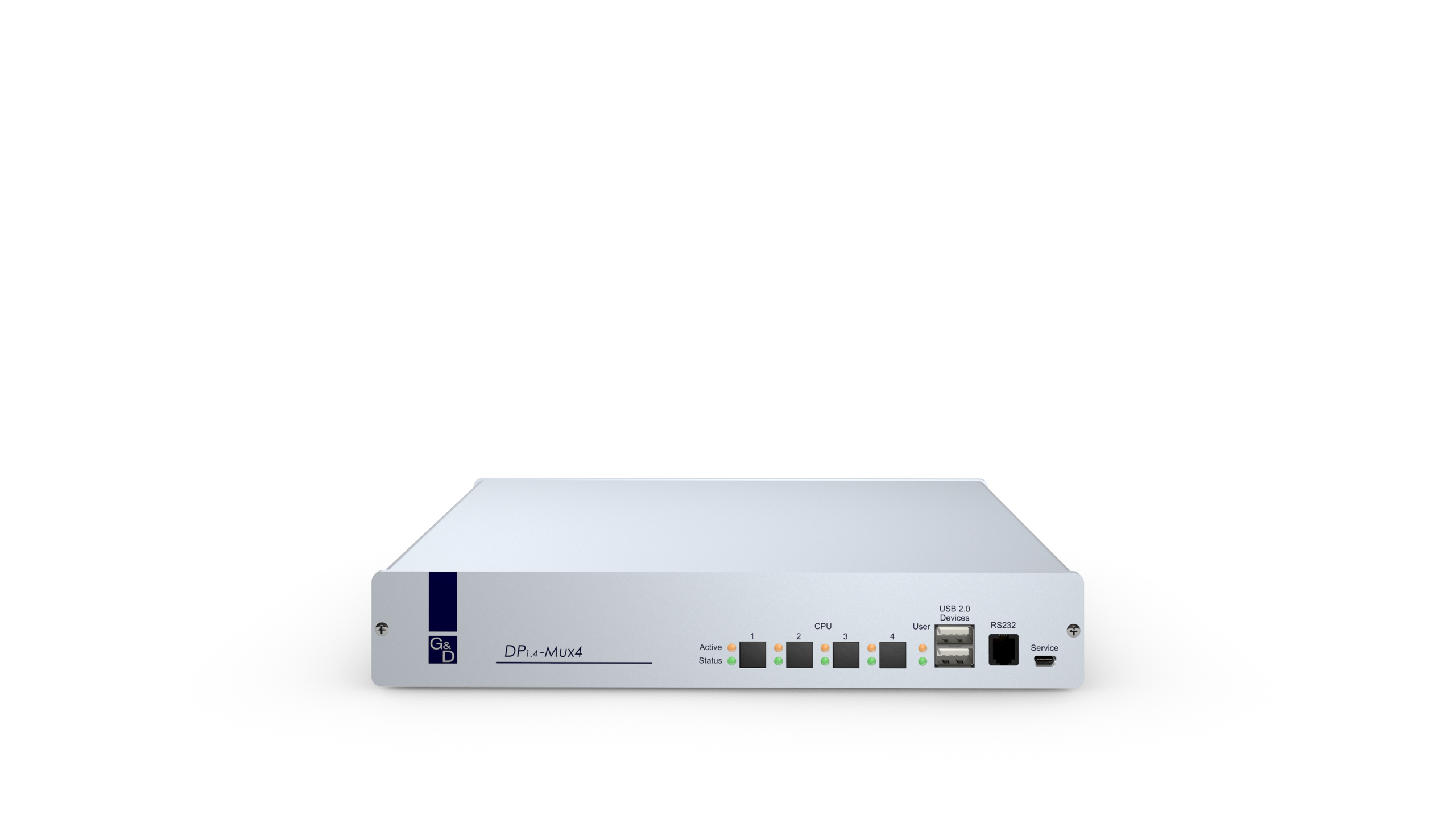

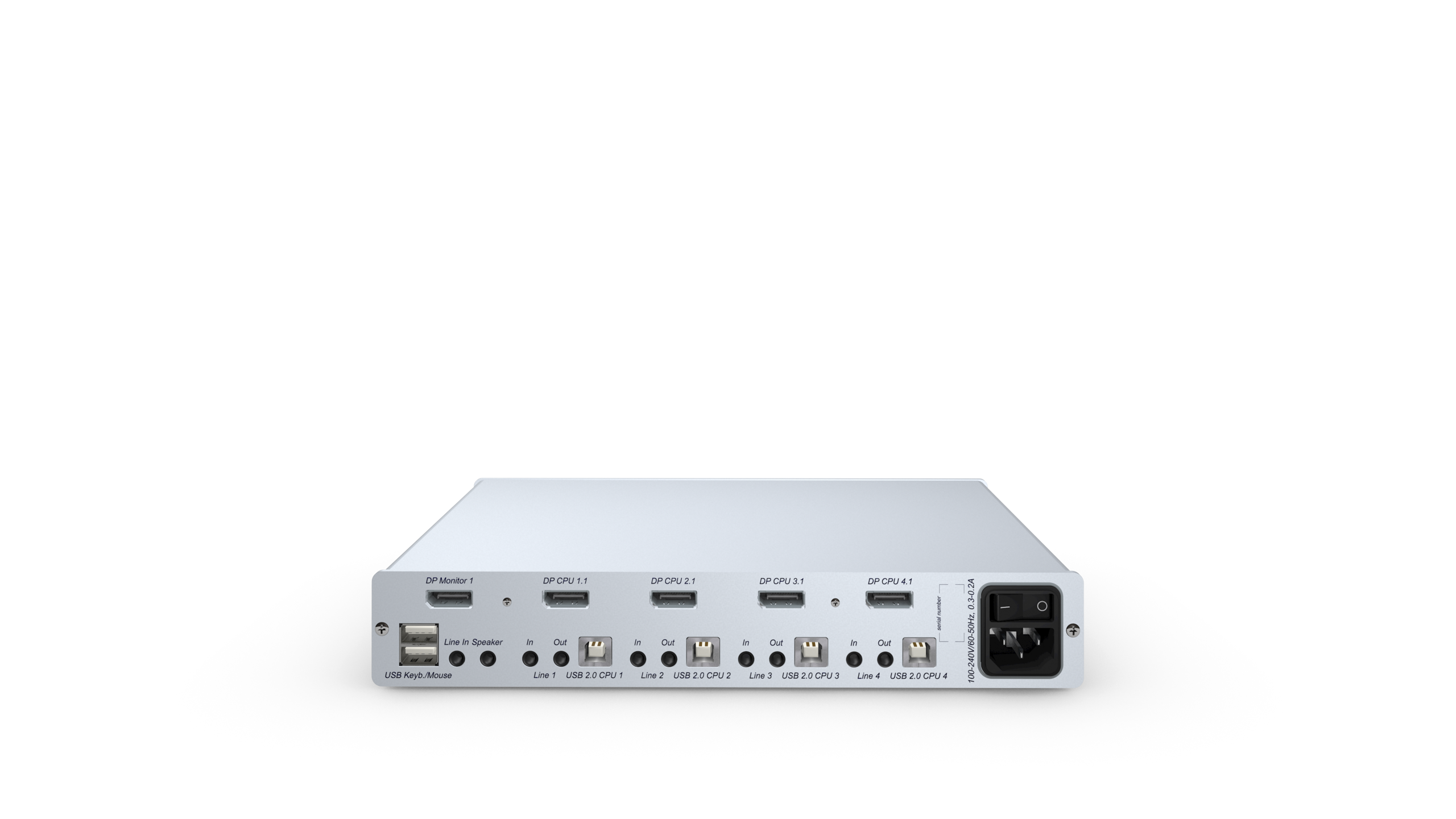

lets you operate up to four computers with DisplayPort 1.4 via one workplace. Switching between computers is done either via the push buttons on the front panel, configurable key combinations or a serial device.
Access to standard interfaces of the computer, with no software installation required
| General | Product group |
KVM switches |
|---|---|---|
| Number of workstations |
1 | |
| Number of sources |
4 | |
| Input options | USB mouse |
yes |
| USB keyboard |
yes | |
| Video input | Number of video channels |
1 |
| Format |
DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | |
| Colour depth |
24 bit | |
| Pixel encoding |
RGB 4:4:4 (24 bpp / 8 bpc) | |
| Pixel rate |
ca. 25 MPixel/s to ca. 1080 MPixel/s | |
| Vertical frequency |
20 Hz to 240 Hz | |
| Horizontal frequency |
25 kHz to 390 kHz | |
| Exemplary resolutions |
7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Supported industry standards |
Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | |
| Note |
The supported industry standards cannot be guaranteed for all monitor models. | |
| Video output | Number of video channels |
1 |
| Format |
DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | |
| Colour depth |
24 bit | |
| Pixel encoding |
RGB 4:4:4 (24 bpp / 8 bpc) | |
| Pixel rate |
ca. 25 MPixel/s to ca. 1080 MPixel/s | |
| Vertical frequency |
20 Hz to 240 Hz | |
| Horizontal frequency |
25 kHz to 390 kHz | |
| Exemplary resolutions |
7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Supported industry standards |
Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | |
| Note |
The supported industry standards cannot be guaranteed for all monitor models. | |
| Audio | Transmission type |
Bidirectional Stereo |
| Resolutions |
24 bit digital | |
| Sampling rate |
up to 96 kHz | |
| Bandwidth |
22 kHz | |
| Audio support |
Analog | |
| Audio 2 | Transmission type |
LPCM (2/4/6/8 channels) Stereo |
| Resolutions |
24 bit 20 bit 16 bit | |
| Sampling rate |
32 kHz 44,1 kHz 48 kHz 88,2 kHz 96 kHz 176,4 kHz 192 kHz | |
| Audio support |
Digital Embedded | |
| USB | Specification |
USB 2.0 |
| Transmission rate |
16 Mbit/s (Full Speed) | |
| USB classes |
All | |
| Maintenance | Update via |
Update Wizard (service interface) |
| Serviceport settings |
115200bps (8/N/1) | |
| Housing | Material |
anodised aluminium |
| Width |
ca. 270 mm | |
| Height |
ca. 44 mm | |
| Depth |
ca. 210 mm | |
| IP protection class |
IP20 | |
| Weight |
ca. 1.41 kg | |
| Operating conditions | Operating temperature |
5 °C to 45 °C |
| Operating air humidity |
20 % to 80 %, non-condensing | |
| Area of application |
Interior | |
| Maximum operating altitude |
3048m above sea level | |
| Storage temperature |
-20 °C to 60 °C | |
| Storage air humidity |
15 % to 85 %, non-condensing | |
| MTBF |
200000 h at 25°C | |
| Conformities |
CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | |
| Power supply | Input voltage |
100-240 VAC |
| Input frequency |
60-50 Hz | |
| Current consumption |
0.3-0.2 A | |
| Power consumption max. |
12 W | |
| Heat output max. |
5 W |
Technical data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| General | General | General | General | General | General | ||||
| General | Product group | Product group KVM switches | Product group KVM switches | Product group KVM switches | Product group KVM switches | Product group KVM switches | Product group KVM switches | ||
| Number of workstations | Number of workstations 1 | Number of workstations 1 | Number of workstations 1 | Number of workstations 1 | Number of workstations 1 | Number of workstations 1 | |||
| Number of sources | Number of sources 4 | Number of sources 4 | Number of sources 4 | Number of sources 4 | Number of sources 4 | Number of sources 4 | |||
| Input options | Input options | Input options | Input options | Input options | Input options | ||||
| Input options | USB mouse | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | USB mouse yes | ||
| USB keyboard | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | USB keyboard yes | |||
| Video input | Video input | Video input | Video input | Video input | Video input | ||||
| Video input | Number of video channels | Number of video channels 2 | Number of video channels 2 | Number of video channels 3 | Number of video channels 4 | Number of video channels 1 | Number of video channels 1 | ||
| Format | Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | |||
| Colour depth | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | |||
| Pixel encoding | Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc) | Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc) | Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc) | Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc) | Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc) | Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc) | |||
| Pixel rate | Pixel rate ca. 25 MPixel/s to ca. 1080 MPixel/s | Pixel rate ca. 25 MPixel/s to ca. 1080 MPixel/s | Pixel rate ca. 25 MPixel/s to ca. 1080 MPixel/s | Pixel rate ca. 25 MPixel/s to ca. 1080 MPixel/s | Pixel rate ca. 25 MPixel/s to ca. 1080 MPixel/s | Pixel rate ca. 25 MPixel/s to ca. 1080 MPixel/s | |||
| Vertical frequency | Vertical frequency 20 Hz to 240 Hz | Vertical frequency 20 Hz to 240 Hz | Vertical frequency 20 Hz to 240 Hz | Vertical frequency 20 Hz to 240 Hz | Vertical frequency 20 Hz to 240 Hz | Vertical frequency 20 Hz to 240 Hz | |||
| Horizontal frequency | Horizontal frequency 25 kHz to 390 kHz | Horizontal frequency 25 kHz to 390 kHz | Horizontal frequency 25 kHz to 390 kHz | Horizontal frequency 25 kHz to 390 kHz | Horizontal frequency 25 kHz to 390 kHz | Horizontal frequency 25 kHz to 390 kHz | |||
| Exemplary resolutions | Exemplary resolutions 7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |||
| Note | Note The supported industry standards cannot be guaranteed for all monitor models. | Note The supported industry standards cannot be guaranteed for all monitor models. | Note The supported industry standards cannot be guaranteed for all monitor models. | Note The supported industry standards cannot be guaranteed for all monitor models. | Note The supported industry standards cannot be guaranteed for all monitor models. | Note The supported industry standards cannot be guaranteed for all monitor models. | |||
| Supported industry standards | Supported industry standards Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | Supported industry standards Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | Supported industry standards Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | Supported industry standards Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | Supported industry standards Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | Supported industry standards Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | |||
| Video output | Video output | Video output | Video output | Video output | Video output | ||||
| Video output | Number of video channels | Number of video channels 2 | Number of video channels 2 | Number of video channels 3 | Number of video channels 4 | Number of video channels 1 | Number of video channels 1 | ||
| Format | Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | Format DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC)) | |||
| Colour depth | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | Colour depth 24 bit | |||
| Pixel encoding | Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc) | Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc) | Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc) | Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc) | Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc) | Pixel encoding RGB 4:4:4 (24 bpp / 8 bpc) | |||
| Pixel rate | Pixel rate ca. 25 MPixel/s to ca. 1080 MPixel/s | Pixel rate ca. 25 MPixel/s to ca. 1080 MPixel/s | Pixel rate ca. 25 MPixel/s to ca. 1080 MPixel/s | Pixel rate ca. 25 MPixel/s to ca. 1080 MPixel/s | Pixel rate ca. 25 MPixel/s to ca. 1080 MPixel/s | Pixel rate ca. 25 MPixel/s to ca. 1080 MPixel/s | |||
| Vertical frequency | Vertical frequency 20 Hz to 240 Hz | Vertical frequency 20 Hz to 240 Hz | Vertical frequency 20 Hz to 240 Hz | Vertical frequency 20 Hz to 240 Hz | Vertical frequency 20 Hz to 240 Hz | Vertical frequency 20 Hz to 240 Hz | |||
| Horizontal frequency | Horizontal frequency 25 kHz to 390 kHz | Horizontal frequency 25 kHz to 390 kHz | Horizontal frequency 25 kHz to 390 kHz | Horizontal frequency 25 kHz to 390 kHz | Horizontal frequency 25 kHz to 390 kHz | Horizontal frequency 25 kHz to 390 kHz | |||
| Exemplary resolutions | Exemplary resolutions 7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | Exemplary resolutions 7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |||
| Note | Note The supported industry standards cannot be guaranteed for all monitor models. | Note The supported industry standards cannot be guaranteed for all monitor models. | Note The supported industry standards cannot be guaranteed for all monitor models. | Note The supported industry standards cannot be guaranteed for all monitor models. | Note The supported industry standards cannot be guaranteed for all monitor models. | Note The supported industry standards cannot be guaranteed for all monitor models. | |||
| Supported industry standards | Supported industry standards Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | Supported industry standards Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | Supported industry standards Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | Supported industry standards Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | Supported industry standards Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | Supported industry standards Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC) | |||
| Serial | Serial | Serial | Serial | Serial | Serial | ||||
| Serial | Standard | Standard Value not available | Standard RS232 | Standard Value not available | Standard Value not available | Standard Value not available | Standard RS232 | ||
| Transparent transmission | Transparent transmission Value not available | Transparent transmission yes | Transparent transmission Value not available | Transparent transmission Value not available | Transparent transmission Value not available | Transparent transmission yes | |||
| Data rate | Data rate Value not available | Data rate max. 115200 bps | Data rate Value not available | Data rate Value not available | Data rate Value not available | Data rate max. 115200 bps | |||
| Maintenance | Maintenance | Maintenance | Maintenance | Maintenance | Maintenance | ||||
| Maintenance | Update via | Update via Update Wizard (service interface) | Update via Update Wizard (service interface) | Update via Update Wizard (service interface) | Update via Update Wizard (service interface) | Update via Update Wizard (service interface) | Update via Update Wizard (service interface) | ||
| Serviceport settings | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | Serviceport settings 115200bps (8/N/1) | |||
| Housing | Housing | Housing | Housing | Housing | Housing | ||||
| Housing | Material | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | Material anodised aluminium | ||
| Width | Width ca. 270 mm | Width ca. 270 mm | Width ca. 270 mm | Width ca. 270 mm | Width ca. 270 mm | Width ca. 270 mm | |||
| Height | Height ca. 66 mm | Height ca. 66 mm | Height ca. 88 mm | Height ca. 132 mm | Height ca. 44 mm | Height ca. 66 mm | |||
| Depth | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | Depth ca. 210 mm | |||
| IP protection class | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | IP protection class IP20 | |||
| Weight | Weight ca. 1.63 kg | Weight Value not available | Weight ca. 1.91 kg | Weight ca. 2.15 kg | Weight ca. 1.41 kg | Weight ca. 1.59 kg | |||
| Operating conditions | Operating conditions | Operating conditions | Operating conditions | Operating conditions | Operating conditions | ||||
| Operating conditions | Operating temperature | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | Operating temperature 5 °C to 45 °C | ||
| Operating air humidity | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | Operating air humidity 20 % to 80 %, non-condensing | |||
| Area of application | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | Area of application Interior | |||
| Maximum operating altitude | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | Maximum operating altitude 3048m above sea level | |||
| Storage temperature | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | Storage temperature -20 °C to 60 °C | |||
| Storage air humidity | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | Storage air humidity 15 % to 85 %, non-condensing | |||
| MTBF | MTBF 200000 h at 25°C | MTBF 200000 h at 25°C | MTBF 200000 h at 25°C | MTBF 200000 h at 25°C | MTBF 200000 h at 25°C | MTBF 200000 h at 25°C | |||
| Conformities | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | Conformities CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | |||
| Power supply | Power supply | Power supply | Power supply | Power supply | Power supply | ||||
| Power supply | Input voltage | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | Input voltage 100-240 VAC | ||
| Input frequency | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | Input frequency 60-50 Hz | |||
| Current consumption | Current consumption 0.4-0.2 A | Current consumption 0.4-0.2 A | Current consumption 0.4-0.2 A | Current consumption 0.4-0.2 A | Current consumption 0.3-0.2 A | Current consumption 0.3-0.2 A | |||
| Power consumption max. | Power consumption max. 15 W | Power consumption max. Value not available | Power consumption max. 18 W | Power consumption max. 22 W | Power consumption max. 12 W | Power consumption max. Value not available | |||
| Heat output max. | Heat output max. 6 W | Heat output max. Value not available | Heat output max. 8 W | Heat output max. 10 W | Heat output max. 5 W | Heat output max. Value not available | |||
| Audio | Audio | Audio | Audio | Audio | Audio | ||||
| Audio | Transmission type | Transmission type Bidirectional Stereo | Transmission type Bidirectional Stereo | Transmission type Bidirectional Stereo | Transmission type Bidirectional Stereo | Transmission type Bidirectional Stereo | Transmission type Bidirectional Stereo | ||
| Resolutions | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | Resolutions 24 bit digital | |||
| Sampling rate | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | Sampling rate up to 96 kHz | |||
| Bandwidth | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | Bandwidth 22 kHz | |||
| Audio support | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | Audio support Analog | |||
| Audio 2 | Audio 2 | Audio 2 | Audio 2 | Audio 2 | Audio 2 | ||||
| Audio 2 | Transmission type | Transmission type LPCM (2/4/6/8 channels) Stereo | Transmission type LPCM (2/4/6/8 channels) Stereo | Transmission type LPCM (2/4/6/8 channels) Stereo | Transmission type LPCM (2/4/6/8 channels) Stereo | Transmission type LPCM (2/4/6/8 channels) Stereo | Transmission type LPCM (2/4/6/8 channels) Stereo | ||
| Resolutions | Resolutions 24 bit 20 bit 16 bit | Resolutions 24 bit 20 bit 16 bit | Resolutions 24 bit 20 bit 16 bit | Resolutions 24 bit 20 bit 16 bit | Resolutions 24 bit 20 bit 16 bit | Resolutions 24 bit 20 bit 16 bit | |||
| Sampling rate | Sampling rate 32 kHz 44,1 kHz 48 kHz 88,2 kHz 96 kHz 176,4 kHz 192 kHz | Sampling rate 32 kHz 44,1 kHz 48 kHz 88,2 kHz 96 kHz 176,4 kHz 192 kHz | Sampling rate 32 kHz 44,1 kHz 48 kHz 88,2 kHz 96 kHz 176,4 kHz 192 kHz | Sampling rate 32 kHz 44,1 kHz 48 kHz 88,2 kHz 96 kHz 176,4 kHz 192 kHz | Sampling rate 32 kHz 44,1 kHz 48 kHz 88,2 kHz 96 kHz 176,4 kHz 192 kHz | Sampling rate 32 kHz 44,1 kHz 48 kHz 88,2 kHz 96 kHz 176,4 kHz 192 kHz | |||
| Audio support | Audio support Digital Embedded | Audio support Digital Embedded | Audio support Digital Embedded | Audio support Digital Embedded | Audio support Digital Embedded | Audio support Digital Embedded | |||
| USB | USB | USB | USB | USB | USB | ||||
| USB | Specification | Specification USB 2.0 | Specification USB 2.0 | Specification USB 2.0 | Specification USB 2.0 | Specification USB 2.0 | Specification USB 2.0 | ||
| Transmission rate | Transmission rate 16 Mbit/s (Full Speed) | Transmission rate 16 Mbit/s (Full Speed) | Transmission rate 16 Mbit/s (Full Speed) | Transmission rate 16 Mbit/s (Full Speed) | Transmission rate 16 Mbit/s (Full Speed) | Transmission rate 16 Mbit/s (Full Speed) | |||
| USB classes | USB classes All | USB classes All | USB classes All | USB classes All | USB classes All | USB classes All | |||
