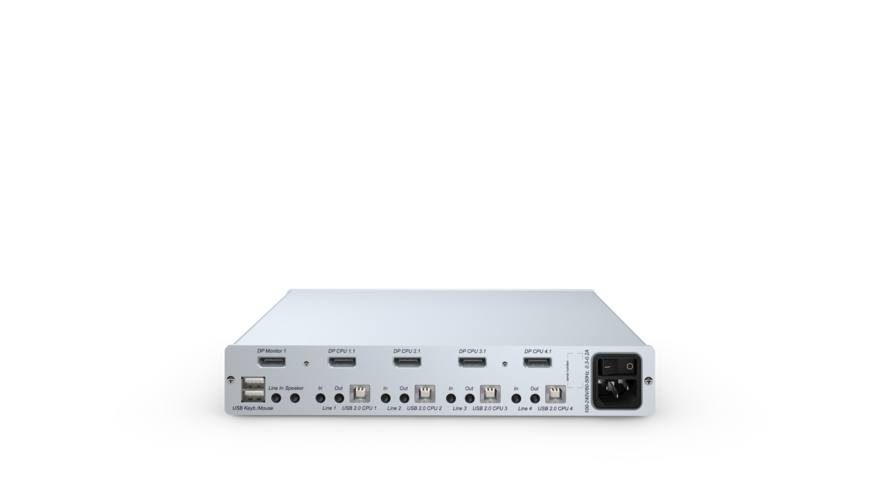

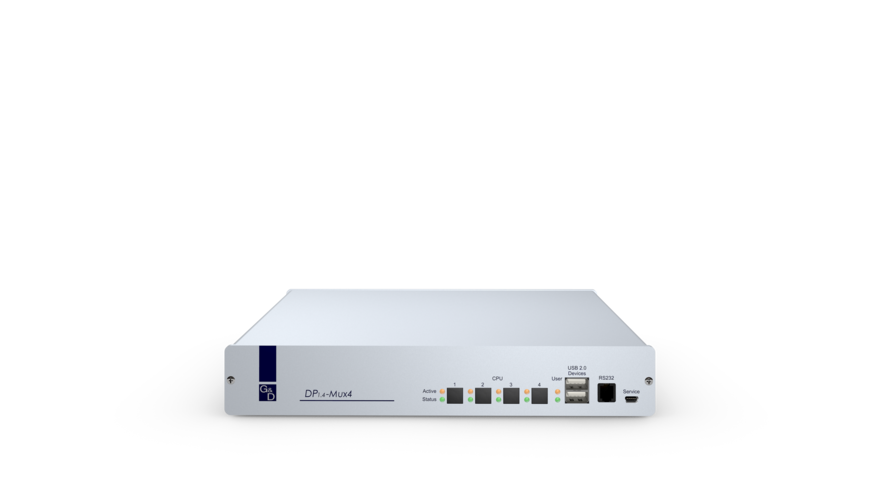

DP1.4-MUX4-USB

General	Product group	KVM switches
Product Family	DP1.4-MUX
Number of workstations	1
Number of sources	4
Input options	USB mouse	yes
USB keyboard	yes
PS/2 mouse	no
PS/2 keyboard	no
Video input	Quantity	4
Format	DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC))
Colour depth	24 bit
Pixel encoding	RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate ca.	25 MPixel/s to 1080 MPixel/s
Vertical frequency	20 Hz to 240 Hz
Horizontal frequency	25 kHz to 390 kHz
Exemplary resolutions	7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz)
General Notes	Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Supported industry standards	Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC)
Video output	Quantity	1
Format	DisplayPort 1.4 (LBR, HBR, HBR2, HBR3, SingleStream-Transport (SST), MultiStream-Transport (MST), Display Stream Compression (DSC))
Colour depth	24 bit
Pixel encoding	RGB 4:4:4 (24 bpp / 8 bpc)
Pixel rate ca.	25 MPixel/s to 1080 MPixel/s
Vertical frequency	20 Hz to 240 Hz
Horizontal frequency	25 kHz to 390 kHz
Exemplary resolutions	7680 × 4320 (30 Hz) 5120 × 2880 (60 Hz) 4096 × 2160 (60 Hz) 3840 × 2160 (120 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2560 × 1440 (240 Hz) 2560 × 1440 (144 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (240 Hz) 1920 × 1080 (60 Hz)
General Notes	Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Supported industry standards	Extended Display Identification Data (EDID) Display Data Channel Command Interface (DDC/CI) Display Data Channel (DDC)
Audio 1	Transmission type	Bidirectional Stereo
Resolutions	24 bit digital
Sampling rate	up to 96 kHz
Bandwidth	22 kHz
Audio support	Analog
Audio 2	Transmission type	LPCM (2/4/6/8 channels) Stereo
Resolutions	24 bit 20 bit 16 bit
Sampling rate	up to 32 kHz up to 44.1 kHz up to 48 kHz up to 88.2 kHz up to 96 kHz up to 176.4 kHz up to 192 kHz
Audio support	Digital Embedded
USB	Separate USB transmission port	no
Specification	USB 2.0
Transmission rate	max. 16 Mbit/s (Full Speed)
USB classes	All
Maintenance	Update via	Update Wizard (service interface)
Serviceport settings	115200bps (8/N/1)
Housing	Material	anodised aluminium
Width ca.	270 mm
Height ca.	44 mm
Depth ca.	210 mm
IP protection class	IP20
Weight ca.	1.41 kg
Operating conditions	Operating temperature	5 °C to 45 °C
Operating air humidity, non-condensing	20 % to 80 %
Area of application	Indoor use
Maximum operating altitude above sea level	3,048 m
Storage temperature	-20 °C to 60 °C
Storage air humidity, non-condensing	15 % to 85 %
MTBF	200,000 h at 25°C
Conformities	CE compliant (see downloads) UKCA compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads)
Power supply	Quantity	1
Type	Internal
Input voltage	100-240 VAC
Input frequency	60-50 Hz
Current consumption	0.3-0.2 A
Power consumption max.	12 W
Heat output max.	5 W
