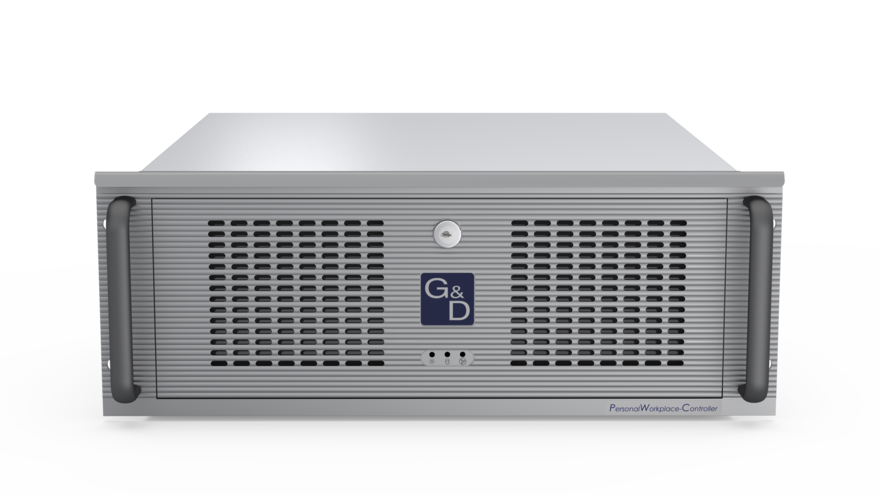

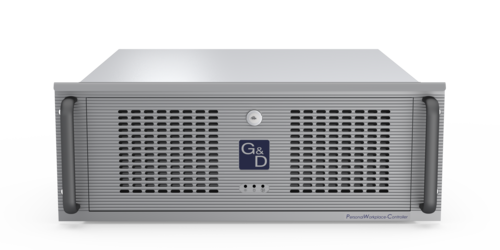

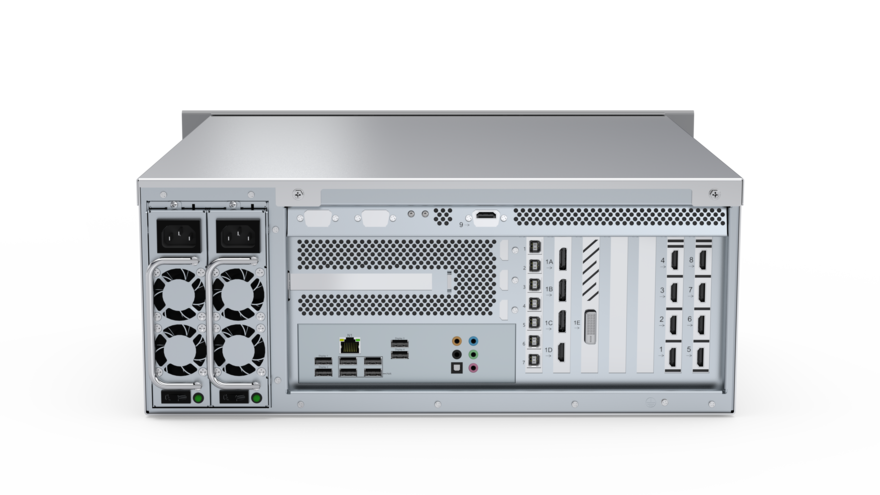

is a powerful independent multi-viewing tool with up to 27 physical video inputs, up to 5 video stream inputs and up to 6 video outputs as well as up to 2 video stream outputs. Physical video inputs, such as computers or KVM modules, are connected via standard interfaces, while video streams are integrated via the network. The device enables the simultaneous display of several sources on one or more monitors and, depending on the variant, their operation and output via video stream. The arrangement and size of the windows can be flexibly adjusted within the display area, enabling efficient and ergonomic workplace design with just one mouse and keyboard.
| General | Product group |
Video Processing |
|---|---|---|
| Number of sources |
9 | |
| Input options | USB mouse |
yes |
| USB keyboard |
yes | |
| Video input | Format |
HDMI 2.0 |
| Quantity |
1 | |
| Pixel rate |
ca. 16 MPixel/s to ca. 550 MPixel/s | |
| Exemplary resolutions |
3840 × 2160 (60 Hz) Refers to input 1. Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Video input 2 | Format |
HDMI 2.0 |
| Quantity |
3 | |
| Pixel rate |
ca. 16 MPixel/s to ca. 300 MPixel/s | |
| Exemplary resolutions |
1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 3840 × 2160 (30 Hz) 2560 × 1600 (60 Hz) Refers to input 2, 3, 4. Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Video input 3 | Format |
HDMI 2.0 |
| Quantity |
1 | |
| Pixel rate |
ca. 16 MPixel/s to ca. 165 MPixel/s | |
| Exemplary resolutions |
1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Refers to input 9. Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Video input 4 | Format |
Singlelink DVI |
| Quantity |
4 | |
| Pixel rate |
ca. 16 MPixel/s to ca. 165 MPixel/s | |
| Exemplary resolutions |
1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Refers to input 5, 6, 7, 8. Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Video output | Format |
HDMI 2.0 |
| Quantity |
1 | |
| Pixel rate |
up to ca. 600 MPixel/s | |
| Exemplary resolutions |
4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Video output 2 | Format |
DisplayPort 1.2 |
| Quantity |
3 | |
| Pixel rate |
up to ca. 600 MPixel/s | |
| Exemplary resolutions |
4096 × 2160 (60 Hz) 3840 × 2160 (60 Hz) 2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) 5120 × 1440 (60 Hz) 5120 × 2160 (50 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Video output 3 | Format |
DualLink DVI |
| Quantity |
1 | |
| Pixel rate |
up to ca. 330 MPixel/s | |
| Exemplary resolutions |
2560 × 1600 (60 Hz) 2048 × 2048 (60 Hz) 1920 × 1200 (60 Hz) 1920 × 1080 (60 Hz) Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency. | |
| Network | Medium 1 |
CAT5 CAT6 CAT7 |
| Data rate 1 |
1 GBit/s 100 MBit/s 10 MBit/s | |
| Maintenance | Update via |
WebIF (Network) |
| Housing | Material |
Steel sheet |
| Width |
ca. 483 mm | |
| Height |
ca. 177 mm | |
| Depth |
ca. 450 mm | |
| IP protection class |
IP20 | |
| Operating conditions | Operating temperature |
5 °C to 40 °C |
| Operating air humidity |
10 % to 80 %, non-condensing | |
| Area of application |
Interior | |
| Maximum operating altitude |
3000m above sea level | |
| Storage temperature |
-20 °C to 70 °C | |
| Storage air humidity |
10 % to 95 %, non-condensing | |
| MTBF |
38900 h at 25°C | |
| Conformities |
CE compliant (see downloads) UKCA compliant (see downloads) UL compliant (see downloads) CB compliant (see downloads) FCC compliant (see manual) TAA compliant (see downloads) EAC compliant (see downloads) RoHS compliant (see downloads) WEEE (reg. no. DE30763240) REACH compliant (see downloads) | |
| Power supply | Input voltage |
90-264 VAC |
| Input frequency |
47-63 Hz | |
| Current consumption |
5-2.5 A | |
| Power supply 2 | Input voltage |
90-264 VAC |
| Input frequency |
47-63 Hz | |
| Current consumption |
5-2.5 A |
