PersonalWorkplace-Controller Pro KVM

Item no. A4000024
Back to last view
EOL
discontinued
discontinued
HDMI 2.0Displayport™ 1.2Dual-Link DVI4K / UHDUncompressedRedundant power supplyInternal power supply Network connection (including monitoring)Local workspace
Multiviewing tool with high operating focus and 18 video inputs (incl. 2x UHD60, 6x UHD30), as well as up to 5 video outputs.
ask for alternative
Add to watchlistCompare productQuestions about the product?
Learn more
Close
The form could not be loaded.

The PersonalWorkplace-Controller

is a powerful independent multi-viewing tool with up to 27 physical video inputs, up to 5 video stream inputs and up to 6 video outputs as well as up to 2 video stream outputs. Physical video inputs, such as computers or KVM modules, are connected via standard interfaces, while video streams are integrated via the network. The device enables the simultaneous display of several sources on one or more monitors and, depending on the variant, their operation and output via video stream. The arrangement and size of the windows can be flexibly adjusted within the display area, enabling efficient and ergonomic workplace design with just one mouse and keyboard.

Video
  • Includes two output licenses for operation in standard or dynamic mode
  • Can be expanded with additional output licenses
  • Default mode (legacy mode)
    • In legacy mode, a maximum of 8MP in 16:9 or 16:10 aspect ratio can be used on virtual or physical output devices with one license
    • Any number of physical and/or virtual outputs can be operated as long as they are in the activated MP range.
    • Example with an 8MP licence:
      1 x 3840 × 2160 @ 60 Hz or 4 x 1920 × 1080 @ 60 Hz
  • Dynamic mode
    • In dynamic mode, an 8 MP license is required for each connected monitor/display – regardless of the actual pixel grid used with the monitor/display. A virtual monitor and a mirrored display (mirror mode) also require an individual license.
    • One of the advantages of the dynamic mode is that you can use each video output at full bandwidth.
    • Instead of the pre-defined resolution (as in legacy mode), the “real” EDID resolutions of the connected monitors are used in this case.
    • This way, you can also use modern resolutions such as 5120 × 1440 @ 60 Hz, for example.
  • Supported resolutions
    • 5120 × 1440 @ 60 Hz (only in dynamic mode)
    • 3840 × 2160 @ 60 Hz
    • 2560 × 1600 @ 60 Hz
    • 2560 × 1440 @ 60 Hz
    • 2048 × 2048 @ 60 Hz (only in dynamic mode)
    • 1920 × 1200 @ 60 Hz
    • 1920 × 1080 @ 60 Hz
  • Further resolutions possible in dynamic mode
  • Supported streaming protocols:
    • RTSP
    • RTSP HEVC
    • WebRTC
    • NDI
    • YouTube
  • Supports mirroring for monitor or stream projections (display license required)

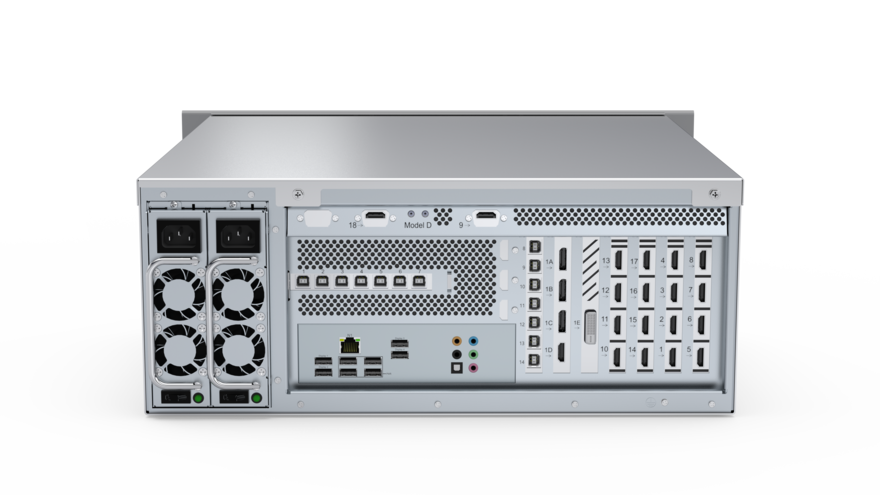

Signals
  • 18 HDMI video inputs
  • 5 video outputs
    available video interfaces: 3 × DisplayPort 1.2, 1 × HDMI 2.0, 1 × DualLink DVI
  • 14 USB-B ports for keyboard and mouse access
  • Network connection
Device
  • Internal power pack for main power supply
  • Redundant power supply
Operation
  • Different layouts can be saved and recalled.
  • Full integration of KVM functionalities
  • Configuration and administration via on-screen display or API remote control
  • For use by up to 4 operators
  • Full integration of KVM functionalities
Operation features
  • Inputs can be overlapped, scaled and positioned freely
  • The positions of the inputs can be exchanged among each other
System expansion
  • Each additional display license allows you to connect one more output monitor or use an additional virtual output
    • Limitation of the Standard variant: Additional license can be used for only one mirror
GeneralProduct group Video processing
Product Family PersonalWorkplace-Controller
Number of sources 18
Power Supply Redundancy with load balancing
Input optionsUSB mouse yes
USB keyboard yes
Video input 1Quantity 2
Format HDMI 2.0
Pixel rate ca. 16 MPixel/s to 550 MPixel/s
Exemplary resolutions 3840 × 2160 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Related to Inputs 1
10
Video input 2Quantity 6
Format HDMI 2.0
Pixel rate ca. 16 MPixel/s to 300 MPixel/s
Exemplary resolutions 1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
3840 × 2160 (30 Hz)
2560 × 1600 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Related to Inputs 2
3
4
11
12
13
Video input 3Quantity 2
Format HDMI 2.0
Pixel rate ca. 16 MPixel/s to 165 MPixel/s
Exemplary resolutions 1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Related to Inputs 9
18
Video input 4Quantity 8
Format HDMI 2.0 (DVI)
Pixel rate ca. 16 MPixel/s to 165 MPixel/s
Exemplary resolutions 1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Related to Inputs 5
6
7
8
14
15
16
17
Video output 1Quantity 1
Format HDMI 2.0
Pixel rate ca. 0 MPixel/s to 600 MPixel/s
Exemplary resolutions 4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Video output 2Quantity 3
Format DisplayPort 1.2
Pixel rate ca. 0 MPixel/s to 600 MPixel/s
Exemplary resolutions 4096 × 2160 (60 Hz)
3840 × 2160 (60 Hz)
2560 × 1600 (60 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
5120 × 1440 (60 Hz)
5120 × 2160 (50 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
Video output 3Quantity 1
Format DualLink DVI
Pixel rate ca. 0 MPixel/s to 330 MPixel/s
Exemplary resolutions 2560 × 1600 (60 Hz)
2048 × 2048 (60 Hz)
1920 × 1200 (60 Hz)
1920 × 1080 (60 Hz)
General Notes Further VESA and CTA standardised resolutions possible within pixel rate and horizontal/vertical frequency.
NetworkQuantity 1
Medium CAT5
CAT6
CAT7
Data rate 1 Gbit/s
100 Mbit/s
10 Mbit/s
MaintenanceUpdate via WebIF (Network)
HousingMaterial Steel sheet
Width ca. 483 mm
Height ca. 177 mm
Depth ca. 450 mm
IP protection class IP20
Operating conditionsOperating temperature 5 °C to 40 °C
Operating air humidity, non-condensing 10 % to 80 %
Area of application Indoor use
Maximum operating altitude above sea level 3,000 m
Storage temperature -20 °C to 70 °C
Storage air humidity, non-condensing 10 % to 95 %
MTBF 38,900 h at 25°C
Conformities CE compliant (see downloads)
UKCA compliant (see downloads)
UL compliant (see downloads)
CB compliant (see downloads)
FCC compliant (see manual)
TAA compliant (see downloads)
EAC compliant (see downloads)
RoHS compliant (see downloads)
WEEE (reg. no. DE30763240)
REACH compliant (see downloads)
Power supplyQuantity 2
Type Internal
Input voltage 90-264 VAC
Input frequency 47-63 Hz
Current consumption 5-2.5 A
